CystiAgent_Public

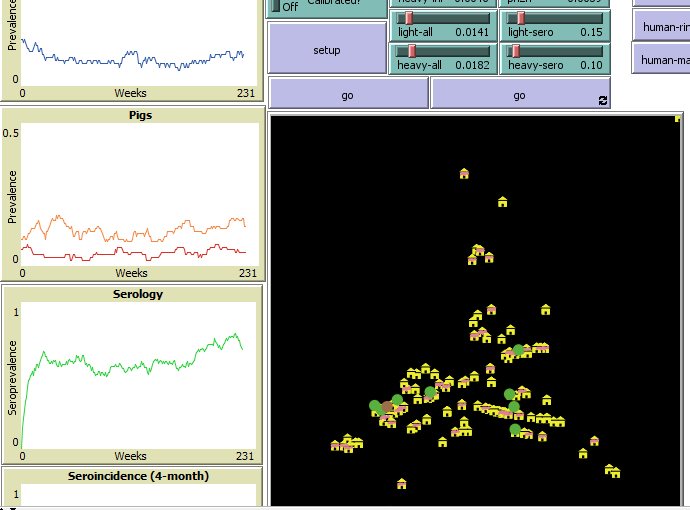

CystiAgent_Public preview image

1 collaborator

Default-person Ian Pray (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.1.1 • Viewed 188 times • Downloaded 13 times • Run 0 times
Download the 'CystiAgent_Public' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;;;;;CystiAgent Model;;;;;;;

;;;;PRIMING;;;;

extensions [gis]

globals [
  ;;; PARAMETER VARIABLES;;;

  ;;Village characteristics;;
  prop-pig-owners                                ;P0.1: Proportion of households that raise pigs
  prop-corrals                                   ;P0.2: Proportion of pig-owning households with corrals (or tie-up areas)
  prop-latrines                                  ;P0.3: Proportion of households with a latrine or bathroom
  humans-per-household                           ;P0.4: POISSON mean for number of humans per household
  pigs-per-household                             ;P0.5: EXPONENTIAL mean for number of pigs per household
  baseline-tn-prev                               ;P0.6: Baseline prevalence of taeniasis
  baseline-light-infection                       ;P0.7: Baseline prevalence of light cyst infection
  baseline-heavy-infection                       ;P0.8: Baseline prevalence of heavy cyst infection

  ;;Pig slaughter age;;
  slaughter-age-mean                             ;P1.1: Log-mean of pig age at slaughter (in months)
  slaughter-age-sd                               ;P1.1: Log-SD of pig age at slaughter (in months)

  ;;Human travel;;
  traveler-prop                                  ;P2.1: Proportion of households with a frequent traveler
  travel-freq                                    ;P2.2: Frequency of trips among traveler households (departure for a trip every X weeks)
  travel-duration                                ;P2.3: Mean (ENTER DISTRIBUTION) duration of trips
  travel-incidence                               ;P2.4: Incidence of tapeworm infection for traveling humans (to other endemic areas)

  ;;Tapeworm lifespan;;
  tn-incubation                                  ;P3.2: Tapeworm incubation time (weeks)
  tn-lifespan-mean                               ;P3.1: Tapeworm infection duration (mean)
  tn-lifespan-sd                                 ;P3.1: Tapeworm infection duration (sd)

  ;;Environmental contamination;;
  latrine-use                                    ;P4.1: Proportion of households with a latrine for which the latrine is in GOOD condition and ALWAYS used
  cont-radius-mean                               ;P4.2: Log-mean of the radius of contamination around tapeworm carrier house
  cont-radius-sd                                 ;P4.2: Log-SD of the radius of contamination around tapeworm carrier house

  ;;Environmental egg decay;;
  decay-mean                                     ;P5.1: Environmental egg decay rate parameter (probably of decay per week)

  ;;Pig roaming and corral use;;
  corral-always                                  ;P6.1: Corral-use (proportion ALWAYS) among pig-owners with corrals
  corral-sometimes                               ;P6.1: Corral-use (proportion SOMETIMES) among pig-owners with corrals
  prop-corral-sometimes                          ;P6.2: Proportion of pigs that are corraled among households household that SOMETIMES use corral
  home-range-mean                                ;P6.3: Home range radius (mean)
  home-range-sd                                  ;P6.3: Home range radius (sd)

  ;;Sale and distribution of pork;;
  pigs-sold                                      ;P7.1: Proportion of pigs that are sold prior to slaughter
  pigs-exported                                  ;P7.2: Proportion of sold pigs that are exported
  pig-import-rate                                ;P7.3: Rate of import of pigs from external communities
  import-prev                                    ;P7.4: Prevalence of infection among pigs imported from external communities
  light-to-heavy-prop                            ;P7.5: Proportion of infected imported pigs that are lightly infected (compared to heavy)
  hh-only-pork                                   ;P7.6-a: Proportion of pigs for which all meat consumed exclusively by pig-owner households
  sold-pork                                      ;P7.6-b: Proportion of pigs for which all meat was sold within the village (none consumed at home)
  shared-pork-dist                               ;P7.7: (NOT ACTIVE) Number of households a pig is divided between when slaughtered for sale
  shared-pork-hh                                 ;P7.8: Proportion of shared pork that is consumed by the pig-owner's household

  ;;;SPATIAL VARIABLES;;;
  household-dataset                              ;Shapefile specifying household coordinates in village
  data-location                                  ;File-path of shapefile for households coordinates
  roads-dataset                                  ;Shapefile of roads (if available)
  rivers-dataset                                 ;Shapefile of rivers (if available)
  scale                                          ;(Auto-generated variable) Transformation constant of meters to pixels in patch-environment
  hor                                            ;Width (in patches) of environment
  ver                                            ;Length (in patches) of environment

  ;;;MONITORS - ROUTINE;;;
  num-households                                 ;(Auto-generated variables) number of households in the environment
  total-pig-owners                               ;(Auto-generated variables) number of pig-owning households

  ;;;MONITORS - SEROINCIDENCE (PIGS);;;
  week-counter                                  ;(Auto-generated variable) counting weeks of exposure for 4-month incidence window in pigs
  seroconversions                               ;Counts the number of seronegative pigs that become seropositive during 4-month incidence window
  seroeligible                                  ;Counts the number of pigs that are seronegative at the beginning of the 4-month incidence window and pigs born into the population
  seroincidence                                 ;Calculation of seroconversions / seroeligible


 ;;;INTERVENTION SETTINGS;;;

  ;;General - human;;
  elisa-sens                                     ;Sensitivity of the ELISA copro-antigen assay for taeniasis screening
  treat1-eff                                     ;Efficacy of single-dose treatment for human taeniasis
  treat2-eff                                     ;Efficacy of two-dose treatment for human taeniasis
  screen-trt-eff                                 ;Efficacy of follow-to-cure treatment of human taeniasis after stool screening
  screen-trt-part                                ;Participation in treatment for human taeniasis AFTER a positive stool screening
  treat1-part                                    ;Proportion of humans that receive 1 dose of treatment for taeniasis
  treat2-part                                    ;Proportion of humans that receive 2 doses of treatment for taeniasis
  treat-mass-part                                ;Proportion of humans that participate in mass treatment
  screen-part                                    ;Proportion of humans that participate in stool screening for taeniasis

  ;;General - pigs;;
  age-eligible                                   ;Age at which pigs are eligible to participate in interventions
  treat-part-p                                   ;Proportion of pigs that receive treatment for porcine cysticercosis
  oxf-protection                                 ;Length of time infected pigs are protected from cyst infection after treatment with oxfendazole
  vacc-part                                      ;Proportion of pigs that participation in vaccination with TSOL18
  vacc-eff                                       ;Efficacy of TSOL18 vaccine for porcine cysticercosis (after 2 doses)
  saca-part                                      ;Proportion of pigs that are purchased and slaughtered in a community-wide necropsy ("saca")

  ;;Ring Strategy;;
  ring-size                                     ;Radius (in meters) of intervention rings after screening a tongue-positive pig (RING STRATEGY ONLY)
  tongue-part                                   ;Proportion of pigs screened with tongue inspection (RING STRATEGY ONLY)
  tongue-sens                                   ;Sensitivity (probability) of detecting a heavily infected pig with tongue inspection (RING STRATEGY ONLY)
  tongue-fp                                     ;False positive rate during tongue inspection (proportion on uninfected pigs with positive test) (RING STRATEGY ONLY) ;
  treat-final-part                              ;Proportion of humans that participate in a single round of mass treatment at the end of the study
]


;;;AGENTS;;;

breed [                                         ;INACTIVE: only for visualization of corrals
  corral2s corral2]

breed [
  humans human]

breed [
  pigs pig]

breed [                                         ;A slaughtered pig is divided into "carne" to be distributed within and between households
  carnes carne]

breed [                                         ;Tapeworm carriers contaminate the environment with "eggs" (not intended to represent a single biological egg, but the presence of eggs)
  eggs egg]

patches-own [
  ;;ENVIRONMENTAL VARIABLES;;
  household                                     ;FIXED, BINARY: Is the patch a household?
  pig-owner                                     ;FIXED, BINARY: Does the household raise pigs?
  corral                                        ;FIXED, BINARY: Does the pig-owning house have a pig corral?
  corraluse                                     ;FIXED, ORDINAL: What is the frequency of corral-use at that household (always, sometimes, never)?
  latrine                                       ;FIXED, BINARY: Does the household own a latrine?
  latrineusers                                  ;FIXED, BINARY: Do the household members always use the latrine?
  light-infected-pork-meal                      ;DYNAMIC: Did the household consume a light-infected pork meal this week?
  heavy-infected-pork-meal                      ;DYNAMIC: Did the household consume a light-infected pork meal this week?
  travelerhh                                    ;FIXED, BINARY: Does a member of the household regularly travel to other endemic areas?
  cont-radius-hh                                ;FIXED, CONTINUOUS: Distance from a household that environmental contamination is deposited (random angle)
]

humans-own [
  ;;HUMAN VARIABLES;;

  ;General;
  home-x                                        ;FIXED: X-coordinate of household location on grid
  home-y                                        ;FIXED: Y-coordinate of household location on grid
  latrine-user                                  ;FIXED, BINARY: Does the person belong to a latrine-using household?

  ;Infection status;
  tapeworm                                      ;DYNAMIC, BINARY: Is the person infected with a tapeworm?
  infection-duration                            ;DYNAMIC, DISCRETE: Pre-determined duration of tapeworm infection (new value randomly generated for every new infection)
  mature-tn                                     ;DYNAMIC: If the person is a tapeworm carrier, is the tapeworm mature (producing eggs/proglottids)?
  tn-released                                   ;DYNAMIC, BINARY: If the person has a mature tapeworm infection and does not use latrines, was the egg/proglottid released into the environment?
  time-since-infection                          ;DYNAMIC, DISCRETE: How many weeks since tapeworm infection occured (auto-generated counter)

  ;Travel-related;
  traveler                                      ;FIXED: Is the person a regular traveler to other endemic areas?
  travel-ticker                                 ;DYNAMIC: Automatic counter that determines time until the next trip to endemic areas (for travelers)
  traveling                                     ;DYNAMIC: Is the person travel outside of the village this week?
  travel-time                                   ;DYNAMIC: Amount of time this traveler will be out of the village on the current trip

  ;Interventions;
  screen-pos                                    ;INTERVENTIONS: Was this person screened positive for taeniasis?
  eligible                                      ;INTERVENTIONS: Is this person eligible for screening/treatment based on presence in a ring (RING STRATEGY ONLY)
]

pigs-own [
  ;;PIG VARIABLES;;

  ;Infection status;
  susceptible                                  ;DYNAMIC, BINARY: Is the pig susceptible to infection (not infected or resistant)?
  light-exp                                    ;DYNAMIC, BINARY: Was the pig exposed to eggs (light contamination) in the environment this week?
  heavy-exp                                    ;DYNAMIC, BINARY: Was the pig exposed to proglottids (heavy contamination) in the environment this week?
  heavy-infected                               ;DYNAMIC, BINARY: Is the pig heavily infected with cysts (>100 cysts)?
  light-infected                               ;DYNAMIC, BINARY: Is the pig lightly infected with cysts (<100 cysts)?
  seropositive                                 ;DYNAMIC, BINARY: Is the pig positive on a serological test (EITB)?

  ;General;
  home-x                                       ;FIXED: X-coordinate of the pig's household on grid
  home-y                                       ;FIXED: Y-coordinate of the pig's household on grid
  corraled                                     ;FIXED, ORDINAL: How frequently is the pig corraled (ALWAYS, SOMETIMES, NEVER)
  home-range                                   ;FIXED, CONTINUOUS: If the pig is free-roaming, what is the radius (in meters) of the pig's roaming area (home-range)?
  age                                          ;DYNAMIC, DISCRETE: Current age of the pig (in weeks)
  slaughter-age                                ;FIXED, DISCRETE: Pre-determined age (in weeks) at which pig will be slaughtered
  marked-for-slaughter                         ;DYNAMIC, BINARY: Is the pig due for slaughter this week (reached slaughter-age)?

  ;Interventions;
  eligible                                     ;INTERVENTIONS: Is the pig eligible for treatment based on precense in a ring (RING STRATEGY ONLY)
  protected                                    ;INTERVENTIONS: Is the pig protected from future infection because it received vaccination and/or OFZ treatment while infected
  protected-time                               ;INTERVENTIONS: Amount of time remaining that pig is protected from infection (automatic counter)
  vacc-dose                                    ;INTERVENTIONS: Number of vaccine doses received
  vaccinated                                   ;INTERVENTIONS: Did the pig receive the full vaccine dose and full protection?
]

carnes-own[
  light-infected                               ;BINARY: Is pork meat lightly infected?
  heavy-infected                               ;BINARY: Is pork meat heavily infected?
  hh                                           ;BINARY: Is pork meat consumed by the current household or sold/donated to a different household in the village?
]

eggs-own[
  id                                           ;DISCRETE: Auto-generated index of the human that released the egg
  proglottid                                   ;BINARY: Is this a proglottid (heavy contamination)?
  ova                                          ;BINARY: Is this eggs (light contamination)?
  cont-radius-egg                              ;DISCRETE: Distance radius from the household that the contamination may appear within
  time-since-infection                         ;DISCRETE: Number of weeks since the human tapeworm carrier was infected (automatic counter, mirrors human counter)
  infection-duration                           ;DISCRETE: Total number of weeks the human tapeworm infection will last (mirrors human variable)
  traveling-human                              ;BINARY: Is the human that produced the egg currently traveling (mirrors human variable)
]

;;;;WORLD SETUP;;;;

to setup
  clear-all
  setup-villages
  resize-world (- hor) hor (- ver) ver        ;Changes the dimensions of the world if specified for a particular village
  setup-patches
  ifelse Households = "Random"                               ;ADDED option to allow for model processing without access to SHAPEFILES
    [ask n-of 100 patches [set household true]
     set calibrated? false]
    [draw-gis-layers]
  setup-globals
  setup-pigs
  setup-humans
  reset-ticks
end

to setup-villages
    set data-location "CystiAgentTestData.shp"
    set hor 180
    set ver 200
end

to setup-patches
  ask patches [
    set household false
    set latrine false
    set latrineusers false
    set corral false
    set light-infected-pork-meal 0
    set heavy-infected-pork-meal 0
    set travelerhh false
    set cont-radius-hh false]
end

to draw-gis-layers
  set household-dataset gis:load-dataset data-location
  gis:set-transformation (gis:envelope-of household-dataset) (list (min-pxcor + 50) (max-pxcor - 50) (min-pycor + 50) (max-pycor - 50))
  foreach gis:feature-list-of household-dataset [ vector-feature ->
    let location gis:location-of (first(first(gis:vertex-lists-of vector-feature)))
    if not empty? location [
      ask patch item 0 location item 1 location [
        set household true]]]

;;If roads or rivers layers are available, they can be drawn in with this, but are not converted into patch variables

;set roads-dataset gis:load-dataset "C:/Users/pray/Documents/PhD Dissertation/NetLogoShapefiles/TTEMP_Roads_proj.shp"
;  foreach gis:feature-list-of roads-dataset [ vector-feature ->
;    gis:set-drawing-color gray
;    gis:draw vector-feature 2.0]
;
;  set rivers-dataset gis:load-dataset "C:/Users/pray/Documents/PhD Dissertation/NetLogoShapefiles/TTEMP_Rivers_proj.shp"
;  foreach gis:feature-list-of rivers-dataset [ vector-feature ->
;    gis:set-drawing-color 96
;    gis:draw vector-feature 2.0]
end

to setup-globals
;;CALIBRATED TUNING VARIABLES;;
if calibrated? = true [
  set light-inf 0.0163                                              ;Tuning paramter (via calibration): Probability of light pig infection upon egg consumption
  set heavy-inf 0.0046                                               ;Tuning paramter (via calibration): Probability of heavy pig infection upon proglottid consumption
  set pl2h 0.0074                                                    ;Tuning paramter (via calibration): Probability of human taeniasis upon lightly inf. pork consumption
  set ph2h 0.0059                                                    ;Tuning paramter (via calibration): Probability of human taeniasis upon heavily inf. pork consumption
  set light-all 0.0141                                               ;Tuning paramter (via calibration): Probability of light pig infection for all pigs
  set heavy-all 0.0182                                               ;Tuning paramter (via calibration): Probability of heavy pig infection for all pigs
  set light-sero 0.15                                                ;Tuning paramter (via calibration): Probability of seropositivity after light exposure
  set heavy-sero 0.1]                                                 ;Tuning paramter (via calibration): Probability of seropositivity after heavy exposure

;;MODEL PARAMETERS;;
  set prop-pig-owners 0.39                                            ;(specified by village) P0.1: Proportion of households that raise pigs
  set prop-corrals 0.37                                               ;(specified by village) P0.2: Proportion of pig-owning households with corrals (or tie-up areas)
  set prop-latrines 0.78                                              ;(specified by village) P0.3: Proportion of households that have a latrine or bathroom
  set humans-per-household 3.86                                       ;(specified by village) P0.4: POISSON mean for number of humans per household
  set pigs-per-household 2.16                                         ;(specified by village) P0.5: EXPONENTIAL mean for number of pigs per household
  set baseline-tn-prev 0.0293                                         ;(specified by village) P0.6: Baseline prevalence of taeniasis
  set baseline-light-infection 0.1648                                 ;(specified by village) P0.7: Baseline prevalence of light cyst infection
  set baseline-heavy-infection 0.0674                                 ;(specified by village) P0.8: Baseline prevalence of heavy cyst infection

  set slaughter-age-mean 2.279                                        ;P1.1: Log-mean pig age at slaughter (in months, will be later converted to weeks)
  set slaughter-age-sd 0.515                                          ;P1.1: Log-SD of pig age at slaughter (in months)

  set traveler-prop 0.423                                             ;P2.1: Proportion of households with a frequent traveler
  set travel-freq 8                                                   ;P2.2: Frequency of trips among traveler households (departure for a trip every X weeks)
  set travel-duration 1.75                                            ;P2.3: Mean (ENTER DISTRIBUTION) duration of trips
  set travel-incidence 0.000231                                       ;P2.4: Incidence of taeniasis among humans traveling to other endemic areas

  set tn-lifespan-mean 104                                            ;P3.1: Tapeworm infection duration (mean)
  set tn-lifespan-sd 50                                               ;P3.1: Tapeworm infection duration (sd)
  set tn-incubation 8                                                 ;P3.2: Tapeworm incubation time

  set latrine-use 0.25                                                ;P4.1: Proportion of households with a latrine in GOOD condition that they ALWAYS use
  set cont-radius-mean 3.27                                           ;P4.2: Log-mean of the radius of contamination around tapeworm carrier house
  set cont-radius-sd 0.547                                            ;P4.2: Log-SD of the radius of contamination around tapeworm carrier house

  set decay-mean 0.125                                                ;P5.1: Environmental egg decay rate parameter (probably of decay per week)

  set corral-always 0.05                                              ;P6.1: Corral-use (proportion ALWAYS) among pig-owners with corrals
  set corral-sometimes 0.57                                           ;P6.1: Corral-use (proportion SOMETIMES) among pig-owners with corrals
  set prop-corral-sometimes 0.32                                      ;P6.2: Proportion of pigs that are corraled among households household that SOMETIMES use corral
  set home-range-mean 3.79                                            ;P6.3: Home range radius (mean)
  set home-range-sd 0.552                                             ;P6.3: Home range radius (sd)

  set pigs-sold 0.514                                                 ;P7.1: Proportion of pigs that are sold prior to slaughter
  set pigs-exported 0.731                                             ;P7.2: Proportion of sold pigs that are exported
  set pig-import-rate 0.00105                                         ;P7.3: Rate of import of pigs from external communities
  set import-prev 0.134                                               ;P7.4: Prevalence of infection among pigs imported from external communities
  set light-to-heavy-prop 0.755                                       ;P7.5: Proportion of infected imported pigs that are lightly infected (compared to heavy)
  set hh-only-pork 0.396                                              ;P7.6-a: Proportion of pigs for which all meat consumed exclusively by pig-owner households
  set sold-pork 0.115                                                 ;P7.6-b: Proportion of pigs for which all meat was sold within the village (none consumed at home)
  set shared-pork-dist 0                                              ;P7.7: Number of households a pig is divided between when slaughtered for sale (NOT ACTIVE)
  set shared-pork-hh 0.80                                             ;P7.8: Proportion of shared pork that is consumed by the pig-owner's household

  set scale (item 1 gis:world-envelope - item 0 gis:world-envelope) / (max-pxcor * 2)    ;Determines meters to cells conversion
  set num-households count patches with [household = true]                               ;Count number of households for future calculations
  set total-pig-owners round ((prop-pig-owners) * num-households)                        ;Calculate total pig-owning households

;;INTERVENTION SETTINGS;;

  ;General - human;
  set screen-part 0.75
  set elisa-sens 0.964
  set screen-trt-part 0.918
  set screen-trt-eff 0.933
  set treat1-part 0.15
  set treat2-part 0.70
  set treat1-eff 0.766
  set treat2-eff 0.866
  set treat-mass-part 0.78
  set treat-final-part 0.736

  ;General - pig;
  set age-eligible 10
  set treat-part-p 0.60
  set oxf-protection 17
  set vacc-part 0.7
  set vacc-eff 0.99
  set saca-part 0.482

  ;Ring Strategy;
  set ring-size 100
  set tongue-part 0.72
  set tongue-sens 0.909
  set tongue-fp 0.021
end

to setup-pigs
  ask n-of total-pig-owners patches with [household = true]                                                                       ;Set pig-owning households
    [set pig-owner true]
  ask n-of (round((prop-corrals) * count patches with [pig-owner = true])) patches with [pig-owner = true]                        ;Set pig-owning households with corrals
    [set corral true]
  ask patches with [pig-owner = true]                                                                                             ;Set household corral-use (always, sometimes, never) among pig-owners with corrals
    [set corraluse "never"]
  ask n-of (round((corral-always) * count patches with [corral = true])) patches with [corral = true]
    [set corraluse "always"]
  ask n-of (round((corral-sometimes) * count patches with [corral = true])) patches with [corral = true and corraluse = "never"]
    [set corraluse "sometimes"]
  ask patches [
     if pig-owner = true [
      sprout-pigs ceiling random-exponential pigs-per-household [                                             ;Populate pig-owning households with pigs
        set shape "pig"
        set color pink
        set size 10]]]
    ;if corral = true [                                                                                       ;Create object (turtle) to display corrals (INACTIVE)
     ;   sprout-corral2s 1 [
      ;  set shape "square 2"
       ; set size 20
        ;if corraluse = "always" [set color green]
        ;if corraluse = "sometimes" [set color yellow]
        ;if corraluse = "never" [set color red]]]]
  ask pigs [                                                                                                  ;Set initial variables for pigs
    set susceptible true
    set light-exp false
    set heavy-exp false
    set seropositive false
    set heavy-infected false
    set light-infected false
    set marked-for-slaughter false
    set eligible false
    set protected false
    set protected-time 0
    set vacc-dose 0
    set vaccinated false
    set corraled "never"
    set home-x xcor
    set home-y ycor
    if [corraluse] of patch-here = "always"                                                                   ;Assign corral usage for pigs based on household corral practice
      [set corraled "always"]
    if [corraluse] of patch-here = "sometimes"
       [set corraled "sometimes"]
    set slaughter-age round(4.35 * (exp(random-normal slaughter-age-mean slaughter-age-sd)))                  ;Set age at which each pig will be slaughteed (in weeks, 4.35 weeks per month)
    set home-range (exp(random-normal home-range-mean home-range-sd))                                         ;Set the radius of each pigs home-range areae
    set age (slaughter-age - random slaughter-age)                                                            ;Randomly assign starting age for first batch of pigs
    if random-float 1 < baseline-heavy-infection [heavy-infect]                                               ;Infect pigs at baseline (heavy)
    if (not heavy-infected) and (random-float 1 < baseline-light-infection) [light-infect]]                   ;Infect pigs at baseline (light)
  ;set total-pigs count pigs                                                                                  ;Count pigs at baseline (for INCIDENCE calculation - SENSITIVITY ANALYSIS)
end

to setup-humans
  ask patches [
    if household [
      let x random-poisson humans-per-household                                                               ;Assign humans to household (no zeros allowed)
      ifelse x > 0
        [sprout-humans x [
          set shape "house"
          set size 10
          set color yellow
          move-to patch-here]]
        [sprout-humans 1 [
          set shape "house"
          set size 10
          set color yellow
          move-to patch-here]]
      set cont-radius-hh (exp(random-normal cont-radius-mean cont-radius-sd))]]                              ;Set radius of environmental contamination for each household
  ask n-of (prop-latrines * num-households) patches with [household = true]                                  ;Assign latrines to households
    [set latrine true]
  ask n-of (latrine-use * count patches with [latrine = true]) patches with [latrine = true]                 ;Assign latrine use (BINARY) to households with latrines
    [set latrineusers true]
  ask n-of (traveler-prop * num-households) patches with [household = true]                                  ;Assign households as travelers (BINARY)
    [set travelerhh true]
  ask humans [                                                                                               ;Set initial variables for humans
    set latrine-user false
    set tapeworm false
    set traveling false
    set traveler false
    set time-since-infection 0
    set infection-duration 0
    set travel-time 0
    set mature-tn false
    set tn-released false
    set screen-pos false
    set eligible false
    set home-x xcor
    set home-y ycor
    if latrineusers = true [                                                                                ;Assign latrine use of household to individuals
      set latrine-user true]
    if random-float 1 < baseline-tn-prev [                                                                  ;Infect humans with taeniasis at baseline
      infect-humans-baseline]]
ask patches with [travelerhh = true][                                                                       ;Assign one person per traveling household to be a traveler
  ask one-of humans-here [
    set traveler true
    set travel-ticker random (travel-freq + 1)]]                                                           ;Begin timer to countdown the weeks until the next trip
;set num-humans count humans                                                                               ;Count number of human at baseline (for INCIDENCE calculation - SENSITIVITY ANALYSIS)
end

to infect-humans-baseline                                                                                 ;Infect humans at baseline
  set tapeworm true
  let x random-normal tn-lifespan-mean tn-lifespan-sd                                                     ;Set predetermined duration of tapeworm infection (0-truncated)
    ifelse x < 0
      [set infection-duration 0]
      [set infection-duration round x]
  let y random infection-duration                                                                         ;Randomly assign time-since-infection to a starting value
  set time-since-infection (infection-duration - y)
  if time-since-infection >= tn-incubation [                                                              ;Set tapeworm maturity
    set mature-tn true]
   ;set size 20 set color blue]                                                                           ;OPTIONAL: change color for tapeworm carriers
  if tapeworm = true and mature-tn = true and latrine-user = false [                                      ;Contamination only occurs in households with mature tapeworm carriers not using latrines
    set tn-released true
    hatch-eggs 1 [                                                                                        ;Set characteristics of environmental contamination
      set id [who] of myself                                                                              ;Adopt index of human that produced egg/proglottid
      set proglottid true                                                                                 ;Both egg and proglottid (meaning it can cause heavy or light infection)
      set ova true
      set traveling-human false                                                                           ;Human cannot be traveling yet (baseline infection)
      set cont-radius-egg cont-radius-hh
      move-to one-of patches in-radius (cont-radius-egg / scale)                                          ;Place egg/proglottid on any patch within the contamination radius
      set size 10
      set shape "circle"
      set color green
      ifelse x < 0                                                                                        ;Set same infection duration and time-since infection as specified for human (mirror)
        [set infection-duration 0]
        [set infection-duration round x]
      set time-since-infection (infection-duration - y)]]
end


;;;;RUN;;;;

to go
  ask humans [advance-infection]
  ask eggs [eggs-advance]
  ask humans [return-home-humans]
  ask humans [travel]
  ask pigs [reset-exposure]
  ask pigs [mark-for-slaughter]
  ask pigs [birth-pigs]
  ask pigs [distribute-pigs]
  ask pigs [import-pigs]
  ask pigs [slaughter-pigs]
  ask carnes [distribute-pork]
  ask carnes [die]
  ask humans [eat-pork]
  ask humans [infect-travelers]
  ask pigs [slaughter]
  ask pigs [eat-eggs]
  ask pigs [seroconvert]
  ask pigs [infect-pigs]
  ask pigs [set age age + 1]
  ask humans [mature-infection]
  ask humans [tapeworm-die]
  ask eggs [environmental-decay]
  ask eggs [stop-contaminating]
  ask humans [clear-pork-meals]
  ask pigs [advance-protection]
  ;ask pigs [assign-color-pigs]                                                     ;OPTIONAL: if changing color for infection status
  ;set count-cyst count-heavy + count-light                                         ;Add up incident pig infection (for INCIDENCE calculation - SENSITIVITY ANALYSIS)
  ;recorder                                                                         ;Initiates script to record prevalence at given time-points (for CALIBRATION)
  track-incidence                                                                  ;Initiates script to record pig sero-incidence
  tick
end

to advance-infection                                                                                     ;;Advance taeniasis infection by 1 week;;
  if tapeworm = true [set time-since-infection time-since-infection + 1]
end

to eggs-advance                                                                                          ;;Advance age of environmental contamination by 1 week;;
  set time-since-infection time-since-infection + 1
end

to return-home-humans                                                                                    ;;Humans that are currently travel return home;;
  if traveling = true [
    set travel-time travel-time - 1
    if travel-time = 0 [
      set xcor home-x set ycor home-y
      if tapeworm = true and latrine-user = false and mature-tn = true and tn-released = false [         ;Humans that have taeniasis and return home begin contaminating the environment (only if tapeworm is mature and contamination not already released)
          set tn-released true
          hatch-eggs 1 [
            set id [who] of myself
            set proglottid true
            set ova true
            set traveling-human false
            set infection-duration infection-duration
            set time-since-infection tn-incubation
            set cont-radius-egg cont-radius-hh
            move-to one-of patches in-radius (cont-radius-egg / scale)
            set size 10
            set shape "circle"
            set color green]]
      if tapeworm = true and latrine-user = false and mature-tn = true and tn-released = true [         ;When humans return from traveling, if taeniasis is active and environmental contamination already begun, resume heavy contamination
        ask eggs with [id = [who] of myself] [
          set proglottid true
          set color green]]
      set traveling false
      ask eggs with [id = [who] of myself] [
        set traveling-human false]]]
end

to travel                                                                                               ;;Initiate travel of humans;;
  if traveler = true and travel-ticker = 0 [                                                            ;Begin travel when travel timer gets to 0
    set traveling true
    ask eggs with [id = [who] of myself] [                                                              ;When travel begins, associated environmental contamination turns to light (no active proglottids)
      set proglottid false
      set traveling-human true
      set color brown]
    set travel-time ceiling random-exponential travel-duration                                          ;Assign duration of travel based on exponential distribution
    set travel-ticker travel-freq + 1                                                                   ;Reset travel timer back to constant interval until next trip
    set xcor max-pxcor set ycor max-pycor]                                                              ;Human that is traveling is placed in the top right corner of the world
  if traveler = true [
    set travel-ticker travel-ticker - 1]
end

to reset-exposure                                                                                       ;Set all exposure to NULL to begin the week
  set light-exp false
  set heavy-exp false
end

to mark-for-slaughter                                                                                   ;If a pig reaches it pre-determined slaughter age, it is "marked" for slaughter
   if age = slaughter-age [set marked-for-slaughter true]
end

to birth-pigs                                                                                          ;For every pig that will be slaughtered, a new pig is born into the same household (to maintain constant population size)
  if marked-for-slaughter = true [
    hatch 1 [                                                                                          ;Set initial variables for new pigs (same as above for initial pig population)
        set shape "pig"
        set color pink
        set size 10
        set susceptible true
        set light-exp false
        set heavy-exp false
        set seropositive false
        set heavy-infected false
        set light-infected false
        set marked-for-slaughter false
        set eligible false
        set protected false
        set protected-time 0
        set vacc-dose 0
        set vaccinated false
        set corraled "never"
        set age 0
        set home-x xcor
        set home-y ycor
    if [corraluse] of patch-here = "always"
      [set corraled "always"]
    if [corraluse] of patch-here = "sometimes"
      [set corraled "sometimes"]
      set slaughter-age round(4.35 * (exp(random-normal slaughter-age-mean slaughter-age-sd)))
      set home-range (exp(random-normal home-range-mean home-range-sd))]
    ;set total-pigs total-pigs + 1                                                                  ;Add new pigs to population (for INCIDENCE calculation - SENSIVITY ANALYSIS)
    set seroeligible seroeligible + 1]                                                             ;Add new seronegative pigs to the population (to calculuate pig sero-incidence)
end

to distribute-pigs                                                                                  ;Sell and export pigs that will be slaughtered
  if marked-for-slaughter = true [
    let x random-float 1
    if x < pigs-sold [                                                                              ;Proportion of pigs that are sold prior to slaughter
      let y random-float 1
      ifelse y < pigs-exported                                                                      ;Proportion of sold pigs that are exported
         [die]                                                                                      ;If pigs are exported, they "die" and a not consumed
         [move-to one-of patches with [household = true]]]]                                         ;If pigs are sold, they go to a random household within the village
end

to import-pigs                                                                                     ;Import infected pigs
  let x random-float 1
  if x < (pig-import-rate * import-prev) [                                                         ;Probability of a pig being imported and that pig being infected, per pig in the population
    hatch-pigs 1 [
    set marked-for-slaughter true                                                                  ;Imported pigs are immediately marked for slaughter (do not contribute to population size or prevalence)
    let y random-float 1
    ifelse y < light-to-heavy-prop                                                                 ;Infected imported pigs are either heavily or lightly infected
      [set light-infected true]
      [set heavy-infected true]]]
end

to slaughter-pigs                                                                                 ;Pigs are slaughtered and eithe sold, shared, or consumed (process separate for heavy and light infected pigs, but not differentiated (yet) by parameters
  if light-infected = true and marked-for-slaughter = true [
    let x random-float 1
    hatch-carnes 10 [                                                                             ;When slaughtered, pig is divided into 10 pieces, but this is artibrary
      set light-infected true
      set hh false
      ifelse x < hh-only-pork                                                                     ;"x" is a random value generated for the whole pig to determine if the pig is consumed entirely by pig-owner households
         [set hh true]
        [ifelse x > (1 - sold-pork)                                                               ;"x" is a random value generated for the whole pig to determine if the pig is sold within the village (not consumed at home)
          [set hh false]
          [let y random-float 1
          if y < shared-pork-hh [                                                                 ;"y" is a random value generated by each "carne" among pigs that are "shared" to determine if each piece is eaten at home or sold
            set hh true]]]]]
  if heavy-infected = true and marked-for-slaughter = true [                                      ;SAME as above for light-infected
    let x random-float 1
    hatch-carnes 10 [
      set heavy-infected true
      set hh false
      ifelse x < hh-only-pork
        [ set hh true]
        [ifelse x > (1 - sold-pork)
          [set hh false]
          [let y random-float 1
           if y < shared-pork-hh [
             set hh true]]]]]
end

to distribute-pork                                                                               ;For pork that is not eaten at home, it is moved to a random household within the village
    if hh = false [
      move-to one-of patches with [household = true]]
  if light-infected = true [                                                                     ;Count the number of light-infected pork meals consumed by each household this week
    set light-infected-pork-meal (count carnes-here with [light-infected = true])]
  if heavy-infected = true [                                                                     ;Count the number of heavy-infected pork meals consumed by each household this week
    set heavy-infected-pork-meal (count carnes-here with [heavy-infected = true])]
end

to eat-pork                                                                                      ;Each household eats infected pork
  if [light-infected-pork-meal] of patch-here > 0 [                                              ;If light-infected pork is consumed, ALL members of the household are exposed to a probability of tapeworm infection from each infected pork meal
    repeat (light-infected-pork-meal)
      [let x random-float 1
        if x < pl2h [infect-humans]]]                                                            ;pl2h is the TUNING parameter determining probability of infection given exposure
  if [heavy-infected-pork-meal] of patch-here > 0 [                                              ;If heavy-infected pork is consumed, ALL members of the household are exposed to a probability of tapeworm infection from each infected pork meal
    repeat (heavy-infected-pork-meal)
      [let x random-float 1
          if x < ph2h [infect-humans]]]                                                          ;ph2h is the TUNING parameter determining probability of infection given exposure
end

to infect-humans                                                                                ;Human infection script
  ;if tapeworm = false [set count-tn count-tn + 1]                                              ;Counts incident taeniasis infections (for INCIDENCE calculation - SENSITIVITY ANALYSIS)
  set tapeworm true
  let x random-normal tn-lifespan-mean tn-lifespan-sd                                           ;Assign duration of taweworm infection (0-truncated)
    ifelse x < 0
      [set infection-duration 0]
      [set infection-duration round x]
  set time-since-infection 0
end

to infect-travelers                                                                            ;Infect humans that are traveling
  if traveling = true [
    if random-float 1 < travel-incidence [                                                     ;Each traveler is exposued to possible infection based on endemic incidence rate
      ;if tapeworm = false [set count-tn count-tn + 1]                                         ;Counts incident taeniasis infection (for INCIDENCE calculation - SENSITIVITY ANALYSIS)
      set tapeworm true
      let x random-normal tn-lifespan-mean tn-lifespan-sd                                      ;Set lifespan of taweworm infection (0-truncated)
        ifelse x < 0
          [set infection-duration 0]
          [set infection-duration round x]
      set time-since-infection 0
      ]]
end

to slaughter                                                                                  ;Kill off pig that were slaughtered and already consumed
  if marked-for-slaughter = true [die]
end

to eat-eggs                                                                                                  ;Expose pigs to environmental contamination
  if (corraled = "never") or (corraled = "sometimes" and random-float 1 > prop-corral-sometimes) [           ;Pigs that are "never" corraled may be exposed, and pigs that are "sometimes" corraled have a given probability of being free-roaming each week
    let egg-exp (count eggs in-radius (home-range / scale))                                                  ;Count number of eggs/proglottids in each pigs home-range
    ;ask patches in-radius (home-range / scale) [set pcolor red]                                             ;OPTIONAL (slows computation): display home-range areas for each pig
    if egg-exp > 0 [                                                                                         ;If a pig is exposed to contamination...
      if (count eggs with [ova = true] in-radius (home-range / scale)) > 0 [                                 ;If contamination is light (ova), the pig is lightly exposed
        set light-exp true]
      if (count eggs with [proglottid = true] in-radius (home-range / scale)) > 0 [                          ;If contamination is heavy (proglottid), the pig is heavy exposed
        set heavy-exp true]]
    let factor (count humans with [tapeworm = true])                                                         ;Count the number of human tapeworm carriers in the village
    if random-float 1 < (1 - (1 - light-all) ^ factor) [                                                     ;Expose all free-roaming pigs to a probability of light exposure based on number of human carriers in village (irrespective of location)
      set light-exp true]
    if random-float 1 < (1 - (1 - heavy-all) ^ factor) [                                                     ;Expose all free-roaming pigs to a probability of heavy exposure based on number of human carriers in village (irrespective of location)
      set heavy-exp true]]
end

to seroconvert                                                                              ;Pigs that are exposed may develop serological responses (EITB)
  if light-exp = true and seropositive = false [                                            ;The probability of seroconversion after light exposure is based on the "light-sero" tuning parameter
    if random-float 1 < light-sero [
      set seropositive true
      set seroconversions seroconversions + 1]]                                            ;Count new seroconversions for calculation of sero-incidence
 if heavy-exp = true and seropositive = false [                                             ;The probability of seroconversion after heavy exposure is based on the "heavy-sero" tuning parameter
    if random-float 1 < heavy-sero [
      set seropositive true
      set seroconversions seroconversions + 1]]                                            ;Count new seroconversions for calculation of sero-incidence
end

to infect-pigs                                                                              ;If pigs are exposed, they may develop cyst infection
  if protected = false [                                                                    ;PROTECTION was added for INTERVENTIONS and may be caused by vaccination or treatment
    if heavy-exp = true [
      if susceptible = true [
        if random-float 1 < heavy-inf [                                                    ;Probability of heavy infection after heavy exposure is determined by the "heavy-inf" tuning parameter
          ;set count-heavy count-heavy + 1                                                 ;Count new heavy infection (for INCIDENCE calculuations - SENSITIVITY ANALYSIS)
          heavy-infect]]
      if light-infected = true [
        if random-float 1 < heavy-inf [                                                    ;Heavy infection can occur after heavy exposure if already lightly infected (here) or still susceptible (above)
          heavy-infect]]]
    if light-exp = true [
      if susceptible = true [                                                              ;Light infection can only occur if currently uninfected and lightly exposed
        if random-float 1 < light-inf [
          ;set count-light count-light + 1                                                 ;Count new light infections (for INCIDENCE calcuations - SENSITIVITY ANALYSIS)
           light-infect]]]]
end

to heavy-infect
  set heavy-infected true
  set light-infected false                                                                ;To prevent double-counting, pigs can only be heavy OR light infected
  set susceptible false
end

to light-infect
  set light-infected true
  set susceptible false
end

to mature-infection                                                                       ;Initiate environmental contamination on tapeworm infections that reach maturity
    if tapeworm = true [
      if time-since-infection = tn-incubation [                                           ;Initiate contamination when the infection duration reaches the incubation time
        set mature-tn true
        ;set color blue set size 20                                                       ;OPTIONAL: turn mature tapeworm infections blue
        if latrine-user = false and not traveling [                                       ;Only release environmental contamination into environment for non-latrine users and people NOT traveling
          set tn-released true
          hatch-eggs 1 [                                                                  ;Release 1 "egg" per tapeworm carrier (this "egg" represent environmental contamination generally)
            set id [who] of myself                                                        ;Tag egg with the index number of parent human (for mirroring)
            set proglottid true                                                           ;All eggs begins as both light (ova) and heavy (proglottid) contamination, until tapeworm dies and only light contamination remains
            set ova true
            set traveling-human false
            set infection-duration infection-duration                                     ;Assign same duration for egg as parent tapeworm (mirror)
            set time-since-infection tn-incubation                                        ;Assign time-since infection as the current time (incubation window has passed)
            set cont-radius-egg cont-radius-hh
            move-to one-of patches in-radius (cont-radius-egg / scale)                    ;Place egg in a random location within the pre-determined contamination radius
            set size 10
            set shape "circle"
            set color green]]]]
end

to tapeworm-die                                                                          ;Tapeworm infection reaches its predetermined time of death
  if tapeworm = true [
    if time-since-infection = infection-duration [
      set tapeworm false
      set time-since-infection 0
      set infection-duration 0
      set mature-tn false
      set tn-released false
      ;set color yellow set size 10
]]
end

to environmental-decay                                                                  ;For environmental contamination after tapeworm death, there is a constant probability of decay each week
  if traveling-human = false [
    if ova = true and proglottid = false and (random-float 1 < decay-mean) [
      die]]
end

to stop-contaminating                                                                   ;When tapeworm infections clear, the environmental contamination goes from heavy (proglottid) to light (ova) and is sucsceptible to probablistic decay
  if time-since-infection = infection-duration [
    set proglottid false
    set color brown]
end

to clear-pork-meals                                                                     ;At the end of each week, all pork meals are cleared and the cycle begins again
    set light-infected-pork-meal 0
    set heavy-infected-pork-meal 0
end

to assign-color-pigs                                                                    ;OPTIONAL - change color of infected pigs
  if heavy-infected = true [set color red]
  if light-infected = true [set color red]
  if not heavy-infected and not light-infected [set color pink]
end

to advance-protection                                                                  ;for INTERVENTIONS - for protection due to treatment with OFZ, protection lasts a set amount of time (protected-time) and then fades (for vaccination, protection is life-long)
  if protected = true and vaccinated = false [
      set protected-time protected-time - 1
      if protected-time = 0 [
        set protected false]]
end

;to recorder                                                                            ;for CALIBRATION - records the prevalence of TN, light and heavy pig infections, seroprevalence, seroincidence at set time-points
;  if ticks = 500 [
;    set tn500 (count humans with [tapeworm = true] / count humans)
;    set light500 (count pigs with [light-infected = true] / count pigs)
;    set heavy500 (count pigs with [heavy-infected = true] / count pigs)
;    set seroprev500 (count pigs with [seropositive = true] / count pigs)
;    set sero500 seroincidence]
;  if ticks = 600 [
;    set tn600 (count humans with [tapeworm = true] / count humans)
;    set light600 (count pigs with [light-infected = true] / count pigs)
;    set seroprev600 (count pigs with [seropositive = true] / count pigs)
;    set heavy600 (count pigs with [heavy-infected = true] / count pigs)
;    set sero600 seroincidence]
; if ticks = 700 [
;    set tn700 (count humans with [tapeworm = true] / count humans)
;    set light700 (count pigs with [light-infected = true] / count pigs)
;    set heavy700 (count pigs with [heavy-infected = true] / count pigs)
;    set seroprev700 (count pigs with [seropositive = true] / count pigs)
;    set sero700 seroincidence]
; if ticks = 800 [
;    set tn800 (count humans with [tapeworm = true] / count humans)
;    set light800 (count pigs with [light-infected = true] / count pigs)
;    set heavy800 (count pigs with [heavy-infected = true] / count pigs)
;    set seroprev800 (count pigs with [seropositive = true] / count pigs)
;    set sero800 seroincidence]
; if ticks = 900 [
;    set tn900 (count humans with [tapeworm = true] / count humans)
;    set light900 (count pigs with [light-infected = true] / count pigs)
;    set heavy900 (count pigs with [heavy-infected = true] / count pigs)
;    set seroprev900 (count pigs with [seropositive = true] / count pigs)
;    set sero900 seroincidence]
;  if ticks = 1000 [
;    set tn1000 (count humans with [tapeworm = true] / count humans)
;    set light1000 (count pigs with [light-infected = true] / count pigs)
;    set heavy1000 (count pigs with [heavy-infected = true] / count pigs)
;    set seroprev1000 (count pigs with [seropositive = true] / count pigs)
;    set sero1000 seroincidence]
;end

to track-incidence                                                                    ;for calcuation of pig sero-incidence (need to activate other sero-incidence code chunks above)
  if week-counter = 0 [                                                               ;At beginning of interval, calculate base population and set seroconversions to 0
    set seroeligible count pigs with [seropositive = false]
    set seroconversions 0]
  set week-counter week-counter + 1                                                   ;Count up to a pre-determined interval of weeks (here we used a 4-month incidence window (17 weeks)(
  if week-counter = 17 [                                                              ;At the end of the window, calculate the incidence by dividing total seroconversions by total eligible population
    set seroincidence (seroconversions / seroeligible)
    set week-counter 0]
end



;;;;;;;;INTERVENTIONS;;;;;;;;;

;;;Combined Functions;;;

;;RING STRATEGY;;

to human-ring-screening                            ;RING SCREENING (HUMAN ONLY): Sequence of human ring screening (tongue-inspection, human screening, human treatment)
  reset-variables
  tongue-inspect-h
  repeat 1 [go]
  ring-screen-h
  repeat 4 [go]
  ring-screen-treat-h
  repeat ((Interval * 5) - 5) [go]
end

to combined-ring-screening                         ;RING SCREENING (HUMAN AND PIG): Sequence of combined ring screening (tongue-inspection, pig treatment, human screening, human treatment)
  reset-variables
  tongue-inspect-p
  repeat 1 [go]
  ring-screen-h
  ring-treat-p
  repeat 4 [go]
  ring-screen-treat-h
  repeat ((Interval * 5) - 5) [go]
end

to human-ring-treatment                           ;RING TREATMENT (HUMAN ONLY): Sequence of human ring treatment (tongue-inspection, human treatment)
  reset-variables
  tongue-inspect-h
  repeat 1 [go]
  ring-treat-h
  repeat ((Interval * 5) - 1) [go]
end

to combined-ring-treatment                        ;RING TREATMENT (HUMAN AND PIG): Sequence of combined ring treatment (tongue-inspection, pig treatment, human treatment)
  reset-variables
  tongue-inspect-h
  repeat 1 [go]
  ring-treat-h
  ring-treat-p
  repeat ((Interval * 5) - 1) [go]
end


;;MASS APPLIED INTERVENTIONS;;

to combined-mass-treatment                        ;MASS TREATMENT (HUMAN AND PIG)
  reset-variables
  mass-treat-h
  mass-treat-p
  repeat (Interval * 5) [go]
end

to human-mass-treatment                          ;MASS TREATMENT (HUMAN ONLY)
  reset-variables
  mass-treat-h
 repeat (Interval * 5) [go]
end

to combined-mass-screening                       ;MASS TREATMENT (HUMAN AND PIG)
  reset-variables
  mass-screen-h
  mass-treat-p
  repeat 4 [go]
  mass-screen-treat-h
  repeat (Interval * 5) [go]
end

to human-mass-screening                         ;MASS TREATMENT (HUMAN ONLY)
  reset-variables
  mass-screen-h
  repeat 4 [go]
  mass-screen-treat-h
  repeat (Interval * 5) [go]
end

to pig-vaccinate                                ;MASS PIG VACCINATION: Applied two rounds of pig vaccine two weeks apart
  reset-variables
  vaccinate
  repeat 2 [go]
  vaccinate
  repeat ((Interval * 5) - 2) [go]
end

to pig-vaccinate-treat
  reset-variables
  vaccinate-treat
  repeat 2 [go]
  vaccinate
  repeat ((Interval * 5) - 2) [go]
end

to pig-replacement                              ;MASS PIG REPLACEMENT
  reset-variables
  saca
  repeat (Interval * 5) [go]
end

;;;Generic Functions;;;

;;;RING STRATEGY;;;

to reset-variables                                                                 ;Reset all visualizations
  ask humans [
    set eligible false
    set screen-pos false
    set color yellow
    set size 10]
  ask pigs [
    set eligible false
    set size 10
    set color pink]
  ask patches [set pcolor black]
end

to tongue-inspect-h                                                                 ;HUMAN-ONLY RING-STRATEGY: Screening pigs for heavy cyst infection using tongue inspection, and mark HUMANS ONLY as eligible for intervention if within ring
   ask pigs [
     if age >= age-eligible [                                                       ;Only tongue-inspect age-eligible pigs
       if random-float 1 < tongue-part [                                            ;Tongue inspection applied to a proportion of age-eligible pigs that participate ("tongue-part")
         if not heavy-infected and random-float 1 < tongue-fp [                     ;Uninfected pigs may be detected as tongue-positive based on a probability of false positivity ("tongue-fp")
           ask patches in-radius (ring-size / scale) [                              ;OPTIONAL - visualize the intervention rings with BLUE
             set pcolor blue]
           ask humans in-radius (ring-size / scale) [                               ;Humans currently present inside a ring are marked as eligible for intervention
             set eligible true]
           set marked-for-slaughter true]                                           ;Pigs that are tongue-positive are marked for slaughter to be replaced
       if heavy-infected and random-float 1 < tongue-sens [                         ;Heavily infected pigs are detected as tongue-positive based on the sensitivity of tongue-inspection for detecting heavy cyst infection ("tongue-sens")
         ask patches in-radius (ring-size / scale) [                                ;OPTIONAL - visualize intervention rings with BLUE
           set pcolor blue]
         ask humans in-radius (ring-size / scale) [                                 ;Humans currently present inside a ring are marked as eligible for intervention
           set eligible true]
         set marked-for-slaughter true]]                                            ;Pigs that are tongue-positive are marked for slaughter to be replaced
       birth-pigs                                                                   ;Replace tongue-positive pigs with new uninfected pigs
       slaughter]]                                                                  ;Slaughter (kill) tongue-positive pigs without consuming
    ;assign-color-pigs]                                                             ;OPTIONAL - refresh color for pigs
  ;ask humans with [eligible = true][set size 20]                                   ;OPTIONAL - mark humans that are eligible for interventions
end

to ring-screen-h                                                                   ;HUMAN RING SCREENING: Humans that are marked as eligible based on rings are screened for taeniasis
  ask humans [
    ;set size 10
    if eligible = true [
      if random-float 1 < screen-part [                                            ;Apply screening to eligible humans that participate in stool screening ("screen-part")
        if tapeworm = true [
         if random-float 1 < elisa-sens [                                          ;A proportion of screened humans that have taeniasis will actually test positive based on sensitivity of the ELISA assay ("elisa-sens")
            set screen-pos true                                                    ;Mark positively screened as "screen-pos" and eligible for treatment (false positives are not treated because it would be inconsequential)
          ;set color red set size 20                                               ;OPTIONAL - mark positive humans
   ]]]]
  set eligible false]                                                              ;Reset eligibility to NULL
end

to ring-screen-treat-h                                                             ;HUMAN RING SCREENING: Humans that screen positive for taeniasis are treated
  ask humans [
    if screen-pos = true and random-float 1 < screen-trt-part [                    ;A proportion of positively screened individuals will agree to participate in treatment based on ("screen-trt-part")
        if random-float 1 < screen-trt-eff [                                       ;A proportion of treated individuals will be cured (post-screening treatment assumed a specific efficacy for follow-to-cure therapy, "screen-trt-eff")
          set tapeworm false
          set time-since-infection 0
          set infection-duration 0
          set mature-tn false
          set tn-released false
          ;set color orange
          ask eggs with [id = [who] of myself][                                    ;When treatment is successful, heavy environmental contamination ceases, leaving only light contamination (ova) in the environment
            set proglottid false
            set color brown]]]
  set screen-pos false]                                                            ;Reset screening status to NULL
end

to ring-treat-h                                                                     ;HUMAN RING TREATMENT: Humans that are marked as eligible based on rings are treated presumptively for taeniasis
  ask humans [
    ;set size 10
    if eligible = true [
      let x random-float 1
        if x < treat1-part [                                                        ;A proportion of eligible humans receive only a SINGLE DOSE of treatment ("treat1-part")
          if tapeworm = true [
            if random-float 1 < treat1-eff [                                        ;For people with taeniasis that are treated with one dose, SINGLE-DOSE treatment efficacy is defined by "treat1-eff"
            ;set size 20 set color red                                              ;OPTIONAL - change color of cured humans
            set tapeworm false
            set time-since-infection 0
            set infection-duration 0
            set mature-tn false
            set tn-released false
            ask eggs with [id = [who] of myself][                                   ;When treatment is successful, heavy environmental contamination ceases, leaving only light contamination (ova) in the environment
              set proglottid false
              set color brown]]]]
      if x > (1 - treat2-part) [                                                    ;A proportion of eligible humans receive TWO DOSES of treatment ("treat2-part")
        if tapeworm = true [
          if random-float 1 < treat2-eff [                                          ;For people with taeniasis that are treated with two doses, TWO DOSE treatment efficacy is defined by "treat2-eff"
            ;set size 20 set color orange                                           ;OPTIONAL - change color of cured humans
            set tapeworm false
            set time-since-infection 0
            set infection-duration 0
            set mature-tn false
            set tn-released false
            ask eggs with [id = [who] of myself][                                   ;When treatment is successful, heavy environmental contamination ceases, leaving only light contamination (ova) in the environment
              set proglottid false
              set color brown]]]]]
  set eligible false]                                                               ;Reset eligible status to NULL
end

to tongue-inspect-p                                                                 ;COMBINED HUMAN AND PIG RING STRATEGY: Screening pigs for heavy cyst infection using tongue inspection, and mark HUMANS AND PIGS as eligible for intervention if within ring
   ask pigs [
     if age >= age-eligible [                                                       ;Only tongue-inspect age-eligible pigs
       if random-float 1 < tongue-part [                                            ;Tongue inspection applied to a proportion of age-eligible pigs that participate ("tongue-part")
         if not heavy-infected and random-float 1 < tongue-fp [                     ;Uninfected pigs may be detected as tongue-positive based on a probability of false positivity ("tongue-fp")
           ask patches in-radius (ring-size / scale) [                              ;OPTIONAL - visualize the intervention rings with BLUE
             set pcolor blue]
           ask humans in-radius (ring-size / scale) [                               ;Humans currently present inside a ring are marked as eligible for intervention
             set eligible true]
           ask pigs in-radius (ring-size / scale) [                                 ;Pigs currently present inside a ring are marked as eligible for intervention
             set eligible true]
           set marked-for-slaughter true]                                           ;Pigs that are tongue-positive are marked for slaughter to be replaced
       if heavy-infected and random-float 1 < tongue-sens [                         ;Heavily infected pigs are detected as tongue-positive based on the sensitivity of tongue-inspection for detecting heavy cyst infection ("tongue-sens")
         ask patches in-radius (ring-size / scale) [                                ;OPTIONAL - visualize intervention rings with BLUE
           set pcolor blue]
         ask humans in-radius (ring-size / scale) [                                 ;Humans currently present inside a ring are marked as eligible for intervention
           set eligible true]
         ask pigs in-radius (ring-size / scale) [                                   ;Pigs currently present inside a ring are marked as eligible for intervention
           set eligible true]
         set marked-for-slaughter true]]                                            ;Pigs that are tongue-positive are marked for slaughter to be replaced
       birth-pigs                                                                   ;Replace tongue-positive pigs with new uninfected pigs
       slaughter]]                                                                  ;Slaughter (kill) tongue-positive pigs without consuming
    ;assign-color-pigs]                                                             ;OPTIONAL - refresh color for pigs
  ;ask humans with [eligible = true][set size 20]                                   ;OPTIONAL - mark humans that are eligible for interventions
  ;ask pigs with [eligible = true][set size 40]                                     ;OPTIONAL - mark pigs that are eligible for interventions
end

to ring-treat-p                                                                     ;TREATMENT OF PIGS FOR RING STRATEGY: Pigs marked as eligible for ring treatment based on presence within ring are treated
  ask pigs [
    if age >= age-eligible [                                                        ;Only age-eligible pigs are treated
      if eligible = true and random-float 1 < treat-part-p [                        ;A proportion of pigs that are age-eligible participate in the treatment ("treat-part-p")
        if heavy-infected = true or light-infected = true [                         ;OFZ is expected to be ~100% efficacious against cyst infection, thus no efficacy variables is applied, all treated pigs assumed to be cured
          ;set color brown set size 40                                              ;OPTIONAL - change color of treated pigs
          set heavy-infected false
          set light-infected false
          set susceptible true
          set protected true                                                        ;Pigs that were infected and treated with OFZ confer protection against future infections that persists a set amount of time ("oxf-protection")
          set protected-time oxf-protection]]]
  set eligible false]                                                               ;Reset eligible status to NULL
end

to mass-treat-final                                                                 ;FINAL-ROUND MASS TREATMENT OF HUMANS: At conclusion of trial, all humans are screened with follow-up treatment offered to all
  ask humans [
    if not traveling [                                                              ;Only individuals NOT traveling are eligible to participate
      if random-float 1 < treat-final-part [                                        ;Among eligible individuals, a proportion will participate based on "treat-final-part"
        if tapeworm = true [
          if random-float 1 < screen-trt-eff [                                      ;A proportion of treated individuals will be cured (post-screening treatment assumed a specific efficacy for follow-to-cure therapy, "screen-trt-eff")
            ;set size 20 set color red                                              ;OPTIONAL - mark humans that are cured
            set tapeworm false
            set time-since-infection 0
            set infection-duration 0
            set mature-tn false
            set tn-released false
            ask eggs with [id = [who] of myself][                                  ;When treatment is successful, heavy environmental contamination ceases, leaving only light contamination (ova) in the environment
              set proglottid false
              set color brown]]]]]]
end


;;MASS APPLIED INTERVENTIONS;;

to mass-treat-h                                                                    ;MASS TREATMENT for humans to treat taeniasis
  ask humans [
    if not traveling [                                                             ;Only humans not currently traveling are eligible to participate
      if random-float 1 < treat-mass-part [                                        ;Among eligible individuals, a proportion will participate based on "treat-mass-part"
        if tapeworm = true [
          if random-float 1 < treat1-eff [                                         ;All participating individuals recieve a SINGLE-DOSE of treatment with an efficacy of "treat1-eff"
            set tapeworm false
            set time-since-infection 0
            set infection-duration 0
            set mature-tn false
            set tn-released false
            ask eggs with [id = [who] of myself][                                 ;When treatment is successful, heavy environmental contamination ceases, leaving only light contamination (ova) in the environment
              set proglottid false
              set color brown]]]]]]
end

to mass-treat-p                                                                   ;MASS TREATMENT for pigs to treat cyst infection
  ask pigs [
    if age >= age-eligible [                                                      ;Only age-eligible pigs may receive treatment
      if random-float 1 < treat-part-p [                                          ;Among eligible pigs, a proportion will participate based on "treat-part-p"
        if heavy-infected = true or light-infected = true [
          set heavy-infected false
          set light-infected false
          set susceptible true
          set protected true                                                      ;Pigs that were infected and treated with OFZ confer protection against future infections that persists a set amount of time ("oxf-protection")
          set protected-time oxf-protection]]]]
end

to mass-screen-h                                                                  ;MASS SCREENING of humans for taeniasis
  ask humans [
    if not traveling [                                                            ;Only humans not currently traveling are eligible to participate
      if random-float 1 < screen-part [                                           ;Among eligible individuals, a proportion will participate based on "screen-part"
        if tapeworm = true [
          if random-float 1 < treat1-eff [                                        ;Despite being a screening program, all eligible individuals received a SINGLE dose of treatment with an efficacy of "treat1-eff"
            set tapeworm false
            set time-since-infection 0
            set infection-duration 0
            set mature-tn false
            set tn-released false
            ask eggs with [id = [who] of myself][                                 ;When treatment is successful, heavy environmental contamination ceases, leaving only light contamination (ova) in the environment
              set proglottid false
              set color brown]]
         if random-float 1 < elisa-sens [                                         ;A proportion of screened humans that have taeniasis will actually test positive based on sensitivity of the ELISA assay ("elisa-sens")
            set screen-pos true]]]]]
end

to mass-screen-treat-h                                                            ;MASS SCREENING: Humans that are screened positively for taeniasis receive follow-up treatment
  ask humans [
    if screen-pos = true and random-float 1 < screen-trt-part [                   ;A proportion of positively screened individuals will agree to participate in treatment based on ("screen-trt-part")
      if random-float 1 < screen-trt-eff [                                        ;A proportion of treated individuals will be cured (post-screening treatment assumed a specific efficacy for follow-to-cure therapy, "screen-trt-eff")
        set tapeworm false
        set time-since-infection 0
        set infection-duration 0
        set mature-tn false
        set tn-released false
        ask eggs with [id = [who] of myself][                                     ;When treatment is successful, heavy environmental contamination ceases, leaving only light contamination (ova) in the environment
          set proglottid false
          set color brown]]]
    set screen-pos false]
end

to vaccinate                                                                      ;PIG VACCINATION: Pigs receive two independent doses of vaccine that may confer protection against future infection
  ask pigs [
    if age >= age-eligible [                                                      ;Only age-eligible pigs receive vaccine
      if random-float 1 < vacc-part [                                             ;A proportion of eligible pigs participate in vaccination
        set vacc-dose vacc-dose + 1]]                                             ;Counts the number of doses each pig has received
    if vacc-dose = 2 [                                                            ;If a pig receives a second dose...
        ;set vacc-dose 0
        if random-float 1 < vacc-eff [                                            ;Protection/immunity is acheived based on the vaccine efficacy ("vacc-eff")
          set vaccinated true                                                     ;Pig is marked as vaccinated, and its protection will not wane over time
          set protected-time 0
          set protected true]]]                                                   ;Pig is protected from future infections
end

to vaccinate-treat                                                                ;PIG VACCINATION AND TREATMENT: Pigs receive two independent doses of vaccine that may confer protection against future infection
  ask pigs [
    if age >= age-eligible [                                                      ;Only age-eligible pigs receive vaccine
      if random-float 1 < vacc-part [                                             ;A proportion of eligible pigs participate in vaccination
        set vacc-dose vacc-dose + 1                                             ;Counts the number of doses each pig has received
          if heavy-infected = true or light-infected = true [
            set heavy-infected false
            set light-infected false
            set susceptible true
            set protected true                                                    ;Pigs that were infected and treated with OFZ confer protection against future infections that persists a set amount of time ("oxf-protection")
            set protected-time oxf-protection]
    if vacc-dose = 2 [                                                            ;If a pig receives a second dose...
        ;set vacc-dose 0
        if random-float 1 < vacc-eff [                                            ;Protection/immunity is acheived based on the vaccine efficacy ("vacc-eff")
          set vaccinated true                                                     ;Pig is marked as vaccinated, and its protection will not wane over time
          set protected-time 0
            set protected true]]]]]                                               ;Pig is protected from future infections
end

to saca                                                                           ;MASS SALE AND PIG NECROSPY: A proportion of pigs are purchased and slaughtered
  ask pigs [
    if age >= age-eligible [                                                      ;Only age-eligible pigs are included
      if seropositive = true [                                                    ;In this SACA, only seropositive pigs were eligible to be purchased
        if random-float 1 < saca-part [                                           ;A proportion of eligible seropositive pigs participated in the saca
          set marked-for-slaughter true]]]                                        ;Participating pigs are marked for slaughter, replaced with new pigs, and then killed
      birth-pigs
      slaughter]
end

There is only one version of this model, created about 4 years ago by Ian Pray.

Attached files

File Type Description Last updated
CystiAgent_Public.png preview Preview about 4 years ago, by Ian Pray Download
CystiAgentTestData.cpg data Coordinates about 4 years ago, by Ian Pray Download
CystiAgentTestData.dbf data Coordinates about 4 years ago, by Ian Pray Download
CystiAgentTestData.prj data Coordinates about 4 years ago, by Ian Pray Download
CystiAgentTestData.qpj data Coordinates about 4 years ago, by Ian Pray Download
CystiAgentTestData.shp data Coordinates about 4 years ago, by Ian Pray Download
CystiAgentTestData.shx data Coordinates about 4 years ago, by Ian Pray Download

This model does not have any ancestors.

This model does not have any descendants.
