Corruption with Repeated Interactions

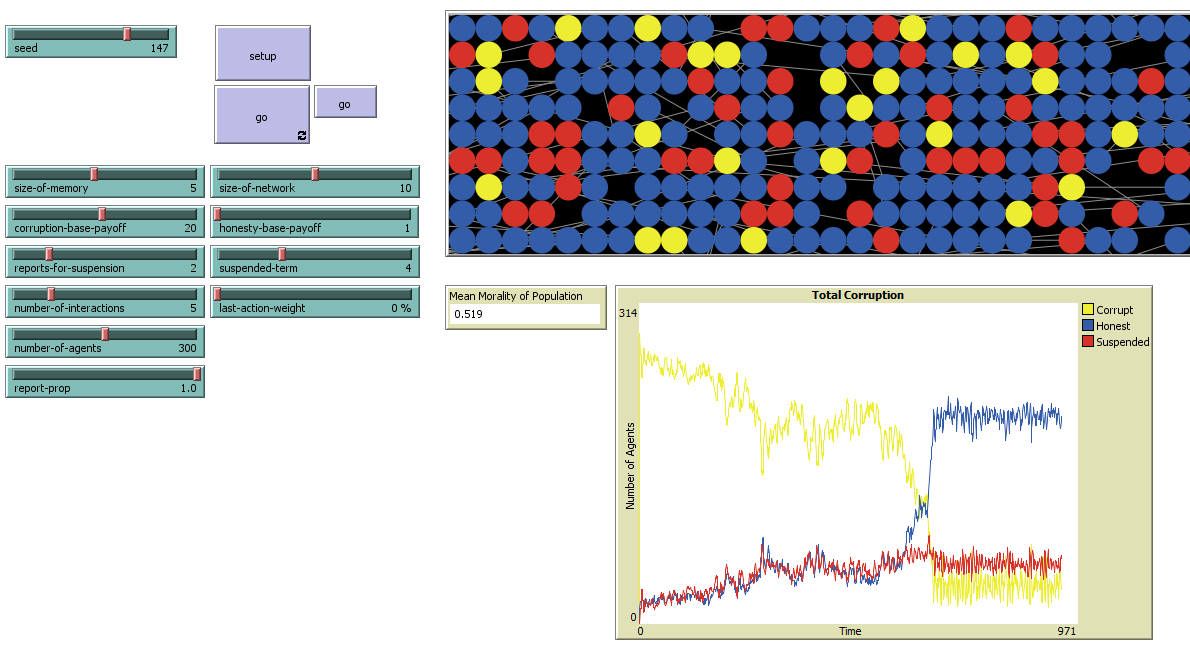

Corruption with Repeated Interactions preview image

1 collaborator

Tags

corruption

Tagged by Nick van Doormaal 8 months ago

criminology

Tagged by Nick van Doormaal 8 months ago

game theory

Tagged by Nick van Doormaal 8 months ago

organizational behavior

Tagged by Nick van Doormaal 8 months ago

repeated interactions

Tagged by Nick van Doormaal 8 months ago

Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.0 • Viewed 81 times • Downloaded 6 times • Run 0 times
Download the 'Corruption with Repeated Interactions' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals
[ choices                 ;; Different strategies for agents. 1 = Corrupt, and 0 = Honest
]

;; Agent properties
turtles-own
[ morality                ;; The agent's predisposition to act good (0 = complete immorale, 1 = total good and rightness )
  network                 ;; Agentset of 'friends'
  memory                  ;; List of interactions with previously encountered agents
  suspended-time          ;; Amount of time an agent is suspended for if caught for a corrupt act
  corrupt-previously?     ;; If true, the agent was corrupt in the last round
  reports                 ;; Total number of reports received since last suspension
  chosen?                 ;; If true, the agent has been matched with a partner
  partner                 ;; Display's the agent's partner
  my-interactions         ;; Shows the number of interactions with the current partner
]


;;-------------------------------------------------------------------------
;; MODEL SETUP AND GO PROCEDURE
;;-------------------------------------------------------------------------
;; Prepare model setup

to setup
  clear-all
  random-seed seed
  reset-ticks
  resize-world 0 ((number-of-agents / 8) - 1) 0 8  ;; Resize world so it is large enough to accommodate every agent on its own patch
  setup-globals                                    ;; Create the global variable containing the actions the agents can choose from
  generate-population
  setup-networks
  calculate-decision                               ;; All agents need to decide if they will act corrupt or honest before the first round
  repeat reports-for-suspension [go]               ;; A sort of burn-in that allows some agents to be potentially suspended
  ask links [die]                                  ;; reset the links, agents' partners and interactions
  ask turtles [
    set chosen? false
    set partner nobody
    set my-interactions 0
  ]
  reset-ticks
  random-seed new-seed                            ;; Making sure that the decisions aren't always exactly the same
end


;; Procedure for a simulation round

to go
  generate-links                                             ;; agents will be randomly matched with another agent (partner)
  compare-actions                                            ;; agents compare actions with their partner
  enforce                                                    ;; check if agents get suspended or can be returned to the game
  calculate-decision                                         ;; agents decide whether they choose to act corrupt or honest
  tick
end


;;-------------------------------------------------------------------------
;; AGENT DECISION-MAKING
;;-------------------------------------------------------------------------
;; Calculate the decision of each agent in turn

to calculate-decision
  ask turtles with [my-interactions > 0] [                  ;; selecting agents who have interacted previously
    if my-interactions = number-of-interactions [           ;; if an agent has reached the specified number of interactions ('number-of-interactions')
      set my-interactions 0                                 ;; my-interactions will be reset to zero
      set chosen? FALSE                                     ;; the agent can be chosen by another agent as their partner
      set partner nobody                                    ;; the agent has no partner
      ask my-links [die]                                    ;; remove the link between the agent and its partner
    ]
  ]

;; IF agent is suspended, set its color to red and skip rest of its turn
ask turtles [
  ifelse suspended-time != 0
  [ set color red ]

;; ELSE agents who are not suspended calculate payoffs
  [
;; Calculate the weighted corruption payoff (xi) based on the agent's morality
    let xi ( 1 - morality ) * corruption-base-payoff

;; Define variable 'A' for later calculations
    let A 0

;; Check if agent already has interacted previously with the same partner OR if no weights are assigned to memory )
    ifelse ( my-interactions = 0 ) or ( last-action-weight = 0 )

;; Find the number of corrupt agents in memory
    [ let memory-corrupt sum memory

;; Sets A as probability of encountering a corrupt agent
      set A memory-corrupt / size-of-memory ]

;; ELSE - procedure for assigning weights
    [ let last-action first memory                                        ;; 'first memory' selects the most recent value of memory
      let weighted-action last-action * (last-action-weight / 100)        ;; assign weight to it

      let other-actions but-first memory                                  ;; select the remaining values in memory
      let other-corrupt (sum other-actions) / (length other-actions)      ;; Find the number of corrupt agents in 'other-actions'
      set other-corrupt (1 - (last-action-weight / 100)) * other-corrupt  ;; assign weight to it

      ;; Sets A as probability of encountering a corrupt agent based on repeated interactions
      set A weighted-action + other-corrupt
    ]

     ;; Define the number of agents in network that are suspended/corrupt
          let friends-suspended 0
          let friends-corrupt 0

          ;; Scan through network updating suspended/corrupt values
            ask network [
               if suspended-time != 0 [
                set friends-suspended friends-suspended + 1
               ]
               if corrupt-previously? = true [
                 set friends-corrupt friends-corrupt + 1
               ]
            ]

          ;; Define variable 'B' for percieved chance of being suspended
          let B 0

          ;; Sets probability, avoiding potential divide-by-zero errors if no friends are corrupt
          if friends-corrupt != 0 [
            set B friends-suspended / friends-corrupt
          ]

          ;; Calculate the agents corruption payoff for the round based on A, B, x, y and k (following Hammond 2000).
          let corruption-payoff (1 - B) * ((A * xi) + (1 - A) * honesty-base-payoff) + B * (honesty-base-payoff - suspended-term * honesty-base-payoff)

          ;; Determine whether the agent will be corrupt or honest in the next round and set values accordingly
          ifelse honesty-base-payoff > corruption-payoff

          ;; IF  honesty-base-payoff > corruption-payoff
          [ set color blue ]
          ;; ELSE  honesty-base-payoff =< corruption-payoff
          [ set color yellow ]
        ]
]
end


;;-------------------------------------------------------------------------
;; CREATE LINKS PROCEDURE
;;-------------------------------------------------------------------------
;; Create links between an agent and its partner to symbolize working together

to generate-links
  ;; Selecting only agents that are not suspended and have no partner yet
  ask turtles with [suspended-time = 0 and chosen? = FALSE] [
    if partner = nobody [

;; Get a random partner from the list of other agents who are not suspended and have no partner
      set partner one-of other turtles with [chosen? = FALSE and suspended-time = 0]
      if partner != nobody [
        set chosen? TRUE
        create-link-with partner

;; Make sure that the partner cannot be chosen by another agent
        ask partner [
          set partner myself
          set chosen? TRUE
        ]
      ]
    ]
  ]
end


;;-------------------------------------------------------------------------
;; COMPARE ACTIONS PROCEDURE
;;-------------------------------------------------------------------------
;; Using the links created, compare actions for each agent-partner pair

to compare-actions
  ;; Go through each link between agent and its partner individually. End1 is always the agent. End2 is the partner.
  ask links [

    ;; Variables to hold the strategy of each agent
    let agent-decision "null"
    let partner-decision "null"

    ;; Get the decisions of the agent and partner based on their colours
    ask end1[                             ;; end1 is the agent
      ifelse color = blue
      [ set agent-decision 0 ]
      [ set agent-decision 1 ]
    ]
    ask end2 [                           ;; end2 is the partner
      ifelse color = blue
      [ set partner-decision 0 ]
      [ set partner-decision 1 ]
    ]

    ;; Find mismatches e.g. either the agent or the partner chose the corrupt action
    ifelse agent-decision != partner-decision [

      ifelse agent-decision = 1 [                ;; IF the agent (end1) was corrupt
        ask end1 [
          if random-float 1 < report-prop [
            set reports reports + 1 ]            ;; agent gets be reported
          set corrupt-previously? true           ;; and updates the corrupt-previously? to TRUE
        ]
        ask end2 [                               ;; the partner updates the corrupt-previously? to FALSE
          set corrupt-previously? false
          ]
        ]

    [ ;; IF the partner (end2) was corrupt
       ask end2 [
         if random-float 1 < report-prop [
           set reports reports + 1 ]            ;; partner gets reported
        set corrupt-previously? true            ;; the partner updates the corrupt-previously to TRUE
      ]

      ask end1 [
        set corrupt-previously? false           ;; the agent updates the corrupt-previously? to FALSE
      ]

      ]
    ]

;;IF agent and partner both chose the corrupt action
    [ ifelse agent-decision = 1 and partner-decision = 1 [
      ask both-ends [
        set corrupt-previously? true
      ]
    ]

;;ELSE agent and partner both chose the honest action
     [ ask both-ends [
       set corrupt-previously? false
     ]
    ]
    ]

;; Update the memory for each agent to remove the oldest and add the most recent decision of the other agent

;; update memory of the agent
      ask end1[
        set memory but-last memory
        set memory fput partner-decision memory
        set my-interactions my-interactions + 1
      ]

;; update memory of partner
      ask end2[
        set memory but-last memory
        set memory fput agent-decision memory
        set my-interactions my-interactions + 1
      ]
    ]
end


;;-------------------------------------------------------------------------
;; ENFORCEMENT PROCEDURE
;;-------------------------------------------------------------------------
;; Procedure for suspending agents for corrupt actions and later return them to the game

to enforce
  ask turtles[
    ;; Decrease remaining suspended time for all suspended agents
    if suspended-time > 0[
      set suspended-time suspended-time - 1

;; if agent has served the suspension term, it will not count as a corrupt agent (change 'corrupt-previously?' to FALSE)
      if suspended-time = 0 [
        set corrupt-previously? FALSE
      ]
    ]

;; Suspend any agents that have exceeded the report threshold
    if reports >= reports-for-suspension [
      set suspended-time suspended-term

;; Agents that get suspended lose their current partner
      ask partner [
        ask my-links [die]
        set chosen? FALSE
        set partner nobody
        set my-interactions 0
      ]

      ask my-links [die]
      set chosen? FALSE
      set partner nobody
      set my-interactions 0
      set reports 0
    ]
  ]
end


;;-------------------------------------------------------------------------
;; CREATING the WORLD and AGENTS
;;-------------------------------------------------------------------------

;; Create the global variable containing the choices for an action

to setup-globals
  set choices [1 0]                                        ;; 1 = Corrupt, and 0 = Honest
end

;; Create agent population

to generate-population
ask n-of number-of-agents patches [                        ;; A number (specified by the user through 'number-of-agents') of patches will...
  sprout 1 [                                               ;; ...create a single agent with the following settings:
    set shape "circle"
    set chosen? FALSE                                      ;; Agents are not yet matched to another agent
    set network 0                                          ;; No networks have been established
    set morality random-float 1                            ;; Morality is randomly and uniformly distributed. (0 = complete immorale, 1 = total good and righteousness)
    set memory n-values size-of-memory [one-of choices]    ;; A random memory is created for every agent
    set suspended-time  0                                  ;; No agent is suspended at the start
    set corrupt-previously? false                          ;; No agent was corrupt in the previous round
    set reports 0                                          ;; No one has received any reports
    set partner nobody                                     ;; Agents do not have a partner yet
  ]
]
end

;; Setup and create the networks for all agents

to setup-networks
  while [ min [ count my-links ] of turtles < size-of-network ]                    ;; checks if there are still agents with not enough a large enough network size
  [ ask links [die]                                                                ;; If above statement is true, the current network is removed...
    create-network size-of-network                                                 ;; ...and another network will be generated through the 'create-network' procedure
  ]
  ask turtles [set network link-neighbors]                                         ;; Once a network is estahblished, the agent's network will be stored in the 'network' variable
  ask links [die]                                                                  ;; The links are not needed anymore, because all agents remember their own network
end

to create-network [DD]
  ask turtles [
   let number-agents-needed DD - count my-links                                                ;; check how many links the agent still needs to reach 'size-of-network' (DD)
   if number-agents-needed > 0 [                                                               ;; check if the agent needs to have more links
     let candidates other turtles with [ count my-links < DD ]                                 ;; candidates are other agents with not enough links/friends
     create-links-with n-of min (list number-agents-needed count candidates) candidates        ;; randomly select the needed other agents (candidates) to include in agent's network
    ]
  ]
end


;;-------------------------------------------------------------------------
;; REPORT FUNCTIONS
;;-------------------------------------------------------------------------

to-report x-morality
  report mean [morality] of turtles
end

There is only one version of this model, created 8 months ago by Nick van Doormaal.

Attached files

File Type Description Last updated
Corruption and Shadow of Future - ABM Workshop presentation.pptx powerpoint Presentation given at the second ABM4CTT Workshop (2019) 8 months ago, by Nick van Doormaal Download
Corruption with Repeated Interactions.png preview Preview of Corruption Model in NetLogo 8 months ago, by Nick van Doormaal Download
Original NetLogo Implementation - Lonsdale 2017.html html Link to the original NetLogo Implementation of Hammond's model. Created by Charles Lonsdale in 2017 8 months ago, by Nick van Doormaal Download
