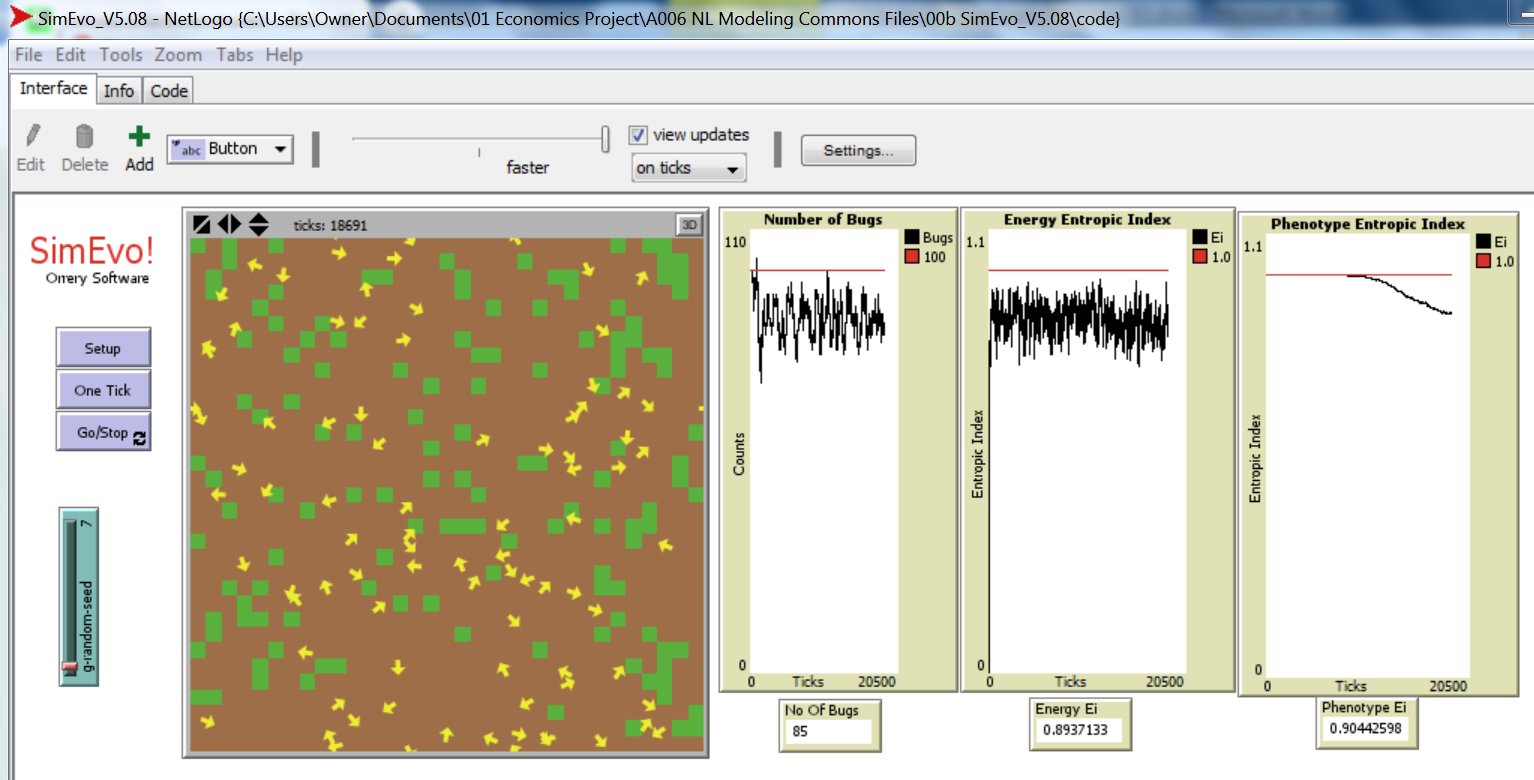

00b SimEvo V5.08 preview image

1 collaborator

121210_portrait_of_garvin Garvin Boyle (Author)

Tags

biophysical economics

"Sustainability"

Tagged by Garvin Boyle almost 6 years ago

evolution and entropyU

Tagged by Garvin Boyle almost 6 years ago

evolution and entropy

Tagged by Garvin Boyle almost 6 years ago

sustainability

Tagged by Garvin Boyle almost 6 years ago

Model group Sustainability | Visible to everyone | Changeable by everyone
Model was written in NetLogo 5.0.5 • Viewed 988 times • Downloaded 44 times • Run 0 times
Download the '00b SimEvo V5.08' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

SimEvo - In 1985 Dr Michael Palmiter, a high school teacher, first built a very innovative agent-based model called “Simulated Evolution” which he used for teaching the dynamics of evolution. In his model, students can see the visual effects of evolution as it proceeds right in front of their eyes. Using his schema, small linear changes in the agent’s genotype have an exponential effect on the agent’s phenotype. Natural selection happens quickly and effectively. I have used his approach to managing the evolution of competing agents in a variety of models, as I study the fundamental dynamics of sustainable economic systems. For example, you will find descriptions of each of these models in the section on related models, but here is a brief list of some of my models that use "Palmiter Genes":

  • ModEco - Palmiter genes are used to encode negotiation strategies for setting prices;
  • PSoup - Palmiter genes are used to control both motion and metabolic evolution;
  • TpLab - Palmiter genes are used to study the evolution of belief systems;
  • EffLab - Palmiter genes are used to study Jevon's Paradox, EROI and other things;

In this model, I focus on the simple mechanics of evolution, without any of the additional experimental economic effects. This model is intended as a simple demonstration of two techniques that I have developed over the past several decades of building agent-based models as a hobby. - First, it is a demonstration of the use of Palmiter genes for achieving fast evolution.
- Second, it is also a demonstration of the calculation of entropy in an evolutionary model.

While studying entropy in agent-based models using EiLab, I have developed some formulae that I believe are generally applicable, with some care, in any ABM in which some characteristic quantity or quality is conserved. For example, in this model, energy is conserved. But also, genetic coding is conserved. But, they are conserved in a different way. In this model I am experimenting with taking those formulae out of the model for which they were developed, and applying them in a less-studied circumstance.

Entropy and Energy - Energy is conserved on a transaction-by-transaction basis. No energy can appear out of nowhere. It must be placed into the model by the Sun's rays. And, no energy can just disappear. It must be gathered by the seekers, and degraded as they move about.

Entropy and Genes - DNA (genetic codes) are conserved in a different way. The genes are passed from mother to daughter once per generation. They are not 100% conserved. There is some small possibility that the daughter will have a random mutations of some gene. The DNA is merely "sufficiently well conserved".

But, we see that under the effects of evolution, while the thermodynamic entropy rises, the informational entropy of the population of bugs falls as natural selection over-rules the randomness of the second law of thermodynamics and develops a population of bugs that are blind, but very efficient at finding food none-the-less.

HOW IT WORKS

In this model, energy arrives in a steady stream from the Sun and is captured in algae, which appears randomly in patches in the pond. Blind seekers roam the pond searching for food, but they cannot sense it in any way until they step into a patch of it. Each must develop a heuristic strategy, an informed sophisticated pattern of behaviour, to seek the algae mats currently having food, and harvest it. And, they must find it before their fellow seekers do.

The strategies start as simple ineffective bland heuristics (totally random walks), and evolve to be much more sophisticated. Only those with the best search pattern survive to reproduce.

The seekers are "seekers of algae". They burn energy as they move about, and they must find and eat algae to live, to continue to move, and to get old enough and healthy enough to become reproductive. They are blind, and their only ability to find food is derived from their genetically-determined stochastic search pattern.

MOVEMENT CONTROLS What is a "Palmiter Gene"? In brief, each Palmiter gene is composed of two numbers: a base and an exponent. Either of these numbers can change slightly when a seeker reproduces.

Movement is controlled by eight Palmiter genes that are stored in four 8-part vectors called "chromosome number 1" or "C1". The four vectors are:

  • c1-bases - eight base numbers
  • c1-expos - eight exponents
  • c1-stren - eight genetic strengths, calculated as B^E.
  • c1-pheno - eight phenotypic characteristics that control movement.

Each of the eight genes forms an instruction for a certain kind of move, of which there are eight options associated with the eight neighbouring cells into which it might move. A gene is randomly activated with a probability associated with its phenotypic strength - that is, a probability associated with its strength when compared with the other seven genes. Only one gene is activated per tick. When a gene is activated it causes the seeker to rotate to the right through a pre-programed angle, and then step forward. It always rotates relative to its current direction. The eight preprogrammed movements are:

F  Forward       -   0 degrees, then step
FR Forward Right -  45 degrees, then step
R  Right         -  90 degrees, then step
BR Back Right    - 135 degrees, then step
B  Backwards     - 180 degrees, then step
BL Back Left     - 225 degrees, then step
L  Left          - 270 degrees, then step
FL Forward Left  - 315 degrees, then step

The genetic code is determined at the time of birth and is constant throughout the life of the seeker. It determines a heuristic search pattern by which the seeker must either live, or die. The seeker is in competition with contemporary seekers with a similar limitation. Those that happen to collect more energy will live to reproduce, but there is NOT enough energy for all. About 50% starve or die of old age, being unable to collect enough energy (energy > RET) to reproduce. Every daughter is randomly different from the mother, and every generation of seekers are, therefore, in a life-or-death race to collect more than the others.

METABOLIC CONTROLS There are six genes derived from Dr Michael Palmiter's "Simulated Evolution". I place them in "chromosome number 2", or the C2 structure. They are DAT, DET, RAT, RET, EPM and EPA. These are sufficient to simulate the evolution of organisms in a simple fashion. The full name of each can be found in the code.

These seekers:

  • change their heading (using their genetically programmed search pattern) and step forward one cell with each tick of the model. Every tick of the model costs each seeker 4 units of energy (EPM = 4). If they happen to land in a cell that contains algae, they eat it and gain 40 units of energy. If they happen to land on an empty cell, they get nothing.

  • reproduce by fission when old enough (age > RAT) and healthy enough (energy > RET).

  • die of hunger if they have too little energy (energy < DET), or die of old age if they are too old (age > DAT).

  • cannot eat any more algae if their energy is too high (energy > EPA).

While the purpose of this model is not the demonstration of entropy in ABMs, it is nevertheless my best demonstration of the dual effects of evolution. Thermodynamic entropy (the entropy of the distribution of energy in the population) rises, while economic entropy (the entropy of the average phenotype of the seekers) falls.

HOW TO USE IT

Just set a new random seed, press "Setup", then press "Go/Stop" and watch the seekers quickly evolve right in front of your eyes. Note how they start with a totally ineffective random walk, but eventually their motions becomes rather strongly programmed for walking in a straight line.

THINGS TO NOTICE

EVOLUTION

This model has its roots going back to 1985, but is not well known, it seems. I have left it in an undeveloped form, but by checking out some of the related models, you will see the many uses I have found for Palmiter genes in evolutionary models.

ENTROPY The concept of entropy is NOT easy to understand. I have come to believe that it will become profoundly important as we develop a new kind of economic theory to replace the current silly "perpetual growth" theories that are used to manage the Earth and our economies within it. In simple models like this, we can learn more about entropy.

  • Note that I have implemented a calculation of the entropic index of the energy distribution. As the distribution of energy approaches a state of equilibrium, the entropic index approaches a high limiting value.

  • Note also that I have implemented a calculation of the entropic index of the average phenotype. As the power (rate of collection and preservation) of the population of seekers rises, the entropic index associated with their phenotype falls. My interpretation is that a more sophisticated search pattern is selected (by natural selection), and that causes this type of entropy to fall.

THINGS TO TRY

I suggest you try each of the following:

  • Run it with the "settings" for "world wraps horizontally/vertically" on, and then off, and see the difference it makes. (easy)
  • Add a histogram to display the energy of the population of seekers. (easy)
  • Add a set of eight monitors to display the average phenotype of the seekers. (easy)
  • Add a button that will tell a selected seeker to put its "pen-down" or "pen-up" (intermediate)
  • Add a histogram to display the average phenotype of the seekers. (hard)

Check out some of my "related models" to see how I have used Palmiter genes, and studies of evolution and entropy.

RELATED MODELS

This model is one of a series of models that have been developed as part of a personal exploration of the dynamics of sustainable economies. They include:

  • PSoup - Written in C++, this model explores the nature of evolutionary forces in a purely biophysical economy. Based on a previous model called Simulated Evolution by Dr Michael Palmiter, PSoup places a number of bugs into a primordial soup and tracks their development. Offering scenarios at many levels, it demonstrates a variety of effects of evolution from simple development of effective food search patterns in the lowest levels, to development of the five main senses, genetic cross-over and sexual reproduction. The amazing observation, for me, coming out of this model was the speed and certainty of the development of complexity. Whenever a complex option was made available in the potential genetic space of the bugs, it was explored and very complex interactions between a cohort of highly varied genotypes would emerge. I also learned, from this model, that a constant flow of energy was a necessary condition for a sustainable biophysical economy, and a necessary pre-cursor for the emergence of complexity.

  • ModEco - There are two versions of ModEco. Written in C++, the first-written version of ModEco is a hybrid economy consisting of a PSoup-like biophysical economy joined to a financial economy. In ModEco every transfer of matter and/or energy from agent to agent is facilitated by a reciprocal transfer of money. Again, as long as there is a consistent flow of energy, the economy evolves towards a steady-state biophysical condition. However, sustainability of the financial economy has proven to be a very elusive property. It was discovered that economic sustainability was only possible if profit and loss was eliminated from the financial sector, and in its place an extremely precise regime of recognition and preservation of biophysical value was instituted. The scenario that exhibited sustainability under this harsh condition was called, somewhat jokingly, the "Perpetual Motion Machine", or "The PMM". In more technical terms, the equilibrium achieved in the PMM is an unstable equilibrium that must be maintained by continuous external intervention.

  • EiLab - Written in C++, this model enables a rather detailed investigation of the phenomenon of rising entropy in economic models. Inspired by the work of Dragulescu and Yakovenko (2000), it implements a capital exchange model in which I could study the origins and impact of entropy production in such models. EiLab stands for "Entropic Index Laboratory". I like this "laboratory" approach, because I can study many scenarios, generate lots of data, and then study the data. There were a few key observations coming out of this model. First, the study of entropy in such models is highly analogous to the study of entropy by Gibbs in his development of the concepts of "Gibbs' Free Energy". Second, in spite of the similarity to entropy, as Gibbs understood it, the entropy being investigated is not thermodynamic entropy, but a purely mathematical abstraction of it which is produced by a logical system executing logical processes distinct from chemical or heat-related effects. Third, the emergence of maximum entropy distributions was inevitable in these models, but the emergence of complexity was not, implying that there may be two distinct sets of conditions causing (a) the production of entropy, and (b) the production of complexity.

  • ModEco and the PMM - Written in NetLogo, this model is a replication of the C++ model, but only of the single scenario called The PMM. Again, three observations are clear from this model, and from the two previous models, when looking back over the common characteristics. First, the steady-state condition of any of these models demonstrates clear evidence of entropy rising to a maximal value, and then staying there. The distributions of alleles (in PSoup), or of wealth (in ModEco and The PMM) develop and then hold shapes characteristic of maximal entropy. Second, the emergence of complex economic organizations and inter-agent interactions seems to be an inevitable part of the evolution towards such a sustainable configuration. Third, and perhaps most important, the steady state can only be maintained by programming techniques that address the inherent instability of the equilibria associated with those steady states.

  • OamLab - Written in NetLogo, this model is one of two developed to explore more fully the phenomenon of production of complexity in economic systems. This is a continuation of my study of sustainability of economic systems. It is the more simple senior member of a set of three models in which I explore the "Maximum Power Principle" as first proposed by A. J. Lotka and as developed by H. T. Odum. Both men argued that there is a need for a "fourth" law of thermodynamics, required to explain the persistent emergence of complexity. However, I found that Odum's ideas on this topic are difficult to decipher for a number of reasons. Ultimately, I found it necessary to restate his MPP as a set of three closely-related falsifiable hypotheses, and only then could I design models to test those hypotheses. OamLab is the first of three such models designed to test the validity of my restatement of the MPP. The prediction was that this model would evolve to a steady state in which the average efficiency was 0.5. Strangely, the steady-state average efficiency was 0.62, and not 0.5. This lead to the discovery of a dispute between Odum and Silvert in the early 1980s over which of the two numbers was the correct prediction. On further investigation, it turns out that there are, in fact, two valid answers, and both results are easily validated as consistent with the MPP. So, I consider that model, simple though it be, as supporting the hypotheses of the MPP.

  • MppLab - Written in NetLogo, this is the middle member of the trio of models exploring the validity of the MPP. This had an exciting result, as it is able to model a trophic web, in action, with from 6 to 10 trophic levels all operational at once. I have made a YouTube video using this model.

  • CmLab - Written in NetLogo, this is another in the series of models designed to understand sustainable economics. The name is short for "Conservation of Money" Laboratory. It's another model derived from PSoup and ModEco, but also derived from EiLab. PSoup is a purely biophysical economy. CmLab is a purely financial economy. ModEco is a hybrid biophysical/financial economy. CmLab is a capital exchange model in which bank loans are used to create money, and double-entry book-keeping is used to track it. It can provide, I think, some interesting insights into the nature of flows on money, which forms one half of a sustainable economy.

  • TpLab - Written in NetLogo, this model is intended to explore the hypothesized phenomenon that I am calling "Teleological Pruning". I argue that the beliefs and practices of any society are "pruned" and shaped by the same evolutionary pressures that shape our genes. Our societies are therefore shaped to conform to and agree with the effects of the Maximum Power Principle. This would explain why consumerism has emerged as the most destructive and persistent form of economic activity in our highly complex modern global economy. Our global economy has become the most powerful economy ever to have existed (in terms of energy consumed per year, and possibly in terms of energy consumed per person per year). Our beliefs (e.g. the necessity of endless economic growth) and our practices (materialism and consumerism) are now aligned with this destructive social trend. In TpLab, social beliefs are pitted against the effects of evolutionary pressures, with interesting effects.

CREDITS AND REFERENCES

There is a slide deck and a number of diary notes that should accompany this model.
The names of the reference files are:

Evolution and Palmiter Genes

  • Ref A. Dewdney, A.K. (May, 1989) "Simulated Evolution: wherein bugs learn to hunt bacteria"; Scientific American - Computer Recreations.

  • Ref B. 191007 CoMSES 2019 - Palmiter Genes R4.PPTX (PowerPoint slide deck)

  • Ref C. - M. Palmiter (1989), Simulated Evolution, Application. Possibly still downloadable from http://lifesciassoc.home.pipeline.com/instruct/evolution/.

The slide deck describes the history of the Palmiter genes, and their technical construction.

Entropy in Agent-Based Models

  • Ref D. - A. Drăgulescu and V.M. Yakovenko, “Statistical Mechanics of Money”, Eur. Phys. J. B 17, 723-729 (2000).

  • Ref E. 150527 PPR - Definition of Ei R17.PDF

  • Ref F. 190927 NTF Shannon Vs Boltzmann R4.PDF

  • Ref G. 180214 NTF Entropy and Units of Measure R5.PDF

  • Ref H. 180822 NTF FactLn() and GammaLn() R3.PDF

  • Ref I. 190927 NTF Entropy in a Histogram R4.PDF

The draft paper (Ref E), and the diary notes (NTFs) describe my development of the concept of entropy for use in evolutionary and economic agent-based models.

CONTACT ME: Garvin H. Boyle Email: Orrery@Rogers.Com Web: http://Orrery-Software.Webs.Com/ Snail-mail: PO Box 1149, Richmond, Ontario, Canada, K0A 2Z0

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;=====================================================================|=======|
;; SECTION A – AUTHOR IDENTIFICATION AND CODE ABSTRACT
;;=====================================================================|=======|
;;
;; File Name: SimEvo_V5.08.nlogo
;; By Orrery Software
;; Dated: 2018-11-21
;; Author contact:
;;   Garvin H Boyle
;;   orrery@rogers.com
;;   http://orrery-software.webs.com

;;---------------------------------------------------------------------|-------|
;; This simEvo ABM is based on "Simulated Evolution" by Dr Michael Palmiter
;;   as described in the Scientific American article by A.K.Dewdney of 1989.

;; In this model, energy arrives in a steady stream from the Sun and is
;;   captured in algae, which appears randomly in patches in the pond.
;;   Blind seekers roam the pond searching for food, but they cannot sense
;;   it.  Each must develop a heuristic strategy, an informed pattern of
;;   behaviour, to seek the algae mats currently having food, and harvest it.
;;   The strategies start as ineffective bland heuristics, and evolve to be
;;   much more sophisticated.  Only those with the best search pattern
;;   survive to reproduce.
;;---------------------------------------------------------------------|-------|
;; This program was developed on NetLogo Version 5.0.5
;;

;;=====================================================================|=======|
;; SECTION B – INITIAL DECLARATIONS OF GLOBAL VARIABLES AND BREEDS
;;=====================================================================|=======|
;;

;;---------------------------------------------------------------------|-------|
;; Code-determined global variables
globals
[
;;---------------------------------------------------------------------|-------|
;; MODELING ENGINE
;;---------------------------------------------------------------------|-------|
;; BIOPHYSICAL SUB-SYSTEM PARAMETERS
;;---------------------------------------------------------------------|-------|

  ;; Biophyscial life function parameters, seekers,
  ;;   derived from Dr. Michael Palmiter's model.
  g-c2-dat-parm  ;; The death age threshold
  g-c2-det-parm  ;; The death energy threshold
  g-c2-rat-parm  ;; The reproductive age threshold
  g-c2-ret-parm  ;; The reproductive energy threshold
  g-c2-epm-parm  ;; The energy per move
  g-c2-epa-parm  ;; The maximum energy an agent may hold

  ;; Various parameters - soft coded
  g-energy-per-deposit ;; Energy placed in a patch
  g-prob-of-mutation   ;; Probability that a seeker mutates at birth.

  ;; The global list of possible heading deltas for moves.
  gl-heading-list  ;; List of heading deltas.
  gl-base-factors  ;; List of factors, used to mutate bases

  ;; Energy control variables
  g-prob-of-deposit        ;; Probability that energy will be deposited.
  g-energy-in-sunshine     ;; Daily influx of energy held in the sunshine.

  ;; List of counts of deaths, by cause.
  gl-cod                   ;; Counts of deaths, by cause.

  ;; Global enumeration (ge-) codes for cause of death.
  ge-cod-none
  ge-cod-fission
  ge-cod-hunger
  ge-cod-oldage

  ;; For display.
  g-energy-entropic-index  ;; For [energy] of seekers.
  gl-ave-phenotype         ;; Average values of c1-pheno
  g-pheno-entropic-index   ;; For average phenotypes
]

;;---------------------------------------------------------------------|-------|
;; DEFINING PATCHES AND BREEDS
;;---------------------------------------------------------------------|-------|

;;---------------------------------------------------------------------|-------|
;; Attributes of patches
patches-own
[
  algae  ;; The amount of energy in algae in this patch.
]

;;---------------------------------------------------------------------|-------|
;; Turtles and breeds
breed [ seekers seeker ]

;;---------------------------------------------------------------------|-------|
;; Attributes of seekers
seekers-own
[
  ;; Chromosome 1 (C1) genes are used to distinguish behaviours.
  c1-bases ;; list of 8 [B]ases for genes.
  c1-expos ;; list of 8 [E]xponents for the genes.
  c1-stren ;; list of 8 [S]trengths             [ Si=Bi^Ei ]
  c1-pheno ;; list of 8 [P]henotypic characteristics [Pi=(Si/Sum(Si))]

  ;; Chromosome 2 (C2) genes are static in this model.
  c2-DAT   ;; Death Age Threshold.
  c2-DET   ;; Death Energy Threshold.
  c2-RAT   ;; Reproductive Age Threshold.
  c2-RET   ;; Reproductive Energy Threshold.
  c2-EPM   ;; Energy Per Move.
  c2-EPA   ;; Maximum Energy Per Agent.

  ;; Chromosome 3 (C3) genes are not present in this model.

  ;; Other variable characteritics.
  mas-who                  ;; Serial number of mother agent.
  age                      ;; Age of the seeker in ticks
  energy                   ;; Energy in this seeker
  cause-of-death           ;; A switch
  b-is-ready-to-move?      ;; 0 = no; 1 = ready to move
  b-is-ready-to-reproduce? ;; Mature (in age) and healthy (in energy)
  b-is-ready-to-die?       ;; Old (in age) or starved (in energy)
]

;;=====================================================================|=======|
;; SECTION C – INITIALIZATION OR SETUP PROCEDURE(S)
;;=====================================================================|=======|

;;---------------------------------------------------------------------|-------|
;; The 'autostart' startup routine

to startup
  ;; This routine is to be executed by the observer.
  ;; It is automatically run when the model is first loaded.
  ;; This ensures that key startup variables stored in persistent controls
  ;;   such as sliders are returned to their default values after a save.

  ;; Any globals not initialized in setup should be initialized here.
  set g-random-seed 7

  ;; Run the setup routine to initialize (other) globals.
  setup
end

;;---------------------------------------------------------------------|-------|
;; The setup button(s)

to setup
  ;; This routine is to be executed by the observer.

  ;; NOTE: The contents of switches, sliders, and choosers seem to be
  ;;   immune to these 'clear' commands.
  clear-ticks       ;; Clears the tick counter, must be followed by reset-ticks.
  clear-turtles     ;; Kills all turtles and resets the who counter to zero.
  clear-links       ;; Kills all links.
  clear-patches     ;; Sets all attributes of patches to default values.
  clear-drawing     ;; Clears all lines and stamps drawn by turtles.
  clear-all-plots   ;; Clears all plots and sets attributes to default values.
  clear-output      ;; Clears the output area, if there is one.

  random-seed ( g-random-seed )

  ;; Set the energy (encoded in the variable algae) in all of the patches to zero.
  ask patches
  [
    set algae 0
    set pcolor brown  ;; Empty patches (no algae) are brown.
  ]

  random-seed 7      ;; Tells the PRNG (a Mersene Twister) to use this seed.

  ;; Various global parameters - soft-coded
  set g-energy-per-deposit 40   ;; Energy placed in a patch
  set g-prob-of-deposit 0.2
  set g-prob-of-mutation 0.2 ;; Probability that a seeker mutates at birth.
  ;; Chromosome 2 (C2) biophysical controls - borrowed from Palmiter's model.
  ;; In this model these values are static.  C2 does not mutate.
  set g-c2-dat-parm        1600  ;; Death Age Threshold
  set g-c2-det-parm           4  ;; Death Energy Threshold
  set g-c2-rat-parm         800  ;; Reproductive Age Threshold
  set g-c2-ret-parm        1000  ;; Reproductive Energy Threshold
  set g-c2-epm-parm           4  ;; Energy Per Move (Metabolic cost)
  set g-c2-epa-parm        1600  ;; Maximum Energy Per Agent

  ;; Establish the list of allowed headings, each 45 degrees from the last.
  ;;   These are the possible deltas that will be added to the current heading
  ;;   based on which of the 8 genes is expressed during a move.
  set gl-heading-list [ 0 45 90 135 180 225 270 315 ]

  ;; The factors used to mutate the base values of the genes need to be
  ;;   calculated.
  let prime-list [ 7 11 13 17 ]
  let factor-list ( map [ 1 + ( 1 / ? ) ] prime-list )
  let inverse-list ( map [ 1 - ( 1 / ? ) ] prime-list )
  set gl-base-factors ( sentence factor-list inverse-list )

  ;; Suppressed debug code
  ;; show ( word "     prime-list: " prime-list )
  ;; show ( word "    factor-list: " factor-list )
  ;; show ( word "   inverse-list: " inverse-list )
  ;; show ( word "gl-base-factors: " gl-base-factors )

  set gl-cod [ 0 0 0 0 ]        ;; Counts of deaths, by cause.

  ;; Global enumeration (ge-) codes for cause of death.
  set ge-cod-none     0
  set ge-cod-fission  1
  set ge-cod-hunger   2
  set ge-cod-oldage   3

  set-default-shape seekers "arrow" ;; pulled from shapes library

  set g-energy-entropic-index 0 ;; For [energy] of seekers.
  set gl-ave-phenotype ( n-values 8 [0] ) ;; Average values of c1-pheno
  set g-pheno-entropic-index  0 ;; For average phenotypes

  ;; Initialize the seekers.
  f-initialize-seekers

  ;; Update the statistics used in the plots.
  ;; show [energy] of seekers
  f-update-aggregates

  reset-ticks ;; restarts tick counter, runs setup commands within plots

  ;; end of setup
end

;;---------------------------------------------------------------------|-------|
;; Initialize a population of seekers.

to f-initialize-seekers
  ;; This routine is to be executed by the observer.

  ;; Initialize the seekers.
  create-seekers 100 [ f-initialize-new-seeker ]

  ;; Place more energy into patches.
  ask patches
  [
    set algae 0
    set pcolor brown
  ]

  ;; End of f-initialize-seekers
end

;;---------------------------------------------------------------------|-------|
;; Calculate the strengths and phenotypic values.

to f-find-strens-n-phenos
  ;; This routine is to be executed by a seeker.

  ;; It uses the second example of the map feature.
  ;; Examples of the map feature.
  ;; show (map + [1 2 3] [2 4 6])
  ;; => [3 6 9]
  ;; show (map [?1 + ?2 = ?3]
  ;;           [1 2 3]
  ;;           [2 4 6]
  ;;           [3 5 9])
  ;; => [true false true]

  ;; Compute the strength as Si=Bi^Ei.
  set c1-stren ( map [?1 ^ ?2]
                     c1-bases
                     c1-expos )
  ;; Compute the phenotypic character as Pi=(Si/sum(Si)).
  set c1-pheno
    ( map [?1 / ?2]
          c1-stren
          ( n-values 8 [sum c1-stren] ) )

  ;; End of f-find-strens-n-phenos
end

;;---------------------------------------------------------------------|-------|
;; Initialize a single seeker.

to f-initialize-new-seeker
  ;; This routine is to be executed by a seeker.

  set color yellow

  ;; Load chromosome 1 with Palmiter genes.
  set c1-bases [ 2 2 2 2 2 2 2 2 ]  ;; 8 unbiased genes
  set c1-expos [ 0 0 0 0 0 0 0 0 ]  ;; 8 unbiased genes
  ;; Calculate the strengths and phenotypic characters.
  f-find-strens-n-phenos

  ;; The biophysical body function genes are static in this model.
  ;; I.e. this chromosome does not suffer mutations.
  ;; Load chromosome 2 with the parameters from sliders.
  set c2-DAT g-c2-dat-parm
  set c2-DET g-c2-det-parm
  set c2-RAT g-c2-rat-parm
  set c2-RET g-c2-ret-parm
  set c2-EPM g-c2-epm-parm
  set c2-EPA g-c2-epa-parm

  ;; Associated with seeker dynamics.
  set energy ( g-c2-rat-parm )
  set age ( random ( g-c2-ret-parm / 2 ) )
  set mas-who -1                 ;; serial number of parent seeker.

  ;; Set the logic trigger flags.
  set b-is-ready-to-move?      true
  set b-is-ready-to-reproduce? false
  set b-is-ready-to-die?       false

  ;; end f-initialize-new-seeker
end

;;=====================================================================|=======|
;; SECTION D – GO OR MAIN-LOOP PROCEDURE(S)
;;=====================================================================|=======|

;;---------------------------------------------------------------------|-------|
;; The go button

to go
  ;; This routine is to be executed by the observer.

  let b-should-stop-now false
  if( count turtles <= 0 ) [ set b-should-stop-now true ]
  if( b-should-stop-now = true )
  [
    stop
  ]
  ;; stop commands should only be seen in the go routine.

  ;; Major steps or functions, done once per tick, in order of execution.
  do-pre-tick   ;; Maintenance activities.
  do-energize   ;; Sun deposits energy into patches of algae.
  do-move       ;; Seekers move according to their unique stochastic pattern.
  do-feed       ;; Seekers eat any algae in the patch they occupy, if hungry.
  do-reproduce  ;; Seekers fission, if old enough and healthy enough.
  do-die        ;; Seekers die, if too old, or too sickly.
  do-post-tick  ;; Maintenance activities.

  ;; End of go.
end

;;---------------------------------------------------------------------|-------|
;; D1 - do-pre-tick procedure( s )
;;---------------------------------------------------------------------|-------|

to do-pre-tick
  ;; This routine is to be executed by the observer.

  ;; Advance the ticks by one and update the plots.
  tick
  ask seekers [ set age ( age + 1 ) ]

  ;; End of do-pre-tick.
end

;;---------------------------------------------------------------------|-------|
;; D2 – do-energize procedure(s)
;;---------------------------------------------------------------------|-------|

to do-energize
  ;; This routine is to be executed by the observer.

  ;; The Sun radiates a fixed amount of energy per tick into the system.
  set g-energy-in-sunshine 400

  ;; Make a list of the patches that are without algae (without energy)
  let empty-patch-list ( patches with [algae = 0] )

  ;; Use the probability of deposit to determine if algae is added.
  ask empty-patch-list
  [
    let random-number ( random 100000 )
    let threshold ( 100000 * g-prob-of-deposit )
    if ( ( random-number <= threshold ) and
         ( g-energy-in-sunshine > g-energy-per-deposit ) )
    [
      set algae ( algae + g-energy-per-deposit )
      set pcolor green
      ;; Record in system energy accounts
      set g-energy-in-sunshine ( g-energy-in-sunshine - g-energy-per-deposit )
    ] ;; End if(() and ())
  ] ;; End ask

  ;; End of do-energize.
end

;;---------------------------------------------------------------------|-------|
;; D3 – do-move procedure(s)
;;---------------------------------------------------------------------|-------|

to do-move
  ;; This routine is to be executed by the observer.

  ;; The seekers move.
  ask seekers
  [
    if( b-is-ready-to-move? = true )
    [
      f-seeker-moves
    ]  ;; End if( b-is-ready-to-move? = true )
  ]  ;; End ask seekers

  ;; End of do-move.
end

;;---------------------------------------------------------------------|-------|
;; A seeker moves according to genes and heuristics.

to f-seeker-moves
  ;; This routine is to be executed by a seeker.

  ;; When a seeker moves it expends energy out of its pool of energy.
  ;; Determine if this seeker has sufficient energy to move.
  ifelse ( energy >= c2-EPM )
  [
    ;; Establish a heading.
    f-seeker-sets-heading

    ;; Step forward
    forward 1

    set energy ( energy - c2-EPM )

    set b-is-ready-to-move? true
  ]
  ;; Else
  [
    ;; The seeker is marked for death, and energy is removed.
    ;; It will die and be removed when do-die is executed.
    set energy 0
    set cause-of-death ge-cod-hunger
    set b-is-ready-to-move? false
    set b-is-ready-to-die?  true
  ]
  ;; End else

  ;; End of f-seeker-moves
end

;;---------------------------------------------------------------------|-------|
;; A seeker sets a heading using c1-pheno.

to f-seeker-sets-heading
  ;; This routine is to be executed by a seeker.

  let old-heading heading
  let sum-of-phenos ( sum c1-pheno ) ;; Should be 1.0.
  let random-number ( random-float sum-of-phenos )

  let counter 0
  let good-index -1
  let this-pheno 0
  let this-sum 0
  let next-sum 0

  while [ counter < 8 ]  ;; Do not overshoot
  [
    set this-pheno ( item counter c1-pheno )
    set next-sum ( this-pheno + this-sum )
    if ( ( random-number >= this-sum ) and ( random-number < next-sum  ) )
    [
      set good-index counter
    ]
    set this-sum next-sum
    set counter ( counter + 1 )
  ]

  let heading-delta ( item good-index gl-heading-list )
  set heading ( heading + heading-delta )

  ;; End of f-seeker-sets-heading
end

;;---------------------------------------------------------------------|-------|
;; D4 – do-feed procedure(s)
;;---------------------------------------------------------------------|-------|

to do-feed
  ;; This routine is to be executed by the observer.

  ;; Agents feed on algae found in patches.
  ask seekers
  [
    let this-patch patch-here  ;; handle to the patch under the seeker.
    let energy-available ( [algae] of this-patch )
    if ( ( energy < ( c2-EPA - g-energy-per-deposit ) ) and
         ( energy-available > 0 ) )
    [
      ;; Case of there is food to eat.
      ;; Seeker eats.
      set energy ( energy + energy-available )
      ask this-patch
      [
        set algae 0
        set pcolor brown
      ]  ;; End of ask this-patch
    ]  ;; End of if(() and ())
  ]  ;; End of ask seekers.

  ;; End Do-feed procedure.
end

;;---------------------------------------------------------------------|-------|
;; D5 – do-reproduce procedure(s)
;;---------------------------------------------------------------------|-------|

to do-reproduce
  ;; This routine is to be executed by the observer.

  ask seekers
  [
    f-set-seeker-repro-flag        ;; A seeker routine.
    f-reproduce-seeker-by-fission  ;; A seeker routine.
  ]  ;; end of ask seekers.

  ;; End do-reproduce.
end

;;---------------------------------------------------------------------|-------|
;; f-set-seeker-repro-flag

to f-set-seeker-repro-flag
  ;; This routine is to be executed by a seeker.

  set b-is-ready-to-reproduce? true        ;; i.e. true is the default.
  if( energy < c2-RET )
    [ set b-is-ready-to-reproduce? false ] ;; due to lack of health.

  if( age < c2-RAT )
    [ set b-is-ready-to-reproduce? false ] ;; due to lack of maturity.

  ;; End f-set-seeker-repro-flag
end

;;---------------------------------------------------------------------|-------|
;; A seeker reproduces via fission, one mother having two daughters.

to f-reproduce-seeker-by-fission
  ;; This routine is to be executed by a seeker.

  if( b-is-ready-to-reproduce? = true )
  [

    let mother self
    let mothers-who who
    let mothers-patch patch-here

    let first-share-of-energy floor( energy / 2 )
    let second-share-of-energy ( energy - first-share-of-energy )

    let daughter-count 0
    ask mothers-patch
    [
      sprout-seekers 2
      [
        set daughter-count ( daughter-count + 1 )
        f-initialize-new-seeker
        set color ( [color] of mother )

        ;; Copy the C1 genetic/learned material.
        set c1-bases ( [c1-bases] of mother )
        set c1-expos ( [c1-expos] of mother )
        set c1-stren ( [c1-stren] of mother )
        set c1-pheno ( [c1-pheno] of mother )

        ;; C2 genes are static.
        set c2-DAT ( [c2-DAT] of mother )
        set c2-DET ( [c2-DET] of mother )
        set c2-RAT ( [c2-RAT] of mother )
        set c2-RET ( [c2-RET] of mother )
        set c2-EPM ( [c2-EPM] of mother )
        set c2-EPA ( [c2-EPA] of mother )

        ;; Note the mother of this daughter.
        set mas-who ( [who] of mother )
        set age 0

        ifelse ( daughter-count = 1 )
        [ set energy first-share-of-energy ]
        [ set energy second-share-of-energy ]

        set cause-of-death           ge-cod-none
        set b-is-ready-to-move?      true
        set b-is-ready-to-reproduce? false
        set b-is-ready-to-die?       false

        f-mutate-new-seeker
      ]  ;; End of sprout.
    ]  ;; End of ask mothers-patch

    ;; Set the cause of death for the mother.
    set b-is-ready-to-die? true
    set cause-of-death ge-cod-fission
    ;; The mother disappears after fission, leaving two daughters.
    ;; Death actually occurs in the Do-die step.

  ]  ;; End of if(ready-to-reproduce)

  ;; End f-reproduce-seeker-by-fission
end

;;---------------------------------------------------------------------|-------|
;; A new seeker mutates, changing the genetic basis of strategies.

to f-mutate-new-seeker
  ;; This routine is to be executed by a seeker.

  ;; Decide if a genetic mutation is to happen.
  let random-number ( random-float 1 )
  let threshold ( g-prob-of-mutation )

  ;; show ( word "f-m-n-c random-number: " random-number )
  ;; show ( word "f-m-n-c     threshold: " threshold )

  if ( random-number <= threshold )
  [
    ;; Case of mutation to be done.
    ;; Select the gene to be mutated.  These genes control
    ;;   the search strategy.
    let gene-to-be-mutated ( random 8 )

    ;; show ( word "Base Mutated." )
    ;; Mutate the gene base.
    let oldbase ( item gene-to-be-mutated c1-bases )
    ;; Choose a factor for the base.
    let base-factor ( item (random 8) gl-base-factors )
    ;; Mutate it
    let newbase ( oldbase * base-factor )
    set c1-bases ( replace-item gene-to-be-mutated c1-bases newbase )

    ;; show ( word "Gene Mutated." )
    ;; Mutate the gene.  The gene value is an integer of either sign.
    let oldgene ( item gene-to-be-mutated c1-expos )
    ;; Decide whether it will increase or decrease in value.
    let delta ( -1 + ( 2 * ( random 2 ) ) )  ;; Either a -1 or a 1.
    let newgene ( oldgene + delta )
    set c1-expos ( replace-item gene-to-be-mutated c1-expos newgene )

    ;; Calculate the strengths and phenotypic characters.
    f-find-strens-n-phenos
  ]

  ;; End of f-mutate-new-seeker
end

;;---------------------------------------------------------------------|-------|
;; D6 – do-die procedure(s)
;;---------------------------------------------------------------------|-------|

to do-die
  ;; This routine is to be executed by the observer.

  if( ( count seekers ) > 0 )
  [
    ask seekers
    [
      f-set-seeker-death-flag
      f-seeker-dies
    ]
  ]
end

;;---------------------------------------------------------------------|-------|
;; f-set-seeker-death-flag

to f-set-seeker-death-flag
  ;; This routine is to be executed by a seeker.

  ;; If a cause of death has already been noted, it dies.
  ifelse( cause-of-death > ge-cod-none )
  [
    ;; A cause of death has been previously flagged.
    ;; This is either due to hunger (in do-move) or fission (in do-repro).
    ;; In both cases energy has been stripped out already.
    ;; In the cases of c2-DET and c2-DAT, the flag is not yet set,
    ;;   and the energy remains.
    set b-is-ready-to-die? true
  ]  ;; End if.
  ;; Else
  [
    ;; No cause of death has been set yet.  Check basic vital signs.
    if( energy <= c2-DET )  ;; Death Energy Threshold.
    [
      set b-is-ready-to-die? true
      set cause-of-death ge-cod-hunger
      set energy 0
    ]

    if( age > c2-DAT )   ;; Death Age Threshold.
    [
      set b-is-ready-to-die? true
      set cause-of-death ge-cod-oldage
      set energy 0
    ]
  ]  ;; End else.

  ;; End f-set-seeker-death-flag
end

;;---------------------------------------------------------------------|-------|

to f-seeker-dies
  ;; This routine is to be executed by a seeker.

  if( b-is-ready-to-die? = true )
  [
    ;; show ( word "who died: " who )
    set gl-cod
      ( replace-item cause-of-death gl-cod ( 1 + item cause-of-death gl-cod ) )
    ;; show ( word "cod: " cause-of-death )
    ;; show gl-cod
    die  ;; The seeker disappears from the system.
  ]

  ;; End f-seeker-dies
end

;;---------------------------------------------------------------------|-------|
;; D7 - do-post-tick procedure(s)
;;---------------------------------------------------------------------|-------|

to do-post-tick
  ;; This routine is to be executed by the observer.

  f-update-aggregates  ;; Calculates entropic indices.
  display

  ;; End do-post-tick.
end

;;=====================================================================|=======|
;; SECTION E – DRAWING AND MAINTENANCE PROCEDURE(S)
;;=====================================================================|=======|

to f-update-aggregates
  ;; this routine is to be executed by the observer.

  ;; show "----------"
  ;; show "f-update-aggregates"

  ;; show ( word "g-energy-entropic-index before: " g-energy-entropic-index )
  ;; Calculate the entropic index of the energy distribution.
  set g-energy-entropic-index
    ( fr-get-energy-entropic-index ( [energy] of seekers ) )
  ;; show ( word "g-energy-entropic-index  after: " g-energy-entropic-index )
  print ""

  ;; show ""
  ;; show ""

  ;; show ( word "g-pheno-entropic-index before: " g-pheno-entropic-index )
  ;; Calculate the entropic index of the phenotype probability distribution.
  let l-pheno-partition ( fr-make-pheno-partition )
  set g-pheno-entropic-index ( fr-calc-pheno-entropic-index l-pheno-partition )
  ;; show ( word "g-pheno-entropic-index after:  " g-pheno-entropic-index )
  print ""

  ;; end of update-aggregates.
end

;;---------------------------------------------------------------------|-------|
;;  Partitions in ABMs.  Entropic index in ABMs.  GammaLn() function in ABMs.
;;---------------------------------------------------------------------|-------|
;;
;; REFERENCES: The diary notes including (or more recent versions):
;; A.  150527 PPR - Definition of Ei R17.PDF
;; B.  190927 NTF Shannon Vs Boltzmann R4.PDF
;; C.  180214 NTF Entropy and Units of Measure R5.PDF
;; D.  180822 NTF FactLn() and GammaLn() R3.PDF
;; E.  190927 NTF Entropy in a Histogram R4.PDF
;;

;; NOTE:  These routines create a partition (i.e. a histogram) independent of
;;   the capabilities of the plot controls in the interface tab.

;;---------------------------------------------------------------------|-------|

to-report fr-get-energy-entropic-index [ l-data-input ]
  ;; This routine is to be executed by the observer.

  ;; show "----------"
  ;; show "fr-get-energy-entropic-index"

  let l-energy-partition ( fr-make-energy-partition l-data-input )
  ;; show ( word "fr-nrg-ei: l-energy-partition - " l-energy-partition )

  let nrg-ei ( fr-calc-energy-entropic-index l-energy-partition )
  ;; show ( word "nrg-ei: " nrg-ei )

  report nrg-ei

  ;; End of fr-get-energy-entropic-index
end

;;---------------------------------------------------------------------|-------|

to-report fr-make-energy-partition [ l-data-input ]
  ;; This routine is to be executed by the observer.

  ;; show "----------"
  ;; show "fr-make-energy-partition"
  ;; show ( word "l-data-input:" l-data-input )

  ;; It creates binned data (a partition) that can be used to plot a histogram.
  ;; A typical call might look like this:
  ;;  set l-energy-partition
  ;;              ( fr-make-energy-partition ( [energy] in seekers ) )
  ;;  reports [ l-partition ]

  ;; Allocate memory.
  let a-no-of-agents length l-data-input
  let k-no-of-bins ( floor ( sqrt a-no-of-agents ) )
  let ave-data ( mean l-data-input )
  let min-data ( ( min l-data-input ) - 0.001 )
  let max-data ( ( max l-data-input ) + 0.001 )
  let bin-delta 0
    ;; show ( word "fmep: ave-data(1): " ave-data )
    ;; show ( word "fmep: min-data(1): " min-data )
    ;; show ( word "fmep: max-data(1): " max-data )
    ;; show ( word "fmep: bin-delta(1): " bin-delta )
    ;; show ""

  ifelse ( ( max-data - min-data ) < k-no-of-bins )
  [
    ;; Case of all data-points being the same.
    set min-data ( ave-data - ( k-no-of-bins / 2 ) )
    set max-data ( ave-data + ( k-no-of-bins / 2 ) )
    set bin-delta ( ( max-data - min-data ) / k-no-of-bins )
    ;; show ( word "fmep: min-data(2): " min-data )
    ;; show ( word "fmep: max-data(2): " max-data )
    ;; show ( word "fmep: bin-delta(2): " bin-delta )
  ]
  ;; Else
  [
    set bin-delta ( ( max-data - min-data ) / k-no-of-bins )
  ]

  ;; Initialize the output histogram with zeros.
  let l-partition ( n-values k-no-of-bins [0] )
  ;; show ( word "fmep: l-partition: " l-partition )

  let counter 0
  let data-point 0
  let bin-no 0
  let agents-in-bin 0
  let limit ( ( length l-data-input ) - 1 )
  ;; show ( word "fmep: limit: " limit )

  while [counter <= limit ]
  [
    ;; show ( word "fmep: counter(3): " counter )
    set data-point ( item counter l-data-input )
    ;; We need to convert this data point into a bin-number for the partition.
    set bin-no ( ( ( data-point - min-data ) / bin-delta ) )
    ;; show ( word "fmep: bin-no(3): " bin-no )
    set bin-no ( floor ( ( data-point - min-data ) / bin-delta ) )
    ;; show ( word "fmep: bin-no(3): " bin-no )
    ;; bin-no is a whole number which determines which bin the agent is counted in.
    ;; show ( word "fmep: data-point(3): " data-point )
    ;; show ( word "fmep: min-data(3): " min-data )
    ;; show ( word "fmep: bin-delta(3): " bin-delta )

    set agents-in-bin ( item bin-no l-partition )
    set agents-in-bin ( agents-in-bin + 1 )
    set l-partition ( replace-item bin-no l-partition agents-in-bin )

    set counter ( counter + 1 )
  ]

  report l-partition

  ;; End fr-make-energy-partition.
end

;;---------------------------------------------------------------------|-------|

to-report fr-calc-energy-entropic-index [ l-partition ]
  ;; This routine can be called by any agent.

  ;; show "----------"
  ;; show "fr-calc-energy-entropic-index"

  ;; It uses the formula that was developed in a series of diary notes
  ;;   that investigated the most effective formula for calculating
  ;;   entropy in an agent-based model such as "Model I" of EiLab.

  ;; I hypothesize that it is equally valid in most agent-based models, but
  ;;   that hypothesis needs to be expored and examined and tested.

  ;; THIS IS AN EXAMPLE OF AN AS-YET UNEXAMINED USAGE.

  ;;
  ;; REFERENCES: The diary notes including (or more recent versions):
  ;; A.  150527 PPR - Definition of Ei R17.PDF
  ;; B.  190927 NTF Shannon Vs Boltzmann R4.PDF
  ;; C.  180214 NTF Entropy and Units of Measure R5.PDF
  ;; D.  180822 NTF FactLn() and GammaLn() R3.PDF
  ;; E.  190927 NTF Entropy in a Histogram R4.PDF
  ;;

  ;; The formula used is equation 30 in the Ref E document.

  ;; It can be written like this:
  ;;   I = (GammaLn(A+1) - Sum(GammaLn(ai+1))) / (A*Ln(K))
  ;;   where:
  ;;          K is the number of bins in a histogram of some conserved quantity.
  ;;          A is the number of agents in the model.
  ;;          ai is the count of agents in bin i of the histogram.

  ;; The expected input is a partition constructed from a list of energy values.
  ;; The sum of all elements of all bins equals the number of agents.
  let a-no-of-agents ( sum l-partition )
  let k-no-of-bins ( length l-partition )

  ;; Note that GammaLn( ) is not native to NetLogo.  A version is implemented
  ;;   below.

  ;; show ( word "l-partition: " l-partition )

  let entropic-index fr-gammaln ( 1 + a-no-of-agents )
  foreach l-partition
     [ set entropic-index ( entropic-index - fr-gammaln ( 1 + ? ) ) ]

  let alpha ( a-no-of-agents / k-no-of-bins )
  let boltzmann-max ( fr-gammaln ( 1 + a-no-of-agents ) )
  set boltzmann-max
    ( boltzmann-max - ( k-no-of-bins * fr-gammaln ( alpha + 1 ) ) )

  set entropic-index ( entropic-index / boltzmann-max )

  report entropic-index

  ;; End of fr-calc-entropic-index.
end

;;---------------------------------------------------------------------|-------|

to-report fr-make-pheno-partition
  ;; This routine is to be executed by the observer.

  ;; show "----------"
  ;; show "fr-make-pheno-partition"

  ;; It creates binned data (a partition) that can be used to plot a histogram.
  ;; A typical call might look like this:
  ;;  set l-pheno-partition ( fr-make-pheno-partition )
  ;;  reports [ l-partition ]

  ;; Allocate memory.
  let a-no-of-agents count turtles
  let k-no-of-bins 8
  let new-value 0
  let l-pheno-list 0

  ;; Initialize the output histogram with zeros.
  let l-partition ( n-values k-no-of-bins [0] )
  ;; show ( word "fmpp: l-partition: " l-partition )

  ;; One-by-one, calculate the average phenotype value, and insert.
  let counter 0
  let limit ( length l-partition )
  while [ counter < limit ]
  [
    set l-pheno-list ( [ item counter c1-pheno ] of seekers )
    ;; show ( word "fmpp: l-pheno-list: " l-pheno-list )
    set new-value ( mean l-pheno-list )
    ;; show ( word "fmpp: new-value: " new-value )
    set l-partition ( replace-item counter l-partition new-value )
    ;; show ( word "fmpp: l-partition:" l-partition )
    set counter ( counter + 1 )
  ]

  ;; show ( word "fmpp: l-partition: " l-partition )

  report l-partition

  ;; End fr-make-pheno-partition.
end

;;---------------------------------------------------------------------|-------|

to-report fr-calc-pheno-entropic-index [ l-partition ]
  ;; This routine can be called by any agent.

  ;; show "----------"
  ;; show "fr-calc-pheno-entropic-index"

  ;; It uses the formula that was developed in a series of diary notes
  ;;   that investigated the most effective formula for calculating
  ;;   entropy in an agent-based model such as "Model I" of EiLab.

  ;; I hypothesize that it is equally valid in most agent-based models, but
  ;;   that hypothesis needs to be expored and examined and tested.

  ;; THIS IS AN EXAMPLE OF AN AS-YET UNEXAMINED USAGE.

  ;;
  ;; REFERENCES: The diary notes including (or more recent versions):
  ;; A.  150527 PPR - Definition of Ei R17.PDF
  ;; B.  190927 NTF Shannon Vs Boltzmann R4.PDF
  ;; C.  180214 NTF Entropy and Units of Measure R5.PDF
  ;; D.  180822 NTF FactLn() and GammaLn() R3.PDF
  ;; E.  190927 NTF Entropy in a Histogram R4.PDF
  ;;

  ;; The formula used is equation 30 in the Ref E document.

  ;; It can be written like this:
  ;;   I = (GammaLn(A+1) - Sum(GammaLn(ai+1))) / (A*Ln(K))
  ;;   where:
  ;;          K is the number of bins in a histogram of some conserved quantity.
  ;;          A is the number of agents in the model.
  ;;          ai is the count of agents in bin i of the histogram.

  ;; The expected input is a partition constructed from a list of energy values.
  ;; The sum of all elements of all bins equals the number of agents.
  let a-total ( sum l-partition )
  let k-no-of-bins ( length l-partition )

  ;; Note that GammaLn( ) is not native to NetLogo.  A version is implemented
  ;;   below.

  ;; show ( word "frcpei: l-partition: " l-partition )

  let entropic-index fr-gammaln ( 1 + a-total )
  foreach l-partition
     [ set entropic-index ( entropic-index - fr-gammaln ( 1 + ? ) ) ]

  let alpha ( a-total / k-no-of-bins )
  let boltzmann-max ( fr-gammaln ( 1 + a-total ) )
  set boltzmann-max
    ( boltzmann-max - ( k-no-of-bins * fr-gammaln ( alpha + 1 ) ) )

  set entropic-index ( entropic-index / boltzmann-max )

  report entropic-index

  ;; End of fr-calc-pheno-entropic-index.
end

;;---------------------------------------------------------------------|-------|

to-report fr-gammaln [ input-value ]
  ;; This routine can be called by any agent.

  ;; It reproduces a routine found on page 207 of this book:
  ;; Press, Teukolsky, Vetterling and Flanery (1986) "Numerical Recipes in
  ;;   Fortran", Cambridge, pp 206-209.
  ;; It uses Lanczos' approximation of the Ln(Gamma(x)) function.
  ;; Note that, when input-value is an integer, GammaLn(x+1) approximates Ln(x!).
  ;; When x = 160, the error seems to be about 1 in a billion.  That's pretty good.

  ;; This follows the Fortran code rather closely here.
  let x input-value
  let y x
  let tmp ( x + 5.5 )
  ;; Note that here I use ln( ) instead of log( ) as shown in the text.
  ;; The same problem comes up down below also.  With ln() it seems
  ;;   to work correctly.
  set tmp ( ( ( x + 0.5 ) * ( ln tmp ) ) - tmp )
  let ser 1.000000000190015

  ;; Next, I have unscrolled the six iterations of the loop.
  ;; cof(6) is now six different parameters.

  ;; Iteration 1
  set y ( y + 1 )
  set ser ( ser + ( 76.18009172947146 / y ) )

  ;; Iteration 2
  set y ( y + 1 )
  set ser ( ser + ( -86.50532032941677 / y ) )

  ;; Iteration 3
  set y ( y + 1 )
  set ser ( ser + ( 24.01409824083091 / y ) )

  ;; Iteration 4
  set y ( y + 1 )
  set ser ( ser + ( -1.231739572450155 / y ) )

  ;; Iteration 5
  set y ( y + 1 )
  set ser ( ser + ( 0.001208650973866179 / y ) )

  ;; Iteration 6
  set y ( y + 1 )
  set ser ( ser + ( -0.000005395239384953 / y ) )

  ;; Now, I follow the Fortran code closely again.
  let stp 2.5066282746310005

  ;; Note that here I use ln( ) instead of log( ) as shown in the text.
  let gammaln ( tmp + ( ln ( stp * ser / x ) ) )

  report precision gammaln 15

  ;; End of fr-gammaln.
end

;;---------------------------------------------------------------------|-------|

to-report fr-factorial [ input-value ]
  ;; This routine can be called by any agent.

  ;; It uses recursion to calculate n!.
  let n input-value
  ifelse ( n > 0 ) [ report n * fr-factorial ( n - 1 ) ]
                   [ report 1 ]

  ;; End of fr-factorial.
end

;;---------------------------------------------------------------------|-------|

to-report fr-factorialln [ input-value ]
  ;; This routine can be called by any agent.

  ;; It uses the recursive function to calculate n!, then takes the logarithm.
  let n input-value
  let factorialln fr-factorial n

  report precision ( ln factorialln ) 15

  ;; End of fr-factorialln.
end

There is only one version of this model, created almost 6 years ago by Garvin Boyle.

Attached files

File Type Description Last updated
00b SimEvo V5.08.png preview Preview for '00b SimEvo V5.08' almost 6 years ago, by Garvin Boyle Download
150527 PPR - Definition of EI R17.pdf pdf An unpublished paper in which I define entropy for use in agent-based models. almost 6 years ago, by Garvin Boyle Download
180118 NTF Custom Functions in Excel R3.pdf pdf A diary entry in which I record how to make functions needed to calculate entropy. almost 6 years ago, by Garvin Boyle Download
180119 NTF Entropy in a Histogram R1.pdf pdf A diary note in which I consider the nature of entropy for histograms. almost 6 years ago, by Garvin Boyle Download
180210 NTF Shannon Vs Boltzmann R3.pdf pdf A diary note in which I ponder the differences in the two types of formulae. almost 6 years ago, by Garvin Boyle Download
180214 NTF Entropy and Units of Measure R5.pdf pdf A diary note in which I consider the appropriates units of measure for entropy in an ABM. almost 6 years ago, by Garvin Boyle Download
180316 NTF FactLn() and GammaLn() R2.pdf pdf I diary note in which I discuss the technical details of calculating aspects of entropy. almost 6 years ago, by Garvin Boyle Download
191007 CoMSES 2019 - Palmiter Genes R4.pptx powerpoint An explanation of Palmiter's innovative approach to coding genes for evolution. almost 6 years ago, by Garvin Boyle Download
1989 Dewdney - Palmiter's Simulated Evolution.pdf pdf Original Article in which Palmiter's "Simulated Evolution" was described. almost 6 years ago, by Garvin Boyle Download

This model does not have any ancestors.

This model does not have any descendants.
