Cameroon Hunting Model

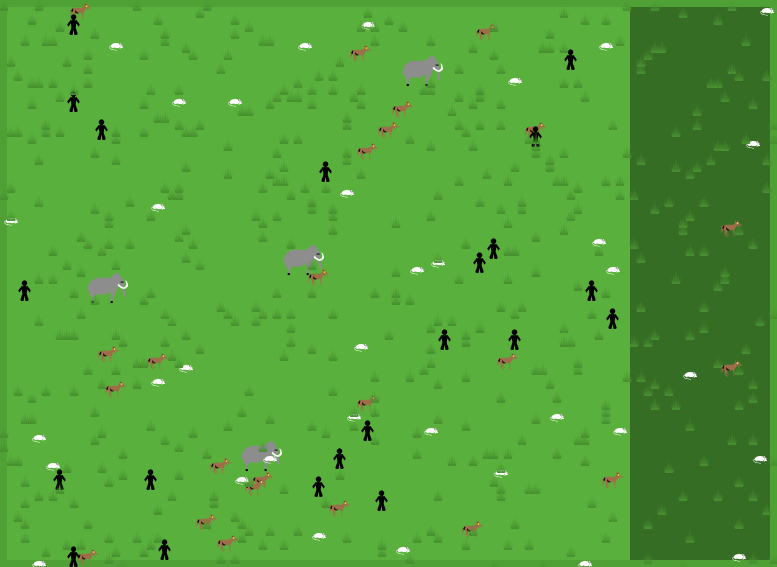

Cameroon Hunting Model preview image

1 collaborator

Default-person Rohan Fisher (Author)

Tags

conservation

Tagged by Rohan Fisher 2 months ago

ecology

Tagged by Rohan Fisher 2 months ago

predator prey model

Tagged by Rohan Fisher 2 months ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0.4 • Viewed 91 times • Downloaded 2 times • Run 0 times
Download the 'Cameroon Hunting Model' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals
[

;  rat-reproduce-age      ;;  min age of rats before they can reproduce
;  duiker-reproduce-age  ;;  min age of elephants before they can reproduce
elephant-reproduce-age     ;;  min age of duiker before they can reproduce
;
;  rat-max-age           ;;  max age of rats before they automatically die
;  duiker-max-age          ;;  max age of duiker before they automatically die
  elephant-max-age       ;;  max age of elephants before they automatically die

  max-rats-offspring              ;; maximum number of offspring per reproductive event for a rat
  max-duikers-offspring             ;; maximum number of offspring per reproductive event for a bird
  max-elephants-offspring          ;; maximum number of offspring per reproductive event for an elephant


  rat-energy              ;; maximum number of offspring per reproductive event for a rat
  duiker-energy             ;; maximum number of offspring per reproductive event for a bird
  elephant-energy          ;; maximum number of offspring per reproductive event for an elephant

  rat-reproduce-interval
  duiker-reproduce-interval
  elephant-reproduce-interval

  rat-range           ;;  max age of rats before they automatically die
  duiker-range          ;;  max age of duiker before they automatically die
  elephant-range      ;;  max age of elephants before they automatically die

  total-catch-rat
  total-catch-duiker
  total-catch-elephant

;  rat-cc
;  duiker-cc
;  elephant-cc

  Origin-Reserve
  Origin_Hunting_Area

  border

]

breed [ duikers duiker ]
breed [ elephants elephant ]
breed [ rats rat ]
breed [ hunters hunter ]  ;;  turtles that mark the location of where a rat was removed from disease.

turtles-own [ current-age max-age starting-patch distance-from-home time-since-birth place-of-birth]       ;; these three variables are used for rats, elephants, and duiker
patches-own [reserve]

to setup
  clear-all
; set rat-reproduce-age 20
; set rat-max-age  40
  set  max-rats-offspring   3
  set rat-range 12
;
; set duiker-reproduce-age 40
; set duiker-max-age  60
  set  max-duikers-offspring 2
  set duiker-range 15

  set elephant-reproduce-age 200
  set elephant-max-age  1000
  set  max-elephants-offspring 1
  set elephant-range 60

  set rat-reproduce-interval 7
  set duiker-reproduce-interval 10
  set elephant-reproduce-interval 50


  set rat-energy 30
  set duiker-energy 50
  set elephant-energy 1000


  set-default-shape rats "mouse"
  set-default-shape duikers "fox"
  set-default-shape elephants "mammoth"
  set-default-shape hunters "person"

  ask patches [set pcolor green]
  ask patches with [pxcor > (55 - reserve-size)] [set pcolor 53]
  ask n-of 500 patches  [sprout 1 [set color 54 set size 2 set shape "grass"]]

  ask patches with [ count neighbors != 8 ] [set pcolor 54.5]

  add-rats
  add-duiker
  add-elephants
  add-hunters
  reset-ticks
end

to go
 if ticks >= 3000 and after-3000 [stop]
  ask rats [
    rats-live
    reproduce-rats]
  ask duikers [
    duiker-live
    reproduce-duikers]
  ask elephants [
    elephants-live
    reproduce-elephants]
  ask hunters [hunters-live]
  if  (count elephants + count rats + count duikers) = 0 and on-extiction  [stop]
  tick
end

to add-rats ;; setup rats procedure to add rats based on initial settings
  create-rats initial-number-rats [  ;; create the rats, then initialize their variables
    set color white
    set current-age 0  + random rat-max-age       ;;don't start out with everyone at the same age
    set max-age rat-max-age
    set time-since-birth 100
    set size 2
    setxy random-pxcor random-pycor
    set starting-patch patch-here
  ]
end

to add-duiker ;; setup duiker procedure
  create-duikers initial-number-duikers  ;; create the duikers, then initialize their variables
  [
    set color brown
    set current-age 0  + random duiker-max-age      ;;don't start out with everyone at the same age
    set max-age duiker-max-age
    set time-since-birth 100
    set size 3
    setxy random-pxcor random-pycor
    set starting-patch patch-here
  ]
end

to add-elephants
  create-elephants number-of-elephants ;; elephants the rats, then initialize their variables
  [
    set color grey
    set current-age 0  + random elephant-max-age     ;;don't start out with everyone at the same age
    set max-age elephant-max-age
    set time-since-birth 100
    set size 6
    setxy random-pxcor random-pycor
    set starting-patch patch-here
   ]
end

to add-hunters
  ask n-of number-of-hunters patches with  [pcolor = green]
  [sprout-hunters 1  [ set color black     set size 3
  ]]
end

to rats-live ;; rats procedure
  move-rats
    reproduce-rats
    set current-age (current-age + 1)
      set time-since-birth (time-since-birth + 1)
    death
end

to duiker-live ;; duiker procedure
  move-duiker
  reproduce-duikers
  set current-age (current-age + 1)
      set time-since-birth (time-since-birth + 1)
  death
end

to elephants-live ;; elephants procedure
    move-elephants
    reproduce-elephants
    set current-age (current-age + 1)
    set time-since-birth (time-since-birth + 1)
 death
end

to hunters-live ;; elephants procedure
    move-hunters
    hunter-catch-animal
  set current-age (current-age + 1) ;this is used as a proxy for hunting effort - the amount of time spent looking for animals
end

to move-rats  ;; rats procedure

  ifelse [pcolor] of patch-here = 54.5
    [    rt random 140
         lt random 140
      fd .5 ]

    [ifelse distance starting-patch > rat-range
    [face starting-patch]
    [ rt random 90  lt random 90 ]
  ]

  fd 1
end

to move-duiker  ;; duiker procedure
    ifelse [pcolor] of patch-here = 54.5
    [    rt random 140
         lt random 140
      fd .5 ]

   [ ifelse distance starting-patch > duiker-range
    [face starting-patch]
    [ rt random 90  lt random 90 ]
  ]
    fd 1
end

to move-elephants  ;; elephants procedure
  ifelse [pcolor] of patch-here = 54.5
    [    rt random 140
         lt random 140
      fd .5 ]

    [ifelse distance starting-patch > elephant-range
    [face starting-patch]
    [ rt random 90  lt random 90 ]
  ]

  fd 1
end

to move-hunters ;;
    ifelse [pcolor] of patch-here = 54.5 or [pcolor] of patch-here = 53 [
    rt 180  ]
    [ rt random 40
      lt random 40   ]
  fd 1
end

to hunter-catch-animal  ;; duiker procedure
    if (any? rats in-radius 4 )
        [ask one-of  rats in-radius 4 [  set total-catch-rat (total-catch-rat + rat-energy)
        if place-of-birth = 2  [set Origin-Reserve Origin-Reserve + 1]
         if place-of-birth = 1 [set Origin_Hunting_Area Origin_Hunting_Area + 1] die]]

    if (any? duikers in-radius 4 )
        [ask one-of  duikers in-radius 4 [ set total-catch-duiker (total-catch-duiker + duiker-energy)
         if place-of-birth = 2  [set Origin-Reserve Origin-Reserve + 1]
         if place-of-birth = 1 [set Origin_Hunting_Area Origin_Hunting_Area + 1] die]]

     if hunt-elephants [
      if (any? elephants in-radius 5 )
      [ask one-of  elephants in-radius 5 [die]  set total-catch-elephant (total-catch-elephant + elephant-energy)  ]]
end

to reproduce-rats  ;; rats procedure
  let number-offspring (random (max-rats-offspring + 1)) ;; set number of potential offspring from 1 to (max-rats-offspring)
  if ( current-age > rat-reproduce-age and time-since-birth > rat-reproduce-interval and random 4 = 1  and ((count rats in-radius rat-cc) < 3))
  [ set time-since-birth 0
    hatch number-offspring
      [
        set size 2
        set color white
        set current-age 0
        set time-since-birth  1000
        set shape "mouse"
        rt random 360 fd 7
        set starting-patch patch-here
        ifelse pxcor > (55 - reserve-size) [set place-of-birth 2 ] [set place-of-birth 1 ] ;; born in or outside a protected area
      ]    ;; hatch an offspring set it heading off in a random direction and move it forward a step
    ]
end

to reproduce-duikers

  let number-offspring (random (max-rats-offspring + 1)) ;; set number of potential offspring from 1 to (max-rats-offspring)
  if ( current-age > duiker-reproduce-age and time-since-birth > duiker-reproduce-interval and random 4 = 1  and ((count duikers in-radius duiker-cc) < 3))
  [ set time-since-birth 0
    hatch number-offspring
      [
        set size 3
        set color brown
        set current-age 0
        set time-since-birth  1000
        set shape "fox"
        rt random 360 fd 7
        set starting-patch patch-here
        ifelse pxcor > (55 - reserve-size) [set place-of-birth 2 ] [set place-of-birth 1 ] ;; born in or outside a protected area
      ]    ;; hatch an offspring set it heading off in a random direction and move it forward a step
    ]
end

to reproduce-elephants  ;;
   if ( current-age > elephant-reproduce-age and time-since-birth > elephant-reproduce-interval and random 3 = 1  and ((count elephants in-radius 70) < 3))
  [ set time-since-birth 0
    hatch 1
      [
        set size 6
        set color grey
        set current-age 0
        set time-since-birth  1000
        set shape "mammoth"
        rt random 360 fd 7
        set starting-patch patch-here
        ifelse pxcor > (55 - reserve-size) [set place-of-birth 2 ] [set place-of-birth 1 ] ;; born in or outside a protected area
      ]    ;; hatch an offspring set it heading off in a random direction and move it forward a step
    ]
end

to death  ;; common procedure for rats duiker & elephants to die
  if (current-age > max-age)
  [ die ]
end



; Copyright 2011 Uri Wilensky.
; See Info tab for full copyright and license.
