Van der Pol oscillator_01

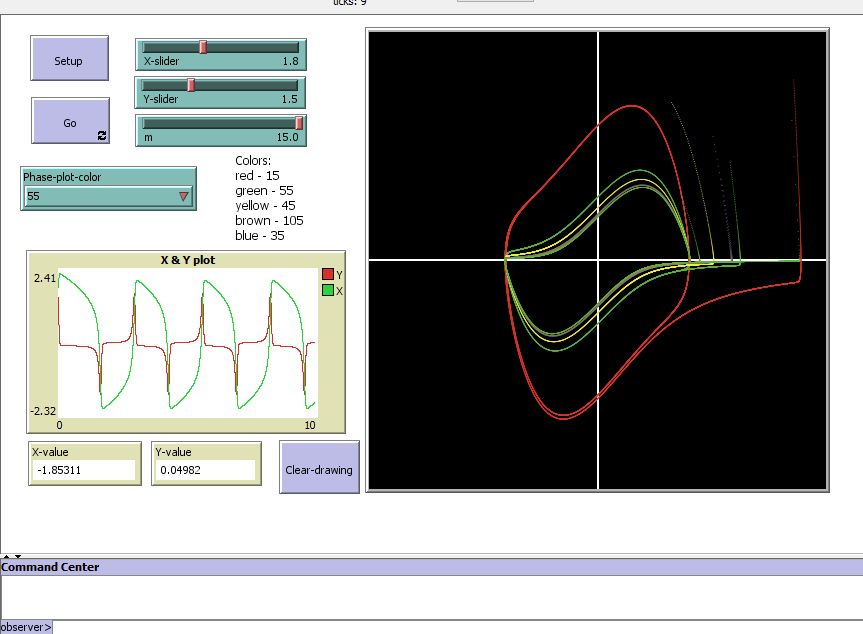

Van der Pol oscillator_01 preview image

1 collaborator

Tags

Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.0.1 • Viewed 299 times • Downloaded 15 times • Run 0 times
Download the 'Van der Pol oscillator_01' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [
  mylist-x
  mylist-y
  X
  Y
  dt
 ]

to setup

  clear-globals
  clear-ticks
  clear-patches
  clear-all-plots
  ask patches with [ pxcor = 0 ] [  set pcolor white ]
  ask patches with [ pycor = 0 ] [  set pcolor white ]
  ask patches with [ pxcor = 1 ] [  set pcolor white ]
  ask patches with [ pycor = 1 ] [  set pcolor white ]
  set mylist-x list 0 (X-slider)
  set mylist-y list 0 (Y-slider)
  system-dynamics-setup
  system-dynamics-do-plot
end

to system-dynamics-setup
  reset-ticks
  set dt 0.001
  set X X-slider
  set Y Y-slider
end

to go
  system-dynamics-go
  system-dynamics-do-plot

  set mylist-x lput result-x mylist-x
  set mylist-y lput result-y mylist-y
  crt 1 [
    set color phase-plot-color
    set xcor (last mylist-x * 40)
    set ycor (last mylist-y * 40)
    set size 0.7
    set shape "circle"
  ]
end

to system-dynamics-go

  let local-m m
  let local-inflow inflow
  let local-inflow1 inflow1

  let new-X ( X + local-inflow1 )
  let new-Y ( Y + local-inflow )
  set X new-X
  set Y new-Y

  tick-advance dt
end

to-report inflow
  report ( m * ( 1 - X * X ) * Y - X
  ) * dt
end

to-report inflow1
  report ( m * Y
  ) * dt
end

to system-dynamics-do-plot
  if plot-pen-exists? "X" [
    set-current-plot-pen "X"
    plotxy ticks X
  ]

  if plot-pen-exists? "Y" [
    set-current-plot-pen "Y"
    plotxy ticks Y
  ]
end

to-report result-x
  report X
end

to-report result-y
    report Y
end

to clear-picture
  ca
end

There is only one version of this model, created over 6 years ago by Victor Iapascurta.

Attached files

File Type Description Last updated
Van der Pol oscillator_01.png preview Preview for 'Van der Pol oscillator_01' over 6 years ago, by Victor Iapascurta Download
