WHAT IS IT?
TpLab - This is the third of a series of three planned models in a study of the maximum power principle (MPP) - the other two models being OamLab and MppLab. In TpLab energy arrives in a steady stream from the Sun and is captured in plants that produce fruit, which appears randomly in dales in the forest. Blind nomadic seekers roaming the forest, each according to their own heuristic search strategy, seek the dales currently having food, and harvest it. The strategies start as ineffective bland heuristics, and evolve to be much more sophisticated. In the most simple scenario, all actions are purely instinctive. But an ability to have beliefs influence behaviour is built into the genes, and belief systems evolve within the societies of seekers. These teleological belief systems can over-rule instinctual behaviours. What happens to seekers of fruit that hold beliefs too tightly? What happens to belief systems that are inconsistent with reality? Under what circumstances can such erroneous belief systems persist? What happens in societies that share a dialectic across multiple belief systems? Can the seekers of fruit become seekers of truth and wisdom?
TpLab, short for Teleological Pruning Laboratory, demonstrates evolutionary processes that shape the belief systems of a society to align with the effects of the Lotka/Odum Maximum Power Principle (MPP). That is, the belief systems are shaped to produce an overall system that functions at the highest rate of consumption of matter and energy that is consistent with the available resources.
MAXIMUM POWER PRINCIPLE (MPP) - It is clear that, when isolated and left alone, all systems die, run down, erode, decay and/or dissipate their matter and energy. This process is closely associated with the phenomenon of entropy production, and the 2nd law of thermodynamics (sometimes referred to as the maximum entropy principle, or MEP) easily describes how this happens. Any such energetically isolated system automatically alters and reconfigures itself, moving through a series of ever more probable states a trajectory of ever increasing entropy, until a most probable configuration or state of maximal entropy is achieved. This state of maximal entropy is usually characterized by an excess of sameness, a lack of structures, shapes or spatial variations, and by characteristic distributions of energies among the parts. Once having achieved such a configuration, the isolated system then remains in a state of maximal entropy (a most probable state) forever after. However, when we look around ourselves, virtually everything we see is characterized by remarkable improbable variety, a plethora of structures and shapes, and turbulent distributions of energy. Clearly, when a system is not isolated and left alone, there is another dynamic able to overpower the 2nd law and undo its nasty work. Such is the nature of the proposed 4th law of thermodynamics. A.J. Lotka, H.T. Odum and R.C. Pinkerton called this the Maximum Power Principle (MPP). H.T. Odum (1924-2002) went on, over four decades, to argue that the MPP is the best candidate for the fourth law of thermodynamics, having explanatory value for such things as ecosystems, economies, and other self-organizing systems. However, in spite of the fact that there is plenty of anecdotal evidence in support of the concept, it remains little understood, and little studied it seems. The MPP says (my words) that any self-organizing system that is open with respect to a flow of energy will configure itself to store/consume/use energy at the maximum rate possible. This model is a "laboratory" in which I can study the nature of the MPP.
This model is the third "laboratory" produced in my personal study of the existence and nature of the MPP. In that study, it has become apparent to me that, through the processes of natural selection, the MPP not only shapes our genes to enhance global consumption, but it also aligns our belief systems to the same end. Those beliefs and practices that stand in the way of increased consumptive power of our emerging global society are pruned away, and those that enhance the consumptive power of global society spread and come to dominate society. So, in like manner to the way our genes are pruned, like the branches of a wild apple tree, our belief systems are also pruned. I refer to this process as Teleological Pruning (or just TP). TP, being a sub-dynamic of the MPP, is sometimes herein referred to as the MPP/TP.
TELEOLOGICAL PRUNING (MPP/TP) - The purpose of this model is to take the study of the MPP into the realm of social effects. It is a desktop laboratory for the study of the MPP/TP. In its broadest interpretation, the MPP says (my words) that any self-organizing system that is open with respect to a flow of matter and energy will continuously reconfigure itself to store/consume/use energy at the maximum rate possible, consistent with available sources of matter and energy. In a variety of diary notes that I have written in an attempt to understand the MPP, I have developed an opinion about just how this affects socially. Not only are our genes shaped to effect this end, but our national political and social structures, our technologies, and our belief systems, plans and practices are also shaped to enhance the overall flow and consumption of matter and energy by the global economy. This even shapes the political and economic organs of global governance, and the political and economic theories that inspire them. It is highly recommended that interested people read my diary notes (referenced below) prior to studying this model.
Conceptual Development - TpLab is being written as part of a personal study of the dynamics of sustainable economics. To understand where and how TpLab fits in, I need to recount some past history. My earliest model economy was a purely biophysical ecosystem model called PSoup (short for Primordial Soup) in which the dynamics of evolution could be demonstrated (Ref D). That was based on a model called Simulated Evolution (SE) by Dr Michael Palmiter (Ref E). In that PSoup model, blind agents compete for limited amounts of energy, and they evolve a nuanced 8-parameter heuristic search pattern that is ever more effective in locating unseen resources. The 8-parameter search pattern can be drawn on the eight points of the compass in a diagram I call a clock face. In a PSoup arena, the MPP, via natural selection, shapes the population to function at remarkably high rates of consumption. I have been using that ecological model as the foundational basis of several agent-based models over the past 15 years, and know it well. SE is the basis of PSoup, ModEco, MppLab (Refs D, F & I below) - and now TpLab.
For TpLab I decided to take the compound genes which encode the agent's heuristic search pattern, and incorporate within them a parallel belief system which modifies the phenotype of each agent in way that the belief system directly enhances or reduces the effects of each gene. The belief system has the same 8-parameter structure as the genetic material, and is super-imposed over the genetic material, but identifiable as a distinct component within the compound gene. It can be manipulated independently of the genetic material, but, at the same time is subject to natural selection through the shared phenotype. But, there is a difference: the belief systems can be modified by learning experiences over the lifetime of the agent, or by social sharing, whereas the genomes are cast at birth and unchanging throughout life. By this means, the basic ecological model of PSoup is converted into a social model in TpLab.
The BIG Question - Why consider the phenomenon of teleological pruning? This is driven by the question that many scientists have considered in recent years. In this modern world, why is economic theory so clearly unscientific, and how does it manage to remain resistant to all attempts to make it science-based? For example, in a world that is clearly depleted of most of its great treasures and on the brink of ecological collapse, to cure these global ills political and economic theory still recommends - indeed demands - an endless pattern of consumptive growth. This appears to be sheer madness, but there are few asking why this emperor has no clothes.
My FINAL answer - All those who believe that something must be done to avert the coming catastrophe are participating in a belief system that is not aligned with the effects of the MPP. That is to say, their belief system does not support the ever increasing rate of consumption of matter and energy until the resources are totally depleted. That belief system, itself, is subject to evolutionary pressures, and is non-adaptive in an evolutionary sense, and is extirpated by natural selection. Any economic or political theory that incorporates such obstructive beliefs is also extirpated by natural selection. Modern political and economic theory is then impervious to all attempts to put science into it. That is MY theory that I call "Teleological Pruning" (i.e. pruning of our theories, purposes and plans by natural selection).
TpLab is a hybrid system, having two intimately linked sub-systems - a biophysical sub-system encoded in a genome, and a teleological sub-system encoded in a set of beliefs:
- In the biophysical sub-system, genes have fixed structure at birth, behavior is encoded as heuristic patterns in genes, and learning happens as the genes and the populations that hold them evolve, generation after generation. Agents are born, struggle for survival, die of hunger or old age, and reproduce only when old enough and healthy enough.
- In the teleological sub-system, agents hold beliefs which alter their genome-derived behaviour. These alterations in behaviour make them more or less efficient at finding food than might be expected from the heuristic encoded in their genome.
- Success is determined by behaviour derived from both the biophysical genome and from the parallel belief system.
Research Questions - Here are my research questions for TpLab:
- Can I effectively model a society which is a hybrid between a biophysical ecosystem and a teleological system?
- Can I demonstrate teleological pruning convincingly? Do the belief systems always align with the heuristic search patterns that evolution produces in the genomes?
- Can desired and potent belief systems that are contrary to the effects of the MPP (e.g. we should not do it that way) nevertheless continue to persist?
Unfortunately, I believe that the answers that come out of this version of TpLab are: "Yes!", "Yes!" and "It seems not!".
HOW IT WORKS
There are several scenarios which all work in a similar fashion, except for key minor design differences. So, I will cover the common design details first, then outline the differences by scenario. Variables and features are enclosed in square [brackets]. Those that are under direct user control, via sliders, are also in [bold].
Nrg - energy, referred to in the model as nrg, exists only in the form of fruit in the arena and nrg in the bodies of the agents. A flux of nrg comes from the Sun at the start of each tick, is deposited into fruit, is eaten by agents, and is expended by agents. There are two mechanisms that throttle the rate of inflow of nrg. There is a hard maximum amount of [Sun-nrg-per-tick] of inflow. However, the maximum amount of nrg that comes from the Sun may also be limited by the size and state of the arena. The amount that arrives per tick can be estimated using the formula [Nrg Flux] = [Number of empty cells] X [Prob-of-deposit] X [nrg-per-deposit]. The actual nrg flux per tick is the lesser of those two amounts, and that determines the carrying capacity of the arena. That flux of nrg is available to be expended by the agents in an amount of [c2-epm-parm] units of nrg per agent per move.
Seekers - the only breed of agents in this model is called Seekers. They are seekers of energy-rich green fruit that appears in the brown arena at random times and random places. But, the seekers are blind and cannot sense the nearby existence of fruit unless it occupies the same cell in which they stand. Their efficiency in finding fruit depends on the heuristic search pattern they undertake, in competition with their contemporaries. Those with a more effective search pattern will have a survival advantage over the others. Seekers are born, move, feed, and live or die. Few live more than 800 ticks, and a typical run of 100,000 ticks spans the lives of over 100 generations of seekers. All of the characteristics of the lives of these agents are encoded in two sets of genes called chromosomes #1 and #2.
Chromosome #1 - c1 - This chromosome contains eight compound genes built in a fashion first used by Dr Michael Palmiter, the author of Simulated Evolution (Ref E). In Dr Palmiter's design, a compound gene had two fundamental components that I label [B] and [G], and store in each seeker in lists called c1-bases and c1-genes. Interpretation of each of these compound genes requires two calculations. The [S]trength of the gene is calculated as the base [B] raised to the power [G]. This can be written as [Si]=[Bi]^[Gi], where 0 <= i <= 7. Then the [P]henotypic character is the relative strength, calculated as the strength [S] of the gene divided by the sum of all eight strengths of all eight genes, written as [Pi]=100x[Si]/SUM([Sj]). Seekers reproduce via fission, so each mother has two daughters, and perishes in the act, splitting her heritage of nrg between the two. The values of [B] and [G] might possibly mutate (change randomly) by a small amount during reproduction. The probability of mutation is set by the slider [prob-of-mutation].
In TpLab there is one additional fundamental component that has been added to each of the eight compound genes - and that is the [L]earned belief. [L] is added to [G] before calculating the [S]trength, so [Si]=[Bi]^([Gi]+[Li]). [Pi] is calculated the same way as before.
The use and interpretation of these genes is described below.
Chromosome #2 - c2 - This chromosome contains the six genes that control biological functions. In this model, these genes are static and do not change, but to maintain similarity with Palmiter's SE model, I encode them into each agent. The six genes are:
- [c2-dat-parm] - Death Age Threshold - Seekers that reach this age (in ticks) die of old age. Either DAT or DET cause death.
- [c2-det-parm] - Death Energy Threshold - Seekers whose energy level falls below this number (in nrg units) die of hunger. Either DAT or DET cause death.
- [c2-rat-parm] - Reproductive Age Threshold - Seekers that reach this age are eligible to reproduce. RAT and RET but both be appropriate for reproduction.
- [c2-ret-parm] - Reproductive Energy Threshold - Seekers that reach this nrg level are eligible to reproduce. RAT and RET but both be appropriate for reproduction.
- [c2-epm-parm] - Energy Per Move - Every agent expends this many nrg units per move.
- [c2-epa-parm] - Energy Per Agent - Seekers cannot harvest fruit that will cause the nrg level to exceed this amount.
C1 Phenotype - The search pattern of the agents is controlled by the C1 genes. If you number the eight genes from 0 to 7 then they can be arranged in a pattern that I call the clock face. With each tick of the model, each agent randomly activates one of its genes, turns to the right an amount equal to that gene number times 45 degrees, then steps forward to feed. So, it always enters one of the eight cells that surround it. When a seeker moves, it first determines which of the eight genes is expressed, it turns to the right by the appropriate angle designated by the expressed gene, and then steps forward and attempts to feed. As shown in the following diagram, the ultimate effect of each of the genes is:
- 0 - 0 degree turn - F - (step forward),
- 1 - 45 degree turn - FR - (step forward to the right),
- 2 - 90 degree turn - R - (step to the right),
- 3 - 135 degree turn - BR - (step back to the right),
- 4 - 180 degree turn - B - (step backward),
- 5 - 225 degree turn - BL - (step back to the left),
- 6 - 270 degree turn - L - (step to the left), or
7 - 315 degree turn - FL - (step forward to the left).
Gene #s Gene Interpretations ------------ --------------- | 7 0 1 | | FL F FR | | | | | | 6 2 | | L R | | | | | | 5 4 3 | | BL B BR | ------------ ---------------
The mechanism used to decide which gene is expressed is the product of Dr Palmiter's genius. The [probability of expression of each gene 'i'] is calculated using the phenotypic values [Pi] with this formula: [Pi]=[Si]/SUM([Sj]) for 0 <= i <= 7. As an example, suppose the eight [S]trengths are 1, 1, 1, 1, 2, 1, 1 and 1. The 1s are calculated as 2^0, and the 2 is 2^1. Then gene 4 is twice as strong as the others, and has a probability of expression [Pi]=100x(2/9), while the others have a probability of expression of [Pi]=100x(1/9). Both are expressed as percentage probabilities.
An almost bland C1 chromosome.
Gene # (i=) 0 1 2 3 4 5 6 7
------ -------------------------------
[Bi] 2 2 2 2 2 2 2 2
[Gi] 0 0 0 0 1 0 0 0
------ -------------------------------
[Si]=[Bi]^[Gi] 1 1 1 1 2 1 1 1
[Pi]=100x[Si]/SUM([Sj]) 1/9 1/9 1/9 1/9 2/9 1/9 1/9 1/9 (all x100)
All scenarios start with a bland set of C1 genes - i.e. [Bi] = 2; [Gi] = 0; and [Si] = 1 for all i. All genes in a bland C1 chromosome have an equal probability of expression in each turn. This results in a search pattern that amounts to a random walk. Such a walk tends to deplete the local resources for each seeker and leads to death, unless all seekers are equally bland and there is lots of nrg flowing in to replenish locally depleted nrg sources.
Not long after a run starts, the [Bi]s and [Gi]s mutate slightly, minor alterations in search patterns appear, and competitive advantages emerge. Different values of [Bi] and [Gi] across a genome represent different heuristic search patterns. Drawn from my experience with PSoup (Ref D), here are a few phenotypic search patterns that may appear:
Notable Phenotypic Search Patterns
Arrow Jitterbug Bent Arrow Dodger
----------- ----------- ----------- -----------
| ^ | | | | \\ | | \ / |
| | | | | | \\ | | \ / |
| | | | | | | || | | | | |
| | | | | | | | |
| | | V | | | | |
----------- ----------- ----------- -----------
Those compound genes not shown are very small, having a negative value for [Gi], and are expressed very rarely. Natural selection chooses the most effective search patterns.
- The Arrow has a strong gene 0, and charges almost straight forward relentlessly. It dominates a wrapped arena (i.e. wrapped at the edges) but is gradually reduced in numbers in a unwrapped or boxed in arena.
- The Jitterbug, has a strong gene 4, jumps back and forth between two cells, and is quickly extirpated as soon as resources become scarce. It persists only when there is energy to spare.
- The Bent Arrow has a strong gene 1 or gene 7, and tends to be an unstable transitional form on the evolutionary path to an arrow or a dodger. It travels in wide sweeping circles that perform a random walk in slow time, as lesser genes are occasionally expressed.
- The Dodger has two strong genes, genes 1 and 7. It dodges forwards in a jagged path that wanders in a far-ranging brownian-like motion. It eventually dominates in arenas in which there are a lot of impediments to movement, such as an unwrapped (boxed in) arena.
Environments can be created in which other patterns emerge as the dominant form in a steady-state environment. In Scenario 0 of TpLab (discussed below) I expect we will see arrows and dodgers as the arena may be either wrapped or unwrapped. The belief systems inject a bias towards a different search pattern. The research questions revolve around this: What heuristic search patterns, if any, will emerge and become dominant in scenarios 1 through 3?
Belief Systems - I have injected a belief system into Palmiter's genes as follows. There are eight learned belief values [Li] superimposed upon and stored along with the gene values [Gi]. The strength of each compound gene 'i' is then calculated as [Si] = [Bi]^([Gi]+[Li]), and the [Pi]s are calculated as usual. The [Pi] values are used in the same way to determine which gene is expressed for any given turn.
The [Bi]s, [Gi]s and [Li]s mutate on reproduction, but the [Li]s also can change through social interaction. In two scenarios the [L]earned belief values are inherited from the mother and established for life for that agent. In two scenarios they are shared within the society, and can spring to dominance or wane to insignificance.
An almost bland C1 chromosome.
Gene # (i=) 0 1 2 3 4 5 6 7
------ -------------------------------
[Bi] 2 2 2 2 2 2 2 2
[Gi] 0 0 0 0 1 1 0 0
[Li] 0 0 0 0 1 -1 0 0
------ -------------------------------
[Si]=[Bi]^([Gi]+[Li]) 1 1 1 1 4 1 1 1
The belief system works as follows. The [L]earned belief values are interpreted as moral convictions, or beliefs, or preferences, purposes, plans or intentions. The emulate free-will decisions of the seekers. There is one ultimately dominant search pattern that can be encoded in the [Bi]s and [Gi]s. Each learned belief [Li] encodes what the seeker believes should be done to improve the outcome of a search, and the contribution to the [S]trength modifies the seeker's behaviour - modifies the actual search pattern. The learned belief might enhance the effects of a [G]ene, as shown for [G4] in the above diagram, or it might cancel its effects, as shown for [G5]. It can be read as "I, the seeker, have learned to believe that I will find more fruit if I turn 180 degrees more often, and turn 135 degrees less often.
Those learned beliefs that align with the ultimately dominant search pattern are TRUE BELIEFS, while those that disagree with the dominant search pattern are FALSE BELIEFS. So, while the seekers are seeking fruit, they are also collectively seeking for the TRUTH - seeking wisdom. According to the MPP, truth is defined by evolution and natural selection as that pattern that leads to the highest rate of consumption of nrg by the system. All learned belief systems that are not aligned with that dominant consumptive pattern must evolve and conform to it, or be rendered impotent.
User Interface - The user interface is organized into several panels, as follows:

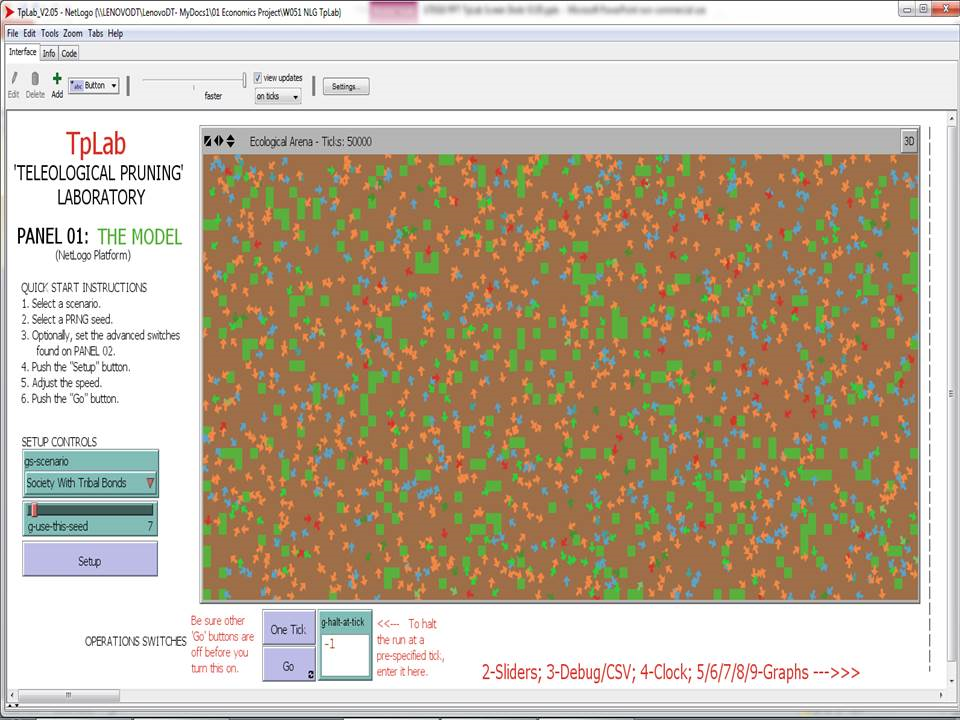

- PANEL 01 - The Model - Contains the arena where the seekers live, and the basic tools to select a scenario, with setup and go buttons.
- PANEL 02 - Advanced System Setup Parameters - Contains the sliders that can be used to manage or modify the scenarios. Most key parameters are available for user experimentation, but default parameters can be retrieved.
- PANEL 03 - Debug and Data Collection Tools - Contains a variety of tools used during development that may not be of interest to users. For those experienced with NetLogo, and who wish to study or modify this model, they remain there for your use.
- PANEL 04 - Clock Face - Averages, 8 Compound Genes - Contains a simulation of the clock face showing the averages for each of the five components of each of the eight compound genes.
- PANEL 05 - Population Graphics - Contains graphs that display population counts broken out by learned belief affiliations and by tribal affiliations (see discussion of scenarios below).
- PANEL 06 - Energy Graphics - Contains graphs that display various aspects of the the nrg stocks and flows, with break out by learned belief affiliations and by tribal affiliations (see discussion of scenarios below).
- PANEL 07 - Average Values - C1 Genes - By Component, By Gene # - Contains five graphs, one for each type of component.
- PANEL 08 - Time Lines - Power and EROI (Moving Averages) - These graphs provide a peek into the response of EROI and power to the evolution of the society.
- PANEL 09 - Nrg & Age Histograms, and Causes of Death - The nrg histogram displays the usual Maxwell-Boltzmann distribution of wealth (in this case - nrg), and other graphs are of mild interest.
SCENARIOS - There are four scenarios available:
- SCENARIO 0 - Society With 0 Beliefs - In this society all [Li]s are set to zero, and stay at zero throughout a run. This replicates the pure biophysical demonstration of evolution as first demonstrated by Dr Palmiter in Simulated Evolution, and as replicated in PSoup. There are no learned belief affiliations, and no tribal affiliations. It is every seeker for herself. Arrows and bent arrows dominate.
- SCENARIO 1 - Society with 8 Beliefs - This is the same as Scenario 0 except each seeker is initially endowed with a single learned belief (i.e. one Li != 0) which is unchanging throughout life, and is passed on to offspring. These represent an unchanging belief that one gene should have more weight that all of the rest. This scenario poses the question "If an affiliation of seekers holds fast to a learned belief that is irreducible in effect, and poorly aligned with the effects of evolution, can it survive?"
- SCENARIO 2 - Society With Wisdom Sharing - In this scenario, which starts out similar to Scenario 1, the seekers are able to learn - to adjust their learned beliefs as life proceeds. Each seeker is a member of an affiliation of seekers having the same learned belief - that we can call a belief affiliation. A belief affiliation might be considered to be like a professional association. When seekers of the same belief affiliation meet, the eldest (the guru) can pass wisdom to the others. Essentially, the [Li] of the younger seekers is adjusted to be more like the [Li] of the guru.
- SCENARIO 3 - Society With Tribal Bonds - This is like Scenario 2, but each seeker belongs to two social affiliations. All seekers belong to a belief affiliation - of which there are a maximum of eight. In addition, each seeker belongs to a tribal affiliation. Each tribe originally includes seekers from all eight belief affiliations, and so is collectively agnostic in outlook. You might consider them to be communities of seekers having a common interest in survival, such as might exist in a village, or tribe, or group of lifelong friends. Seekers can seek professional wisdom from gurus having a common learned belief, as in Scenario 2. However, they can also seek wisdom from tribal elders of their own tribe, in connection with the elder's own belief affiliation. So, in this scenario a seeker may eventually hold beliefs of various strengths outside of their own inherent belief affiliation, and pass that very varied belief system on to its offspring.
HOW TO USE IT
You have heard, I suppose, of one-player games. One of my tutored students calls programs like this a zero-player game. You set the parameters, you start it, and you get yourself a glass of port, and sit and watch it develop.
There are four different scenarios, as described above, and each of those can be run with different random number seeds.
To perform a run of the model:
- In PANEL 1 select a scenario options;
- Select a random seed;
- Enter a 'tick' at which you want the run to stop;
- Optionally, go to PANEL 2 and adjust any of the advanced controls;
- Back on PANEL 1, click on the Setup button to configure the system according to the scenario chosen;
- At the top of PANEL 1, adjust the speed to maximum; and
- Click on the Go button.
More adventurous users might scroll to the right and find the panel of "advanced" sliders which can be used to alter a number of parameters of the model. This is not recommended until you understand the standard operation of the model, but there is a lot to learn there. Many combinations of these sliders will be immediately fatal to the population. I have not built in fail-safe code. But if you adjust them a little, you will see things happen. Their effect is explained in some detail in the user documentation (Ref K). The 'reset defaults' button found there will bring you back to ground zero if need be.
The following process will show the progressive effects of belief systems, and the social spread of wisdom:
- Run scenario 0 (Society With 0 Beliefs) two or three times, to 15,000 ticks each, and watch the difference between the evolution of the forward-motion genes (green) and the backward-motion genes (red). This can be seen best in the graph "Average [P]henotypic Values" in PANEL 6. In this scenario belief systems have absolutely no effect. This is the baseline scenario against which all others should be compared.
- Predict what you think will happen when every seeker has a strong unalterable preference for turning a given distance. Run scenario 1 (Society With 8 Beliefs) once, to 15,000 ticks. Compare the results with those noted in scenario 0.
- Predict what you think will happen when younger seekers can strengthen or reduce their learned belief by contact with older 'wiser' seekers holding the same views. Run scenario 2 (Society With Wisdom Sharing) once, to 15,000 ticks. Again, compare the results with those noted in previous scenarios.
- Now, predict what you think will happen when seekers seek wisdom not only from those with the same belief affiliation, but also from other elders in their own tribe having very varied learned beliefs. Then, run scenario 3 (Society With Tribal Bonds) to 15,000 ticks, two or three times. Take particular note of the graph showing ten tribes. Note that the colour scheme for 'tribal affiliations' is different from the colour scheme for 'belief affiliations'.
THINGS TO NOTICE
- Note the effects of learned beliefs that align with and enhance the evolution of an effective search pattern, and those that are misaligned, and detract from such patterns.
THINGS TO TRY
SEEDS - Note the behaviour of the system for the same scenario that differ only by different random seeds.
EXPERIMENTATION - For any scenario, use the special tools in PANEL 2 to impose a learned belief upon half of the population.
A VIEW INSIDE - [ NOTE: Do not let this run for a long time. It generates very large debug log files in a short time.] This is a four step process: (Step 1) Open the command centre by clicking on the teeny tiny upwards-pointing arrow at the bottom left of the screen. (Step 2) Then when the command centre appears at the bottom of the screen, click on the 'upsize' and 'clear' buttons at the top right of the command centre. (Step 3 ) Then use the debug button and the associated 'chooser' (scroll the view screen to the right to find these in PANEL 3) to turn on debug reporting for one or all of the steps. (Step 4 ) Click on 'one tick'. Then scroll through the debug info that has been written into the command centre log.
DATA EXPORT - Right click on any of the graphs, and choose export. Or, open the command centre as described above, and in the observer command line input box at the very bottom of the screen, enter the command EXPORT-WORLD "filename.CSV", where filename is a name of your choosing. I suggest, that e.g. if the model is at tick 35, the filename might be "world35.CSV". The quotes are needed. Then, use MS Excel, or a similar spreadsheet to load that file. Every piece of data in the model will be found there somewhere in the output. These 'whole world' files can be loaded with MS Excel. They can also be re-loaded back into TpLab. Or, you could use the tools I have built to augment those native NetLogo abilities. Click on the "Record Selected Plots" button to create CSV files for seven key plots.
ALL OF THE WAY INSIDE - There are key routines in the code that provide insight into how the model operates. Go to the code tab and search for each of these strings, including the associated hyphens: -own, do-, -initialize-, -mutate-, or -find.
EXTENDING THE MODEL
Should I find the time and inspiration, TpLab will be modified to more clearly present the effects of the Maximum Power Principle (MPP), the study of which lead directly to its development. However, my goal here, to-date, has been to explore the nature of 'Teleological Pruning' in an evolving society. I.e. it has been to explore how our belief systems are subject to the same evolutionary pressures as our genes, but operating at a much higher speed. Our genes are resilient, and take generations to change, but our belief systems are relatively malleable.
A first step would be to import some of the logic around nrg transformations from MppLab into this model. Then the herbivorous seekers would become heterotrophs, eating either fruit or animals. However, I am unsure how I would impose a belief system on them, and how it could be monitored in an insightful way.
RELATED MODELS
This model is one of a series of models that have been developed as part of a personal exploration of the dynamics of sustainable economies. They include:
PSoup - Written in C++, this model explores the nature of evolutionary forces in a purely biophysical economy (Ref D). Based on a previous model called Simulated Evolution by Dr Michael Palmiter, PSoup places a number of bugs into a primordial soup and tracks their development. Offering scenarios at many levels, it demonstrates a variety of effects of evolution from simple development of effective food search patterns in the lowest levels, to development of the five main senses, genetic cross-over and sexual reproduction. The amazing observation, for me, coming out of this model was the speed and certainty of the development of complexity. Whenever a complex option was made available in the potential genetic space of the bugs, it was explored and very complex interactions between a cohort of highly varied genotypes would emerge. I also learned, from this model, that a constant flow of energy was a necessary condition for a sustainable biophysical economy, and a necessary pre-cursor for the emergence of complexity.
ModEco - There are two versions of ModEco. Written in C++, the first-written version of ModEco is a hybrid economy consisting of a PSoup-like biophysical economy joined to a financial economy (Ref F1). In ModEco every transfer of matter and/or energy from agent to agent is facilitated by a reciprocal transfer of money. Again, as long as there is a consistent flow of energy, the economy evolves towards a steady-state biophysical condition. However, sustainability of the financial economy has proven to be a very elusive property. It was discovered that economic sustainability was only possible if profit and loss was eliminated from the financial sector, and in its place an extremely precise regime of recognition and preservation of biophysical value was instituted. The scenario that exhibited sustainability under this harsh condition was called, somewhat jokingly, the "Perpetual Motion Machine", or "The PMM". In more technical terms, the equilibrium achieved in the PMM is an unstable equilibrium that must be maintained by continuous external intervention.
ModEco and the PMM - Written in NetLogo, this model is a replication of the C++ model, but only of the single scenario called The PMM (Ref F2). Again, three observations are clear from this model, and from the two previous models, when looking back over the common characteristics. First, the steady-state condition of any of these models demonstrates clear evidence of entropy rising to a maximal value, and then staying there. The distributions of alleles (in PSoup), or of wealth (in ModEco and The PMM) develop and then hold shapes characteristic of maximal entropy. Second, the emergence of complex economic organizations and inter-agent interactions seems to be an inevitable part of the evolution towards such a sustainable configuration. Third, and perhaps most important, the steady state can only be maintained by programming techniques that address the inherent instability of the equilibria associated with those steady states.
EiLab - Written in C++, this model enables a rather detailed investigation of the phenomenon of rising entropy in economic models (Ref G). Inspired by the work of Dragulescu and Yakovenko (2000), it implements a capital exchange model in which I could study the origins and impact of entropy production in such models. EiLab stands for "Entropic Index Laboratory". I like this "laboratory" approach, because I can study many scenarios, generate lots of data, and then study the data. There were a few key observations coming out of this model. First, the study of entropy in such models is highly analogous to the study of entropy by Gibbs in his development of the concepts of "Gibbs' Free Energy". Second, in spite of the similarity to entropy, as Gibbs understood it, the entropy being investigated is not thermodynamic entropy, but a purely mathematical abstraction of it which is produced by a logical system executing logical processes distinct from chemical or heat-related effects. Third, the emergence of maximum entropy distributions was inevitable in these models, but the emergence of complexity was not, implying that there may be two distinct sets of conditions causing (a) the production of entropy, and (b) the production of complexity.
OamLab - Written in NetLogo, this model is one of two developed to explore more fully the phenomenon of production of complexity in economic systems (Ref H). This is a continuation of my study of sustainability of economic systems. It is the more simple senior member of a set of three models in which I explore the "Maximum Power Principle" as first proposed by A. J. Lotka and as developed by H. T. Odum. Both men argued that there is a need for a "fourth" law of thermodynamics, required to explain the persistent emergence of complexity. However, I found that Odum's ideas on this topic are difficult to decipher for a number of reasons. Ultimately, I found it necessary to restate his MPP as a set of three closely-related falsifiable hypotheses, and only then could I design models to test those hypotheses. OamLab is the first of three such models designed to test the validity of my restatement of the MPP. The prediction was that this model would evolve to a steady state in which the average efficiency was 0.5. Strangely, the steady-state average efficiency was 0.62, and not 0.5. This lead to the discovery of a dispute between Odum and Silvert in the early 1980s over which of the two numbers was the correct prediction. On further investigation, it turns out that there are, in fact, two valid answers, and both results are easily validated as consistent with the MPP. So, I consider that model, simple though it be, as supporting the hypotheses of the MPP.
MppLab - Written in NetLogo, this is the middle member of the trio of models exploring the validity of the MPP (Ref I). This had an exciting result, as it is able to model a trophic web, in action, with from 6 to 10 trophic levels all operational at once. I have made a YouTube video using this model.
CmLab - Written in NetLogo, this is another in the series of models designed to understand sustainable economics (Ref J). The name is short for "Conservation of Money" Laboratory. It's another model derived from PSoup and ModEco, but also derived from EiLab. PSoup is a purely biophysical economy. CmLab is a purely financial economy. ModEco is a hybrid biophysical/financial economy. CmLab is a capital exchange model in which bank loans are used to create money, and double-entry book-keeping is used to track it. It can provide, I think, some interesting insights into the nature of flows on money, which forms one half of a sustainable economy.
TpLab - Written in NetLogo, this model is intended to explore the hypothesized phenomenon that I am calling "Teleological Pruning". I argue that the beliefs and practices of any society are "pruned" and shaped by the same evolutionary pressures that shape our genes. Our societies are therefore shaped to conform to and agree with the effects of the Maximum Power Principle. This would explain why consumerism has emerged as the most destructive and persistent form of economic activity in our highly complex modern global economy. Our global economy has become the most powerful economy ever to have existed (in terms of energy consumed per year, and possibly in terms of energy consumed per person per year). Our beliefs (e.g. the necessity of endless economic growth) and our practices (materialism and consumerism) are now aligned with this destructive social trend. In TpLab, social beliefs are pitted against the effects of evolutionary pressures, with interesting effects.
CREDITS AND REFERENCES
Here's a list of formal references that were helpful to me:
Ref A - A.J. Lotka (1922a) 'Contribution to the Energetics of Evolution', Proceedings of the National Academy of Sciences of the United States of America, Vol. 8, No. 6 (Jun. 15, 1922), pp. 147-151.
Ref B - A.J. Lotka (1922) 'Natural Selection as a Physical Principle', Proceedings of the National Academy of Sciences of the United States of America, Vol. 8, No. 6 (Jun. 15, 1922), pp. 151-154.
Ref C - H.T. Odum and R.C. Pinkerton (1955) 'Time's speed regulator: The optimum efficiency for maximum output in physical and biological systems ', Am. Sci., 43 pp. 331–343.
Here are some less formal references:
Ref D – Boyle, Garvin H (2002), Primordial Soup (PSoup), Application written in C++. Downloadable from http://orrery-software.webs.com/psoup.
Ref E - M. Palmiter (1989), Simulated Evolution, Application. Downloadable from http://lifesciassoc.home.pipeline.com/instruct/evolution/.
Ref F1 – Boyle, Garvin H (2013, March 28). ‘ModEco and the PMM - A simple physically conservative complete sustainable economy.’ (Version 2). CoMSES Computational Model Library. Retrieved from: https://www.openabm.org/model/3613/version/2
Ref F2 – Boyle, Garvin H (2014, June 18). ‘Sustainable Economies ModEco.’ NetLogo Modeling Commons. Retrieved from: http://modelingcommons.org/browse/one_model/4746#model_tabs_browse_info
Ref G – Boyle, Garvin H (2015, May 27). ‘Capital Exchange Models – With Investigations of Entropic Index.’ (Version 3). CoMSES Computational Model Library. Retrieved from: https://www.openabm.org/model/3860/version/3
Ref H – Boyle, Garvin H (2016). ‘Maximum Power Principle OamLab.’ NetLogo Modeling Commons. Retrieved from: http://modelingcommons.org/browse/one_model/4745#model_tabs_browse_info
Ref I1 – Boyle, Garvin H (2016, May 9). ‘Maximum Power Principle MppLab.’ Not yet released.
Ref I2 – Boyle, Garvin H (2016, May 9). ‘150907 MPP and Trophic Levels R1.’ Retrieved from: https://www.youtube.com/watch?v=1NsRF4Bi0Zc
Ref J – Boyle, Garvin H (2016. ‘Conservation of Money Laboratory.’ Not yet released.
Ongoing conversations with Sholto Maud of Australia have been extremely helpful and very encouraging.
CONTACT ME: Garvin H. Boyle Email: orrery@rogers.com Web: http://orrery-software.webs.com/ Snail-mail: PO Box 1149, Richmond, Ontario, Canada, K0A 2Z0
