Pocket Mouse

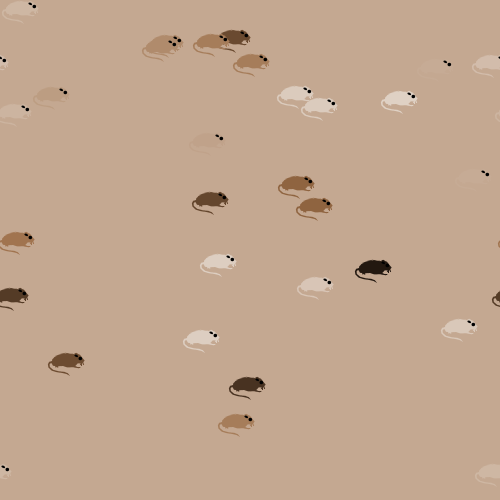

Pocket Mouse preview image

1 collaborator

Screen_shot_2018-02-02_at_12.53.50_pm lin xiang (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.2.0 • Viewed 430 times • Downloaded 26 times • Run 0 times
Download the 'Pocket Mouse' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


MODEL IDEAS

This module provides students with opportunities to identify and test different components of natural selection model.

CREDITS AND REFERENCES

This module is made by Dr. Lin Xiang at Weber State University. If you mention this model in a publication, we ask that you include the citations below.

Xiang, L. (2017). Pocket Mouse Module. Zoology Department, Weber State University, Ogden, UT.

CC BY-NC-SA 4.0

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 License. To view a copy of this license, visit https://creativecommons.org/licenses/by-nc-sa/4.0/.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

turtles-own [energy]

to-report Time-period
  report ticks / 40
end

to setup
  clear-all
  setup-turtles
  setup-patches
  reset-ticks
end

to setup-turtles
  create-turtles Starting-population-size
  ask turtles [
    set color 37.7 - random-float (Mutation-rate / 2)
    set shape "mouse side"
    set size 1.25
    setxy random-xcor random-ycor
    set energy 20]
end

to setup-patches
  ask patches [set pcolor Environment-color]
end

to go

  if years = 0 [user-message "Number of years is needed" stop]
  if ticks > years * 40 [stop]


  if color-heritable? = false [ask turtles [set color 31 + random-float 7.5]]
  diff-survival
  move
  forage
  dead
  reproduce
  regrow
  if count turtles = 0 [user-message "All mice have died."  Stop]
  tick
end

to move
  ask turtles [rt (random 180)
               fd 1
               set energy energy - 1]
end

to dead
  ask turtles [if energy <= 0 [die]]
end

to forage
  ask turtles [if pcolor = Environment-color [set energy (energy + 1.5) set pcolor pcolor - 1]]
end

to reproduce
  ask turtles [
    if energy >= 40
    [hatch 1
      [set energy 20
       if random 100 < Mutation-rate [
          ;set color (color - 1) + random-float 2
          set color 31 + random-float 7.5
        ]
        if color < 31 [set color 31]
        if color > 38.5 [set color 38.5]]
      set energy energy - 20
      ] ]
end

to regrow
  ask patches with [pcolor != Environment-color] [set pcolor Environment-color]
end

to diff-survival
    ask turtles [
      if random 2500 < (abs (color - Environment-color) * Number-of-visual-predators * 0.5) [die]
    ]
end
