Turtles and Zombies

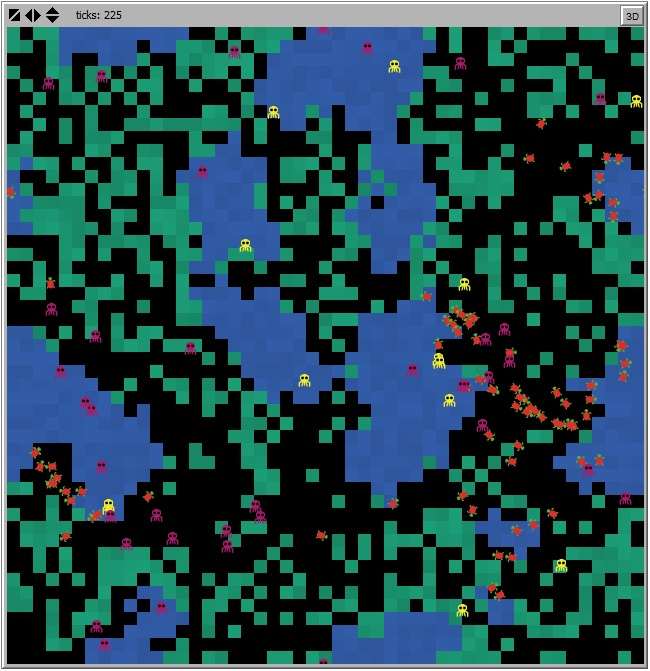

Turtles and Zombies preview image

1 collaborator

Tags

population dynamics

Tagged by Pablo Gonzalez de Prado almost 3 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 5.3.1 • Viewed 167 times • Downloaded 8 times • Run 0 times
Download the 'Turtles and Zombies' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [deaths maxRadius]
turtles-own [energy]
patches-own [friction isWater]
breed [tortoises tortoise]
breed [zombies zombie]

to clear
  clear-all
  ask patches [ set pcolor green - ( random-float 0.8 )]
  reset-ticks
end

to setup
  clear
  ;; maxRadius is used in smartMovement
  set maxRadius 5
  set-patch-size 13
  setup-patches
  set deaths 0
  ;; make this "5" a controllable variable
  repeat 5 [ setup2-patches ]
  repeat 5 [ smoothWater ]
  setup-turtles
  reset-ticks
  stop
end

;; Creates some grass and a bit of water

to setup-patches
  ask patches [
    set isWater false
    ifelse random-float 100 < newLakeChance
      [ intoWater ]
      [ set pcolor green - ( random-float 0.8 ) ]
  ]
end

;; Grows water areas (this method is iterated)

to setup2-patches
  ask patches [
    ;; Only neighbours of water can turn into water
    ;; That's why setup-patches creates some water seeds!
    if isWater = true [
      ask neighbors [
        ;; If a neighbour is grass, attempts conversion
        if isWater = false [
          ;; Patches with more water neighbours will be visited more ofte, so
          ;; they have a higher chance of becoming water!

          ;; Important detail: the order in which patches are visited
          ;; will introduce a bias (if we visit from left to right, there is a
          ;; chance that the neighbour with xcoord + 1 will become water, and
          ;; when this is visited it may also turn xcoord + 2 into water, but
          ;; the same is not true to the left). Unimportant for this toy program.
          ;; A solution would be to create a second label that stores the old
          ;; isWater status and only update this when the iteration is finished (for example)
          if random 100 < lakeGrowth [
            intoWater
          ]
        ]
      ]
    ]
  ]
  tick
end

;; Water growth produces some unpleasant structures. Here water edges are smoothed.

to smoothWater
  ask patches [
    ;; Only turns grass into water!
    if isWater = false [
      ;; Counts the number of neighbours that are water
      let waterNeighbours 0
      ask neighbors [
        if isWater = true [
          set waterNeighbours waterNeighbours + 1
        ]
      ]
      ;; We want a path with 4 neighbours to be much more likely to become water than
      ;; one with 2. We multiply to get squares, so 2 neighbours gets 4 "chances"
      ;; and 4 neighbours get 16 "chances".
      set waterNeighbours waterNeighbours * waterNeighbours
      ;; We get the random number up to 65 so there is a very small chance of
      ;; finding super small islands (max neighbours squared is 64)
      if random 65 < waterNeighbours [
        intoWater
      ]
    ]
  ]
end

to intoWater
  set pcolor 105 - (random-float 0.4 ) set friction 1 set isWater true
end

to setup-turtles
  ask turtles [ die ]
  create-turtles numberTurtles
  ;; tortoises is an old, confusing class name refering to turtles that are alive
  ;; the other turtle sub-class is "zombies"
  ask turtles [ set breed tortoises set energy starvationEnergy ]
  ask tortoises [ set shape "turtle" setxy random-xcor random-ycor set color 15 ]
end

to go
  if count turtles = 0 [ stop ]
  ask tortoises [ move-tortoises tortoises-eat reproduce ]
  ask zombies [ move-zombies eat-tortoise ]
  death
  grow
  tick
  do-plots
end

to move-tortoises
  ifelse smartMovement = false
    [ normalTortoiseMove ]
    ;; else: smart movement (away from monsters)
    [
      ;; smart movement only if enemies are present!
      ;; commented code for avoiding other turtles
      ;;let turtlesInRange 0
      ;;ask tortoises in-Radius maxRadius [
      ;;  set turtlesInRange ( turtlesInRange + 1 )
      ;;]

      ;;ifelse turtlesInRange > 1
      ifelse any? zombies in-Radius maxRadius
        [
          set heading awayDirection
          forward random 2 * (2 - friction) / 2
        ]
        ;; else: normal movement!
        [ normalTortoiseMove ]
    ]
end

to normalTortoiseMove
  right random lessStraightMovement - ( lessStraightMovement / 2 ) forward random 2 * (2 - friction) / 2
end

;; finds the direction away from most nearby monsters

to-report awayDirection
  let callingTurtle self
  ;; let's try to run away from the weighted center of mass of enemies!
  let awayX 0
  let awayY 0
  ;;ask turtles in-radius maxRadius [
  ask zombies in-radius maxRadius [
    let localX 0
    let localY 0
    ;; for every neighbour gets the local x and y distance
    set localX ( xcor - ( [xcor] of callingTurtle ) )
    set localY ( ycor - ( [ycor] of callingTurtle ) )

    ;; corrects border effects
    set localX ( fixDistBorder localX max-pxcor )
    set localY ( fixDistBorder localY max-pycor )

    ;; the closer the monster is, the larger the weight for the total
    let dist ( maxRadius - distance callingturtle )
    ;; adds the weighted contribution to the total
    set awayX ( awayX + ( localX * dist ) )
    set awayY ( awayY + ( localY * dist ) )
  ]

  ;; We don't need to divide by the total weight, since this only
  ;; rescales the (awayX, awayY) vector. Note that any
  ;; k·(a, b) defines the same direction as (a, b)!

  ;; Invert the values to head AWAY from the monsters!
  set awayX ( - awayX )
  set awayY ( - awayY )

  ;; finally converts these local coordinates into an angle!
  let awayAngle 0
  ifelse ( awayX != 0 or awayY != 0 )
    [ set awayAngle ( atan awayX awayY ) ]
    ;; else: undefined angle!
    [ set awayAngle random 360 ]

  report awayAngle
end

;; checks if the x/y distance to the neighbour is too big
;; which means we have to correct a jump over the edges
;; (so from -max to +max we get distance 1)

to-report fixDistBorder [ increment maxCoord ]
  let minJump ( maxCoord * 2 ) - maxRadius
  let twoTimesOne ( maxCoord * 2 ) + 1

  ifelse abs increment > minJump
    [
      if increment > 0 [
        report ( - twoTimesOne + increment )
      ]
      if increment < 0 [
        report ( twoTimesOne + increment )
      ]
    ]
    ;; no changes
    [ report increment ]
end

to move-zombies
  ifelse  smartMovementZ = false
    [ normalZombiMove ]
    ;; else: smart movement (away from monsters)
    [
      ifelse any? tortoises in-Radius maxRadius
        [
          let target ( one-of tortoises in-Radius maxRadius )
          ;; if target is in the same spot (should not happen) this creates an exception
          ifelse distance target > 0
            [
              set heading towards target
              forward random 2 * (2 - friction) / 2
            ]
            [ normalZombiMove ]
        ]
        [ normalZombiMove ]
    ]

  ;; Zombies die in water!
  ;;ifelse isWater = true
  ;;  [ die ]
  ;;  [ set energy (energy - moveEnergyConsumption) ]
  ;; better and faster: water simply takes more energy from them
  ;; otherwise large amounts of turtles gather in the water
  ;; remember: friction is 1 in water, 0 otherwise
  set energy (energy - ( friction + 1 ) * moveEnergyConsumption)
end

to normalZombiMove
  right random lessStraightMovementZ - ( lessStraightMovementZ / 2 ) forward random 2 * (2 - friction) / 2
end

to tortoises-eat
  ;; turtles in water gain a bit of energy, otherwise they spend some moving
  ifelse isWater = true
    [ set energy (energy + 1) ]
    ;; no water. first takes the movement penalty
    [
      set energy (energy - moveEnergyConsumption)

      ;; if there is grass they also eat
      if pcolor < 101 [
        if pcolor > 0 [
          set pcolor black set energy (energy + foodEfficiency) ;;set color (color + 10)
        ]
      ]
    ]
end

to reproduce
  if energy > energyToReproduce [
    set energy (energy - (energyToReproduce / 2) )
    hatch 1 [ set energy (energyToReproduce / 2) ]
  ]
end

to death
  ask turtles [
    ;; if energy falls below a threshold turtles die.
    if energy < starvationEnergy [
      set deaths (deaths + 1)
      ifelse random-float 100 < chanceToZombiAtDeath
        [ set breed zombies set shape "monster" set color 45 ]
        [ die ]
    ]
  ]
end

to grow
  ask patches [
    if pcolor = 0 [
      if random 100 < 1 [
        set pcolor 75 - (random-float 0.8 )
      ]
    ]
  ]
end

to eat-tortoise
  if any? tortoises in-radius 3 [
    ifelse any? tortoises in-radius 3 with [ energy <= 31 ]
      [ set energy (energy + 21)
        ask one-of tortoises in-radius 3 with [ energy <= 31 ] [ die ]
      ]
      ;; else
      [ set energy (energy + 10)
        ask one-of tortoises in-radius 3 [
          set energy (energy - 10)
          if random-float 100 < chanceInfect [
            set breed zombies
            set shape "monster"
            set color 125
          ]
        ]
      ]
  ]
end

to do-plots
  set-current-plot "totals"
  set-current-plot-pen "tortoises"
  plot count tortoises
  ;;set-current-plot-pen "grass"
  ;;plot count patches with [pcolor > 0] / 10
  ;;set-current-plot-pen "deaths"
  ;;plot (deaths * 10) / ticks
  set-current-plot-pen "zombies"
  plot count zombies
end

There are 2 versions of this model.

Uploaded by When Description Download
Pablo Gonzalez de Prado almost 4 years ago fixed zombies not responding to water Download this version
Pablo Gonzalez de Prado almost 4 years ago Initial upload Download this version
