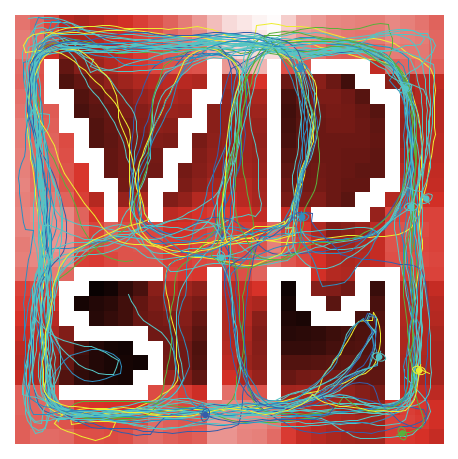

VD-sim
1 collaborator
Seung Jae Lee (Author)
Tags
analysis
Tagged by Seung Jae Lee over 8 years ago
behavior
Tagged by Seung Jae Lee over 8 years ago
dynamics
Tagged by Seung Jae Lee over 8 years ago
movement
Tagged by Seung Jae Lee over 8 years ago
natural movement
Tagged by Seung Jae Lee over 8 years ago
natural movement
Tagged by Seung Jae Lee over 8 years ago
natural movement`
Tagged by Seung Jae Lee over 8 years ago
natural movementh
Tagged by Seung Jae Lee over 8 years ago
pedestrian
Tagged by Seung Jae Lee over 8 years ago
simulation
Tagged by Seung Jae Lee over 8 years ago
spatial
Tagged by Seung Jae Lee over 8 years ago
visibility
Tagged by Seung Jae Lee over 8 years ago
visual
Tagged by Seung Jae Lee over 8 years ago
visual dynamics
Tagged by Seung Jae Lee over 8 years ago
Model was written in NetLogo 5.2.0
•
Viewed 342 times
•
Downloaded 27 times
•
Run 0 times
Download this modelDo you have questions or comments about this model? Ask them here! (You'll first need to log in.)
Info tab cannot be displayed because of an encoding error
Comments and Questions
Please start the discussion about this model!
(You'll first need to log in.)
Click to Run Model
extensions [ gis ]
globals [file-name
mouse-clicked
mouse-double-click
clicked-turtle
clicked-xcor
clicked-ycor
scale
times
dumy_setting
paths-dataset
check-agent-num
full-iso
shape-list
prog prog_total
]
breed [peds ped]
breed [vectors vector]
breed [arrows arrow]
breed [grids grid]
breed [spectrums spectrum]
breed [nodes node]
breed [walls wall]
breed [foots foot]
breed [pictures picture]
peds-own[iso-area
ped_self
cog_convex
occlude_memory
random_dist
random_angle
]
patches-own [agent-exposure
isovist
VE1 VE2 pVE access
iVE3 qVE3 iVA3 qVA3
q_exposure i_exposure iDVA qDVA dumy VE1_dumy t_exposure jam_level
var var_t step di head_angle head_angle_r head_angle_l
wall_field_dist wall_field_angle VfT
node-end
]
;;;;;;;;;;;;;;;;;;;;;shp file import;;;;;;;;;;;;;;;;;;;;;;
to shp-import
set file-name user-file
if file-name = false [stop]
read-gis-datasets
setup-world-envelope
draw-world
setup-paths-graph
end
to read-gis-datasets
set paths-dataset gis:load-dataset file-name
end
to setup-world-envelope
let world (gis:envelope-of paths-dataset) ;; [ minimum-x maximum-x minimum-y maximum-y ]
let zoom 1.05
let x0 (item 0 world + item 1 world) / 2 let y0 (item 2 world + item 3 world) / 2
let W0 zoom * (item 0 world - item 1 world) / 2 let H0 zoom * (item 2 world - item 3 world) / 2
set world (list (x0 - W0) (x0 + W0) (y0 - H0) (y0 + H0))
gis:set-world-envelope (world)
end
to setup-paths-graph
set-default-shape nodes "circle"
ask nodes [set size 0.1]
foreach polylines-of paths-dataset 10 [
(foreach butlast ? butfirst ? [ if ?1 != ?2 [ ;; skip nodes on top of each other due to rounding
let n1 new-node-at first ?1 last ?1
let n2 new-node-at first ?2 last ?2
ask n2 [ask patch-here [set node-end 1]]
ask n1 [face n2 while [[node-end] of patch-here != 1] [ask patch-here [set pcolor white] fd 0.001]]
ask patches [set node-end 0]
]])
]
ask nodes [die]
end
to-report new-node-at [x y] ; returns a node at x,y creating one if there isn't one there.
let n nodes with [xcor = x and ycor = y]
ifelse any? n [set n one-of n] [create-nodes 1 [setxy x y set size 2 set n self]]
report n
end
to draw-world
gis:set-drawing-color [255 0 0] gis:draw paths-dataset 1
end
to-report polylines-of [dataset decimalplaces]
let polylines gis:feature-list-of dataset ;; start with a features list
set polylines map [first ?] map [gis:vertex-lists-of ?] polylines ;; convert to virtex lists
set polylines map [map [gis:location-of ?] ?] polylines ;; convert to netlogo float coords.
set polylines remove [] map [remove [] ?] polylines ;; remove empty poly-sets .. not visible
set polylines map [map [map [precision ? decimalplaces] ?] ?] polylines ;; round to decimalplaces
;; note: probably should break polylines with empty coord pairs in the middle of the polyline
report polylines ;; Note: polylines with a few off-world points simply skip them.
end
to-report meters-per-patch ;; maybe should be in gis: extension?
let world gis:world-envelope ; [ minimum-x maximum-x minimum-y maximum-y ]
let x-meters-per-patch (item 1 world - item 0 world) / (max-pxcor - min-pxcor)
let y-meters-per-patch (item 3 world - item 2 world) / (max-pycor - min-pycor)
report mean list x-meters-per-patch y-meters-per-patch
end
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
to setup
cd ct
ask patches with [ 92 < pcolor and pcolor < 97] [set pcolor blue]
ask patches with [ 82 < pcolor and pcolor < 87] [set pcolor cyan]
ask patches with [ 32 < pcolor and pcolor < 37] [set pcolor brown]
ask patches with [ 42 < pcolor and pcolor < 47] [set pcolor yellow]
ask patches with [ 52 < pcolor and pcolor < 57] [set pcolor green]
set-initial
ask patches with [count neighbors != 8] [set pcolor white]
set mouse-clicked false
set mouse-double-click false
set clicked-turtle nobody
end
to set-initial
ct
reset-ticks
clear-drawing
clear-all-plots
patch-color
ask patches [set q_exposure 0 set i_exposure 0 set iDVA 0 set qDVA 0
set step 0 set var 0 set var_t 0 set jam_level 0 set check-agent-num 0]
set times 0
set check-agent-num 0
set prog 0
set prog_total 0
end
to patch-color
ask patches with [pcolor != blue and pcolor != white and pcolor != cyan and pcolor != brown and pcolor != yellow and pcolor != green]
[set pcolor black]
end
to draw-env
if mouse-down?
[if dwg-code = "Erase(Black)" [ask patch mouse-xcor mouse-ycor [set pcolor black]]
if dwg-code = "Wall(white)" [ask patch mouse-xcor mouse-ycor [set pcolor white]]
if dwg-code = "Exit(Cyan)" [ask patch mouse-xcor mouse-ycor [set pcolor cyan]]
if dwg-code = "Attractor(Brown)" [ask patch mouse-xcor mouse-ycor [set pcolor brown]]
if dwg-code = "Window(Blue)" [ask patch mouse-xcor mouse-ycor [set pcolor blue]]
if dwg-code = "Entrance(Yellow)" [ask patch mouse-xcor mouse-ycor [set pcolor yellow]]
if dwg-code = "Mark(Green)" [ask patch mouse-xcor mouse-ycor [set pcolor green]]
]
end
to set-ped
set-initial
ask n-of ped_num (patches with [pcolor = black]) [sprout-peds 1 [set shape "head" set size 1]]
end
to make-movie
movie-cancel
let path (word user-new-file ".mov")
if not is-string? path [ stop ] ;; stop if user canceled
movie-start path
if Movie_Type = "Navi-Movement" [grade while [check-agent-num != ped_num or any? peds] [target-walking movie-grab-view ]]
if Movie_Type = "Navi_Natural_Mov" [grade while [check-agent-num != ped_num or any? peds] [Target_Gallery-Walking movie-grab-view ]]
if Movie_Type = "Natural_Movement" [while [times < sim-time] [Gallery-walking movie-grab-view ]]
ask patches with [pcolor = black]
[set pcolor scale-color red q_exposure min [q_exposure] of patches max [q_exposure] of patches]
movie-grab-view
movie-close
user-message (word "Exported movie to " path)
end
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;Static Analysis;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
to Static_Analysis
if Static_Analysis_type = "View from Agent(s)" [get-view_from_target]
if Static_Analysis_type = "Isovist Field" [get-isovist]
if Static_Analysis_type = "VE I" [get-VE1]
if Static_Analysis_type = "VE II" [get-VE2]
if Static_Analysis_type = "VE III (iVE III)" [get-iVE3]
if Static_Analysis_type = "Potential Field" [patch-color
grade
ifelse any? patches with [var != 0][
ask patches with [pcolor = black]
[set pcolor scale-color red var min [var] of patches max [var] of patches]
][user-message "No Result" stop]
]
if Static_Analysis_type = "Wall Field" [get-wall_field]
end
to get-view_from_target
cd
patch-color
set prog 0
set prog_total 0
if not any? turtles [user-message "No Agent(S)" stop]
ask patches [set VfT 0 set agent-exposure 0 set dumy 0]
set prog_total count peds
set scale real-width / world-width
ask peds [without-interruption
[let angle 180
while [abs angle <= 180]
[let dist 1
while [dist <= view_dist / scale]
[let p patch-right-and-ahead angle dist
ask p [ifelse pcolor != white
[if dumy = 0 [set agent-exposure 1 - (dist * scale / view_dist) set dumy 1]]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
]
ask patches with [dumy = 1] [set VfT VfT + agent-exposure]
ask patches with [dumy = 1] [set agent-exposure 0 set dumy 0] ]
set prog prog + 1
]
patch-color
ask patches with [pcolor = black]
[set pcolor scale-color red VfT min [VfT] of patches max [VfT] of patches]
end
to get-isovist
ct
cd
patch-color
set prog 0
set prog_total 0
ask patches [set isovist 0 set agent-exposure 0 set dumy 0]
ask patches with [pcolor != white and pcolor != blue]
[sprout-peds 1 [set shape "person" set color grey set heading 0]]
set prog_total count peds
set scale real-width / world-width
ask peds [without-interruption
[let angle 180
while [abs angle <= 180]
[let dist 1
while [dist <= view_dist / scale]
[let p patch-right-and-ahead angle dist
ask p [ifelse pcolor != white
[if dumy = 0 [ set dumy 1]]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
]
ask patches with [dumy = 1] [set isovist isovist + 1]
ask patches with [dumy = 1] [ set dumy 0] ]
set prog prog + 1
die
]
patch-color
ask patches with [pcolor = black]
[set pcolor scale-color red isovist min [isovist] of patches max [isovist] of patches]
end
to get-VE1
ct
cd
set prog 0
set prog_total 0
patch-color
ask patches [set VE1 0 set agent-exposure 0 set access 0 set pVE 0 set dumy 0 set VE1_dumy 0]
ask patches with [pcolor != white and pcolor != blue]
[sprout-peds 1 [set shape "person" set color grey]]
set prog_total count peds
let n 0
while [n <= max [who] of peds]
[ask patches [set access 0]
set scale real-width / world-width
ask ped n [without-interruption
[let angle 180
while [abs angle <= 180]
[let dist 1
while [dist <= view_dist / scale]
[let q patch-right-and-ahead angle dist
ask q [ifelse pcolor != white [if VE1_dumy = 0 [set VE1_dumy 1]]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
]
]
]
ask peds-on patches with [VE1_dumy = 1]
[without-interruption
[face ped n
let angle 15
while [abs angle <= 15]
[let dist 1
while [dist <= view_dist / scale]
[let p patch-right-and-ahead angle dist
ask p [ifelse pcolor != white [if dumy = 0 [set agent-exposure 1 set dumy 1]]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
]
if [dumy] of ped n = 1 [ask patch-here [set access sum [agent-exposure] of patches with [dumy = 1]]]
ask patches with [dumy = 1] [set agent-exposure 0 set dumy 0]
]
]
ask patches with [VE1_dumy = 1] [set VE1_dumy 0]
ask ped n [set pVE sum [access] of patches]
set n n + 1
set prog n
]
ask peds [ask patch-here [set VE1 pVE]]
patch-color
ask patches with [pcolor = black]
[set pcolor scale-color red VE1 min [VE1] of patches max [VE1] of patches]
ask peds [die]
end
to get-VE2
ct
cd
set prog 0
set prog_total 0
patch-color
ask patches [set VE2 0 set agent-exposure 0 set dumy 0]
ask patches with [pcolor != white and pcolor != blue]
[ sprout-peds 1 [set shape "person" set color grey set heading 90]]
set prog_total count peds
set scale real-width / world-width
ask peds [without-interruption
[let angle 180
while [abs angle <= 180]
[let dist 1
while [dist <= view_dist / scale]
[let p patch-right-and-ahead angle dist
ask p [ifelse pcolor != white [if dumy = 0 [set agent-exposure 1 / dist set dumy 1]]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
]
ask patch-here [set VE2 sum [agent-exposure] of patches with [dumy = 1]]
ask patches with [dumy = 1] [set agent-exposure 0 set dumy 0] ]
set prog prog + 1
die
]
patch-color
ask patches with [pcolor = black]
[set pcolor scale-color red VE2 min [VE2] of patches max [VE2] of patches]
end
to get-iVE3
ct
cd
set prog 0
set prog_total 0
patch-color
ask patches [set iVE3 0 set qVE3 0 set iVA3 0 set qVA3 0 set agent-exposure 0 set dumy 0]
ask patches with [pcolor != white and pcolor != blue]
[ sprout-peds 1 [set shape "person" set color grey set heading 90]]
set prog_total count peds
set scale real-width / world-width
ask peds [without-interruption
[let angle 180
while [abs angle <= 180]
[let dist 1
while [dist <= view_dist / scale]
[let p patch-right-and-ahead angle dist
ask p [ifelse pcolor != white
[if dumy = 0 [set agent-exposure 1 - (dist * scale / view_dist) set dumy 1]]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
]
let ia sum [agent-exposure] of patches with [dumy = 1]
ask patches with [dumy = 1] [set iVE3 iVE3 + agent-exposure / ia]
ask patches with [dumy = 1] [set qVE3 qVE3 + agent-exposure]
ask patch-here [set iVA3 1 / ia]
ask patch-here [set qVA3 ia]
ask patches with [dumy = 1] [set agent-exposure 0 set dumy 0] ]
set prog prog + 1
die
]
patch-color
ask patches with [pcolor = black]
[set pcolor scale-color red iVE3 min [iVE3] of patches max [iVE3] of patches]
end
to get-wall_field
ct
cd
set prog 0
set prog_total 0
patch-color
ask patches [set agent-exposure 0 set access 0 set head_angle 0 set wall_field_dist 0 set wall_field_angle 0]
ask patches with [pcolor != white and pcolor != blue]
[ sprout-peds 1 [set shape "person" set color grey set heading 0]]
set prog_total count peds
set scale real-width / world-width
ask peds [without-interruption
[let angle 0
while [angle <= 180]
[let dist 1
while [dist <= view_dist / scale]
[let p patch-right-and-ahead angle dist
ask p [ifelse pcolor != blue and pcolor != white
[if dumy = 0 [set agent-exposure 1 - (distance myself * scale / view_dist)
set dumy 1 set head_angle angle ]]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle + atan 1 (view_dist / scale * 2)
]
set angle 0
while [angle <= 180]
[let dist 1
while [dist <= view_dist / scale]
[let p patch-left-and-ahead angle dist
ask p [ifelse pcolor != blue and pcolor != white
[if dumy = 0 [set agent-exposure 1 - (distance myself * scale / view_dist)
set dumy 1 set head_angle (- 1) * angle ]]
[ set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle + atan 1 (view_dist / scale * 2)
]
let ia count patches with [dumy = 1]
ask patches with [dumy = 1] [set i_exposure i_exposure + agent-exposure / ia ]
ask patches with [dumy = 1] [set q_exposure q_exposure + agent-exposure ]
ask patches with [dumy = 1] [set t_exposure agent-exposure ]
ask patches with [dumy = 1 and any? neighbors with [dumy != 1]] [set dumy 2]
ask patches with [dumy != 0] [set di distance myself]
let dum2 patches with [dumy = 2 and any? neighbors with [pcolor = white]]
let dum2x sum [pxcor] of dum2 - [pxcor] of patch-here * count dum2
let dum2y sum [pycor] of dum2 - [pycor] of patch-here * count dum2
ask patch-here [set wall_field_dist sqrt (dum2x ^ 2 + dum2y ^ 2) / (world-width ^ 2)]
ifelse dum2x = 0 and dum2y = 0 [ask patch-here [set wall_field_angle 0]]
[ask patch-here [set wall_field_angle atan dum2x dum2y]]
ask patch-here [sprout-arrows 1 [set shape "dot" set size 0.5 set color white
ifelse dum2x = 0 and dum2y = 0 [set heading 0]
[set heading wall_field_angle] pd fd wall_field_dist]]
ask patches with [dumy != 0] [set agent-exposure 0 set di 0 set dumy 0 set head_angle 0]
]
set prog prog + 1
die
]
end
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;Dynamic Analysis;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
to step_dwg
ifelse step_direction = true
[pu
let ped_heading heading
let ped_x xcor
let ped_y ycor
ask patch-here [sprout-foots 1 [set shape "arrow1" setxy ped_x ped_y set color grey set heading ped_heading]]
]
[pd]
end
;;;;;;;;;;;;;;;;;;;;;;;;;Target Walking(Floor Field);;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;Go to the target point;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
to target-walking
if times > sim-time [stop]
ifelse any? patches with [pcolor = yellow][entering
if check-agent-num = ped_num and not any? peds [user-message "No Agent!" stop]]
[if not any? peds [user-message "No Agent!" stop]]
if not any? patches with [pcolor = 85] [user-message "No Exits" stop]
if all? patches [var = 0] [user-message "No Potential field, Do(Click) Potential Field!" stop]
if view_dist - view_min_dist < 0 [ user-message "Check View_Dist!" stop]
if view_angle - view_min_angle < 0 [ user-message "Check View_Angle!" stop]
check-target-walking
tick
ask peds [
ifelse [pcolor] of patch-here = cyan
[ifelse times mod exit_rate = 0 [die][stop]]
[ifelse any? neighbors with [not any? peds-on self and pcolor != white and pcolor != blue]
[face min-one-of neighbors with [not any? peds-on self and pcolor != white and pcolor != blue] [var]
ifelse random 2 = 0 [lt random-float noise] [rt random-float noise]
while [[pcolor] of patch-ahead 0.5 = white or [pcolor] of patch-ahead 0.5 = blue]
[ifelse random 2 = 0 [lt random-float 30] [rt random-float 30]]
ifelse not any? peds-on patch-ahead 1.5 [fd speed]
[ask patch-here [set jam_level jam_level + 1] stop]
]
[ask patch-here [set jam_level jam_level + 1] stop]
step_dwg
]
]
ask patches [set t_exposure 0]
set times times + 1
end
to grade
if not any? patches with [pcolor = 85][user-message "NO EXIT" stop]
ask patches [set var 0 set var_t 0]
ask patches with [pcolor = 85] [set var 1 set var_t 1]
let var_t_t 2
while [any? patches with [var_t != 0 and any? neighbors with [var = 0 and pcolor = black]]]
[ask patches with [var_t = var_t_t - 1]
[ask neighbors [if var = 0 and pcolor != white and pcolor != blue
[set var_t var_t_t
let temp_grade min-one-of neighbors with [var_t = var_t_t - 1] [var]
set var [var] of temp_grade + distance temp_grade]
]
]
set var_t_t var_t_t + 1
]
end
to check-target-walking
patch-color
set scale real-width / world-width
ask patches [set dumy 0]
ask peds [without-interruption
[set ped_self 1
if times mod 5 = 0 [set random_dist random (view_dist - view_min_dist) + view_min_dist
set random_angle random (view_angle - view_min_angle) + view_min_angle
]
let angle view_angle / 2
set dumy_setting 1
while [angle > 0]
[let dist 0
while [dist <= random_dist / scale]
[let p patch-right-and-ahead angle dist
ask p [if pcolor = blue [set dumy_setting 9]
ifelse pcolor != white and not any? peds-here with [ped_self != 1]
[if dumy = 0 or dumy = 2 [set agent-exposure 1 - (distance myself * scale / view_dist)
set dumy dumy_setting set head_angle_r angle ]
]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
set dumy_setting 2
]
set angle view_angle / 2
set dumy_setting 1
while [angle > 0]
[let dist 0
while [dist <= random_dist / scale]
[let p patch-left-and-ahead angle dist
ask p [if pcolor = blue [set dumy_setting 9]
ifelse pcolor != white and not any? peds-here with [ped_self != 1]
[if dumy = 0 or dumy = 2 [set agent-exposure 1 - (distance myself * scale / view_dist)
set dumy dumy_setting set head_angle_l (- 1) * angle ]
]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
set dumy_setting 2
]
let ia count patches with [dumy = 1 or dumy = 9]
ask patches with [dumy != 0] [set i_exposure i_exposure + agent-exposure / ia ]
ask patches with [dumy != 0] [set q_exposure q_exposure + agent-exposure ]
ask patches with [dumy != 0] [set t_exposure t_exposure + agent-exposure ]
ifelse ia != 0 [ask patch-here [set iDVA 1 / ia]][ask patch-here [set iDVA 1]]
ask patch-here [set qDVA ia]
set iso-area count patches with [dumy != 0]
ask patches with [dumy != 0][set agent-exposure 0 set di 0 set dumy 0
set head_angle_r 0 set head_angle_l 0 ]
ask peds [set ped_self 0]
]
]
ask patches [if any? peds-on self [set step step + 1]]
end
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;Natural Movement;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
to Gallery-Walking
if times > sim-time [stop]
if not any? peds [user-message "No Agent!" stop]
if times > sim-time [stop]
if view_dist - view_min_dist < 0 [ user-message "Check View_Dist!" stop]
if view_angle - view_min_angle < 0 [ user-message "Check View_Angle!" stop]
check-gallery-Walking
tick
ask patches [set t_exposure 0]
set times times + 1
end
to check-Gallery-Walking
patch-color
set scale real-width / world-width
ask patches [set dumy 0 set di 0]
ask peds [without-interruption
[set ped_self 1
if times mod 5 = 0 [set random_dist random (view_dist - view_min_dist) + view_min_dist
set random_angle random (view_angle - view_min_angle) + view_min_angle
]
let angle random_angle / 2
set dumy_setting 1
while [angle > 0]
[let dist 0
while [dist <= random_dist / scale]
[let p patch-right-and-ahead angle dist
ask p [if pcolor = blue [set dumy_setting 9]
ifelse pcolor != white and not any? peds-here with [ped_self != 1]
[if dumy = 0 or dumy = 2 [set agent-exposure 1 - (distance myself * scale / view_dist)
set dumy dumy_setting set head_angle_r angle ]]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
set dumy_setting 2
]
set angle view_angle / 2
set dumy_setting 1
while [angle > 0]
[let dist 0
while [dist <= random_dist / scale]
[let p patch-left-and-ahead angle dist
ask p [if pcolor = blue [set dumy_setting 9]
ifelse pcolor != white and not any? peds-here with [ped_self != 1]
[if dumy = 0 or dumy = 2 [set agent-exposure 1 - (distance myself * scale / view_dist)
set dumy dumy_setting set head_angle_l (- 1) * angle ]]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
set dumy_setting 2
]
let ia count patches with [dumy != 0]
ask patches with [dumy != 0] [set i_exposure i_exposure + agent-exposure / ia ]
ask patches with [dumy != 0] [set q_exposure q_exposure + agent-exposure ]
ifelse ia != 0 [ask patch-here [set iDVA 1 / ia]][ask patch-here [set iDVA 1]]
ask patch-here [set qDVA ia]
ask patches with [dumy != 0] [set t_exposure t_exposure + agent-exposure ]
ask patches with [(dumy = 2) and any? neighbors with [pcolor = white or pcolor = blue]] [set dumy 3]
ask patches with [(dumy = 2) and distance myself > view_dist / 2 and any? neighbors with [any? peds-here]] [set dumy 3]
ask patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = brown)] [set di distance myself]
ifelse any? patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = brown)]
and max [di] of patches with [(dumy != 0 and dumy != 9)
or (dumy != 0 and pcolor = brown)] != 0
[let cog-max-dist max [di] of patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = brown)]
ask patches with [dumy != 0 and pcolor = brown] [set di cog-max-dist * attraction_factor]
ask patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = brown)]
[set head_angle_r head_angle_r * (di / cog-max-dist)
set head_angle_l head_angle_l * (di / cog-max-dist)]
]
[ask patches with [dumy != 0] [set head_angle_r 0 set head_angle_l 0]]
let ia2_r count patches with [(dumy = 3 and head_angle_r != 0) or (dumy != 0 and pcolor = brown)]
let ia2_l count patches with [(dumy = 3 and head_angle_l != 0) or (dumy != 0 and pcolor = brown)]
let ha 0
let ah 0
ifelse any? patches with [dumy = 3
and any? neighbors4 with [pcolor = black and (dumy = 0 or dumy = 9)]]
or any? patches with [dumy != 0 and pcolor = brown]
[set cog_convex 0
set ha sum [head_angle_r] of patches with [(dumy = 3) or (dumy != 0 and pcolor = brown)]
+ sum [head_angle_l] of patches with [(dumy = 3) or (dumy != 0 and pcolor = brown)]
if ia2_r + ia2_l != 0 [set ah ha / (ia2_r + ia2_l)]
]
[if cog_convex = 0 and any? patches with [dumy = 1]
[ifelse occlude_memory >= 0 [set cog_convex 1][set cog_convex 2]]
if cog_convex = 1 and ia2_r != 0 [set ah sum [head_angle_r] of patches with [(dumy = 3) or (dumy != 0 and pcolor = brown)]
/ ia2_r * (2 * speed)]
if cog_convex = 2 and ia2_l != 0 [set ah sum [head_angle_l] of patches with [(dumy = 3) or (dumy != 0 and pcolor = brown)]
/ ia2_l * (2 * speed)]
]
ifelse any? patches with [dumy = 3 and any? neighbors4 with [pcolor = black and (dumy = 0 or dumy = 9)]]
[let gate_patch one-of patches with [dumy = 3 and any? neighbors4 with [pcolor = black and (dumy = 0 or dumy = 9)]]
set occlude_memory [head_angle_r] of gate_patch + [head_angle_l] of gate_patch]
[if any? patches with [dumy = 1] [set occlude_memory [head_angle_r] of max-one-of patches with [dumy = 1] [distance myself]
+ [head_angle_l] of max-one-of patches with [dumy = 1] [distance myself]
]
]
ifelse count patches with [dumy != 0] <= 5
[ifelse any? patches with [dumy = 1] [face max-one-of patches with [dumy = 1] [distance myself]]
[ifelse random 2 = 0 [lt 90] [rt 90]]]
[set heading heading + ah]
set iso-area count patches with [dumy != 0]
ask patches with [dumy != 0][set agent-exposure 0 set di 0 set dumy 0 set head_angle_r 0 set head_angle_l 0 ]
ask peds [set ped_self 0]
]
while [[pcolor] of patch-ahead 1 = white or [pcolor] of patch-ahead 1 = blue ]
[ifelse random 2 = 0 [lt random-float 30] [rt random-float 30]]
ifelse not any? peds-on patch-ahead 1.5 [fd speed] [ask patch-here [set jam_level jam_level + 1]
while [any? peds-on patch-ahead 1.5] [ifelse random 2 = 0 [lt random-float 30] [rt random-float 30]]]
ifelse random 2 = 1 [lt random-float noise] [rt random-float noise]
if times mod 8 = 0 [set cog_convex 0]
step_dwg
]
ask patches [if any? peds-on self [set step step + 1]]
end
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;Natural Movement to Target;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
to Target_Gallery-Walking
if times > sim-time [stop]
ifelse any? patches with [pcolor = yellow][entering
if check-agent-num = ped_num and not any? peds [user-message "No Agent!" stop]]
[if not any? peds [user-message "No Agent!" stop]]
if all? patches [var = 0] [user-message "No Potential field, Do(Click) Potential Field!" stop]
if view_dist - view_min_dist < 0 [ user-message "Check View_Dist!" stop]
if view_angle - view_min_angle < 0 [ user-message "Check View_Angle!" stop]
if times > sim-time [stop]
check-Target_Gallery-Walking
tick
ask patches [set t_exposure 0]
set times times + 1
end
to entering
if check-agent-num != ped_num [if times mod enter_rate = 0 [ask one-of patches with [pcolor = yellow]
[sprout-peds 1 [set shape "head" set size 1 set check-agent-num check-agent-num + 1]
]]]
end
to check-Target_Gallery-Walking
patch-color
set scale real-width / world-width
ask patches [set dumy 0 set di 0]
ask peds [without-interruption
[set ped_self 1
if times mod 5 = 0 [set random_dist random (view_dist - view_min_dist) + view_min_dist
set random_angle random (view_angle - view_min_angle) + view_min_angle
]
let angle random_angle / 2
set dumy_setting 1
while [angle > 0]
[let dist 0
while [dist <= random_dist / scale]
[let p patch-right-and-ahead angle dist
ask p [if pcolor = blue [set dumy_setting 9]
ifelse pcolor != white and not any? peds-here with [ped_self != 1]
[if dumy = 0 or dumy = 2 [set agent-exposure 1 - (distance myself * scale / view_dist)
set dumy dumy_setting set head_angle_r angle ]]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
set dumy_setting 2
]
set angle random_angle / 2
set dumy_setting 1
while [angle > 0]
[let dist 0
while [dist <= random_dist / scale]
[let p patch-left-and-ahead angle dist
ask p [if pcolor = blue [set dumy_setting 9]
ifelse pcolor != white and not any? peds-here with [ped_self != 1]
[if dumy = 0 or dumy = 2 [set agent-exposure 1 - (distance myself * scale / view_dist)
set dumy dumy_setting set head_angle_l (- 1) * angle ]]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
set dumy_setting 2
]
let ia count patches with [dumy != 0]
ask patches with [dumy != 0] [set i_exposure i_exposure + agent-exposure / ia ]
ask patches with [dumy != 0] [set q_exposure q_exposure + agent-exposure ]
ifelse ia != 0 [ask patch-here [set iDVA 1 / ia]][ask patch-here [set iDVA 1]]
ask patch-here [set qDVA ia]
ask patches with [dumy != 0] [set t_exposure t_exposure + agent-exposure ]
ask patches with [(dumy = 2) and any? neighbors with [pcolor = white or pcolor = blue]] [set dumy 3]
ifelse any? patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and dumy != 9 and pcolor = cyan)]
and max [var] of patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = cyan)]
- min [var] of patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = cyan)] != 0
[let cog-max-var max [var] of patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = cyan)]
let cog-min-var min [var] of patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = cyan)]
ask patches with [dumy != 0 and pcolor = brown] [set var cog-min-var * attraction_factor]
ask patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = cyan)]
[set head_angle_r head_angle_r * (1 - (var - cog-min-var) / (cog-max-var - cog-min-var))
set head_angle_l head_angle_l * (1 - (var - cog-min-var) / (cog-max-var - cog-min-var))]
]
[ask patches with [dumy != 0] [set head_angle_r 0 set head_angle_l 0]]
let ia2_r count patches with [(dumy = 3 and head_angle_r != 0) or (dumy != 0 and pcolor = cyan)]
let ia2_l count patches with [(dumy = 3 and head_angle_l != 0) or (dumy != 0 and pcolor = cyan)]
let ha 0
let ah 0
ifelse any? patches with [dumy != 0 and dumy != 9 and pcolor = cyan]
[face one-of patches with [dumy != 0 and dumy != 9 and pcolor = cyan]]
[ifelse any? patches with [dumy = 3 and any? neighbors4 with [pcolor = black and (dumy = 0 or dumy = 9)]]
or any? patches with [dumy != 0 and dumy != 9 and pcolor = cyan]
[set cog_convex 0
set ha sum [head_angle_r] of patches with [(dumy = 3) or (dumy != 0 and pcolor = cyan)]
+ sum [head_angle_l] of patches with [(dumy = 3) or (dumy != 0 and pcolor = cyan)]
if ia2_r + ia2_l != 0 [set ah ha / (ia2_r + ia2_l)]
]
[if cog_convex = 0 and any? patches with [dumy = 1]
[ifelse occlude_memory >= 0 [set cog_convex 1][set cog_convex 2]]
if cog_convex = 1 and ia2_r != 0
[set ah sum [head_angle_r] of patches with [(dumy = 3) or (dumy != 0 and pcolor = cyan)] / ia2_r * (2 * speed)]
if cog_convex = 2 and ia2_l != 0
[set ah sum [head_angle_l] of patches with [(dumy = 3) or (dumy != 0 and pcolor = cyan)] / ia2_l * (2 * speed)]
]
]
ifelse any? patches with [dumy = 3 and any? neighbors4 with [pcolor = black and (dumy = 0 or dumy = 9)]]
[let gate_patch one-of patches with [dumy = 3 and any? neighbors4 with [pcolor = black and (dumy = 0 or dumy = 9)]]
set occlude_memory [head_angle_r] of gate_patch + [head_angle_l] of gate_patch
]
[if any? patches with [dumy = 1] [set occlude_memory [head_angle_r] of max-one-of patches with [dumy = 1] [distance myself]
+ [head_angle_l] of max-one-of patches with [dumy = 1] [distance myself]]
]
ifelse count patches with [dumy != 0] <= 5 and not any? patches with [dumy != 0 and pcolor = cyan]
[ifelse any? patches with [dumy = 1] [face max-one-of patches with [dumy = 1] [distance myself]]
[ifelse random 2 = 0 [lt 90] [rt 90]]
]
[set heading heading + ah]
set iso-area count patches with [dumy != 0]
ask patches with [dumy != 0][set agent-exposure 0 set di 0 set dumy 0 set head_angle_r 0 set head_angle_l 0 ]
ask peds [set ped_self 0]
]
while [[pcolor] of patch-ahead speed = white or [pcolor] of patch-ahead speed = blue ]
[ifelse random 2 = 0 [lt random-float 30] [rt random-float 30]]
ifelse not any? peds-on patch-ahead 1.415
[if [pcolor] of patch-here = cyan [ifelse times mod exit_rate = 0 [die][stop]] fd speed]
[ifelse random 2 = 0 [lt random-float 30] [rt random-float 30]ask patch-here [set jam_level jam_level + 1]
]
ifelse random 2 = 1 [lt random-float noise] [rt random-float noise]
if times mod 8 = 0 [set cog_convex 0]
step_dwg
]
ask patches [if any? peds-on self [set step step + 1]]
end
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;Natural Movement by Memory;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
to Gallery-Walking_Momory
if not any? peds [user-message "No Agent!" stop]
if times > sim-time [stop]
if view_dist - view_min_dist < 0 [ user-message "Check View_Dist!" stop]
if view_angle - view_min_angle < 0 [ user-message "Check View_Angle!" stop]
check-gallery-Walking_Memory
tick
ask patches [set t_exposure 0]
set times times + 1
end
to check-Gallery-Walking_Memory
patch-color
set scale real-width / world-width
ask patches [set dumy 0 set di 0]
ask peds [without-interruption
[set ped_self 1
if times mod 5 = 0 [set random_dist random (view_dist - view_min_dist) + view_min_dist
set random_angle random (view_angle - view_min_angle) + view_min_angle
]
let angle random_angle / 2
set dumy_setting 1
while [angle > 0]
[let dist 0
while [dist <= random_dist / scale]
[let p patch-right-and-ahead angle dist
ask p [if pcolor = blue [set dumy_setting 9]
ifelse pcolor != white and not any? peds-here with [ped_self != 1]
[if dumy = 0 or dumy = 2 [set agent-exposure 1 - (distance myself * scale / view_dist)
set dumy dumy_setting set head_angle_r angle ]]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
set dumy_setting 2
]
set angle view_angle / 2
set dumy_setting 1
while [angle > 0]
[let dist 0
while [dist <= random_dist / scale]
[let p patch-left-and-ahead angle dist
ask p [if pcolor = blue [set dumy_setting 9]
ifelse pcolor != white and not any? peds-here with [ped_self != 1]
[if dumy = 0 or dumy = 2 [set agent-exposure 1 - (distance myself * scale / view_dist)
set dumy dumy_setting set head_angle_l (- 1) * angle ]]
[set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle - atan 1 (view_dist / scale * 2)
set dumy_setting 2
]
let ia count patches with [dumy != 0]
ask patches with [dumy != 0] [set i_exposure i_exposure + agent-exposure / ia ]
ask patches with [dumy != 0] [set q_exposure q_exposure + agent-exposure ]
ifelse ia != 0 [ask patch-here [set iDVA 1 / ia]][ask patch-here [set iDVA 1]]
ask patch-here [set qDVA ia]
ask patches with [dumy != 0] [set t_exposure t_exposure + agent-exposure ]
ask patches with [(dumy = 2) and any? neighbors with [pcolor = white or pcolor = blue]] [set dumy 3]
ask patches with [(dumy = 2) and distance myself > view_dist / 2 and any? neighbors with [any? peds-here]] [set dumy 3]
ask patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = brown)] [set di distance myself]
ifelse any? patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = cyan)]
and max [q_exposure] of patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = cyan)]
- min [q_exposure] of patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = cyan)] != 0
[let cog-max-q_exposure max [q_exposure] of patches with [(dumy != 0 and dumy != 9)
or (dumy != 0 and pcolor = brown)]
let cog-min-q_exposure min [q_exposure] of patches with [(dumy != 0 and dumy != 9)
or (dumy != 0 and pcolor = brown)]
ask patches with [dumy != 0 and pcolor = brown]
[set q_exposure cog-min-q_exposure * attraction_factor]
ask patches with [(dumy != 0 and dumy != 9) or (dumy != 0 and pcolor = cyan)]
[set head_angle_r head_angle_r * (1 - (q_exposure - cog-min-q_exposure)
/ (cog-max-q_exposure - cog-min-q_exposure))
set head_angle_l head_angle_l * (1 - (q_exposure - cog-min-q_exposure)
/ (cog-max-q_exposure - cog-min-q_exposure))]
]
[ask patches with [dumy != 0] [set head_angle_r 0 set head_angle_l 0]]
let ia2_r count patches with [(dumy = 3 and head_angle_r != 0) or (dumy != 0 and pcolor = brown)]
let ia2_l count patches with [(dumy = 3 and head_angle_l != 0) or (dumy != 0 and pcolor = brown)]
let ha 0
let ah 0
ifelse any? patches with [dumy = 3 and any? neighbors4 with [pcolor = black and (dumy = 0 or dumy = 9)]]
or any? patches with [dumy != 0 and pcolor = brown]
[set cog_convex 0
set ha sum [head_angle_r] of patches with [(dumy = 3) or (dumy != 0 and pcolor = brown)]
+ sum [head_angle_l] of patches with [(dumy = 3) or (dumy != 0 and pcolor = brown)]
if ia2_r + ia2_l != 0 [set ah ha / (ia2_r + ia2_l)]
]
[if cog_convex = 0 and any? patches with [dumy = 1]
[ifelse occlude_memory >= 0 [set cog_convex 1][set cog_convex 2]]
if cog_convex = 1 and ia2_r != 0
[set ah sum [head_angle_r] of patches with [(dumy = 3) or (dumy != 0 and pcolor = brown)]
/ ia2_r * (2 * speed)]
if cog_convex = 2 and ia2_l != 0
[set ah sum [head_angle_l] of patches with [(dumy = 3) or (dumy != 0 and pcolor = brown)]
/ ia2_l * (2 * speed)]
]
ifelse any? patches with [dumy = 3 and any? neighbors4 with [pcolor = black and (dumy = 0 or dumy = 9)]]
[let gate_patch one-of patches with [dumy = 3 and any? neighbors4 with [pcolor = black and (dumy = 0 or dumy = 9)]]
set occlude_memory [head_angle_r] of gate_patch + [head_angle_l] of gate_patch
]
[if any? patches with [dumy = 1] [set occlude_memory [head_angle_r] of max-one-of patches with [dumy = 1] [distance myself]
+ [head_angle_l] of max-one-of patches with [dumy = 1] [distance myself]]
]
ifelse count patches with [dumy != 0] <= 5
[ifelse any? patches with [dumy = 1] [face max-one-of patches with [dumy = 1] [distance myself]]
[ifelse random 2 = 0 [lt 90] [rt 90]]]
[set heading heading + ah]
set iso-area count patches with [dumy != 0]
ask patches with [dumy != 0][set agent-exposure 0 set di 0 set dumy 0 set head_angle_r 0 set head_angle_l 0 ]
ask peds [set ped_self 0]
]
while [[pcolor] of patch-ahead 1 = white or [pcolor] of patch-ahead 1 = blue ]
[ifelse random 2 = 0 [lt random-float 30] [rt random-float 30]]
ifelse not any? peds-on patch-ahead 1.5 [fd speed] [ask patch-here [set jam_level jam_level + 1]
while [any? peds-on patch-ahead 1.5] [ifelse random 2 = 0 [lt random-float 30] [rt random-float 30]]]
ifelse random 2 = 1 [lt random-float noise] [rt random-float noise]
if times mod 8 = 0 [set cog_convex 0]
step_dwg
]
ask patches [if any? peds-on self [set step step + 1]]
end
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;Virture_Tester;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
to set-testee
set-initial
convert-color
if not any? patches with [pcolor = yellow] [user-message "No Entrance. Paint yellow at staring patch!" stop]
ask one-of patches with [pcolor = yellow] [sprout-peds 1 [set shape "head" set heading testee_heading set color 19.9]]
ask patches with [pcolor = white] [sprout-walls 1 [set shape "square" set size 1.1 set heading 0 set color 27]]
ask patches with [pcolor = white] [set pcolor 0.01]
ride ped 0
set-pictures
end
to convert-color
reset-perspective
ask patches with [pcolor = white or pcolor = 0.01][set pcolor white]
ask patches with [pcolor = 0.02 or pcolor = 19.8][set pcolor brown]
patch-color
ask turtles[show-turtle]
ask walls [die]
end
to set-pictures
set shape-list nobody
set shape-list [ "number 1"]
ask patches with [pcolor = brown] [sprout-pictures 1 [set shape one-of shapes set size 0.1] set pcolor 0.02]
ask pictures [if any? neighbors4 with [pcolor = 0.01] [face one-of neighbors4 with [pcolor = 0.01] fd 0.4]]
end
to start
ifelse mouse-down?
[if timer > 0.1
[if timer > 0.2 / speed [
ask ped 0 [facexy mouse-xcor mouse-ycor] test-walking reset-timer] ]
] [reset-timer]
end
to Test-Walking
if times > sim-time [user-message (word "Your Test is over. Thank you!") ask ped 0 [die] stop]
ask peds [
ifelse [pcolor] of patch-ahead speed = 0.01 or [pcolor] of patch-ahead speed = blue [fd -1 * speed][fd speed]
ask peds-on patches [set step step + 1]
]
ask patches with [pcolor = 0.02][set pcolor 19.8]
ask patches with [pcolor != blue and pcolor != 0.01 and pcolor != 85 and pcolor != 35 and pcolor != green and pcolor != 19.8] [set pcolor 19.9]
check-Test-Walking
ask patches [set t_exposure 0]
set times times + 1
end
to check-Test-Walking
ask walls [show-turtle]
ask pictures [show-turtle]
set scale real-width / world-width
ask patches [set dumy 0 set di 0]
ask peds [without-interruption
[let angle 0
while [angle <= view_angle / 2]
[let dist 1
while [dist <= view_dist / scale]
[let p patch-right-and-ahead angle dist
ask p [ifelse pcolor != blue and pcolor != 0.01 [if dumy = 0 [set agent-exposure 1 - (distance myself * scale / view_dist) set dumy 1 ]]
[ set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle + atan 1 (view_dist / scale * 2)
]
set angle 0
while [angle <= view_angle / 2]
[let dist 1
while [dist <= view_dist / scale]
[let p patch-left-and-ahead angle dist
ask p [ifelse pcolor != blue and pcolor != 0.01 [if dumy = 0 [set agent-exposure 1 - (distance myself * scale / view_dist) set dumy 1 ]]
[ set dist view_dist / scale]
]
set dist dist + 1
]
set angle angle + atan 1 (view_dist / scale * 2)
]
let ia count patches with [dumy = 1]
ask patches with [dumy = 1] [set i_exposure i_exposure + agent-exposure / ia ]
ask patches with [dumy = 1] [set q_exposure q_exposure + agent-exposure ]
ask patches with [dumy = 1] [set t_exposure agent-exposure ]
set iso-area count patches with [dumy != 0]
ask walls [if not any? neighbors4 with [dumy != 0] [hide-turtle]]
ask pictures [if not any? neighbors4 with [dumy != 0] [hide-turtle]]
ask patches with [pcolor != blue and pcolor != 0.01 and pcolor != 85 and pcolor != 35 and pcolor != green and pcolor != 19.8 and dumy = 0] [set pcolor black]
ask patches with [dumy = 0 and pcolor = 19.8][set pcolor 0.02]
ask patches with [dumy != 0] [set agent-exposure 0 set di 0 set dumy 0]
]
step_dwg
]
end
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;Analysis Display;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
to show-spectrum
cd
patch-color
ask spectrums [die]
ask peds [die]
ask vectors [die]
ask arrows [die]
ask spectrums [die]
ask walls [die]
ask pictures [die]
if Analysis_Type = "Isovist"
[ifelse any? patches with [Isovist != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red Isovist min [Isovist] of patches max [Isovist] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "VE I"
[ifelse any? patches with [VE1 != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red VE1 min [VE1] of patches max [VE1] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "VE II"
[ifelse any? patches with [VE2 != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red VE2 min [VE2] of patches max [VE2] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "iVE III"
[ifelse any? patches with [iVE3 != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red iVE3 min [iVE3] of patches max [iVE3] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "qVE III"
[ifelse any? patches with [qVE3 != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red qVE3 min [qVE3] of patches max [qVE3] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "qVA III"
[ifelse any? patches with [qVA3 != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red qVA3 min [qVA3] of patches max [qVA3] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "iVA III"
[ifelse any? patches with [iVA3 != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red iVA3 min [iVA3] of patches max [iVA3] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "iDVE"
[ifelse any? patches with [i_exposure != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red i_exposure min [i_exposure] of patches max [i_exposure] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "qDVE"
[ifelse any? patches with [q_exposure != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red q_exposure min [q_exposure] of patches max [q_exposure] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "iDVA"
[ifelse any? patches with [iDVA != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red iDVA min [iDVA] of patches max [iDVA] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "qDVA"
[ifelse any? patches with [qDVA != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red qDVA min [qDVA] of patches max [qDVA] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "Steps"
[ifelse any? patches with [Step != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red Step min [Step] of patches max [Step] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "Wall_Field"
[ifelse any? patches with [wall_field_dist != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red wall_field_dist min [wall_field_dist] of patches max [wall_field_dist] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "View from Agent(s)"
[ifelse any? patches with [VfT != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red VfT min [VfT] of patches max [VfT] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "Potential Field"
[ifelse any? patches with [var != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red var min [var] of patches max [var] of patches]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "Jam_Level"
[ifelse any? patches with [jam_level != 0]
[ask patches with [pcolor = black]
[set pcolor scale-color red jam_level min [jam_level] of patches max [jam_level] of patches]]
[user-message "No Results of Analysis"]]
end
to show-monochrome
cd
ask peds [die]
ask vectors [die]
ask arrows [die]
ask spectrums [die]
ask walls [die]
ask pictures [die]
ask spectrums [die]
patch-color
if Analysis_Type = "Isovist"
[ifelse any? patches with [isovist != 0]
[cd ask patches with [pcolor != blue and isovist != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([isovist] of patch-here - min [isovist] of patches with [isovist != 0])
/ (max [isovist] of patches with [(pcolor = black or pcolor = brown) and isovist != 0]
- min [isovist] of patches with [(pcolor = black or pcolor = brown) and isovist != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "VE I"
[ifelse any? patches with [VE1 != 0]
[cd ask patches with [pcolor != blue and VE1 != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([VE1] of patch-here - min [VE1] of patches with [VE1 != 0])
/ (max [VE1] of patches with [(pcolor = black or pcolor = brown) and VE1 != 0]
- min [VE1] of patches with [(pcolor = black or pcolor = brown) and VE1 != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "VE II"
[ifelse any? patches with [VE2 != 0]
[ask patches with [pcolor != blue and VE2 != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([VE2] of patch-here - min [VE2] of patches with [VE2 != 0])
/ (max [VE2] of patches with [(pcolor = black or pcolor = brown) and VE2 != 0]
- min [VE2] of patches with [(pcolor = black or pcolor = brown) and VE2 != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "iVE III"
[ifelse any? patches with [iVE3 != 0]
[ask patches with [pcolor != blue and iVE3 != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([iVE3] of patch-here - min [iVE3] of patches with [iVE3 != 0])
/ (max [iVE3] of patches with [(pcolor = black or pcolor = brown) and iVE3 != 0]
- min [iVE3] of patches with [(pcolor = black or pcolor = brown) and iVE3 != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "qVE III"
[ifelse any? patches with [qVE3 != 0]
[ask patches with [pcolor != blue and qVE3 != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([qVE3] of patch-here - min [qVE3] of patches with [qVE3 != 0])
/ (max [qVE3] of patches with [(pcolor = black or pcolor = brown) and qVE3 != 0]
- min [qVE3] of patches with [(pcolor = black or pcolor = brown) and qVE3 != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "iVA III"
[ifelse any? patches with [iVA3 != 0]
[ask patches with [pcolor != blue and qVA3 != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([iVA3] of patch-here - min [iVA3] of patches with [iVA3 != 0])
/ (max [iVA3] of patches with [(pcolor = black or pcolor = brown) and iVA3 != 0]
- min [iVA3] of patches with [(pcolor = black or pcolor = brown) and iVA3 != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "qVA III"
[ifelse any? patches with [qVA3 != 0]
[ask patches with [pcolor != blue and qVA3 != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([qVA3] of patch-here - min [qVA3] of patches with [qVA3 != 0])
/ (max [qVA3] of patches with [(pcolor = black or pcolor = brown) and qVA3 != 0]
- min [qVA3] of patches with [(pcolor = black or pcolor = brown) and qVA3 != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "iDVE"
[ifelse any? patches with [i_exposure != 0]
[cd ask patches with [pcolor != blue and i_exposure != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([i_exposure] of patch-here - min [i_exposure] of patches with [i_exposure != 0])
/ (max [i_exposure] of patches with [(pcolor = black or pcolor = brown) and i_exposure != 0]
- min [i_exposure] of patches with [(pcolor = black or pcolor = brown) and i_exposure != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "qDVE"
[ifelse any? patches with [q_exposure != 0]
[ask patches with [pcolor != blue and q_exposure != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([q_exposure] of patch-here - min [q_exposure] of patches with [q_exposure != 0])
/ (max [q_exposure] of patches with [q_exposure != 0]
- min [q_exposure] of patches with [q_exposure != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "iDVA"
[ifelse any? patches with [iDVA != 0]
[cd ask patches with [pcolor != blue and iDVA != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([iDVA] of patch-here - min [iDVA] of patches with [iDVA != 0])
/ (max [iDVA] of patches with [(pcolor = black or pcolor = brown) and iDVA != 0]
- min [iDVA] of patches with [(pcolor = black or pcolor = brown) and iDVA != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "qDVA"
[ifelse any? patches with [qDVA != 0]
[ask patches with [pcolor != blue or qDVA != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([qDVA] of patch-here - min [qDVA] of patches with [qDVA != 0])
/ (max [qDVA] of patches with [(pcolor = black or pcolor = brown) and qDVA != 0]
- min [qDVA] of patches with [(pcolor = black or pcolor = brown) and qDVA != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "Steps"
[ifelse any? patches with [Step != 0]
[cd ask patches with [pcolor != blue and step != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([Step] of patch-here - min [Step] of patches with [step != 0])
/ (max [Step] of patches with [(pcolor = black or pcolor = brown) and step != 0]
- min [Step] of patches with [(pcolor = black or pcolor = brown) and step != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "Wall_Field"
[ifelse any? patches with [wall_field_dist != 0]
[ask patches with [pcolor != white or pcolor != blue]
[sprout-arrows 1 [set shape "dot" set size 0.5 set color white set heading wall_field_angle pd fd wall_field_dist]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "View from Agent(s)"
[ifelse any? patches with [VfT != 0]
[ask patches with [pcolor != blue and VfT != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([VfT] of patch-here - min [VfT] of patches with [VfT != 0])
/ (max [VfT] of patches with [(pcolor = black or pcolor = brown) and VfT != 0]
- min [VfT] of patches with [(pcolor = black or pcolor = brown) and VfT != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "Potential Field"
[ifelse any? patches with [var != 0]
[ask patches with [pcolor = black or pcolor = brown or pcolor = 85 and var != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([var] of patch-here - min [var] of patches with [var != 0])
/ (max [var] of patches with [(pcolor = black or pcolor = brown) and var != 0]
- min [var] of patches with [(pcolor = black or pcolor = brown) and var != 0])
* (1 - dot-size) + dot-size ]]]
[user-message "No Results of Analysis"]]
if Analysis_Type = "Jam_Level"
[ifelse any? patches with [jam_level != 0]
[ifelse (max [jam_level] of patches with [(pcolor = black or pcolor = brown) and jam_level != 0]
- min [jam_level] of patches with [(pcolor = black or pcolor = brown) and jam_level != 0]) != 0
[ask patches with [pcolor != blue and jam_level != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size ([jam_level] of patch-here - min [jam_level] of patches with [jam_level != 0])
/ (max [jam_level] of patches with [(pcolor = black or pcolor = brown) and jam_level != 0]
- min [jam_level] of patches with [(pcolor = black or pcolor = brown) and jam_level != 0])
* (1 - dot-size) + dot-size ]]]
[ask patches with [pcolor != blue and jam_level != 0]
[sprout-spectrums 1 [set shape "circle" set color grey
set size 1]]]
]
[user-message "No Results of Analysis"]]
end
There is only one version of this model, created over 8 years ago by Seung Jae Lee.
Attached files
| File | Type | Description | Last updated | |
|---|---|---|---|---|
| VD-sim.png | preview | Preview for 'VD-sim' | over 8 years ago, by Seung Jae Lee | Download |
This model does not have any ancestors.
This model does not have any descendants.
