Spatial Dynamics of Attitude Formation

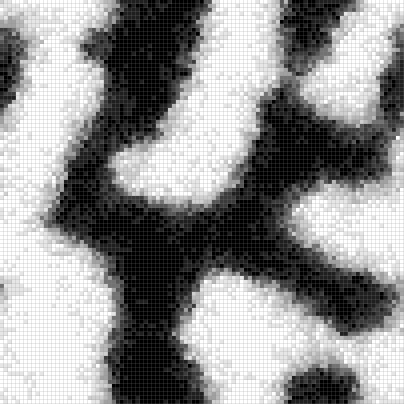

Spatial Dynamics of Attitude Formation preview image

1 collaborator

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 5.3 • Viewed 317 times • Downloaded 34 times • Run 0 times
Download the 'Spatial Dynamics of Attitude Formation' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

extensions [rnd];This extension can be dowloaded at https://github.com/NetLogo/Rnd-Extension

globals [
  fizz ; measures the frequency of attitudes that change at each step
  left-freq ;frequency of negative attitudes
  right-freq ; frequency of positive attitudes
  ]

turtles-own [
  old-attitude
  new-attitude
  id-neighbors
  ]

to setup
  clear-all
  ask patches [set pcolor gray]
  set-default-shape turtles "square"
  make-turtle-distribution
  ask turtles [
    set size 1.2
    set old-attitude new-attitude
    set color 5 - ((old-attitude / max-entrench) * 4.9)
  ] ;; in order to do synchronous updating, we need to delay when agents update their attitudes, so we separate attitudes into new and old
  set fizz 0
  measure-frequency-over-time

  reset-ticks
end

to go
  ask turtles [ local-interactions ]
  set fizz (count turtles with [old-attitude != new-attitude]) / count turtles
  ask turtles [
   set old-attitude new-attitude
   set color 5 - ((old-attitude / max-entrench) * 4.9)
  ]
  measure-frequency-over-time
  tick
end

to local-interactions
  let j nobody ; j will be the other agent, which we initially set as nobody
  ifelse influence = "max-inf" or influence = "min-inf" [
    if influence = "max-inf" [
      set j max-one-of turtles-on neighbors [abs old-attitude] ]
    if influence = "min-inf" [
      set j min-one-of turtles-on neighbors [abs old-attitude] ]
  ]
  [
    let localsum 0 ; This will be sum of the neighbour attitudes, weighted by the influence function.
    let pairlist [] ; this is going to be the list of pairs with a turtle first and a probability second
    ask turtles-on neighbors [
      set localsum localsum + abs influence-function [old-attitude] of self ]
    ask turtles-on neighbors [
      let prob 0
      if localsum != 0 [set prob (abs influence-function [old-attitude] of self) / localsum]
      let pair []
      set pair lput self pair
      set pair lput prob pair
      set pairlist lput pair pairlist
    ]
    set j first rnd:weighted-one-of pairlist [last ?]
  ]
  if is-turtle? j [ ;it is possible that no agent ends up getting picked in the line above, so this checks that someone has
    ifelse random-float 1 < opinion-amplification [
      if [old-attitude] of j > 0 [
        if abs old-attitude < max-entrench [
          ifelse old-attitude = -1 [set new-attitude 1] [ set new-attitude old-attitude + 1 ]]
      ]
      if [old-attitude] of j < 0 [
        if abs old-attitude < max-entrench [
          ifelse old-attitude = 1 [set new-attitude -1] [set new-attitude old-attitude - 1 ]]
      ]]
    [
      if [old-attitude] of j > old-attitude [
        ifelse old-attitude = -1 [set new-attitude 1] [ set new-attitude old-attitude + 1]]
      if [old-attitude] of j < old-attitude [
        ifelse old-attitude = 1 [ set new-attitude -1][set new-attitude old-attitude - 1 ]]
    ]
  ]
end

to-report influence-function [item1]
  if influence = "linear" [
    ifelse item1 = 0 [report 1] [report item1] ]  ; this is the linear update function
  if influence = "square" [
    ifelse item1 = 0 [report 1] [report (item1 ^ 2)]] ; this weighs extreme attitudes more than moderate ones
  if influence = "uniform" [
    if item1 < 0 [report -1]
    if item1 > 0 [report 1] ]
  if influence = "co-linear" [
    ifelse item1 = 0 [report 1] [report (max-entrench + 1 - abs item1) ] ]
  if influence = "co-square" [
    ifelse item1 = 0 [report 1] [report (max-entrench + 1 - abs item1) ^ 2 ] ]
end

to make-turtle-distribution
ifelse rnd-initial [
    ask patches [;; every patch will either have a positive or negative attitude placed on them. The probability of one over the other is set by polluter-to-nonpolluter-ratio
    ifelse random-float 1 < positive-to-negative-ratio [
      sprout 1 [
        set new-attitude (random init-attitude) + 1
      ]
    ]
    [
      sprout 1 [
        set new-attitude 0 - (random init-attitude) - 1
      ]
    ]
  ]
][;;otherwise, the positive attitudes are arranged to form a circle, with a radius set by radius-size
ask patches [
    ifelse (abs pxcor) ^ 2 + (abs pycor) ^ 2 <= radius-size ^ 2 [
      sprout 1 [
        set new-attitude max-entrench
      ]
    ]
    [
      sprout 1 [
        set new-attitude (0 - max-entrench)
      ]
    ]
  ]
]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; STATISTICS
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to measure-frequency-over-time
  set left-freq count turtles with [old-attitude <= -1] / count turtles
  set right-freq count turtles with [old-attitude >= 1] / count turtles
end

;; Copyright Bert Baumgaertner
;; See info tab for credits

There are 2 versions of this model.

Uploaded by When Description Download
Bert Baumgaertner almost 8 years ago Added url for downloading rnd extension under info tab Download this version
Bert Baumgaertner over 8 years ago Initial upload Download this version

Attached files

File Type Description Last updated
rnd.jar extension Version of rnd extension required to run model. about 7 years ago, by Bert Baumgaertner Download
Spatial Dynamics of Attitude Formation.png preview Preview for 'Spatial Dynamics of Attitude Formation' over 8 years ago, by Bert Baumgaertner Download

This model does not have any ancestors.

This model does not have any descendants.
