WHAT IS IT?
The presented Spiking Neural Network (SNN) model is built in the framework of generalized Integrate-and-fire models which recreate to some extend the phenomenological dynamics of neurons while abstracting the biophysical processes behind them. The Spike Timing Dependent Plasticity (STDP) learning approach proposed by (Gerstner and al. 1996, Kempter et al. 1999) has been implemented and used as the underlying learning mechanism for the experimental neural circuit.
The neural circuit implemented in this model enables a simulated agent representing a virtual insect to move in a two dimensional world, learning to visually identify and avoid noxious stimuli while moving towards perceived rewarding stimuli. At the beginning, the agent is not aware of which stimuli are to be avoided or followed. Learning occurs through Reward-and-punishment classical conditioning. Here the agent learns to associate different colours with unconditioned reflex responses.
HOW IT WORKS
The experimental virtual-insect is able to process three types of sensorial information: (1) visual, (2) pain and (3) pleasant or rewarding sensation. The visual information is acquired through three photoreceptors where each one of them is sensitive to one specific color (white, red or green). Each photoreceptor is connected with one afferent neuron which propagates the input pulses towards two Motoneurons identified by the labels 21 and 22. Pain is elicited by a nociceptor (labeled 4) whenever the insect collides with a wall or a noxious stimulus. A rewarding or pleasant sensation is elicited by a pheromone (or nutrient smell) sensor (labeled 5) when the insect gets in direct contact with the originating stimulus.
The motor system allows the virtual insect to move forward (neuron labeled 31) or rotate in one direction (neuron labeled 32) according to the reflexive behaviour associated to it. In order to keep the insect moving even in the absence of external stimuli, the motoneuron 22 is connected to a neural oscillator sub-circuit composed of two neurons (identified by the labels 23 and 24) performing the function of a pacemaker which sends a periodic pulse to Motoneuron 22. The pacemaker is initiated by a pulse from an input neuron (labeled 6) which represents an external input current (i.e; intracellular electrode).
HOW TO USE IT
Press Setup to create: a. the neural circuit (on the left of the view) b. the insect and its virtual world (on the right of the view)
Press go-forever to continually run the simulation.
Press re-draw world to change the virtual world by adding random patches.
Press relocate insect to bring the insect to its initial (center) position.
Use the awake creature switch to enable or disable the movement of the insect.
Use the colours switches to indicate which colours are associated to harmful stimuli.
Use the insectviewdistance slider to indicate the number of patches the insect can look ahead.
Use the leavetrailon? switch to follow the movement of the insect.

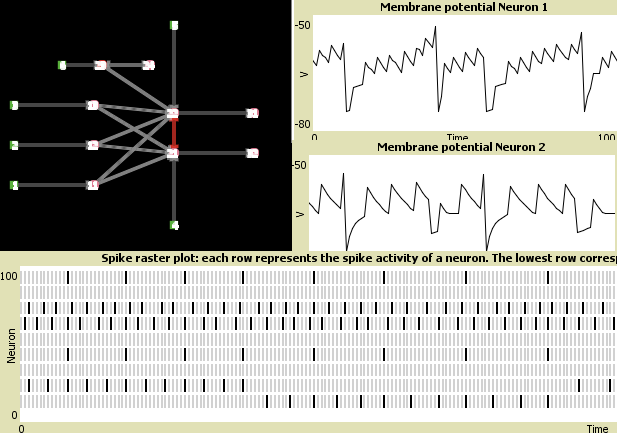

On the circuit side:
Input neurons are depicted with green squares.
Normal neurons are represented with pink circles. When a neuron fires its colour changes to red for a short time (for 1 tick or iteration).
Synapses are represented by links (grey lines) between neurons. Inhibitory synapses are depicted by red lines.
If istrainingmode? is on then the training phase is active. During the training phase, the insect is moved one patch forward everytime it is on a patch associated with a noxious stimulus. Otherwise, the insect would keep rotating over the noxious patch. Also, the insect is repositioned in its initial coordinates every time it reaches the virtual-world boundaries.
THINGS TO NOTICE
At the beginning the insect moves along the virtual-world in a seemingly random way colliding equally with all types of coloured patches. This demonstrates the initial inability of the insect to discriminate and react in response to visual stimuli. However, after a few thousands iterations (depending on the learning parameters), it can be seen that the trajectories lengthen as the learning of the insect progresses and more obstacles (walls and harmful stimuli) are avoided.
THINGS TO TRY
Follow the dynamic of single neurons by monitoring the membrane potential plots while running the simulation step by step.
Set different view distances to see if the behaviour of the insect changes.
Manipulate the STDP learning parameters. Which parameters speed up or slow down the adaptation to the environment?
EXTENDING THE MODEL
Use different kernels for the decay() and epsp() functions to make the model more accurate in biological terms.
NETLOGO FEATURES
Use of link and list primitives.
CREDITS AND REFERENCES
If you mention this model in a publication, we ask that you include these citations for the model itself and for the NetLogo software:
Cristian Jimenez-Romero, David Sousa-Rodrigues, Jeffrey H. Johnson, Vitorino Ramos A Model for Foraging Ants, Controlled by Spiking Neural Networks and Double Pheromonesin UK Workshop on Computational Intelligence 2015, University of Exeter, September 2015.
Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.
Comments and Questions
;; Spiking Neural Networks with STDP learning ;; Author: Cristian Jimenez Romero - The Open University - 2015 ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;Spiking Neural Network related code:;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; breed [neurontypes neurontype] breed [inputneurons inputneuron] breed [normalneurons normalneuron] directed-link-breed [normal-synapses normal-synapse] directed-link-breed [input-synapses input-synapse] neurontypes-own [ neurontypeid ;;;;;;;;;;Neuron Dynamics;;;;;;;;;;; restingpotential firethreshold decayrate ;Decay rate constant relrefractorypotential ;Refractory potential intervrefractoryperiod ;Duration of absolute-refractory period minmembranepotential ;lowest boundary for membrane potential ;;;;;;;Learning Parameters;;;;;;;;; pos_hebb_weight ;;Weight to increase the efficacy of synapses pos_time_window ;; Positive learning window neg_hebb_weight ;;Weight to decrease the efficacy of synapses neg_time_window ;; negative learning window max_synaptic_weight ;;Maximum synaptic weight min_synaptic_weight ;;Minimum synaptic weight pos_syn_change_interval ;;ranges of pre–to–post synaptic interspike intervals over which synaptic change occur. neg_syn_change_interval ] ;;; ;;; Create a neuron type ;;; Parameters: Type-identifier, resting potential, firing threshold, decay rate, refractory potential, duration of refractory period, lowest boundary for membrane potential to setup-neurontype [#pneurontypeid #prestpot #pthreshold #pdecayr #prefractpot #pintrefrectp #minmembranepotential] create-neurontypes 1 [ set shape "square" set neurontypeid #pneurontypeid set restingpotential #prestpot set firethreshold #pthreshold set decayrate #pdecayr set relrefractorypotential #prefractpot set intervrefractoryperiod #pintrefrectp set minmembranepotential #minmembranepotential ] end ;;; ;;; Set learning parameters for neuron type pneurontypeid ;;; to set-neurontype-learning-params [ #pneurontypeid #ppos_hebb_weight #ppos_time_window #pneg_hebb_weight #pneg_time_window #pmax_synaptic_weight #pmin_synaptic_weight #ppos_syn_change_interval #pneg_syn_change_interval] ask neurontypes with [neurontypeid = #pneurontypeid] [ set pos_hebb_weight #ppos_hebb_weight set pos_time_window #ppos_time_window set neg_hebb_weight #pneg_hebb_weight set neg_time_window #pneg_time_window set max_synaptic_weight #pmax_synaptic_weight set min_synaptic_weight #pmin_synaptic_weight set pos_syn_change_interval #ppos_syn_change_interval set neg_syn_change_interval #pneg_syn_change_interval ] end ;;; ;;; Declare an existing neuron "pneuronid" as neuron-type "pneurontypeid" ;;; to set-neuron-to-neurontype [ #pneurontypeid #pneuronid ] ;Call by observer ask neurontypes with [neurontypeid = #pneurontypeid] [ ask normalneuron #pneuronid [ set nrestingpotential [restingpotential] of myself set nmembranepotential [restingpotential] of myself set nfirethreshold [firethreshold] of myself set ndecayrate [decayrate] of myself set nrelrefractorypotential [relrefractorypotential] of myself set nintervrefractoryperiod [intervrefractoryperiod] of myself set nminmembranepotential [minmembranepotential] of myself ;;;;;;;;;;;;;;;;Learning Parameters;;;;;;;;;;;;;;;;; set npos_hebb_weight [pos_hebb_weight] of myself set npos_time_window [pos_time_window] of myself set nneg_hebb_weight [neg_hebb_weight] of myself set nneg_time_window [neg_time_window] of myself set nmax_synaptic_weight [max_synaptic_weight] of myself set nmin_synaptic_weight [min_synaptic_weight] of myself set npos_syn_change_interval [pos_syn_change_interval] of myself set nneg_syn_change_interval [neg_syn_change_interval] of myself ] ] end normalneurons-own [ nlayernum nneuronid nneuronstate nrestingpotential nfirethreshold nmembranepotential ndecayrate nrelrefractorypotential nintervrefractoryperiod nrefractorycounter naxondelay nsynapsesarray nnumofsynapses nlast-firing-time nincomingspikes nlastspikeinput nneuronlabel nminmembranepotential ;;;;;;;;;;;;;;;;Learning Parameters;;;;;;;;;;;;;;;;; npos_hebb_weight ;;Weight to increase the efficacy of synapses npos_time_window ;; Positive learning window nneg_hebb_weight ;;Weight to decrease the efficacy of synapses nneg_time_window ;; negative learning window nmax_synaptic_weight ;;Maximum synaptic weight nmin_synaptic_weight ;;Minimum synaptic weight npos_syn_change_interval ;;ranges of pre–to–post synaptic interspike intervals over which synaptic change occur. nneg_syn_change_interval ] normal-synapses-own [ presynneuronlabel possynneuronlabel presynneuronid possynneuronid synapseefficacy exc_or_inh synapsedelay joblist learningon? ] inputneurons-own [ layernum neuronid neuronstate pulsecounter ;;Count the number of sent pulses interspikecounter ;;Count the time between pulses numberofspikes ;;Number of spikes to send postsynneuron encodedvalue isynapseefficacy ;;In most cases should be large enough to activate possynn with a single spike neuronlabel ] to-report get-input-neuronid-from-label [#pneuronlabel] let returned_id nobody ask one-of inputneurons with [neuronlabel = #pneuronlabel][set returned_id neuronid] report returned_id end to-report get-neuronid-from-label [#pneuronlabel] let returned_id nobody ask one-of normalneurons with [nneuronlabel = #pneuronlabel][set returned_id nneuronid] report returned_id end ;;; ;;; Create a new synapse between pre-synaptic neuron: #ppresynneuronlabel and post-synaptic neuron: #ppossynneuronlabel ;;; to setup-synapse [#ppresynneuronlabel #ppossynneuronlabel #psynapseefficacy #pexc_or_inh #psyndelay #plearningon?] let presynneuid get-neuronid-from-label #ppresynneuronlabel let possynneuid get-neuronid-from-label #ppossynneuronlabel let postsynneu normalneuron possynneuid ask normalneuron presynneuid [ create-normal-synapse-to postsynneu [ set presynneuronlabel #ppresynneuronlabel set possynneuronlabel #ppossynneuronlabel set presynneuronid presynneuid set possynneuronid possynneuid set synapseefficacy #psynapseefficacy set exc_or_inh #pexc_or_inh set synapsedelay #psyndelay set joblist [] set learningon? #plearningon? ifelse (#pexc_or_inh = inhibitory_synapse) [ set color red ] [ set color grey ] ] ] end ;;; ;;; Process incoming pulse from input neuron ;;; to receive-input-neuron-pulse [ #psnefficacy #pexcinh ];;called by Neuron if ( nneuronstate != neuron_state_refractory ) [ ;;Adjust membrane potential: ifelse ( #pexcinh = excitatory_synapse ) [ set nmembranepotential nmembranepotential + #psnefficacy ;;increase membrane potential ] [ set nmembranepotential nmembranepotential - #psnefficacy ;;decrease membrane potential if (nmembranepotential < nminmembranepotential) ;; Floor for the membrane potential in case of extreme inhibition [ set nmembranepotential nminmembranepotential ] ] ] set nlastspikeinput ticks end ;;; ;;; Neuron pstneuronid# processes incoming pulse from neuron #prneuronid ;;; to receive-pulse [ #prneuronid #snefficacy #excinh #plearningon? ];;called by neuron if ( nneuronstate != neuron_state_refractory ) [ ;;Perturb membrane potential: ifelse ( #excinh = excitatory_synapse ) [ set nmembranepotential nmembranepotential + (#snefficacy * epsp-kernel) ;;increase membrane potential ] [ set nmembranepotential nmembranepotential - (#snefficacy * ipsp-kernel) ;;decrease membrane potential if (nmembranepotential < nminmembranepotential) ;; Floor for the membrane potential in case of extreme inhibition [ set nmembranepotential nminmembranepotential ] ] ] ;;Remember last input spike: set nlastspikeinput ticks ;; If plasticity is activated then store pulse info for further processing and apply STDP if (#plearningon? and istrainingmode?) [ ;;Don't let incoming-pulses history-buffer grow beyond limits (delete oldest spike): check-pulse-history-buffer ;;Create list of parameters and populate it: let pulseinflist[] set pulseinflist lput #prneuronid pulseinflist ;;Add Presynaptic neuron Id set pulseinflist lput #snefficacy pulseinflist ;;Add Synaptic efficacy set pulseinflist lput #excinh pulseinflist ;;Add excitatory or inhibitory info. set pulseinflist lput ticks pulseinflist ;;Add arriving time set pulseinflist lput false pulseinflist ;;Indicate if pulse has been processed as an EPSP following a Postsynaptic spike ( Post -> Pre, negative hebbian) ;;Add list of parameters to list of incoming pulses: set nincomingspikes lput pulseinflist nincomingspikes ;;Apply STDP learning rule: apply-stdp-learning-rule ] end ;;; ;;; Neuron fires ;;; to prepare-pulse-firing ;;Called by Neurons ;;Remember last firing time set nlast-firing-time ticks ;;Apply learning rule and after that empty incoming-pulses history: apply-stdp-learning-rule empty-pulse-history-buffer ;;transmit Pulse to postsynaptic neurons: propagate-pulses ;;Set State to refractory set nneuronstate neuron_state_refractory ;;initialize counter of refractory period in number of iterations set nrefractorycounter nintervrefractoryperiod end ;;; ;;; Kernel for inhibitory post-synaptic potential ;;; to-report ipsp-kernel ;;Called by Neurons report 1 end ;;; ;;; Kernel for excitatory post-synaptic potential ;;; to-report epsp-kernel ;;Called by Neurons report 1 end ;;; ;;; Kernel for membrane decay towards resting potential (If current membrane pot. > Resting pot.) ;;; to-report negative-decay-kernel ;;Called by Neurons report (exp ( -( ticks - nlastspikeinput ) / 5 ) + ndecayrate) end ;;; ;;; Kernel for membrane decay towards resting potential (If current membrane pot. < Resting pot.) ;;; to-report positive-decay-kernel ;;Called by Neurons report (exp (3 - ( ticks - nlast-firing-time ) ^ 0.8) + 0.3) end ;;; ;;; Bring membrane potential towards its resting state ;;; to decay ;;Called by Neurons ;;Move membrane potential towards resting potential: ifelse (nmembranepotential > nrestingpotential ) [ let expdecay negative-decay-kernel ; ifelse ((nmembranepotential - expdecay) < nrestingpotential) [ set nmembranepotential nrestingpotential ] [ set nmembranepotential nmembranepotential - expdecay ] ] [ let expdecay positive-decay-kernel ; ifelse ((nmembranepotential + expdecay) > nrestingpotential) [ set nmembranepotential nrestingpotential ] [ set nmembranepotential nmembranepotential + expdecay ] ] end ;;; ;;; Process neuron dynamics according to its machine state ;;; to do-neuron-dynamics ;;Called by Neurons ifelse ( nneuronstate = neuron_state_open ) [ if (nmembranepotential != nrestingpotential ) [ ;;Check if membrane potential reached the firing threshold ifelse( nmembranepotential >= nfirethreshold ) [ prepare-pulse-firing set color red ] [ ;;Move membrane potential towards resting potential: decay ] ] ] [ ;;Not idle and not firing, then refractory: set color pink ;;Restore normal colour ;;Decrease timer of absolute refractory period: set nrefractorycounter nrefractorycounter - system_iter_unit ;;Set membrane potential with refractory potential: set nmembranepotential nrelrefractorypotential if ( nrefractorycounter <= 0) ;;End of absolute refractory period? [ ;;Set neuron in open state: set nneuronstate neuron_state_open ] ] ;;Continue with Axonal dynamics independently of the neuron state: do-synaptic-dynamics end ;;; ;;; Delete history of incoming spikes ;;; to empty-pulse-history-buffer ;;Called by neurons set nincomingspikes[] end ;;; ;;; Apply the Spike Timing Dependent Plasticity rule ;;; to apply-stdp-learning-rule ;;Call by neurons ;Apply rule: Ap.exp(dt/Tp); if dt < 0; dt = prespt - postspt ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; let currspikeinfo[] let itemcount 0 let deltaweight 0 while [itemcount < ( length nincomingspikes ) ] [ set currspikeinfo ( item itemcount nincomingspikes ) ;;Get spike info: prneuronid[0], snefficacy[1], excinh[2], arrivaltime[3], processedBynegHebb[4] ifelse ( item 2 currspikeinfo ) = excitatory_synapse ;;Is the spike coming from an excitatory synapsis? [ let deltaspike ( item 3 currspikeinfo ) - nlast-firing-time if ( deltaspike >= nneg_time_window and deltaspike <= npos_time_window) ;;Is spike within learning window? [ ;;Calculate learning factor: ifelse ( deltaspike <= 0 ) ;;Increase weight [ set deltaweight npos_hebb_weight * exp(deltaspike / npos_syn_change_interval ) ask normal-synapse ( item 0 currspikeinfo ) nneuronid [update-synapse-efficacy deltaweight [nmax_synaptic_weight] of myself [nmin_synaptic_weight] of myself] ] [ if (( item 4 currspikeinfo ) = false) ;;if spike has not been processed then compute Hebb rule: [ set deltaweight (- nneg_hebb_weight * exp(- deltaspike / nneg_syn_change_interval )) ;;Turn positive delta into a negative weight set currspikeinfo replace-item 4 currspikeinfo true ;Indicate that this pulse has already been processed as a EPSP after Postsyn neuron has fired (negative hebbian) set nincomingspikes replace-item itemcount nincomingspikes currspikeinfo ask normal-synapse ( item 0 currspikeinfo ) nneuronid [update-synapse-efficacy deltaweight [nmax_synaptic_weight] of myself [nmin_synaptic_weight] of myself] ] ] ] ] [ ;;Inhibitory Synapses: Plasticity in inhibitory synapses not implemented yet ] set itemcount itemcount + 1 ] end ;;; ;;; Don't store more pulses than the specified by PulseHistoryBuffSize ;;; to check-pulse-history-buffer ;;Call by neurons if( length nincomingspikes > PulseHistoryBuffSize ) [ ;; Remove oldest pulse in the list set nincomingspikes remove-item 0 nincomingspikes ] end ;;; ;;; Propagate pulse to all post-synaptic neurons ;;; to propagate-pulses ;;Call by neurons ;; Insert a new pulse in all synapses having the current neuron as presynaptic ask my-out-normal-synapses [ add-pulse-job ] end ;;; ;;; Process synaptic dynamics of synapses with pre-synaptic neuron: presynneuronid ;;; to do-synaptic-dynamics ;;Call by neurons ;; Process all outgoing synapses with pulses in their job-list ask my-out-normal-synapses with [ length joblist > 0 ] [ process-pulses-queue ] end ;;; ;;; Enqueue pulse in synapse ;;; to add-pulse-job ;;Call by link (synapse) ;;Add a new Pulse with its delay time at the end of the outgoing-synapse joblist set joblist lput synapsedelay joblist end ;;; ;;; Change synaptic weight ;;; to update-synapse-efficacy [ #deltaweight #pmax_synaptic_weight #pmin_synaptic_weight] ;;Call by synapse ifelse ( synapseefficacy + #deltaweight ) > #pmax_synaptic_weight [ set synapseefficacy #pmax_synaptic_weight ] [ ifelse ( synapseefficacy + #deltaweight ) < #pmin_synaptic_weight [ set synapseefficacy #pmin_synaptic_weight ] [ set synapseefficacy synapseefficacy + #deltaweight ] ] end ;;; ;;; For each traveling pulse in synapse check if pulse has already arrived at the post-synaptic neuron ;;; to process-pulses-queue ;;Call by synapse set joblist map [ ? - 1 ] joblist ;;Decrease all delay counters by 1 time-unit foreach filter [? <= 0] joblist [ ;;Transmit Pulse to Postsyn Neuron: ask other-end [receive-pulse [presynneuronid] of myself [synapseefficacy] of myself [exc_or_inh] of myself [learningon?] of myself] ] ;;Keep only "traveling" pulses in the list : set joblist filter [? > 0] joblist end ;;; ;;; Create one input neuron and attach it to neuron with label #ppostsynneuronlabel (input neurons have one connection only) ;;; to setup-input-neuron [#pposx #pposy #label #ppostsynneuronlabel #psynapseefficacy #pcoding #pnumofspikes] let postsynneuronid get-neuronid-from-label #ppostsynneuronlabel set-default-shape inputneurons "square" create-inputneurons 1 [ set layernum 0 set neuronid who set neuronstate neuron_state_open set pulsecounter 0 set interspikecounter 0 set numberofspikes #pnumofspikes set postsynneuron postsynneuronid set encodedvalue input_value_empty set isynapseefficacy #psynapseefficacy setxy #pposx #pposy set color green set label #label set neuronlabel #label setup-input-synapse ] end ;;; ;;; Process pulses in input neuron ;;; to do-input-neuron-dynamics ;;Called by inputneurons if ( pulsecounter > 0 ) ;;process only if input-neuron has something to do [ set interspikecounter interspikecounter + 1 if (interspikecounter > encodedvalue) [ ;;Transmit pulse to Post-synaptic Neuron; ask out-input-synapse-neighbors [receive-input-neuron-pulse [isynapseefficacy] of myself [excitatory_synapse] of myself] set interspikecounter 0 set pulsecounter pulsecounter - 1 ] ] end ;;; ;;; Encode input value (integer number) into pulses ;;; to-report set-input-value [#pencodedvalue] ;;Called by inputneurons ;;Check if input neuron is ready to receive input let inputready false if ( pulsecounter = 0 ) [ set encodedvalue #pencodedvalue set pulsecounter numberofspikes ;;Initialize counter with the number of pulses to transmit with the encoded value set interspikecounter 0 set inputready true ] report inputready end ;;; ;;; Ask input neuron with id = #pneuronid to accept and encode a new input value ;;; to feed-input-neuron [#pneuronid #pencodedvalue];;Called by observer ask inputneuron #pneuronid [ let inputready set-input-value #pencodedvalue ] end ;;; ;;; Ask input neuron with label = #pneuronlabel to accept and encode a new input value ;;; to feed-input-neuron_by_label [#pneuronlabel #pencodedvalue];;Called by observer ask one-of inputneurons with [ neuronlabel = #pneuronlabel ] [ let inputready set-input-value #pencodedvalue ] end ;;; ;;; Create link to represent synapse from input neuron to post-synaptic neuron: postsynneuron ;;; to setup-input-synapse ;;Call from inputneurons let psnneuron postsynneuron let postsynneu one-of (normalneurons with [nneuronid = psnneuron]) create-input-synapse-to postsynneu end ;;; ;;; Create and initialize neuron ;;; to setup-normal-neuron [#playernum #pposx #pposy #label #pneurontypeid] set-default-shape normalneurons "circle" let returned_id nobody create-normalneurons 1 [ set nlayernum #playernum set nneuronid who set nneuronstate neuron_state_open set nrefractorycounter 0 set nincomingspikes[] set nnumofsynapses 0 set nlastspikeinput 0 setxy #pposx #pposy set color pink set label #label set nneuronlabel #label set returned_id nneuronid ] set-neuron-to-neurontype #pneurontypeid returned_id end ;;; ;;; Process neural dynamics ;;; to do-network-dynamics ask inputneurons [ do-input-neuron-dynamics ] ;Process input neurons in random order ask normalneurons [do-neuron-dynamics] ;Process normal neurons in random order end ;;; ;;; Show information about neuron with id: #srcneuron ;;; to show-neuron-info [#srcneuron] ;;Called by observer ;set plot-list lput ( [nmembranepotential] of one-of normalneurons with [nneuronid = neuronid_monitor1] ) plot-list ask normalneurons with [nneuronid = #srcneuron] [ print "" write "Neuron Id:" write nneuronid print "" write "Layer " write nlayernum print "" write "Membrane potential: " write nmembranepotential print "" write "Spike threshold: " write nfirethreshold print "" write "Resting potential: " write nrestingpotential print "" write "Refractory potential: " write nrelrefractorypotential print "" write "Last input-pulse received at:" write nlastspikeinput print "" write "Last spike fired at: " write nlast-firing-time print "" write "Current state: " write (ifelse-value ( nneuronstate = neuron_state_open ) ["idle"] ["refractory"] ) print "" print "" ] end ;;; ;;; Show information about synapse with pre-synaptic neuron: #srcneuron and post-synaptic neuron: #dstneuron ;;; to show-synapse-info-from-to [#srcneuron #dstneuron] ;;Called by observer ask normal-synapses with [presynneuronid = #srcneuron and possynneuronid = #dstneuron] [ print "Synapse from:" write "Neuron " write #srcneuron write " to neuron " write #dstneuron print "" write "Weight: " write synapseefficacy print "" write "Delay: " write synapsedelay write "iteration(s)" print "" write "Excitatory or Inhibitory: " write (ifelse-value ( exc_or_inh = excitatory_synapse ) ["Excitatory"] ["Inhibitory"] ) print "" ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;End of SNN code;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;Artificial insect related code:;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; breed [testcreatures testcreature] breed [visualsensors visualsensor] testcreatures-own [ creature_label creature_id reward_neuron pain_neuron move_neuron rotate_neuron creature_sightline ] ;;; ;;; Create insect agent ;;; to-report create-creature [#xpos #ypos #creature_label #reward_neuron_label #pain_neuron_label #move_neuron_label #rotate_neuron_label] let reward_neuron_id get-input-neuronid-from-label #reward_neuron_label let pain_neuron_id get-input-neuronid-from-label #pain_neuron_label let move_neuron_id get-neuronid-from-label #move_neuron_label let rotate_neuron_id get-neuronid-from-label #rotate_neuron_label let returned_id nobody create-testcreatures 1 [ set shape "bug" setxy #xpos #ypos set size 2 set color yellow set creature_label #creature_label set reward_neuron reward_neuron_id set pain_neuron pain_neuron_id set move_neuron move_neuron_id set rotate_neuron rotate_neuron_id set creature_id who set returned_id creature_id ] report returned_id end visualsensors-own [ sensor_id perceived_stimuli distance_to_stimuli relative_rotation ;;Position relative to front attached_to_colour attached_to_neuron attached_to_creature ] ;;; ;;; Create photoreceptor and attach it to insect ;;; to create-visual-sensor [ #psensor_id #pposition #colour_sensitive #attached_neuron_label #attached_creature] ;;Called by observer let attached_neuron_id get-input-neuronid-from-label #attached_neuron_label create-visualsensors 1 [ set sensor_id #psensor_id set relative_rotation #pposition ;;Degrees relative to current heading - Left + Right 0 Center set attached_to_colour #colour_sensitive set attached_to_neuron attached_neuron_id set attached_to_creature #attached_creature ht ] end ;;; ;;; Ask photoreceptor if there is a patch ahead (within insect_view_distance) with a perceivable colour (= attached_to_colour) ;;; to view-world-ahead ;;Called by visualsensors let itemcount 0 let foundobj black ;;;;;;;;;;;;;;;Take same position and heading of creature:;;;;;;;;;;;;;;; let creature_px 0 let creature_py 0 let creature_heading 0 ask testcreature attached_to_creature [set creature_px xcor set creature_py ycor set creature_heading heading]; set xcor creature_px set ycor creature_py set heading creature_heading rt relative_rotation ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; let view_distance insect_view_distance let xview 0 let yview 0 while [itemcount <= view_distance and foundobj = black] [ set itemcount itemcount + 0.2;1 ask patch-ahead itemcount [ set foundobj pcolor set xview pxcor set yview pycor ] ] update-creature-sightline-position attached_to_creature xview yview ifelse (foundobj = attached_to_colour) ;;Found perceivable colour? [ set distance_to_stimuli itemcount set perceived_stimuli foundobj ] [ set distance_to_stimuli 0 set perceived_stimuli 0 ] end ;;; ;;; Process Nociceptive, reward and visual sensation ;;; to perceive-world ;;Called by testcreatures let nextobject 0 let distobject 0 let onobject 0 ;; Get color of current position ask patch-here [ set onobject pcolor ] ifelse (onobject = white) [ ifelse (noxious_white) ;;is White attached to a noxious stimulus [ feed-input-neuron pain_neuron 1 ;;induce Pain if (istrainingmode?) [ ;;During training phase move the creature forward to avoid infinite rotation move-creature 0.5 ;; set error_free_counter 0 ] ] [ feed-input-neuron reward_neuron 1 ;;induce happiness ask patch-here [ set pcolor black ] ;;Eat patch ] ] [ ifelse (onobject = red) [ ifelse (noxious_red) ;;is Red attached to a noxious stimulus [ feed-input-neuron pain_neuron 1 ;;induce Pain if (istrainingmode?) [ ;;During training phase move the creature forward to avoid infinite rotation move-creature 0.5 set error_free_counter 0 ] ] [ feed-input-neuron reward_neuron 1 ;;induce happiness ask patch-here [ set pcolor black ] ;;Eat patch ] ] [ if (onobject = green) [ ifelse (noxious_green) ;;is Green attached to a noxious stimulus [ feed-input-neuron pain_neuron 1 ;;induce Pain if (istrainingmode?) [ ;;During training phase move the creature forward to avoid infinite rotation move-creature 0.5 set error_free_counter 0 ] ] [ feed-input-neuron reward_neuron 1 ;;induce happiness ask patch-here [ set pcolor black ] ;;Eat patch ] ] ] ] ask visualsensors [propagate-visual-stimuli] end ;;; ;;; Move or rotate according to the active motoneuron ;;; to do-actuators ;;Called by Creature let dorotation? false let domovement? false ;;Check rotate actuator ask normalneuron rotate_neuron [ if (nlast-firing-time = ticks); [ set dorotation? true ] ] ;;Check move forward actuator ask normalneuron move_neuron[ if (nlast-firing-time = ticks); [ set domovement? true ] ] if (dorotation?) [ rotate-creature 4 ] if (domovement?) [ move-creature 0.4 ] end ;;; ;;; Photoreceptor excitates the connected input neuron ;;; to propagate-visual-stimuli ;;Called by visual sensor if (attached_to_colour = perceived_stimuli) ;;Only produce an action potential if the corresponding associated stimulus was sensed [ feed-input-neuron attached_to_neuron distance_to_stimuli; ] end ;;; ;;; Move insect (#move_units) patches forward ;;; to move-creature [#move_units] if (leave_trail_on?) [Leave-trail] fd #move_units end ;;; ;;; Rotate insect (#rotate_units) degrees ;;; to rotate-creature [#rotate_units] rt #rotate_units end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;End of insect related code;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; breed [sightlines sightline] directed-link-breed [sight-trajectories sight-trajectory] ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;; ;;; Show a sightline indicating the patch the insect is looking at ;;; to-report create-sightline let sightline_id nobody create-sightlines 1 [ set shape "circle" set size 0.5 set color orange set sightline_id who ht ] report sightline_id end to update-creature-sightline-position [#creatureid #posx #posy] ifelse (show_sight_line?) [ let attached_sightline 0 ask testcreature #creatureid [set attached_sightline creature_sightline] ask sightline attached_sightline [setxy #posx #posy] ask sight-trajectories [show-link] ] [ ask sight-trajectories [hide-link] ] end to attach-sightline-to-creature [#creature_id #sightline_id] let sightline_agent sightline #sightline_id ask sightline_agent [setxy [xcor] of testcreature #creature_id [ycor] of testcreature #creature_id] ask testcreature #creature_id [ set creature_sightline #sightline_id create-sight-trajectory-to sightline_agent [set color orange set thickness 0.4] ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; breed [itrails itrail] ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;; ;;; Leave a yellow arrow behind the insect indicating its heading ;;; to leave-trail ; [posx posy] hatch-itrails 1 [ set shape "arrow" set size 1 set color yellow set ttl 2000 ] end ;;; ;;; Check if it is time to remove the trail ;;; to check-trail set ttl ttl - 1 if ttl <= 0 [ die ] end itrails-own [ ttl ] ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; globals [ ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;SNN Module globals;;;;;;;;;;;;;;;;;;;;;;;;;;;;; neuron_state_open;; describe state machine of the neuron neuron_state_firing;; describe state machine of the neuron neuron_state_refractory;; describe state machine of the neuron excitatory_synapse inhibitory_synapse system_iter_unit ;;time steps of each iteration expressed in milliseconds plot-list plot-list2 PulseHistoryBuffSize ;;Size of pulse history buffer input_value_empty ;;Indicate that there is no input value ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;Insect globals;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; pspikefrequency ;;Number of spikes emitted by an input neuron in response to one stimulus error_free_counter ;;Number of iterations since the insect collided with a noxious stimulus required_error_free_iterations ;;Number of error-free iterations necessary to stop training ] ;;; ;;; Create neural circuit, insect and world ;;; to setup clear-all RESET-TICKS initialize-global-vars ;;;;;;;;;;Draw world with white, green and red patches;;;;;;;; draw-world ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;Setup Neuron types;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;Neuron type1: setup-neurontype 1 -65 -55 0.1 -75 3 -75 set-neurontype-learning-params 1 0.045 75 0.045 -50 9 1 (8 + 3) (15 + 3) ;[ #pneurontypeid #ppos_hebb_weight #ppos_time_window #pneg_hebb_weight #pneg_time_window #pmax_synaptic_weight ;#pmin_synaptic_weight #ppos_syn_change_interval #pneg_syn_change_interval] ;;;;;;;;;;;;;;;;Neuron type2: setup-neurontype 2 -65 -55 0.1 -70 1 -70 ;(typeid restpot threshold decayr refractpot refracttime) set-neurontype-learning-params 2 0.09 55 0.09 -25 9 1 8 15 ;;;;;;;;;;;;;;;;Create the Neural circuit (brain) of the insect ;;;;;;;;;;;;;;Layer 1: Afferent neurons with receptors ;;;;;;;;;;;;;;; setup-normal-neuron 1 15 10 11 1 ;;[layernum pposx pposy pid pneurontypeid] setup-input-neuron 5 10 1 11 20 1 pspikefrequency ;;[pposx pposy pid ppostsynneuron psynapseefficacy pcoding pnumofspikes] setup-normal-neuron 1 15 15 12 1 ;;setup-normal-neuron [pposx pposy pid pthreshold prestpot pdecayr prefractpot pintrefrectp] setup-input-neuron 5 15 2 12 20 1 pspikefrequency ;;[pposx pposy pid ppostsynneuron ipsynapseefficacy pcoding pnumofspikes] setup-normal-neuron 1 15 20 13 1 ;;setup-normal-neuron [pposx pposy pid pthreshold prestpot pdecayr prefractpot pintrefrectp] setup-input-neuron 5 20 3 13 20 1 pspikefrequency ;;[pposx pposy pid ppostsynneuron ipsynapseefficacy pcoding pnumofspikes] ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;; Layer 2: First hidden layer ;;;;;;;;;;;;;;;;;;;;;; ;Motoneuron with rotate actuator: setup-normal-neuron 2 25 14 21 1 setup-input-neuron 25 5 4 21 20 1 pspikefrequency ;Motoneuron with move actuator: setup-normal-neuron 2 25 19 22 1 setup-input-neuron 25 30 5 22 20 1 pspikefrequency ;;;;;;;;;;;;;; Synapses from Layer 1 to Layer 2 ;;;;;;;;;;;;;;;;;; ;;Synapse from afferent neuron 1001 to Motoneurons: setup-synapse 11 21 5 excitatory_synapse 3 true setup-synapse 11 22 5 excitatory_synapse 3 true ;;Synapse from afferent neuron 1002 to Motoneurons: setup-synapse 12 21 5 excitatory_synapse 3 true setup-synapse 12 22 5 excitatory_synapse 3 true ;;Synapse from afferent neuron 1003 to Motoneurons: setup-synapse 13 21 5 excitatory_synapse 3 true setup-synapse 13 22 5 excitatory_synapse 3 true ;;;;;;;;;;;;;; Layer 3: Output layer ;;;;;;;;;;;;;;;;;; ;;Actuator move forward: setup-normal-neuron 3 35 19 31 1 ;;Actuator rotate: setup-normal-neuron 3 35 14 32 1 ;;;;;;;;;;;;; Synapses from Layer 2 to Layer 3 ;;;;;;;;;;;;;;;;;;;; ;;Mutual inhibitory synapses between Motoneurons: setup-synapse 21 22 22 inhibitory_synapse 3 false setup-synapse 22 21 8 inhibitory_synapse 3 false ;;Positive Synapsis from Nociceptive Motoneuron to rotate actuator (no plasticity): setup-synapse 21 32 11 excitatory_synapse 3 false ;;Positive Synapsis from Reward Motoneuron to move forward actuator (no plasticity): setup-synapse 22 31 11 excitatory_synapse 3 false ;;;;;;;;;;;;;;;;;;;; Oscillator (Pacemaker) ;;;;;;;;;;;;;;;;;;;;;;; setup-normal-neuron 2 16 25 23 2 setup-normal-neuron 2 22 25 24 2 setup-synapse 23 24 15 excitatory_synapse 2 false ;(no plasticity needed) setup-synapse 24 23 15 excitatory_synapse 3 false ;(no plasticity needed) setup-input-neuron 11 25 6 23 20 1 pspikefrequency ;;Voltage clamp to start pacemaker ;;Synapse from Pacemaker to Reward Motoneuron: setup-synapse 23 22 3.5 excitatory_synapse 3 false ;4.62 ;; Start insect hearth feed-input-neuron_by_label 6 1 ask patches with [ pxcor = 102 and pycor = 46 ] [set pcolor black] let creatureid create-creature 102 30 1 5 4 31 32;;[#xpos #ypos #creature_id #reward_neuron #pain_neuron #move_neuron #rotate_neuron] ;;;;;;;;;;Create Visual sensors;;;;;;;;; create-visual-sensor 1 0 white 1 creatureid;[ psensor_id pposition colour_sensitive attached_neuron attached_creature] create-visual-sensor 2 0 red 2 creatureid;[ psensor_id pposition colour_sensitive attached_neuron attached_creature] create-visual-sensor 3 0 green 3 creatureid;[ psensor_id pposition colour_sensitive attached_neuron attached_creature] ;;;;;;;;;;Create Sightline ;;;;;;;;;;;;; let sightlineid create-sightline attach-sightline-to-creature creatureid sightlineid ;; Activate training mode set istrainingmode? true end ;;; ;;; Set gloval variables with their initial values ;;; to initialize-global-vars set system_iter_unit 1 ;; each simulation iteration represents 1 time unit set neuron_state_open 1 ;;State machine idle set neuron_state_firing 2 ;;State machine firing set neuron_state_refractory 3 ;;State machine refractory set excitatory_synapse 1 set inhibitory_synapse 2 set plot-list[] ;;List for spike history set plot-list2[] ;;List for spike history set PulseHistoryBuffSize 30 set input_value_empty -1 ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;Insect globals;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; set pspikefrequency 1 set error_free_counter 0 set required_error_free_iterations 35000 end ;;; ;;; Generate insect world with 3 types of patches ;;; to draw-world ask patches with [ pxcor >= 80 and pycor = 1 and pxcor <= 120 ] [ set pcolor white ] ask patches with [ pxcor >= 80 and pycor = 60 ] [ set pcolor white ] ask patches with [ pycor >= 1 and pxcor = 80 and pxcor <= 120] [ set pcolor white ] ask patches with [ pycor >= 1 and pxcor = 120 ] [ set pcolor white ] let ccolumns 0 while [ ccolumns < 20 ] [ set ccolumns ccolumns + 3 ask patches with [ pycor >= 4 and pycor <= 75 and pxcor = 82 + ccolumns * 2 ] [ set pcolor white ] ] ask patches with [ pxcor > 80 and pxcor < 120 and pycor > 1 and pycor < 60 ] [ let worldcolor random(10) ifelse (worldcolor = 1) [ set pcolor red ] [ if (worldcolor >= 2 and worldcolor <= 4) [ set pcolor green ] ] ] end ;;; ;;; Don't allow the insect to go beyond the world boundaries ;;; to check-boundaries if (istrainingmode?) [ set error_free_counter error_free_counter + 1 if(error_free_counter > required_error_free_iterations) [ set istrainingmode? false ] ask testcreatures [ if (xcor < 80 or xcor > 120) or (ycor < 1 or ycor > 60) [ setxy 102 30 ] ] ] end ;;; ;;; Run simulation ;;; to go if (awakecreature?) [ ask itrails [ check-trail ] ask visualsensors [ view-world-ahead ] ;;Feed visual sensors at first ask testcreatures [ perceive-world]; do-actuators] do-network-dynamics ask testcreatures [do-actuators] ] check-boundaries tick end
