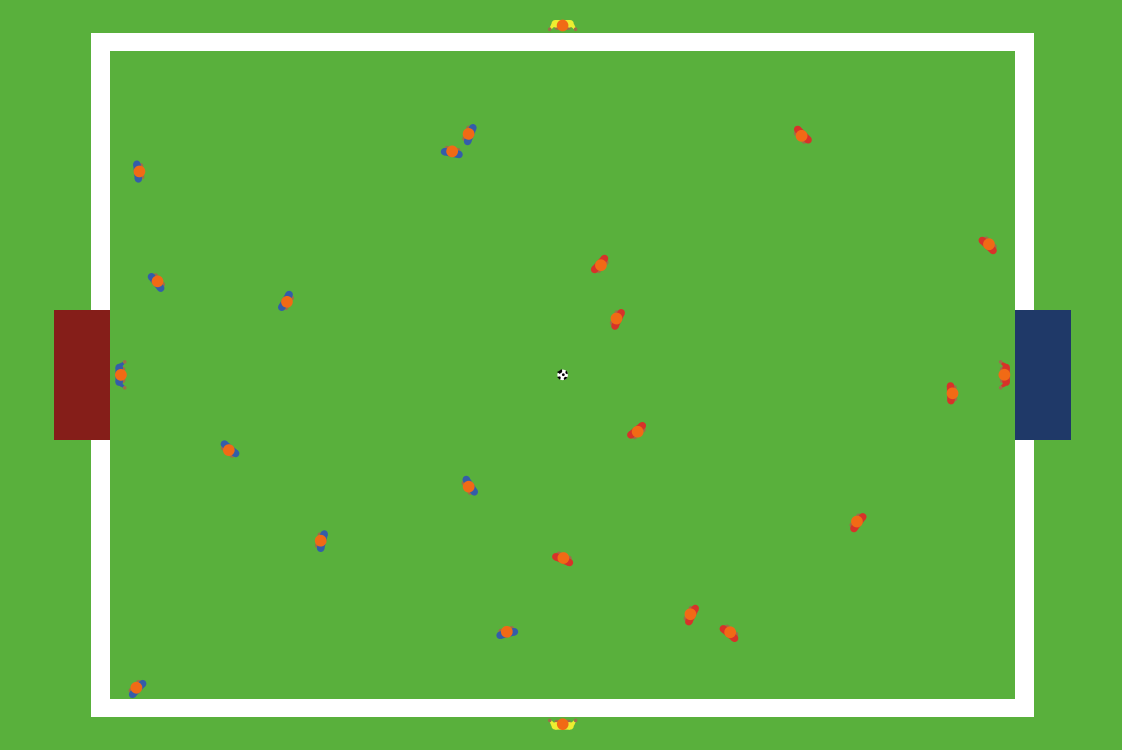

Soccer Simulator preview image

1 collaborator

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by everyone
Model was written in NetLogo 5.0.3 • Viewed 648 times • Downloaded 56 times • Run 0 times
Download the 'Soccer Simulator' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Explanation of the model

Can you explain to me the model? How agents interact each other ?

Posted 3 months ago

Click to Run Model


;;; DEFINING VARIABLES ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


globals [
  width         ;; width of the pitch
  height        ;; height of the pitch
  red-goal      ;; patches that belongs to the red goal
  blue-goal     ;; patches that belong to the blue goal
  the-ball      ;; the ball
  score-red     ;; amount of goals that the red team has scored since the setup
  score-blue    ;; amount of goals that the blue team has scored since the setup
  red-team      ;; players of the red team
  blue-team     ;; players of the blue team
  seed          ;; current seed number
  previous-seed ;; previous seed number

  pass-distance              ;; the maximum distance a player can pass
  move-ball-distance         ;; the distance the ball is moved forward when the player is moving
  trick-ball-distance        ;; the distance the ball is moved forward when the player is doing a trick
  shoot-distance-selfish     ;; the maximum distance a selfish player will shoot
  shoot-distance-teamplayer  ;; the maximum distance a teamplayer will shoot
  speed                      ;; the speed of a player without the ball
  speed-receiver             ;; the speed of the player receiving a pass
  speed-with-ball            ;; the speed of the player with the ball
  speed-ball-pass            ;; the speed of the ball when it is passed
  speed-ball-shot            ;; the speed of the ball when it is shot
  speed-keeper               ;; the movement speed of the keeper in vertical direction
  distance-ballpossession    ;; the distance of the player to the ball for a player to recognize he is in ball possession
  locate-ball-distance       ;; the distance from which a player locates the ball and recognize he is close to the ball
  locate-player-distance     ;; the distance from which a player locates another player and recognize he is close to that player
  defender-distance          ;; the maximum distance the defender wants to stand from the goal
  keeper-reach               ;; the reach of the keeper
]


breed [players player]   ;; soccer players
breed [keepers keeper]   ;; keeper
breed [balls ball]       ;; the ball
breed [referees referee] ;; referee


patches-own[
 available?
]


players-own[
  ball?          ;; does the player have the ball?
  teamball?      ;; does the team of the player have the ball?
  nearbygoal?    ;; is the goal nearby?
  oppinfront?    ;; is there an opponent in front?
  oppnearby?     ;; is there an opponent nearby?
  nearbyteam?    ;; is there a free teammate nearby?
  team           ;; the team the player belongs to
  nearbyball?    ;; is the ball nearby?
  inbetween?     ;; is there an opponent between the player and the ball? (is the player standing free?)
  target         ;; the target of the player
  mygoal         ;; the goal where the player has to score
  teamplayer?    ;; is the player a teamplayer?
  defensive?     ;; is the player a defensive player?
  defending?     ;; is the player currently in a defensive position?
]


referees-own[
  team    ;; used when neither of the teams have the ball
]


keepers-own[
  team
]


balls-own[
  owner              ;; the owner of the ball
  target             ;; the target where the ball can be played to (either a player or a patch of the goal)
  closest-blue       ;; the closest player to the ball of the blue team
  closest-red        ;; the closest player to the ball of the red team
  closestfront-blue  ;; the closest player of the blue team in defending position (between the ball and the goal of the defenders)
  closestfront-red   ;; the closest player of the blue team in defending position (between the ball and the goal of the defenders)
]


;;; SETUP THE MODEL ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to setup ;; setup the field en set values of the variables
  clear-all
  set width 25
  set height 18
  set score-red 0
  set score-blue 0

  set pass-distance 10             ;; default 10
  set shoot-distance-selfish 13    ;; default 10
  set shoot-distance-teamplayer 7.5  ;; default 5
  set speed 0.5                    ;; default 0.5
  set speed-with-ball 0.45         ;; default 0.45
  set move-ball-distance 0.75      ;; default 0.75
  set trick-ball-distance 1.2        ;; default 1
  set speed-ball-pass 1            ;; default 1
  set speed-ball-shot 2            ;; default 2
  set distance-ballpossession 0.8  ;; default 0.8
  set locate-ball-distance 10      ;; default 10
  set locate-player-distance 1.5   ;; default 1.5
  set defender-distance 15         ;; default 15
  set speed-keeper 0.1             ;; default 0.1
  set keeper-reach 1.5             ;; default 1.5
  set speed-receiver 0.1           ;; default 0.1

  set-default-shape keepers "keeper"
  set-default-shape players "player"
  set-default-shape balls "football"
  set-default-shape referees "keeper"
  prepare-patch
  prepare-teams
  prepare-referee
  prepare-ball
end

to prepare-patch ;; set the colors of the field
  ask patches [
    set pcolor green
    set available? 0
  ]
  let land define-lines
  ask land [
    set pcolor white
    set available? 2
  ]
  set blue-goal create-blue-goal
  ask blue-goal [
    set pcolor blue - 2
    set available? 1
  ]
  set red-goal create-red-goal
  ask red-goal [
    set pcolor red - 2
    set available? 1
  ]
end

to-report define-lines
  report patches with [(pxcor = width OR pxcor = -1 * width OR pycor = height OR pycor = -1 * height) AND pxcor <= width AND pxcor >= -1 * width AND pycor <= height AND pycor >= -1 * height]
end

to-report create-red-goal
  report patches with [((pxcor <= -1 * width AND pxcor >= -1 * width - 2)) and (pycor >= -3 and pycor <= 3)]
end

to-report create-blue-goal
  report patches with [((pxcor >= width AND pxcor <= width + 2)) and (pycor >= -3 and pycor <= 3)]
end

to prepare-teams
  set previous-seed seed
  if not fixed-seed? [
    set seed-number new-seed
  ]
  random-seed seed-number
  prepare-team1
  prepare-team2
  set seed seed-number
end

to prepare-team1 ;; prepare the first (blue) team
  create-players defense-team-blue [
    set color blue
    set teamplayer? true
    set defensive? true
  ]
  create-players defense-selfish-blue [
    set color blue
    set teamplayer? false
    set defensive? true
  ]
  create-players attack-team-blue [
    set color blue
    set teamplayer? true
    set defensive? false
  ]
  create-players attack-selfish-blue [
    set color blue
    set teamplayer? false
    set defensive? false
  ]
  ask players with [color = blue] [
    set team "blue"
    set mygoal blue-goal
    set inbetween? true
    set size 2
    setxy (-1 * random width) (random (2 * height - 1) - height + 1)
    set defending? true
  ]

  create-keepers 1 [
    setxy (1 - width) 0
    set size 2
    set heading 90
    set color blue
    set team "blue"
  ]
  set blue-team players with [color = blue]
end

to prepare-team2 ;; prepare the second (red) team
  create-players defense-team-red [
    set color red
    set teamplayer? true
    set defensive? true
  ]
  create-players defense-selfish-red [
    set color red
    set teamplayer? false
    set defensive? true
  ]
  create-players attack-team-red [
    set color red
    set teamplayer? true
    set defensive? false
  ]
  create-players attack-selfish-red [
    set color red
    set teamplayer? false
    set defensive? false
  ]
  ask players with [color = red] [
    set team "red"
    set mygoal red-goal
    set inbetween? true
    set size 2
    setxy ( random width) (random (2 * height - 1) - height + 1)
    set defending? true
  ]

  create-keepers 1 [
    setxy (width - 1) 0
    set size 2
    set heading 270
    set color red
    set team "red"
  ]
  set red-team players with [color = red]
end

to prepare-referee
  create-referees 1 [
    setxy 0 (height + 1)
    set color yellow
    set heading 180
    set size 2
  ]
    create-referees 1 [
    setxy 0 (0 - height - 1)
    set color yellow
    set heading 0
    set size 2
  ]
end

to prepare-ball
  create-balls 1 [
    setxy 0 0
    set owner one-of referees
    set the-ball self
    set closest-red (min-one-of (players with [color = red]) [distance myself] )
    set closest-blue (min-one-of (players with [color = blue]) [distance myself] )
  ]
end


;;; GO PROCEDURE ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to go ;; observer procedure
  information
  decision
  move-ball
  set-motion
  check-goal
  check-out
end


;;; GATHERING INFORMATION ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to information ;; gather information for all the players
  ask players[
    ifelse (distance the-ball) < distance-ballpossession [ ;; do i have the ball?
      set ball? true ;; i have the ball
      ask one-of balls [set owner myself]
      set nearbyteam?(( other players in-radius pass-distance) with [team = [team] of myself] ) ;; how many team members are nearby? and free?
      set oppnearby? count ((players in-radius locate-player-distance) with [team != [team] of myself]) ;; how many opponents are nearby?
      ifelse any? patches in-radius shoot-distance-selfish with [pcolor = [color] of myself - 2] and not teamplayer? [ ;; is the goal nearby?
        set nearbygoal? true
        ]
      [ ifelse any? patches in-radius shoot-distance-teamplayer with [pcolor = [color] of myself - 2] and teamplayer? [ ;;
          set nearbygoal? true ]
        [ set nearbygoal? false ]
      ]
    ]
    [ set ball? false ;; i dont have the ball
      ifelse ([team] of ([owner] of the-ball) = [team] of self) and (self != ([target] of the-ball)) [ ;; does my team have the ball?
        set teamball? true
        ifelse distance (the-ball) < locate-ball-distance [ ;;am i close to the ball?
          set nearbyball? true
          set nearbyteam? count (( other players in-radius 2) with [team = [team] of myself]) ;; am i to close to someone else of my team?
          face the-ball
          ifelse (any? other players with [ball? = false] in-cone (distance the-ball) 20) or (any? other players with [ball? = false] in-radius locate-player-distance)  ;; are there opponents in between me and the ball?
          [ set inbetween? true ]
          [ set inbetween? false ]
          ]
        [ set nearbyball? false ]
      ]
      [ set teamball? false ;; my team does not have the ball
        ifelse team = "blue"
        [ ifelse xcor < [xcor] of the-ball
          [ set defending? true ]
          [ set defending? false ]
        ]
        [ ifelse xcor > [xcor] of the-ball
          [ set defending? true ]
          [ set defending? false ]
        ]
        ifelse [closest-blue] of the-ball = self or [closest-red] of the-ball = self or [closestfront-blue] of the-ball = self or [closestfront-red] of the-ball = self ;; am i the closest to the ball?
        [ set nearbyball? true ]
        [ set nearbyball? false ]

      ]
    ]
  ]
end


;;; DECISION TIME ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to decision
  ask players [
    ifelse ball? [ ;; do you have the ball?
      ifelse teamplayer? [  ;; are you a teamplayer?
        ihavetheball-teamplayer]
      [
        ihavetheball-selfish ]
    ]
    [ ifelse teamball? [   ;; does your team have the ball?
        ifelse nearbyball? [nearby-teammate] ;; are you close by?
        [ ifelse defensive?  ;; are you defensive?
          [ far-teammate-defense]
          [ far-teammate-attack]
        ]
      ]
      [ ifelse nearbyball? [  ;; are you close by?
          nearby-opponent ]
        [ ifelse defensive?  ;; are you defensive?
          [ far-opponent-defense ]
          [ far-opponent-attack ]
        ]
      ]
    ]
  ]
end

to ihavetheball-selfish ;; player procedure - when the player is selfish and has the ball
  let target-goal mygoal
  face one-of mygoal
  ifelse nearbygoal? [ ;; is the goal nearby?
    print "shoot"
    shoot ]
  [
    ifelse oppinfront? > 0 or oppnearby? > 0 [ ;; is there an opponent in front?
      ifelse count nearbyteam? with [not inbetween?] > 2  [ ;; are there multiple teammates nearby and free?
        print "pass"
        pass ]
      [ print "trick"
        trick ]
    ]
    [ print "move"
      i-move ]
  ]
end

to ihavetheball-teamplayer ;; player procedure
  let target-goal mygoal
  face one-of mygoal
  ifelse nearbygoal? [ ;; is the goal nearby?
    print "shoot"
    shoot ]
  [
    ifelse oppinfront? > 0 or oppnearby? > 0 [ ;; is there an opponent in front?
      ifelse count nearbyteam? with [not inbetween?] > 0  [ ;; are there multiple teammates nearby and free?
        print "pass"
        pass ]
      [ print "trick"
        i-move ]
    ]
    [ print "move"
      i-move ]
  ]
end


;;; ACTIONS ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to nearby-opponent ;; player procedure
   let my-team team
   set target one-of balls
   face target
end

to far-opponent-defense ;; player procedure
  ifelse team = "blue" [
    ifelse (distance one-of red-goal < defender-distance)
    [ rt random 360 ]
    [ face one-of red-goal
      set heading heading - 90 + random 180 ]
  ]
  [ ifelse (distance one-of blue-goal > defender-distance )
    [ face one-of blue-goal
      set heading heading - 90 + random 180 ]
    [ rt random 360 ]
  ]
end

to far-opponent-attack ;; player procedure
  ifelse count players with [(color = [color] of myself) and (defending?)] > 2
  [ rt random 360]
  [ ifelse team = "blue" [
      ifelse (distance one-of red-goal < defender-distance)
      [ rt random 360]
      [ face one-of red-goal
        set heading heading - 90 + random 180 ]
    ]
    [ ifelse (distance one-of blue-goal > defender-distance )
      [ face one-of blue-goal
        set heading heading - 90 + random 180]
      [ rt random 360 ]
    ]
  ]
end

to far-teammate-attack ;; player procedure
  ifelse team = "blue" [
    ifelse xcor < ([xcor] of the-ball)
    [ face one-of mygoal ]
    [ rt random 360 ]
  ]
  [ ifelse xcor > ([xcor] of the-ball)
    [ face one-of mygoal ]
    [ rt random 360 ]
  ]
end

to nearby-teammate ;; player procedure
  let my-team team
  ifelse nearbyteam? > 0
  [ face one-of ((other players in-radius 2.5) with [team = my-team])
    set heading heading + 180
  ]
  [ ifelse team = "blue" [
      face one-of blue-goal
      ifelse ([ycor] of the-ball) < ycor
      [ set heading heading - 30 ]
      [ set heading heading + 30 ]
    ]
    [ face one-of red-goal
      ifelse ([ycor] of the-ball) < ycor
      [ set heading heading + 30 ]
      [ set heading heading - 30 ]
    ]
  ]
end

to far-teammate-defense
  rt random 360
end

to i-move ;; player procedure
  ask the-ball [
    set heading ([heading] of owner)
    setxy ([xcor] of myself) ([ycor] of myself)
    fd move-ball-distance
    set target 0
  ]
end

to trick
  ask the-ball[
    set heading ([heading] of owner)
    setxy ([xcor] of myself) ([ycor] of myself)
    fd trick-ball-distance
    set target 0
    set owner one-of referees
  ]
end

to shoot ;; player procedure
  let target-goal one-of mygoal
  ask the-ball [
    set target target-goal
    face target
  ]
end

to pass ;; player procedure
  let my-team team
  let new-target one-of ((other players in-radius pass-distance) with [team = my-team and not inbetween?])
  if new-target != nobody [
    ask the-ball [
      set target new-target
      face target
      ask target [ set teamball? false ]
      print target
    ]
  ]
end


;;; MOVE THE PLAYERS ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to set-motion ;; observer procedure     let the players walk
  ask players [
    ifelse ball? [
      ifelse ([available?] of patch-ahead 2) < 1 [
        fd speed-with-ball ]
      [ set heading heading + 180
        fd speed-with-ball ]
    ]
    [ ifelse self != [target] of the-ball [
        ifelse ([available?] of patch-ahead 1) < 1 [
          fd speed ]
        [ set heading heading + 180
          fd speed ]
      ]
      [ fd speed-receiver ]
    ]
  ]

  ask keepers[
    ifelse [ycor] of the-ball > ycor [
      if [pycor] of (one-of blue-goal)  > ycor[
        setxy xcor (ycor + speed-keeper) ]
    ]
    [ if [pycor] of (one-of blue-goal) < ycor[
        setxy xcor (ycor - speed-keeper) ]
    ]
  ]
end


;;; MOVE THE BALL ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to move-ball ;; movement of the ball
  ask the-ball[
    set closestfront-red (min-one-of (players with [color = red and xcor > [xcor] of the-ball]) [distance myself] )
    set closestfront-blue (min-one-of (players with [color = blue and xcor < [xcor] of the-ball]) [distance myself] )
    set closest-red (min-one-of (players with [color = red]) [distance myself])
    set closest-blue (min-one-of (players with [color = blue]) [distance myself])
    if (([available?] of patch-ahead 1.2) < 2) and (([available?] of patch-ahead 0.6) < 2) [
      if target != 0 [
        if (distance target > shoot-distance-selfish + 1) and (distance target > shoot-distance-teamplayer + 1) and (distance target > pass-distance + 1) [
          set target 0
          set owner one-of referees ]
        ifelse is-patch? target [
          if distance one-of keepers < keeper-reach [set heading heading + 90 + random 180]
          fd speed-ball-shot ]
        [ fd speed-ball-pass ]
      ]
    ]
  ]
end


;;; CHECK GOAL OR OUT ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to check-goal ;; check whether a goal is scored
   if [pcolor] of (patch ([xcor] of the-ball) ([ycor] of the-ball) ) = red - 2 [
     set score-red score-red + 1
     goal ]
   if [pcolor] of (patch ([xcor] of the-ball) ([ycor] of the-ball) ) = blue - 2 [
     set score-blue score-blue + 1
     goal ]
end

to goal
  clear-turtles
  prepare-teams
  prepare-referee
  prepare-ball
end

to check-out ;; check whether the ball is outside the field
  if [pcolor] of (patch ([xcor] of the-ball) ([ycor] of the-ball) ) = green [
    if ([xcor] of the-ball > width + 1) or ([xcor] of the-ball < (-1 * (width + 1)))[
      out ]
  ]
  if [pcolor] of (patch ([xcor] of the-ball) ([ycor] of the-ball) ) = white [
    out ]
end

to out
  ask the-ball [
    set xcor 0
    set ycor 0
    set target 0
  ]
end

There are 2 versions of this model.

Uploaded by When Description Download
Sander van Egmond almost 4 years ago Info tab test Download this version
Sander van Egmond almost 4 years ago Initial upload Download this version

Attached files

File Type Description Last updated
Soccer Simulator.png preview Preview for 'Soccer Simulator' almost 4 years ago, by Sander van Egmond Download

This model does not have any ancestors.

This model does not have any descendants.
