Task-Switching

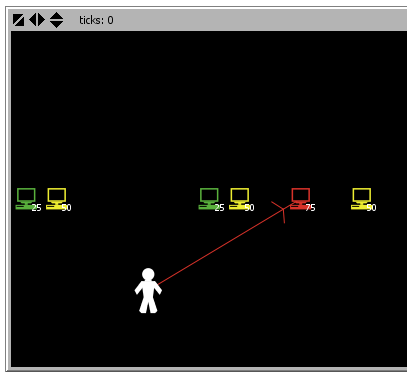

Task-Switching preview image

1 collaborator

1975094_10203443180500595_5085163595397213895_n Eric Forbush (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 5.2.0 • Viewed 259 times • Downloaded 18 times • Run 0 times
Download the 'Task-Switching' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [tasks a-task]
breed [astronauts astronaut]
tasks-own [
  duration           ;; how many ticks it takes to complete a task
  complete?          ;; whether or not the task is completed
  ;Task Factors
  difficulty         ;; difficulty of a task between 0 (easiest) and 1 (most difficult)
  priority           ;; importance of a task between 0 (unimportant) and 1 (extremely important)
  salience           ;; salience of a task between 0 (not salient) and 1 (very salient)
  interest           ;; interest level of a task between 0 (boring) and 1 (super interesting)
  ;Task Factors influence Task Attractiveness
  attractiveness     ;; overall task attractiveness based on difficulty, priority, salience and interest
  ]
astronauts-own [
  ongoing-task       ;; WHO number of the task currently being worked on
  alternate-tasks    ;; WHO number(s) of all other tasks
  num-switches       ;; how many times an astronaut has switched tasks
  target
  ]
globals [
  switch-count       ;; total count of every time an astronaut has switched tasks
  num-tasks          ;; total number of mission tasks
  num-astronauts     ;; total number of astronauts on the mission
  ]

to reset-mission     ;; "setup" procedure
  clear-all
  reset-ticks
end

to add-task          ;; task setup procedure (must be done before adding astronauts)
  if num-tasks = world-width [
    user-message (word "You've created the maximum number of tasks allowed for this mission!")
    stop ]

  create-tasks 1
    [set color blue  ;; TO DO - create color scheme based on task attractiveness
    set shape "computer workstation"
    set xcor random-pxcor
    set duration task-duration
    set difficulty task-difficulty
    set salience task-salience
    set priority task-priority
    set interest task-interest
    set complete? false
    set heading 90
    set label duration
    calculate-attractiveness]

    separate-tasks

    set num-tasks num-tasks + 1

    ask astronauts [ refresh-my-tasks ]  ;; in case the user adds more tasks after creating astronauts
end

to calculate-attractiveness
    set attractiveness ((difficulty + salience + priority + interest) / 4)
end

to separate-tasks ;; spaces out the tasks for better visualization
  ask tasks [if any? other tasks-here
    [ fd 1
      separate-tasks ]
  ]
end

to add-astronaut     ;; astronaut setup procedure (cannot be done until at least one task is created)
  if not any? tasks [
    user-message (word "You must add at least one task before adding astronauts!")
    stop ]

  if num-astronauts = 6 [
    user-message (word "You've assigned the maximum number of astronauts allowed to this mission!")
    stop ]

    create-astronauts number-of-astronauts [
    set color white
    set shape "person"
    set size 1.5
    setxy random-pxcor random-pycor
    set num-switches 0
    create-link-to one-of tasks   ;; link to any task
    set num-astronauts num-astronauts + 1
    refresh-my-tasks]

  ask astronauts [
    if count tasks with [complete? = false] > 1 [
    set target one-of tasks with [not member? WHO [ongoing-task] of myself and complete? = false] ]
    ]

  ask links [
    set color ([color] of end2) ]  ;; for better visualization
end

to refresh-my-tasks ;; determines an astronaut's ongoing and alternate tasks
   set ongoing-task [WHO] of out-link-neighbors
   ask out-link-neighbors [
    let nauts-on-task [WHO] of in-link-neighbors
    ask in-link-neighbors [
      set alternate-tasks [WHO] of tasks with [nauts-on-task != [WHO] of in-link-neighbors]
  ]
   ]
end

to start-mission ;; "go" procedure
  if num-tasks = 0 [
    user-message (word "You haven't created any tasks yet!")
    stop ]
  if num-tasks > 0 and num-astronauts = 0 [
    user-message (word "You haven't created any astronauts yet!")
    stop ]

  if all? tasks [complete? = true]  ;; once all tasks are complete, stop simulation
  [stop]

  ask astronauts [                  ;; ensures astronauts are working on an incomplete task
    if [complete?] of one-of out-link-neighbors = true [
      ask my-out-links [die]
        create-link-to one-of other tasks with [complete? = false]
        set num-switches num-switches + 1 ]
  ]

  task-switch ;; KEY PROCEDURE

  ask tasks with [ any? in-link-neighbors ] [  ;; any task with an astronaut working on it reduces its duration by 1
    set duration duration - 1
    set label duration
  ]

   update-tasks                     ;; check whether or not a task is complete
   ask astronauts [ refresh-my-tasks ]

   set switch-count sum [num-switches] of astronauts ;;BROKEN

  tick
end

to task-switch
  ask astronauts [
    if count tasks with [complete? = false] > 1 [
    set target one-of tasks with [not member? WHO [ongoing-task] of myself and complete? = false]  ;; choose a hypothetical alternate task to consider switching to


    ifelse [difficulty] of one-of out-link-neighbors > .5   ;; .51 represents a task that is more difficult than 51% of other tasks
     [ask astronauts [
      if random-float 100 > ( ((((( [difficulty] of one-of out-link-neighbors) * 100) - 50) * .68) + 66) ) [ ;; the more difficult the task, the less likely an astronaut is to consider a switch
        if [attractiveness] of target > [attractiveness] of one-of out-link-neighbors ;; 1st: attractiveness of the alternate task must be higher than ongoing task to induce a switch
         and random-float 1 < ([attractiveness] of target) [                          ;; 2nd: even if the alternate task is more attractive, there is still a chance a switch will not happen
        ask my-out-links [die]
        create-link-to target  ;; start working on alternate task (alternate task becomes ongoing task)
        set num-switches num-switches + 1] ;;BROKEN
      ]
     ]
    ]

    [ask astronauts [
      if random-float 100 > 66 [     ;; tasks with a difficulty below .5 are classified as "easy" and are treated equal regardless of level
        if [attractiveness] of target > [attractiveness] of one-of out-link-neighbors ;; 1st: attractiveness of the alternate task must be higher than ongoing task to induce a switch
         and random-float 1 < ([attractiveness] of target) [                          ;; 2nd: even if the alternate task is more attractive, there is still a chance a switch will not happen
        ask my-out-links [die]
        create-link-to target  ;; start working on alternate task (alternate task becomes ongoing task)
        set num-switches num-switches + 1] ;;BROKEN
      ]
     ]
    ]
   ]
  ]

ask links [
  set color ([color] of end2) ;; for better visualization
]
end

to update-tasks
  ask tasks with [complete? = false] [
    if duration <= 0 [
    set complete? true
    set color color - 3 ]
  ]
end
