TCTS
No preview image
Model was written in NetLogo 5.0.4
•
Viewed 189 times
•
Downloaded 14 times
•
Run 0 times
Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)
Info tab cannot be displayed because of an encoding error
Comments and Questions
Please start the discussion about this model!
(You'll first need to log in.)
Click to Run Model
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; breeds ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; breed [vehicles vehicle] breed [stations station] breed [clients client] breed [buses bus] ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; Variables ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; globals [ list_final_destinations ; list with the identifiant of each final_destination station list_vehicles ; list with the identifiant of each vehicle list-buses; list with the identifiant of each bus patterns ; number of patterns simulated total_nb_clients_final_destination ; number of clients arrived at final_destination total_nb_clients_created ; number of clients created during the simulation (= patterns * nb-clients) total_nb_clients_created_bus_line ; number of clients created during the simulation, with a final_destination station of the bus line servincing_rate ; (total_nb_clients_final_destination / total_nb_clients_created) * 100 servincing_rate_bus_line ; (total_nb_clients_final_destination / total_nb_clients_created_bus_line) * 100 client_station_rate ; number of stations with some clients waiting a vehicle, divided by the total number of stations max_nb_clients_droped max_gross_potential_buses max_gross_potential max_clients_station_waiting ; maximum number of clients waiting on a station mean_pick_up_rate ; mean of the pick up rate of vehicles mean_pick_up_rate_buses ; mean of the pick up rate of buses mean_vpk ; mean of the vpk of vehicles mean_vpk_buses ; mean of the vpk of buses list_stations_clients_waiting ; list of stations with some clients waiting a vehicle path_bus_line_1 ; list of stations of the bus line 1 path_bus_line_2 ; list of stations of the bus line 2 nb_stations ; number of stations nb_destinations contrainte-distance nb_destination_manhattan max_distance_links shp_network conect.O conect.D file_name distance_station_manhattan nb_bus_line ; number of active bus line final_destination_push time plot_patterns mean_clients_waiting mean_waiting_time_clients hybrid_state ; model curently in operation nb_clients_alive ] vehicles-own [ current_node ; station where is the vehicle at the t time next_node ; next station reached by the vehicle (at t+1) state ; Variable allows the sequencing of vehicle's processes nb_clients_picked_up ; number of clients in the vehicle at the t time selected_clients ; clients with the same final_destination of the vehicle, picked up at t+1 my_clients ; list of clients in the vehicule at the t time final_destination_vehicle ; station final_destination of the vehicle when it is occupied by one or more clients nb_stations_crossed ; number of stations crossed by the vehicle during the simulation nb_stations_picked_up_clients ; number of stations where the vehicle had picked up clients pick_up_rate ; (nb_stations_picked_up_clients / nb_stations_crossed)*100 total_nb_clients_picked_up ; total number of clients picked up during the simulation vpk ; ((total_nb_clients_picked_up * 5) / distance_travelled) occupation_rate_vehicle ; (nb_clients_picked_up / capacity_occupation) * 100 distance_travelled ; distance travelled during the simulation push s1 s2 s3 next_link_neighbors last_node next_link_neighbors_push count_last_node count_last_node_push route waiting model; 1=potential 2=cooperation 3=random 4=distance 5=modulobus 6=clandos ] buses-own [ current_node ; station where is the vehicle at the t time next_node ; next station reached by the vehicle (at t+1) state ; Variable allows the sequencing of bus's processes nb_clients_picked_up ; number of clients in the bus at the t time selected_clients ; clients with the same final_destination of the bus, picked up at t+1 my_clients ; list of clients in the bus at the t time clients_to_drop ; clients to drop at the current station nb_stations_crossed ; number of stations crossed by the bus during the simulation nb_stations_picked_up_clients ; number of stations where the bus had picked up clients pick_up_rate ; (nb_stations_picked_up_clients / nb_stations_crossed)*100 distance_travelled ; distance travelled during the simulation total_nb_clients_picked_up ; total number of clients picked up during the simulation vpk ; ((total_nb_clients_picked_up * 20) / (distance_travelled * 2)) direction ; direction of the bus (0 or 1) according to the order of the stations on the bus line position_station_bus_line_1 ; position of the current station on the bus line 1 position_station_bus_line_2 ; position of the current station on the bus line 2 occupation_rate_bus ; (nb_clients_picked_up / capacity_occupation) * 100 bus_line?? ; id bus line of the bus ] stations-own [ final_destination? ; indicate if the station could be a final_destination for clients or not (0=not et 1=yes) gross_potential ; gross potential of attractivity of the station : number of clients picked up at the station + number of clients droped + frequentation of vehicles net_potential ; net potential of attractivity of the station : gross_potential / potential of the most attractive station net_nb_clients_droped nb_clients_waiting ; number of clients waiting at the station clients_station_waiting_net ; nb_clients_waiting / max_clients_station_waiting nb_clients_picked_up_station ; total number of clients picked up at the station nb_clients_droped ; number of clients droped at the station bus_line ; 0 = the station not belongs to a bus line, 1 = the station belongs to the bus line 1, etc... frequentation ; number of passages of vehicles serving_taxi ; list of vehicles which will serve the stop targeted ] clients-own [ final_destination ; final_destination final of the client (by using a transportation service) station_to_wait ; station where the client will wait a transportation service bus_line? ; indicate if the final final_destination of the client belongs to a bus line direction-bus_line ; indicate in wich direction the client have to go on the bus line (0 or 1) vehicle? ; indicate if the client is in a vehicle (1) or not (0) list_vehicles_serving_destination push_of_vehicle waiting_time ] links-own [ gross_traffic ; vehicle frequentation of the axe net_traffic ; vehicle frequentation of the axe / max vehicle frequentation of axes ] ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; Initialisation ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to create.clients ; create un nombre de clients grace a un slider r�partis al�atoirement dans l'espace ask n-of (nb_clients / 2) patches with [pcolor != 85 and pcolor != 52 ] [ sprout-clients 1 [ set color white set shape "person" set size 0.6 set list_vehicles_serving_destination [] set push_of_vehicle [] ] set total_nb_clients_created total_nb_clients_created + 1 ] end to create.clients.zone ; create un nombre de clients grace a un slider r�partis al�atoirement dans l'espace ask n-of nb_clients patches with [pcolor = 36] [ sprout-clients 1 [ set color white set shape "person" set size 0.6 set list_vehicles_serving_destination [] set push_of_vehicle [] ] set total_nb_clients_created total_nb_clients_created + 1 ] end to estimate.stations.potential ; Definir l'attractivite de chaque station a l'initialisation ask stations [ set gross_potential count clients with [distance myself <= attraction_radius_stations] ] let maxpotentiel max [gross_potential] of stations ask stations [ set net_potential (gross_potential / (maxpotentiel + 0.001)) set size (5 * net_potential) ] end to update.stations.potential ; Mise a jour de l'attractivite des stations au cours de la simulation set max_gross_potential max [gross_potential] of stations set max_gross_potential_buses max [gross_potential] of stations set max_clients_station_waiting max [nb_clients_waiting] of stations set max_nb_clients_droped max [nb_clients_droped] of stations ask stations [ ifelse model_choice = "bus" [ ask stations with [bus_line = 0] [ set clients_station_waiting_net (nb_clients_waiting / (max_clients_station_waiting + 1)) set size (5 * clients_station_waiting_net) ] ask stations with [bus_line > 0] [ set net_potential (gross_potential / (max_gross_potential_buses + 1)) set size (5 * net_potential) set net_nb_clients_droped (nb_clients_droped / (max_nb_clients_droped + 1)) set color scale-color red net_nb_clients_droped 0 1 ] ] [ set net_potential (gross_potential / (max_gross_potential + 0.001) + 1) set size (2 * net_potential)] ] end to update.draw.traffic ; Mise a jour de l'attractivite des liens au cours de la simulation let maxtraffic max [gross_traffic] of links ask links [ set net_traffic gross_traffic / maxtraffic ^ 0.9 ] end to create.vehicles ; create des vehicles (grace a un slider) se situant aleatoirement sur des stations create-vehicles nb_vehicles [ set current_node one-of stations move-to current_node set next_node one-of [link-neighbors] of current_node let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set shape "van top" set size 2.5 set color yellow set state 1 set my_clients [] set selected_clients [] set count_last_node 0 set occupation_rate_vehicle 0 set distance_travelled 1 set total_nb_clients_picked_up 0 set nb_clients_picked_up 0 set nb_stations_crossed (nb_stations_crossed + 1) set nb_stations_picked_up_clients 0 set push [] set next_link_neighbors [] set route [] set waiting 0 ifelse model_choice = "potential" [set model 1] [ifelse model_choice = "cooperation" [set model 2] [ifelse model_choice = "random" [set model 3] [ifelse model_choice = "distance" [set model 4] [ifelse (model_choice = "modulobus" or model_choice = "mixte formal") [set model 5] [set model 6] ] ] ] ] ] set list_vehicles [who] of vehicles end to create.vehicles.mixte.informal ; create des vehicles (grace a un slider) se situant aleatoirement sur des stations create-vehicles nb_vehicles [ set current_node one-of stations move-to current_node set next_node one-of [link-neighbors] of current_node let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set shape "van top" set size 2.5 set color yellow set state 1 set my_clients [] set selected_clients [] set count_last_node 0 set occupation_rate_vehicle 0 set distance_travelled 1 set total_nb_clients_picked_up 0 set nb_clients_picked_up 0 set nb_stations_crossed (nb_stations_crossed + 1) set nb_stations_picked_up_clients 0 set push [] set next_link_neighbors [] set route [] set waiting 0 set model 2 ] create-vehicles nb_vehicles [ set current_node one-of stations move-to current_node set next_node one-of [link-neighbors] of current_node let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set shape "van top" set size 2.5 set color grey set state 1 set my_clients [] set selected_clients [] set count_last_node 0 set occupation_rate_vehicle 0 set distance_travelled 1 set total_nb_clients_picked_up 0 set nb_clients_picked_up 0 set nb_stations_crossed (nb_stations_crossed + 1) set nb_stations_picked_up_clients 0 set push [] set next_link_neighbors [] set route [] set waiting 0 set model 6 ] set list_vehicles [who] of vehicles end to create.vehicles.mixte.flexible ; create des vehicles (grace a un slider) se situant aleatoirement sur des stations create-vehicles nb_vehicles [ set current_node one-of stations move-to current_node set next_node one-of [link-neighbors] of current_node let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set shape "van top" set size 2.5 set color yellow set state 1 set my_clients [] set selected_clients [] set count_last_node 0 set occupation_rate_vehicle 0 set distance_travelled 1 set total_nb_clients_picked_up 0 set nb_clients_picked_up 0 set nb_stations_crossed (nb_stations_crossed + 1) set nb_stations_picked_up_clients 0 set push [] set next_link_neighbors [] set route [] set waiting 0 set model 2 ] create-vehicles nb_vehicles [ set current_node one-of stations move-to current_node set next_node one-of [link-neighbors] of current_node let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set shape "van top" set size 2.5 set color red set state 1 set my_clients [] set selected_clients [] set count_last_node 0 set occupation_rate_vehicle 0 set distance_travelled 1 set total_nb_clients_picked_up 0 set nb_clients_picked_up 0 set nb_stations_crossed (nb_stations_crossed + 1) set nb_stations_picked_up_clients 0 set push [] set next_link_neighbors [] set route [] set waiting 0 set model 5 ] set list_vehicles [who] of vehicles end to create.vehicles.mixte.all ; create des vehicles (grace a un slider) se situant aleatoirement sur des stations create-vehicles nb_vehicles [ set current_node one-of stations move-to current_node set next_node one-of [link-neighbors] of current_node let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set shape "van top" set size 2.5 set color grey set state 1 set my_clients [] set selected_clients [] set count_last_node 0 set occupation_rate_vehicle 0 set distance_travelled 1 set total_nb_clients_picked_up 0 set nb_clients_picked_up 0 set nb_stations_crossed (nb_stations_crossed + 1) set nb_stations_picked_up_clients 0 set push [] set next_link_neighbors [] set route [] set waiting 0 set model 6 ] create-vehicles nb_vehicles [ set current_node one-of stations move-to current_node set next_node one-of [link-neighbors] of current_node let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set shape "van top" set size 2.5 set color red set state 1 set my_clients [] set selected_clients [] set count_last_node 0 set occupation_rate_vehicle 0 set distance_travelled 1 set total_nb_clients_picked_up 0 set nb_clients_picked_up 0 set nb_stations_crossed (nb_stations_crossed + 1) set nb_stations_picked_up_clients 0 set push [] set next_link_neighbors [] set route [] set waiting 0 set model 5 ] create-vehicles nb_vehicles [ set current_node one-of stations move-to current_node set next_node one-of [link-neighbors] of current_node let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set shape "van top" set size 2.5 set color yellow set state 1 set my_clients [] set selected_clients [] set count_last_node 0 set occupation_rate_vehicle 0 set distance_travelled 1 set total_nb_clients_picked_up 0 set nb_clients_picked_up 0 set nb_stations_crossed (nb_stations_crossed + 1) set nb_stations_picked_up_clients 0 set push [] set next_link_neighbors [] set route [] set waiting 0 set model 2 ] set list_vehicles [who] of vehicles end to create.vehicles.mixte.frsn ; create des vehicles (grace a un slider) se situant aleatoirement sur des stations create-vehicles nb_vehicles [ set current_node one-of stations move-to current_node set next_node one-of [link-neighbors] of current_node let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set shape "van top" set size 2.5 set color grey set state 1 set my_clients [] set selected_clients [] set count_last_node 0 set occupation_rate_vehicle 0 set distance_travelled 1 set total_nb_clients_picked_up 0 set nb_clients_picked_up 0 set nb_stations_crossed (nb_stations_crossed + 1) set nb_stations_picked_up_clients 0 set push [] set next_link_neighbors [] set route [] set waiting 0 set model 6 ] create-vehicles nb_vehicles [ set current_node one-of stations move-to current_node set next_node one-of [link-neighbors] of current_node let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set shape "van top" set size 2.5 set color red set state 1 set my_clients [] set selected_clients [] set count_last_node 0 set occupation_rate_vehicle 0 set distance_travelled 1 set total_nb_clients_picked_up 0 set nb_clients_picked_up 0 set nb_stations_crossed (nb_stations_crossed + 1) set nb_stations_picked_up_clients 0 set push [] set next_link_neighbors [] set route [] set waiting 0 set model 5 ] set list_vehicles [who] of vehicles end to count.clients.waiting ; Compter le nombre de voyageurs a chaque station ask stations [ set nb_clients_waiting count clients-here ] end to initialisation.agents ask vehicles [die] ask buses [die] ask clients [die] clear-output clear-all-plots clear-drawing set nb_stations count stations set total_nb_clients_created_bus_line 0 set max_nb_clients_droped 0 set max_gross_potential 0 set max_clients_station_waiting 0 set list_stations_clients_waiting [] set client_station_rate 0 set mean_clients_waiting 0 set nb_clients_alive 0 ask stations [ set shape "circle" set color green set frequentation 0 set gross_potential 0 set net_potential 0 set nb_clients_waiting 0 set nb_clients_picked_up_station 0 set nb_clients_droped 0 set serving_taxi [] set targeted 0 ] ask stations with [final_destination? = 1] [ set color red set shape "flag" ] ask links [ set thickness 0.05 set color 9.9 set gross_traffic 0 set net_traffic 0 ] set patterns 0 set plot_patterns 1 set total_nb_clients_final_destination 0 set total_nb_clients_created 0 reset-ticks set time 0 ifelse zone? = true [ create.clients.zone ] [ create.clients create.clients ] ifelse model_choice = "bus" [ ask stations with [bus_line > 0] [ set color orange set shape "flag" ] create.buses.first.bus.line.1 create.buses.last.bus.line.1 if nb_bus_line = 2 [ create.buses.first.bus.line.2 create.buses.last.bus.line.2 ] ] [ ifelse model_choice = "mixte informal" [create.vehicles.mixte.informal] [ifelse model_choice = "mixte flexible" [create.vehicles.mixte.flexible] [ifelse (model_choice = "mixte formal" or model_choice = "mixte rigid") [ ask stations with [bus_line > 0] [ set color orange set shape "flag" ] create.buses.first.bus.line.1 create.buses.last.bus.line.1 if nb_bus_line = 2 [ create.buses.first.bus.line.2 create.buses.last.bus.line.2 ] create.vehicles ] [ifelse model_choice = "mixte frsn" [create.vehicles.mixte.frsn] [ifelse model_choice = "mixte all" [create.vehicles.mixte.all] [create.vehicles] ] ] ] ] ] estimate.stations.potential update.stations.potential set list_stations_clients_waiting [] choose.clients.final.destination set patterns 1 ask vehicles [set state 3] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; GO général ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go if ticks = 1 [reset-timer] ifelse model_choice = "potential" [go.potential] [ifelse model_choice = "random" [go.random] [ifelse model_choice = "distance" [go.distance] [ifelse model_choice = "bus" [go.bus] [ifelse model_choice = "cooperation" [go.cooperate] [ifelse model_choice = "modulobus" [go.modulobus] [ifelse model_choice = "clandos" [go.clandos] [ifelse model_choice = "hybrid" [go.hybrid] [ifelse model_choice = "mixte informal" [go.mixte.informal] [ifelse model_choice = "mixte formal" [go.mixte.formal] [ifelse model_choice = "mixte flexible" [go.mixte.flexible] [ifelse model_choice = "mixte rigid" [go.mixte.rigid] [ifelse model_choice = "mixte frsn" [go.mixte.frsn] [go.mixte.all] ] ] ] ] ] ] ] ] ] ] ] ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; Generic code ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to choose.clients.final.destination ask clients [ if final_destination = 0 [ ifelse (model_choice = "bus" or model_choice = "mixte formal" or model_choice = "mixte rigid") [ set final_destination one-of stations with [ final_destination? = 1] if [bus_line] of final_destination = 3 [ let nearest_station min-one-of stations with [ bus_line = 1 or bus_line = 2] [distance myself] let closest_bus_line [bus_line] of nearest_station set bus_line? closest_bus_line set station_to_wait nearest_station set total_nb_clients_created_bus_line total_nb_clients_created_bus_line + 1 ] if [bus_line] of final_destination = 1 [ set bus_line? 1 set total_nb_clients_created_bus_line total_nb_clients_created_bus_line + 1 set station_to_wait max-one-of stations with [ bus_line = 1] [ gross_potential / (distance myself ^ 3 + 0.1) ] let id_station_to_wait [who] of station_to_wait let position_station_to_wait position id_station_to_wait path_bus_line_1 let id_final_destination [who] of final_destination let position_id_final_destination position id_final_destination path_bus_line_1 ifelse position_id_final_destination > position_station_to_wait [set direction-bus_line 0] [set direction-bus_line 1] ] if [bus_line] of final_destination = 2 [ set bus_line? 2 set total_nb_clients_created_bus_line total_nb_clients_created_bus_line + 1 set station_to_wait max-one-of stations with [ bus_line = 2] [ gross_potential / (distance myself ^ 3 + 0.1) ] let id_station_to_wait_noeud [who] of station_to_wait let position-station_to_wait-list position id_station_to_wait_noeud path_bus_line_2 let id_station_to_wait_marche [who] of final_destination let position-finale_final_destination-list position id_station_to_wait_marche path_bus_line_2 ifelse position-finale_final_destination-list > position-station_to_wait-list [set direction-bus_line 0] [set direction-bus_line 1] ] if [bus_line] of final_destination = 0 [ set station_to_wait max-one-of stations with [distance myself < max_walking_distance] [ gross_potential / (distance myself ^ 3 + 0.1) ] ] ] [ set final_destination one-of stations with [ final_destination? = 1] set station_to_wait max-one-of stations with [distance myself < max_walking_distance] [ gross_potential / (distance myself ^ 3 + 0.1) ] ] ] ] end to move.clients ; ask clients [ set waiting_time waiting_time + 1 ] ask clients with [vehicle? = 0] [ face station_to_wait ifelse distance station_to_wait >= moving_speed + 1 [fd moving_speed ] [if distance station_to_wait > 0 [ move-to station_to_wait if station_to_wait = final_destination [ set total_nb_clients_created (total_nb_clients_created - 1) die ] ] ] ] end to circulate ; Deplacement du vehicle optimis� en selon els diff�rents principes set heading towards next_node if length my_clients > 0 [ ask clients with [vehicle? = [who] of myself] [ set heading [heading] of myself ] ] ifelse distance next_node > moving_speed * speed_factor + 0.1 [ fd moving_speed * speed_factor if length my_clients > 0 [ ask clients with [vehicle? = [who] of myself] [ fd moving_speed * speed_factor ] ] ] [ move-to next_node ifelse next_node = final_destination_vehicle [ set state 2 ] [ if length my_clients > 0 [ ask clients with [vehicle? = [who] of myself] [ move-to [next_node] of myself ] ] set state 1 ] ] set distance_travelled distance_travelled + 1 end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; modulobus model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go.modulobus if ticks = (patterns * nb_ticks_patterns - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] choose.clients.station.modulobus move.clients count.clients.waiting go.vehicles.modulobus plotting draw.traffic update.draw.traffic tick end to choose.clients.station.modulobus ask clients with [vehicle? = 0] [ if [targeted] of final_destination = 1 [ set list_vehicles_serving_destination [serving_taxi] of final_destination set list_vehicles_serving_destination sort-by [[distance myself] of ?1 < [distance myself] of ?2] list_vehicles_serving_destination let vehicle_to_take first list_vehicles_serving_destination set push_of_vehicle [push] of vehicle_to_take set push_of_vehicle sort-by [[distance myself] of ?1 < [distance myself] of ?2] push_of_vehicle let best_station_push first push_of_vehicle if [distance myself] of best_station_push < max_walking_distance [ set station_to_wait best_station_push ] ] ] end to go.vehicles.modulobus ; Sequence des procedures des vehicles ask vehicles with [model = 5] [ ifelse state = 0 [choose.station.modulobus] [ifelse state = 1 [pick.up.clients.modulobus] [ifelse state = 2 [drop.clients.modulobus] [circulate] ] ] ] end to choose.station.modulobus ; To choose the next stops of vehicles ifelse final_destination_vehicle = 0 [ let na current_node set current_node next_node set next_node one-of [link-neighbors] of current_node let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 ] ] [ let dest final_destination_vehicle set last_node current_node set current_node next_node set next_link_neighbors [link-neighbors] of current_node set next_link_neighbors sort-by [[distance dest] of ?1 < [distance dest] of ?2] next_link_neighbors set next_node min-one-of [link-neighbors] of current_node [distance dest] while [next_node = last_node and length next_link_neighbors > 1] [ set next_node one-of [link-neighbors] of current_node ] let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 set gross_potential gross_potential + 1 ] ] set nb_stations_crossed (nb_stations_crossed + 1) set state 3 end to make.push.modulobus set s1 current_node set final_destination_push final_destination_vehicle set push fput final_destination_push push set s2 next_node set next_link_neighbors_push [link-neighbors] of s2 set next_link_neighbors_push sort-by [[distance final_destination_push] of ?1 < [distance final_destination_push] of ?2] next_link_neighbors_push set s3 min-one-of [link-neighbors] of s2 [distance final_destination_push] while [s3 = s1 and length next_link_neighbors_push > 1] [ set s3 one-of [link-neighbors] of s2 ] while [s3 != final_destination_push] [ set push fput s3 push set s1 s2 set s2 s3 set next_link_neighbors_push [link-neighbors] of s2 set next_link_neighbors_push sort-by [[distance final_destination_push] of ?1 < [distance final_destination_push] of ?2] next_link_neighbors_push set s3 min-one-of [link-neighbors] of s2 [distance final_destination_push] while [s3 = s1 and length next_link_neighbors_push > 1] [ set s3 one-of [link-neighbors] of s2 ] ] end to pick.up.clients.modulobus ; if any? clients-here with [vehicle? = 0] [ let nb-clients-ici [nb_clients_waiting] of next_node if length my_clients = 0 [ set final_destination_vehicle [final_destination] of one-of clients-here with [vehicle? = 0] make.push.modulobus ask final_destination_vehicle [ set serving_taxi fput myself serving_taxi set targeted 1 ] ] let dest-vehicle final_destination_vehicle let nb-clients-possible count clients-here with [vehicle? = 0 and final_destination = dest-vehicle] if nb-clients-possible > 0 [ let nb-clients-a-prendre min (list (capacity_occupation - nb_clients_picked_up) nb-clients-possible) if nb-clients-a-prendre = 1 [ set selected_clients one-of clients-here with [vehicle? = 0 and final_destination = dest-vehicle ] ] if nb-clients-a-prendre > 1 [ set selected_clients n-of nb-clients-a-prendre clients-here with [vehicle? = 0 and final_destination = dest-vehicle ] ] ask selected_clients [ set vehicle? [who] of myself set color red ] set color orange set my_clients fput selected_clients my_clients set nb_clients_picked_up count clients with [vehicle? = [who] of myself ] ask next_node [ set nb_clients_picked_up_station (nb_clients_picked_up_station + [nb_clients_picked_up] of myself) set gross_potential (gross_potential + ([nb_clients_picked_up] of myself) * vehicle_atractivity_facteur) ] set occupation_rate_vehicle ((nb_clients_picked_up / capacity_occupation) * 100) set total_nb_clients_picked_up total_nb_clients_picked_up + nb_clients_picked_up set vpk ((total_nb_clients_picked_up * 20) / distance_travelled) set nb_stations_picked_up_clients (nb_stations_picked_up_clients + 1) set pick_up_rate (nb_stations_picked_up_clients / nb_stations_crossed ) * 100 ] ] set state 0 end to drop.clients.modulobus ; let n nb_clients_picked_up ask final_destination_vehicle [ set nb_clients_droped nb_clients_droped + n set gross_potential (gross_potential + n) set total_nb_clients_final_destination total_nb_clients_final_destination + n set serving_taxi remove myself serving_taxi if empty? serving_taxi [set targeted 0] ] set nb_clients_picked_up 0 set my_clients [] set selected_clients [] set push [] ask clients with [vehicle? = [who] of myself] [die] set final_destination_vehicle 0 set final_destination_push 0 set s1 0 set s2 0 set s3 0 set next_link_neighbors [] set next_link_neighbors_push [] set color yellow set state 1 end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; clandos model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go.clandos if ticks = (patterns * nb_ticks_patterns - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] move.clients count.clients.waiting go.vehicles.clandos plotting draw.traffic update.draw.traffic tick end to go.vehicles.clandos ; Sequence des procedures des vehicles ask vehicles with [model = 6] [ ifelse state = 0 [choose.station.clandos] [ifelse state = 1 [pick.up.clients.clandos] [ifelse state = 2 [drop.clients] [circulate.clandos] ] ] ] end to choose.station.clandos ; Choisir le prochain noeud sur lequel va passer le vehicle ifelse final_destination_vehicle = 0 [ set last_node current_node set current_node next_node let ne min-one-of [link-neighbors] of current_node [gross_potential] set next_link_neighbors [link-neighbors] of current_node set next_link_neighbors sort-by [[gross_potential] of ?1 < [gross_potential] of ?2] next_link_neighbors set next_node max-one-of [link-neighbors] of current_node [gross_potential] while [next_node = last_node and length next_link_neighbors > 1] [ set next_node one-of [link-neighbors] of current_node ] let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 ] ] [ let dest final_destination_vehicle set last_node current_node set current_node next_node set next_link_neighbors [link-neighbors] of current_node set next_link_neighbors sort-by [[distance dest] of ?1 < [distance dest] of ?2] next_link_neighbors set next_node min-one-of [link-neighbors] of current_node [distance dest] while [next_node = last_node and length next_link_neighbors > 1] [ set next_node one-of [link-neighbors] of current_node ] let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 set gross_potential gross_potential + 1 ] ] set nb_stations_crossed (nb_stations_crossed + 1) set state 3 end to pick.up.clients.clandos ; ifelse any? clients-here with [vehicle? = 0] [ let nb-clients-ici [nb_clients_waiting] of next_node ifelse waiting = 0 [ if length my_clients = 0 [ set final_destination_vehicle [final_destination] of one-of clients-here with [vehicle? = 0] ] let dest-vehicle final_destination_vehicle let nb-clients-possible count clients-here with [vehicle? = 0 and final_destination = dest-vehicle] if nb-clients-possible > 0 [ let nb-clients-a-prendre min (list (capacity_occupation - nb_clients_picked_up) nb-clients-possible) if nb-clients-a-prendre = 1 [ set selected_clients one-of clients-here with [vehicle? = 0 and final_destination = dest-vehicle ] ] if nb-clients-a-prendre > 1 [ set selected_clients n-of nb-clients-a-prendre clients-here with [vehicle? = 0 and final_destination = dest-vehicle ] ] ask selected_clients [ set vehicle? [who] of myself set color red ] set color orange set my_clients fput selected_clients my_clients set nb_clients_picked_up count clients with [vehicle? = [who] of myself ] ask next_node [ set nb_clients_picked_up_station (nb_clients_picked_up_station + [nb_clients_picked_up] of myself) set gross_potential (gross_potential + ([nb_clients_picked_up] of myself) * vehicle_atractivity_facteur) ] set occupation_rate_vehicle (nb_clients_picked_up / capacity_occupation) * 100 ] ] [ let dest-vehicle final_destination_vehicle let nb-clients-possible count clients-here with [vehicle? = 0 and final_destination = dest-vehicle] if nb-clients-possible < 1 and nb_clients_picked_up < 2 [ ask clients with [vehicle? = [who] of myself] [ set vehicle? 0 set color white ] set final_destination_vehicle [final_destination] of one-of clients-here with [vehicle? = 0] ] let dest-vehicle2 final_destination_vehicle let nb-clients-possible2 count clients-here with [vehicle? = 0 and final_destination = dest-vehicle2] if nb-clients-possible2 > 0 [ let nb-clients-a-prendre min (list (capacity_occupation - nb_clients_picked_up) nb-clients-possible2) if nb-clients-a-prendre = 1 [ set selected_clients one-of clients-here with [vehicle? = 0 and final_destination = dest-vehicle2 ] ] if nb-clients-a-prendre > 1 [ set selected_clients n-of nb-clients-a-prendre clients-here with [vehicle? = 0 and final_destination = dest-vehicle2 ] ] ask selected_clients [ set vehicle? [who] of myself set color red ] set color orange set my_clients fput selected_clients my_clients set nb_clients_picked_up count clients with [vehicle? = [who] of myself ] ask next_node [ set nb_clients_picked_up_station (nb_clients_picked_up_station + [nb_clients_picked_up] of myself) set gross_potential (gross_potential + ([nb_clients_picked_up] of myself) * vehicle_atractivity_facteur) ] set occupation_rate_vehicle ((nb_clients_picked_up / capacity_occupation) * 100) ] ] ifelse occupation_rate_vehicle > 50 [ set state 0 set waiting 0 ask next_node [ set nb_clients_picked_up_station (nb_clients_picked_up_station + [nb_clients_picked_up] of myself) set gross_potential (gross_potential + ([nb_clients_picked_up] of myself) * vehicle_atractivity_facteur) ] set total_nb_clients_picked_up total_nb_clients_picked_up + nb_clients_picked_up set vpk ((total_nb_clients_picked_up * 20) / distance_travelled) set nb_stations_picked_up_clients (nb_stations_picked_up_clients + 1) set pick_up_rate (nb_stations_picked_up_clients / nb_stations_crossed ) * 100 ] [ set state 1 set waiting 1 ] ] [ ifelse waiting = 0 [set state 0] [set state 1] ] end to circulate.clandos ; Deplacement du vehicle optimis� en selon els diff�rents principes set heading towards next_node if length my_clients > 0 [ ask clients with [vehicle? = [who] of myself] [ set heading [heading] of myself ] ] ifelse distance next_node > moving_speed * speed_factor + 0.1 [ fd moving_speed * speed_factor if length my_clients > 0 [ ask clients with [vehicle? = [who] of myself] [ fd moving_speed * speed_factor ] ] ] [ move-to next_node ifelse next_node = final_destination_vehicle [ set state 2 ] [ if length my_clients > 0 [ ask clients with [vehicle? = [who] of myself] [ move-to [next_node] of myself ] ] set state 1 ] ] set distance_travelled distance_travelled + 1 end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; potential model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go.potential if ticks = (patterns * nb_ticks_patterns - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] move.clients count.clients.waiting go.vehicles.potential plotting draw.traffic update.draw.traffic tick end to go.vehicles.potential ; Sequence des procedures des vehicles ask vehicles with [model = 1] [ ifelse state = 0 [choose.station.potential] [ifelse state = 1 [pick.up.clients] [ifelse state = 2 [drop.clients] [circulate] ] ] ] end to choose.station.potential ; Choisir le prochain noeud sur lequel va passer le vehicle ifelse final_destination_vehicle = 0 [ set last_node current_node set current_node next_node let ne min-one-of [link-neighbors] of current_node [gross_potential] set next_link_neighbors [link-neighbors] of current_node set next_link_neighbors sort-by [[gross_potential] of ?1 < [gross_potential] of ?2] next_link_neighbors set next_node max-one-of [link-neighbors] of current_node [gross_potential] while [next_node = last_node and length next_link_neighbors > 1] [ set next_node one-of [link-neighbors] of current_node ] let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 ] ] [ let dest final_destination_vehicle set last_node current_node set current_node next_node set next_link_neighbors [link-neighbors] of current_node set next_link_neighbors sort-by [[distance dest] of ?1 < [distance dest] of ?2] next_link_neighbors set next_node min-one-of [link-neighbors] of current_node [distance dest] while [next_node = last_node and length next_link_neighbors > 1] [ set next_node one-of [link-neighbors] of current_node ] let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 set gross_potential gross_potential + 1 ] ] set nb_stations_crossed (nb_stations_crossed + 1) set state 3 end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; distance model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go.distance if ticks = (patterns * nb_ticks_patterns - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] move.clients count.clients.waiting go.vehicles.distance plotting draw.traffic update.draw.traffic tick end to go.vehicles.distance ; Sequence des procedures des vehicles ask vehicles with [model = 4] [ ifelse state = 0 [choose.station.distance] [ifelse state = 1 [pick.up.clients] [ifelse state = 2 [drop.clients] [circulate] ] ] ] end to choose.station.distance ; Choisir le prochain noeud sur lequel va passer le vehicle ifelse final_destination_vehicle = 0 [ let na current_node set current_node next_node let ne max-one-of [link-neighbors with [final_destination? = 0]] of current_node [distance myself] set next_node min-one-of [link-neighbors with [final_destination? = 0]] of current_node [ distance myself ] if next_node = na or next_node = ne [set next_node one-of [link-neighbors] of current_node] let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 ] ] [ let na current_node let dest final_destination_vehicle set current_node next_node set next_node min-one-of [link-neighbors] of current_node [distance dest] while [next_node = na] [ set next_node one-of [link-neighbors] of current_node ] let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 set gross_potential gross_potential + 1 ] ] set nb_stations_crossed (nb_stations_crossed + 1) set state 3 end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; random model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go.random if ticks = (patterns * nb_ticks_patterns - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] move.clients count.clients.waiting go.vehicles.random plotting draw.traffic update.draw.traffic tick end to go.vehicles.random ; Sequence des procedures des vehicles ask vehicles with [model = 3] [ ifelse state = 0 [choose.station.random] [ifelse state = 1 [pick.up.clients] [ifelse state = 2 [drop.clients] [circulate] ] ] ] end to choose.station.random ; Choisir le prochain noeud sur lequel va passer le vehicle ifelse final_destination_vehicle = 0 [ set current_node next_node set next_node one-of [link-neighbors] of current_node let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 ] ] [ let dest final_destination_vehicle set last_node current_node set current_node next_node set next_link_neighbors [link-neighbors] of current_node set next_link_neighbors sort-by [[distance dest] of ?1 < [distance dest] of ?2] next_link_neighbors set next_node min-one-of [link-neighbors] of current_node [distance dest] while [next_node = last_node and length next_link_neighbors > 1] [ set next_node one-of [link-neighbors] of current_node ] let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 set gross_potential gross_potential + 1 ] ] set nb_stations_crossed (nb_stations_crossed + 1) set state 3 end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; cooperation model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go.cooperate if ticks = ((patterns * nb_ticks_patterns) - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] move.clients count.clients.waiting go.vehicles.cooperation plotting draw.traffic update.draw.traffic tick end to go.vehicles.cooperation ; Sequence des procedures des vehicles ask vehicles with [model = 2] [ ifelse state = 0 [choose.station.cooperation] [ifelse state = 1 [pick.up.clients.cooperation] [ifelse state = 2 [drop.clients] [circulate] ] ] ] end to choose.station.cooperation ; Choisir le prochain noeud sur lequel va passer le vehicle ifelse final_destination_vehicle = 0 [ ifelse empty? list_stations_clients_waiting [ set current_node next_node set next_node one-of [link-neighbors] of current_node let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 ] ] [ set list_stations_clients_waiting sort-by [[distance myself] of ?1 < [distance myself] of ?2] list_stations_clients_waiting let station-a-desservir first list_stations_clients_waiting set last_node current_node set current_node next_node set next_link_neighbors [link-neighbors] of current_node set next_link_neighbors sort-by [[distance station-a-desservir] of ?1 < [distance station-a-desservir] of ?2] next_link_neighbors set next_node min-one-of [link-neighbors] of current_node [distance station-a-desservir] while [next_node = last_node and length next_link_neighbors > 1] [ set next_node one-of [link-neighbors] of current_node ] if next_node = station-a-desservir and final_destination_vehicle = 0 [ set list_stations_clients_waiting remove-item 0 list_stations_clients_waiting] let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 set gross_potential gross_potential + 1 ] ] ] [ let dest final_destination_vehicle set last_node current_node set current_node next_node set next_link_neighbors [link-neighbors] of current_node set next_link_neighbors sort-by [[distance dest] of ?1 < [distance dest] of ?2] next_link_neighbors set next_node min-one-of [link-neighbors] of current_node [distance dest] while [next_node = last_node and length next_link_neighbors > 1] [ set next_node one-of [link-neighbors] of current_node ] let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 set gross_potential gross_potential + 1 ] ] set nb_stations_crossed (nb_stations_crossed + 1) set state 3 end to cooperate ifelse [nb_clients_waiting] of next_node > 0 [ if not member? next_node list_stations_clients_waiting [ set list_stations_clients_waiting fput next_node list_stations_clients_waiting ask next_node [set color blue] ] ] [ set list_stations_clients_waiting remove next_node list_stations_clients_waiting ifelse [final_destination? = 0] of next_node [ ask next_node [set color green]] [ ask next_node [set color red]] set state 0 ] end to pick.up.clients ; if any? clients-here with [vehicle? = 0] [ let nb-clients-ici [nb_clients_waiting] of next_node if length my_clients = 0 [ set final_destination_vehicle [final_destination] of one-of clients-here with [vehicle? = 0] ] let dest-vehicle final_destination_vehicle let nb-clients-possible count clients-here with [vehicle? = 0 and final_destination = dest-vehicle] if nb-clients-possible > 0 [ let nb-clients-a-prendre min (list (capacity_occupation - nb_clients_picked_up) nb-clients-possible) if nb-clients-a-prendre = 1 [ set selected_clients one-of clients-here with [vehicle? = 0 and final_destination = dest-vehicle ] ] if nb-clients-a-prendre > 1 [ set selected_clients n-of nb-clients-a-prendre clients-here with [vehicle? = 0 and final_destination = dest-vehicle ] ] ask selected_clients [ set vehicle? [who] of myself set color red ] set color orange set my_clients fput selected_clients my_clients set nb_clients_picked_up count clients with [vehicle? = [who] of myself ] ask next_node [ set nb_clients_picked_up_station (nb_clients_picked_up_station + [nb_clients_picked_up] of myself) set gross_potential (gross_potential + ([nb_clients_picked_up] of myself) * vehicle_atractivity_facteur) ] set occupation_rate_vehicle ((nb_clients_picked_up / capacity_occupation) * 100) set total_nb_clients_picked_up total_nb_clients_picked_up + nb_clients_picked_up set vpk ((total_nb_clients_picked_up * 20) / distance_travelled) set nb_stations_picked_up_clients (nb_stations_picked_up_clients + 1) set pick_up_rate (nb_stations_picked_up_clients / nb_stations_crossed ) * 100 ] ] set state 0 end to pick.up.clients.cooperation ; Choisir les clients et les embarquer ifelse any? clients-here with [vehicle? = 0] [ let nb-clients-ici [nb_clients_waiting] of next_node if length my_clients = 0 [ set final_destination_vehicle [final_destination] of one-of clients-here with [vehicle? = 0] ] let dest-vehicle final_destination_vehicle let nb-clients-possibles count clients-here with [vehicle? = 0 and final_destination = dest-vehicle] if nb-clients-possibles > 0 [ let nb-clients-a-prendre min (list (capacity_occupation - nb_clients_picked_up) nb-clients-possibles) if nb-clients-a-prendre = 1 [ set selected_clients one-of clients-here with [vehicle? = 0 and final_destination = dest-vehicle ] ] if nb-clients-a-prendre > 1 [ set selected_clients n-of nb-clients-a-prendre clients-here with [vehicle? = 0 and final_destination = dest-vehicle ] ] ask selected_clients [ set vehicle? [who] of myself set color red ] set color orange set my_clients fput selected_clients my_clients set nb_clients_picked_up count clients with [vehicle? = [who] of myself ] ask next_node [ set nb_clients_picked_up_station (nb_clients_picked_up_station + [nb_clients_picked_up] of myself) set gross_potential (gross_potential + ([nb_clients_picked_up] of myself) * vehicle_atractivity_facteur) set nb_clients_waiting (nb-clients-ici - [nb_clients_picked_up] of myself) ] cooperate set nb_stations_picked_up_clients (nb_stations_picked_up_clients + 1) set total_nb_clients_picked_up total_nb_clients_picked_up + nb_clients_picked_up set occupation_rate_vehicle (nb_clients_picked_up * 100 / capacity_occupation) set vpk ((total_nb_clients_picked_up * 20) / distance_travelled) set pick_up_rate (nb_stations_picked_up_clients / nb_stations_crossed ) * 100 ] set state 0 ] [ set list_stations_clients_waiting remove next_node list_stations_clients_waiting ifelse [final_destination? = 0] of next_node [ ask next_node [set color green]] [ ask next_node [set color red]] set state 0 ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; bus model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to create.buses.first.bus.line.1 ; create des vehicles (grace a un slider) se situant aleatoirement sur des stations create-buses 1 [ set shape "bus" set size 4 set color white set bus_line?? 1 let first-station first path_bus_line_1 set current_node station first-station set direction 0 move-to current_node let id_station_current_node [who] of current_node set position_station_bus_line_2 100 set position_station_bus_line_1 position id_station_current_node path_bus_line_1 let id_station_next_node item (position_station_bus_line_1 + 1) path_bus_line_1 set next_node station id_station_next_node set nb_stations_crossed (nb_stations_crossed + 1) let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set state 1 set my_clients [] set selected_clients [] set occupation_rate_bus 0 ] set list-buses [who] of buses end to create.buses.first.bus.line.2 ; create des vehicles (grace a un slider) se situant aleatoirement sur des stations create-buses 1 [ set shape "bus" set size 4 set color white set bus_line?? 2 let first-station first path_bus_line_2 set current_node station first-station set direction 0 move-to current_node let id_station_current_node [who] of current_node set position_station_bus_line_1 100 set position_station_bus_line_2 position id_station_current_node path_bus_line_2 let id_station_next_node item (position_station_bus_line_2 + 1) path_bus_line_2 set next_node station id_station_next_node set nb_stations_crossed (nb_stations_crossed + 1) let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set state 1 set my_clients [] set selected_clients [] set occupation_rate_bus 0 ] set list-buses [who] of buses end to create.buses.last.bus.line.1 ; create des vehicles (grace a un slider) se situant aleatoirement sur des stations create-buses 1 [ set bus_line?? 1 let last-station last path_bus_line_1 set current_node station last-station set direction 1 move-to current_node let id_station_current_node [who] of current_node set position_station_bus_line_2 100 set position_station_bus_line_1 position id_station_current_node path_bus_line_1 let id_station_next_node item (position_station_bus_line_1 - 1) path_bus_line_1 set next_node station id_station_next_node set nb_stations_crossed (nb_stations_crossed + 1) let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set shape "bus" set size 4 set color white set state 1 set my_clients [] set selected_clients [] set occupation_rate_bus 0 ] set list-buses [who] of buses end to create.buses.last.bus.line.2 ; create des vehicles (grace a un slider) se situant aleatoirement sur des stations create-buses 1 [ set bus_line?? 2 let last-station last path_bus_line_2 set current_node station last-station set direction 1 move-to current_node let id_station_current_node [who] of current_node set position_station_bus_line_1 100 set position_station_bus_line_2 position id_station_current_node path_bus_line_2 let id_station_next_node item (position_station_bus_line_2 - 1) path_bus_line_2 set next_node station id_station_next_node set nb_stations_crossed (nb_stations_crossed + 1) let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)]] set shape "bus" set size 4 set color white set state 1 set my_clients [] set selected_clients [] set occupation_rate_bus 0 ] set list-buses [who] of buses end to go.bus if ticks = (patterns * nb_ticks_patterns - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] move.clients count.clients.waiting go.buses plotting tick end to go.buses ; ask buses [ ifelse state = 0 [ drop.clients.bus ifelse bus_line?? = 1 [choose.station.bus.1] [choose.station.bus.2] pick.up.clients.bus ] [circulate.bus] ] end to choose.station.bus.1 if position_station_bus_line_1 < 100 [ if [who] of next_node = last path_bus_line_1 [set direction 1] if [who] of next_node = first path_bus_line_1 [set direction 0] ifelse direction = 0 [ set current_node next_node let id_station_current_node [who] of next_node set position_station_bus_line_1 position id_station_current_node path_bus_line_1 let id_station_next_node item (position_station_bus_line_1 + 1) path_bus_line_1 set next_node station id_station_next_node ] [ set current_node next_node let id_station_current_node [who] of next_node set position_station_bus_line_1 position id_station_current_node path_bus_line_1 let id_station_next_node item (position_station_bus_line_1 - 1) path_bus_line_1 set next_node station id_station_next_node ] let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 ] set nb_stations_crossed (nb_stations_crossed + 1) ] end to choose.station.bus.2 if position_station_bus_line_2 < 100 [ if [who] of next_node = last path_bus_line_2 [set direction 1] if [who] of next_node = first path_bus_line_2 [set direction 0] ifelse direction = 0 [ set current_node next_node let id_station_current_node [who] of next_node set position_station_bus_line_2 position id_station_current_node path_bus_line_2 let id_station_next_node item (position_station_bus_line_2 + 1) path_bus_line_2 set next_node station id_station_next_node ] [ set current_node next_node let id_station_current_node [who] of next_node set position_station_bus_line_2 position id_station_current_node path_bus_line_2 let id_station_next_node item (position_station_bus_line_2 - 1) path_bus_line_2 set next_node station id_station_next_node ] let ns next_node ask current_node [ ask link-with ns [ set gross_traffic (gross_traffic + 1)] set frequentation frequentation + 1 ] set nb_stations_crossed (nb_stations_crossed + 1) ] end to pick.up.clients.bus ; if any? clients-here with [vehicle? = 0 and bus_line? = [bus_line??] of myself and direction-bus_line = [direction] of myself] [ let nb-clients-ici [nb_clients_waiting] of current_node let nb-clients-possibles count clients-here with [vehicle? = 0 and bus_line? = [bus_line??] of myself and direction-bus_line = [direction] of myself] if nb-clients-possibles > 0 [ let nb-clients-a-prendre min (list (capacity_occupation_buses - nb_clients_picked_up) nb-clients-possibles) if nb-clients-a-prendre > 0 [ if nb-clients-a-prendre = 1 [ set selected_clients one-of clients-here with [vehicle? = 0 and bus_line? = [bus_line??] of myself and direction-bus_line = [direction] of myself]] if nb-clients-a-prendre > 1 [ set selected_clients n-of nb-clients-a-prendre clients-here with [vehicle? = 0 and bus_line? = [bus_line??] of myself and direction-bus_line = [direction] of myself]] ask selected_clients [ set vehicle? [who] of myself set color red ] set color orange set my_clients fput selected_clients my_clients set nb_clients_picked_up count clients with [vehicle? = [who] of myself ] ask current_node [ set nb_clients_picked_up_station (nb_clients_picked_up_station + [nb_clients_picked_up] of myself) set gross_potential (gross_potential + ([nb_clients_picked_up] of myself) * vehicle_atractivity_facteur) ] set occupation_rate_bus (nb_clients_picked_up * 100 / capacity_occupation_buses) set total_nb_clients_picked_up total_nb_clients_picked_up + nb_clients_picked_up set vpk ((total_nb_clients_picked_up * 20) / (distance_travelled)) set nb_stations_picked_up_clients (nb_stations_picked_up_clients + 1) set pick_up_rate (nb_stations_picked_up_clients / nb_stations_crossed ) * 100 ] ] ] set state 1 end to drop.clients ; let n nb_clients_picked_up ask final_destination_vehicle [ set nb_clients_droped nb_clients_droped + n set gross_potential (gross_potential + n) set total_nb_clients_final_destination total_nb_clients_final_destination + n ] set nb_clients_picked_up 0 set my_clients [] set selected_clients [] ask clients with [vehicle? = [who] of myself] [die] set final_destination_vehicle 0 set route [] set color yellow set state 1 end to drop.clients.bus ; set clients_to_drop count clients with [vehicle? = [who] of myself and final_destination = [next_node] of myself] set nb_clients_picked_up nb_clients_picked_up - clients_to_drop set selected_clients [] set my_clients [] if occupation_rate_bus < 1 [set color white] set occupation_rate_bus (nb_clients_picked_up * 100 / capacity_occupation_buses) let n clients_to_drop ask next_node [ set nb_clients_droped nb_clients_droped + n set gross_potential (gross_potential + n) set total_nb_clients_final_destination total_nb_clients_final_destination + n ] ask clients with [vehicle? = [who] of myself and final_destination = [next_node] of myself] [die] end to circulate.bus ; set heading towards next_node if nb_clients_picked_up > 0 [ ask clients with [vehicle? = [who] of myself] [ move-to myself set heading [heading] of myself ] ] ifelse distance next_node > 1 [ fd moving_speed * speed_factor_bus if length my_clients > 0 [ ask clients with [vehicle? = [who] of myself] [ fd moving_speed * speed_factor_bus ] ] ] [ move-to next_node set state 0 ] set distance_travelled distance_travelled + 1 end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; hybrid model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go.hybrid if ticks = (patterns * nb_ticks_patterns - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] ifelse (nb_clients_alive < 800) [ set hybrid_state 1 ask stations [ set targeted 0 set serving_taxi [] ] ask clients [ set list_vehicles_serving_destination []] set list_stations_clients_waiting [] ask stations with [final_destination? = 0] [ set color green ] ask stations with [final_destination? = 1] [ set color red ] ask vehicles [set model 6] move.clients count.clients.waiting go.vehicles.clandos plotting draw.traffic update.draw.traffic tick ] [ ifelse (nb_clients_alive > 1400 or mean_waiting_time_clients > 6000) [ set hybrid_state 3 set list_stations_clients_waiting [] ask stations with [final_destination? = 0] [ set color green ] ask stations with [final_destination? = 1] [ set color red ] choose.clients.station.modulobus move.clients count.clients.waiting ask vehicles [set model 5] go.vehicles.modulobus plotting draw.traffic update.draw.traffic tick ] [ set hybrid_state 2 ask stations [ set targeted 0 set serving_taxi [] ] ask clients [ set list_vehicles_serving_destination []] ask vehicles [set model 2] move.clients count.clients.waiting go.vehicles.cooperation plotting draw.traffic update.draw.traffic tick ] ] end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; mixte informal model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go.mixte.informal if ticks = ((patterns * nb_ticks_patterns) - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] move.clients count.clients.waiting go.vehicles.cooperation go.vehicles.clandos plotting draw.traffic update.draw.traffic tick end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; mixte formal model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go.mixte.formal if ticks = ((patterns * nb_ticks_patterns) - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] choose.clients.station.modulobus move.clients count.clients.waiting go.buses go.vehicles.modulobus plotting draw.traffic update.draw.traffic tick end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; mixte all model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go.mixte.all if ticks = (patterns * nb_ticks_patterns - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] go.vehicles.clandos go.vehicles.cooperation choose.clients.station.modulobus move.clients count.clients.waiting go.vehicles.modulobus plotting draw.traffic update.draw.traffic tick end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; mixte flexible model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go.mixte.flexible if ticks = (patterns * nb_ticks_patterns - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] go.vehicles.cooperation choose.clients.station.modulobus move.clients count.clients.waiting go.vehicles.modulobus plotting draw.traffic update.draw.traffic tick end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; mixte rigid model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go.mixte.rigid if ticks = ((patterns * nb_ticks_patterns) - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] move.clients count.clients.waiting go.buses go.vehicles.clandos plotting draw.traffic update.draw.traffic tick end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; mixte frsn model ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to go.mixte.frsn if ticks = (patterns * nb_ticks_patterns - 1) [ ifelse zone? = true [ create.clients.zone update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] [ create.clients create.clients update.stations.potential choose.clients.final.destination set patterns (patterns + 1) ] ] go.vehicles.clandos choose.clients.station.modulobus move.clients count.clients.waiting go.vehicles.modulobus plotting draw.traffic update.draw.traffic tick end ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ; Plots ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to draw.traffic ; Trace des trajets en fonction du traffic ask links with [gross_traffic > 1] [ set thickness 0.01 + net_traffic set color 135 ] end to plotting ; Tracer le graphique du nombre de clients deposes sur chaque marche if ticks = (plot_patterns * nb_ticks_plot_pattern - 1) [ ;;;; PICK UP RATE set-current-plot "pick up rate" ifelse model_choice = "bus" [ set mean_pick_up_rate_buses mean [pick_up_rate] of buses set-current-plot-pen "buses" plot mean_pick_up_rate_buses ] [ ifelse (model_choice = "mixte formal" or model_choice = "mixte rigid") [ set mean_pick_up_rate_buses mean [pick_up_rate] of buses set-current-plot-pen "buses" plot mean_pick_up_rate_buses set-current-plot-pen "mean all" plot mean [pick_up_rate] of vehicles ] [ ifelse model_choice = "mixte informal" [ set-current-plot-pen "cooperation" plot mean [pick_up_rate] of vehicles with [model = 2] set-current-plot-pen "clandos" plot mean [pick_up_rate] of vehicles with [model = 6] set-current-plot-pen "mean all" plot mean [pick_up_rate] of vehicles ] [ ifelse model_choice = "mixte flexible" [ set-current-plot-pen "cooperation" plot mean [pick_up_rate] of vehicles with [model = 2] set-current-plot-pen "modulobus" plot mean [pick_up_rate] of vehicles with [model = 5] set-current-plot-pen "mean all" plot mean [pick_up_rate] of vehicles ] [ ifelse model_choice = "mixte frsn" [ set-current-plot-pen "clandos" plot mean [pick_up_rate] of vehicles with [model = 6] set-current-plot-pen "modulobus" plot mean [pick_up_rate] of vehicles with [model = 5] set-current-plot-pen "mean all" plot mean [pick_up_rate] of vehicles ] [ set-current-plot-pen "mean all" plot mean [pick_up_rate] of vehicles ] ] ] ] ] ;;;; vpk set-current-plot "mean vpk" ifelse model_choice = "bus" [ set mean_pick_up_rate_buses mean [vpk] of buses set-current-plot-pen "buses" plot mean_pick_up_rate_buses ] [ ifelse (model_choice = "mixte formal" or model_choice = "mixte rigid") [ set mean_vpk_buses mean [vpk] of buses set-current-plot-pen "buses" plot mean_vpk_buses set-current-plot-pen "mean all" plot mean [pick_up_rate] of vehicles ] [ ifelse model_choice = "mixte flexible" [ set mean_vpk mean [vpk] of vehicles set-current-plot-pen "mean all" plot mean_vpk set-current-plot-pen "cooperation" plot mean [vpk] of vehicles with [model = 2] set-current-plot-pen "modulobus" plot mean [vpk] of vehicles with [model = 5] ] [ ifelse model_choice = "mixte informal" [ set mean_vpk mean [vpk] of vehicles set-current-plot-pen "mean all" plot mean_vpk set-current-plot-pen "cooperation" plot mean [vpk] of vehicles with [model = 2] set-current-plot-pen "clandos" plot mean [vpk] of vehicles with [model = 6] ] [ ifelse model_choice = "mixte frsn" [ set-current-plot-pen "mean all" plot mean [vpk] of vehicles set-current-plot-pen "modulobus" plot mean [vpk] of vehicles with [model = 5] set-current-plot-pen "clandos" plot mean [vpk] of vehicles with [model = 6] ] [ set mean_vpk mean [vpk] of vehicles set-current-plot-pen "mean all" plot mean_vpk ] ] ] ] ] set-current-plot "waiting clients station rate" set client_station_rate ((count stations with [nb_clients_waiting > 0]) / nb_stations) * 100 set-current-plot-pen "waiting clients station rate" plot client_station_rate set-current-plot "servincing rate" set servincing_rate (total_nb_clients_final_destination / total_nb_clients_created) * 100 set-current-plot-pen "servincing rate" plot servincing_rate set-current-plot "mean of clients wainting" set mean_clients_waiting mean [nb_clients_waiting] of stations set-current-plot-pen "clients waiting" plot mean_clients_waiting set-current-plot "mean waiting time clients" set mean_waiting_time_clients mean [waiting_time] of clients set-current-plot-pen "waiting time" plot mean_waiting_time_clients set-current-plot "nb_clients_alive" plot nb_clients_alive if model_choice = "hybrid" [ set-current-plot "hybrid_state" plot hybrid_state ] ifelse model_choice = "bus" [ set-current-plot "occupation rate 1" plot [occupation_rate_bus] of one-of buses with [bus_line?? = 1] set-current-plot "occupation rate 2" plot [occupation_rate_bus] of one-of buses with [bus_line?? = 2] ] [ ifelse (model_choice = "mixte formal" or model_choice = "mixte rigid") [ set-current-plot "occupation rate 1" plot [occupation_rate_bus] of one-of buses set-current-plot "occupation rate 2" plot [occupation_rate_vehicle] of one-of vehicles ] [ ifelse model_choice = "mixte informal" [ set-current-plot "occupation rate 1" plot [occupation_rate_vehicle] of one-of vehicles with [model = 6] set-current-plot "occupation rate 2" plot [occupation_rate_vehicle] of one-of vehicles with [model = 2] ] [ ifelse model_choice = "mixte frsn" [ set-current-plot "occupation rate 1" plot [occupation_rate_vehicle] of one-of vehicles with [model = 6] set-current-plot "occupation rate 2" plot [occupation_rate_vehicle] of one-of vehicles with [model = 5] ] [ ifelse model_choice = "mixte flexible" [ set-current-plot "occupation rate 1" plot [occupation_rate_vehicle] of one-of vehicles with [model = 5] set-current-plot "occupation rate 2" plot [occupation_rate_vehicle] of one-of vehicles with [model = 2] ] [ set-current-plot "occupation rate 1" if length list_vehicles > 1 [ plot [occupation_rate_vehicle] of (vehicle item 1 list_vehicles) ] set-current-plot "occupation rate 2" plot [occupation_rate_vehicle] of (vehicle item 0 list_vehicles) ] ] ] ] ] set time timer set plot_patterns (plot_patterns + 1) set nb_clients_alive count clients ] end
There is only one version of this model, created over 9 years ago by Adrien Lammoglia.
Attached files
File | Type | Description | Last updated | |
---|---|---|---|---|

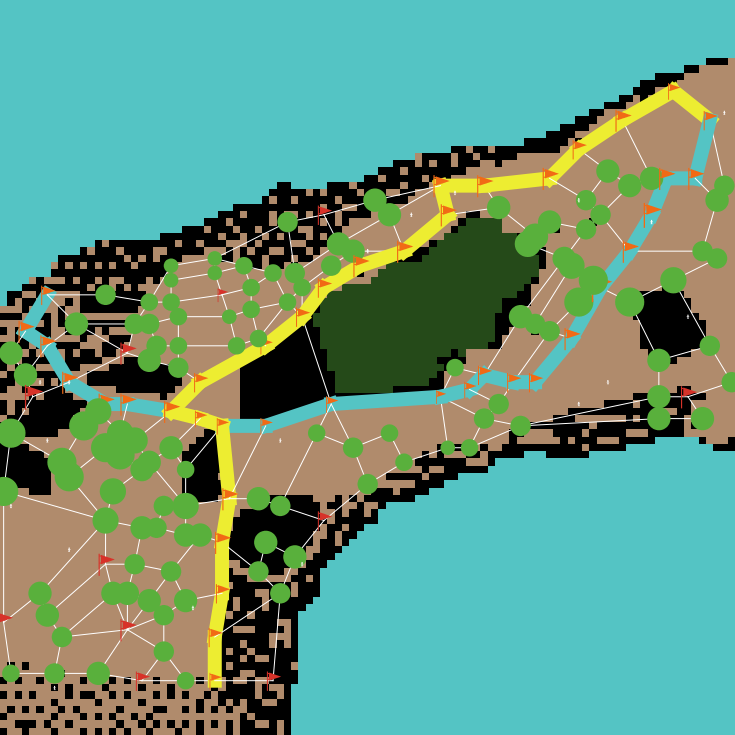

bus line dakar.png | jpeg | Dakar network | over 9 years ago, by Adrien Lammoglia | Download |
dakar reseau v8 world.csv | word | DNetwork of Dakar | over 9 years ago, by Adrien Lammoglia | Download |
network TCTS v9.nlogo | extension | Network creator for TCTS | over 9 years ago, by Adrien Lammoglia | Download |
