Route Planner
Model was written in NetLogo 5.0.5
•
Viewed 269 times
•
Downloaded 20 times
•
Run 0 times
Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)
Comments and Questions
Please start the discussion about this model!
(You'll first need to log in.)
Click to Run Model

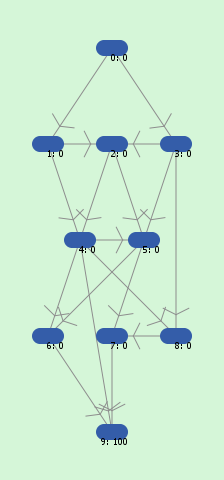

turtles-own[ high medium low prob-high prob-medium prob-low ;; expected time to reach node - based on expectation of previous nodes (linked) ;; this will be used for calculation of immediate rewards expectation ;; variable to store value obtained from value iteration value ] links-own[ ; prob-high ;; for node linking node A to node B, this represents the probability that the driver will take 1 time step to reach node B when the traffic level at node A is high ; prob-medium ;; for node linking node A to node B, this represents the probability that the driver will take 1 time step to reach node B when the traffic level at node A is medium ; prob-low ;; for node linking node A to node B, this represents the probability that the driver will take 1 time step to reach node B when the traffic level at node A is low ] to go ask turtle 9[value-iteration] ask turtles[ set label (word who ": " value) set color blue ] tick end to value-iteration ifelse(who != 9)[ set color red ;; count of possible ways to travel (out link neighbors) let count-n (count out-link-neighbors) ;; who of out link neighbors let who-n (sort ([who] of out-link-neighbors)) ;; prob of main direction (for value iteration calculation) let main-prob (1 - ((count-n - 1) * 0.1)) ;; list which stores all possible values of all actions taken in state s - used to computing max ;; immediate reward (R) is taken as negative of expected time to reach state/node s' (to reflect the reward function of rewarding user for reaching node early) let val-list [] foreach who-n[ let main-dir-node ? let val (main-prob * ([value] of turtle main-dir-node)) - ([expectation] of turtle main-dir-node) ;; iterate through other nodes foreach who-n[ if(? != main-dir-node)[ set val (val + (0.1 * ([value] of turtle ?))) ] ] set val-list lput val val-list ] ;; set value as max in val-list - value iteration set value (precision (max val-list) 2) ] [ set value 100 ] ;; recursively call value iteration on in link neighbors ask in-link-neighbors[value-iteration] end to update-expectation ; 0 ifelse(who = 0)[ set expectation 0 set color red ] ;; for all other nodes [ ;; boolean to check if all neighbors has expectation updated - will not proceed to update node if boolean is false (some neighbors not updated) let n-expect? true foreach([who] of in-link-neighbors)[ if(([color] of turtle ?) != red)[ set n-expect? false ] ] ;; proceed to update expectation if all neighbors are updated if(n-expect? = true)[ ;; sum of expectation of all in-link neighbors let sum-expectation 0 foreach([who] of in-link-neighbors)[ let n-who ([who] of (turtle ?)) let n-expectation ([expectation] of (turtle ?)) set sum-expectation (sum-expectation + n-expectation + (mean-travel-time n-who (traffic-conditions n-who n-expectation))) ] ;; average over all neighbors set sum-expectation (sum-expectation / (length ([who] of in-link-neighbors))) set expectation sum-expectation set color red ] ] ;; recursively call update-expectation procedure to all out link neighbors ask out-link-neighbors[update-expectation] end to setup ca reset-ticks ask patches[set pcolor 69] setup-nodes setup-links ;; update expected time to reach all nodes ;; this will be used to compute the immediate reward ask turtle 0[update-expectation] ask turtle 9[set value 100] ask turtles[ set label (word who ": " value) set color blue ] end ;; setup nodes in the network to setup-nodes crt 1[setxy 3 13 set shape "rounded-rectangle" set color blue set label who set label-color black] crt 1[setxy 1 10 set shape "rounded-rectangle" set color blue set label who set label-color black] crt 1[setxy 3 10 set shape "rounded-rectangle" set color blue set label who set label-color black] crt 1[setxy 5 10 set shape "rounded-rectangle" set color blue set label who set label-color black] crt 1[setxy 2 7 set shape "rounded-rectangle" set color blue set label who set label-color black] crt 1[setxy 4 7 set shape "rounded-rectangle" set color blue set label who set label-color black] crt 1[setxy 1 4 set shape "rounded-rectangle" set color blue set label who set label-color black] crt 1[setxy 3 4 set shape "rounded-rectangle" set color blue set label who set label-color black] crt 1[setxy 5 4 set shape "rounded-rectangle" set color blue set label who set label-color black] crt 1[setxy 3 1 set shape "rounded-rectangle" set color blue set label who set label-color black] end ;; setup links between nodes to setup-links crt-links 0 1 crt-links 0 3 crt-links 1 2 crt-links 1 4 crt-links 2 4 crt-links 2 5 crt-links 3 2 crt-links 3 5 crt-links 3 8 crt-links 4 5 crt-links 4 6 crt-links 4 8 crt-links 4 9 crt-links 5 6 crt-links 5 7 crt-links 6 9 crt-links 7 9 crt-links 8 7 end ;; procedure to create links from turtle to turtle - used in setup-links procedure to crt-links[from-turtle to-turtle] ask turtle from-turtle[create-link-to turtle to-turtle] end ;; procedure to report mean travel time along an edge with source node (as input) given certain traffic conditions (input) to-report mean-travel-time[node traffic] let prob 0 if(node = 0)[ if(traffic = "high")[ set prob n0-high-prob ] if(traffic = "medium")[ set prob n0-medium-prob ] if(traffic = "low")[ set prob n0-low-prob ] ] if(node = 1)[ if(traffic = "high")[ set prob n1-high-prob ] if(traffic = "medium")[ set prob n1-medium-prob ] if(traffic = "low")[ set prob n1-low-prob ] ] if(node = 2)[ if(traffic = "high")[ set prob n2-high-prob ] if(traffic = "medium")[ set prob n2-medium-prob ] if(traffic = "low")[ set prob n2-low-prob ] ] if(node = 3)[ if(traffic = "high")[ set prob n3-high-prob ] if(traffic = "medium")[ set prob n3-medium-prob ] if(traffic = "low")[ set prob n3-low-prob ] ] if(node = 4)[ if(traffic = "high")[ set prob n4-high-prob ] if(traffic = "medium")[ set prob n4-medium-prob ] if(traffic = "low")[ set prob n4-low-prob ] ] if(node = 5)[ if(traffic = "high")[ set prob n5-high-prob ] if(traffic = "medium")[ set prob n5-medium-prob ] if(traffic = "low")[ set prob n5-low-prob ] ] if(node = 6)[ if(traffic = "high")[ set prob n6-high-prob ] if(traffic = "medium")[ set prob n6-medium-prob ] if(traffic = "low")[ set prob n6-low-prob ] ] if(node = 7)[ if(traffic = "high")[ set prob n7-high-prob ] if(traffic = "medium")[ set prob n7-medium-prob ] if(traffic = "low")[ set prob n7-low-prob ] ] if(node = 8)[ if(traffic = "high")[ set prob n8-high-prob ] if(traffic = "medium")[ set prob n8-medium-prob ] if(traffic = "low")[ set prob n8-low-prob ] ] if(node = 9)[ if(traffic = "high")[ set prob n9-high-prob ] if(traffic = "medium")[ set prob n9-medium-prob ] if(traffic = "low")[ set prob n9-low-prob ] ] report ((prob * 1.0) + ((1.0 - prob) * 2.0)) end ;; procedure to retrieve traffic conditions at a node at time step to-report traffic-conditions[node timestep] ;; string to retrieve traffic let report-list "" if(node = 0)[ set report-list n0-traffic-level ] if(node = 1)[ set report-list n1-traffic-level ] if(node = 2)[ set report-list n2-traffic-level ] if(node = 3)[ set report-list n3-traffic-level ] if(node = 4)[ set report-list n4-traffic-level ] if(node = 5)[ set report-list n5-traffic-level ] if(node = 6)[ set report-list n6-traffic-level ] if(node = 7)[ set report-list n7-traffic-level ] if(node = 8)[ set report-list n8-traffic-level ] if(node = 9)[ set report-list n9-traffic-level ] ;; convert to list format set report-list (read-from-string report-list) ;; retrieve item in report-list based on timestep ifelse(timestep <= 10)[ ;; 0 to 10 report item 0 report-list ] [ ifelse(timestep <= 15)[ ;; 11 - 15 report item 1 report-list ] [ ifelse(timestep <= 30)[ ;; 16 - 30 report item 2 report-list ] [ ifelse(timestep <= 100)[ ;; 31 - 100 report item 3 report-list ] [ ;; nothing report 0 ] ] ] ] end
