NetLogo host versus pathogens model

breed [ circles circle ]                                   ;; Host cells
breed [ flags flag ]                                       ;; Key host cells
breed [ triangles triangle ]                               ;; Pathogens A
breed [ stars star ]                                       ;; Pathogens B
turtles-own [energy max-energy start-energy birth-energy]  ;; All turtles have energy and a maximum amount of energy they can take on.
patches-own [countdown patch-energy]                       ;; Countdown makes it run. Patch-energy is new to the program.
circles-own [circle-energy-to-survive]
flags-own [flag-energy-to-survive]
triangles-own [triangle-energy-to-survive]
stars-own [star-energy-to-survive]
globals [cumulative-energy-deficit pathB report-pathogen-eliminated-ticks report-pathogens-overrun-host]

to setup
  clear-all
  set pathB 1  ;; Turns the pathB switch in the code to "on" in the setup. The user must still physically turn on the switch at the interface screen.
  set report-pathogen-eliminated-ticks 1   ;; Needed to have the Results display be able to display "Pathogens eliminated in ____ ticks." only once instead of repeatedly.
  set report-pathogens-overrun-host 1      ;; Needed to have the Results display be able to display "Pathogens overrun host." only once instead of repeatedly.
                                           ;; The latter two lines are used in the code for the Go buttons.
  set systemic-host-stressor 0             ;; Always starts it at 0 so you don't have to remember to manually reset it. ADDED MAY 23
  set upper-systemic-stressor-threshold 30 ;; ditto, May 23
  set lower-systemic-stressor-threshold 5  ;; ditto, May23

  ask patches
  [ set pcolor green set patch-energy 100]


 set-default-shape circles "circle"   ;; Host cells
  ask patches
   [ sprout-circles 1 [set color blue set start-energy 300 set birth-energy 90 set max-energy 300 set circle-energy-to-survive 40] ]  ;; START-ENERGY HAD BEEN 120 FOR ALL CELLS

 set-default-shape flags "flag"       ;; key host cells such as heart cells
  ask patches with [(pycor < 3) and (pycor > -3 ) and (pxcor < 3) and (pxcor > 0)]
   [sprout-flags 1 [ set color orange set start-energy 300 set max-energy 300 set flag-energy-to-survive 30] ]  ;; Can store lots of energy; not prone to apoptosis since irreplaceable.
  ask circles with [ (pycor < 3) and (pycor > -3 ) and (pxcor < 3) and (pxcor > 0)] [ die ] ;; This clears out the circles underneath the flags.

;; for the flag area (the "heart"), I've divided it into 3 domains, so each of these 3 sets of code are needed to create it so that host cells can migrate in if needed.
 set-default-shape flags "flag"
 ;; Needed to make sure that host cells could always have a chance of replacing dead key host cells, so needed to "hollow out" the core of the key host organ.
 ;; There were rare instances when, with a solid key host organ, a central key host cell died but it couldn't be rplaced by a host cell.
 ;; In those instances, the host could never regenerate the full 1089 cells and recovery would never occur.
  ask patches with [(pycor < 3) and (pycor > -3 ) and (pxcor < 0) and (pxcor > -3)]
   [sprout-flags 1 [ set color orange set start-energy 300 set max-energy 300 set flag-energy-to-survive 30] ]  ;; Can store lots of energy; not prone to apoptosis since irreplaceable.
  ask circles with [ (pycor < 3) and (pycor > -3 ) and (pxcor < 0) and (pxcor > -3)] [ die ] ;; This clears out the circles underneath the flags.

 set-default-shape flags "flag"       ;; This lets host cells always be adjacent to a key host cell so recovery is possible.
  ask patches with [(pycor < 3) and (pycor > 0) and (pxcor = 0)]
   [sprout-flags 1 [ set color orange set start-energy 300 set max-energy 300 set flag-energy-to-survive 30] ]  ;; Can store lots of energy; not prone to apoptosis since irreplaceable.
  ask circles with [ (pycor < 3) and (pycor > 0) and (pxcor = 0)] [ die ] ;; This clears out the circles underneath the flags.

 set-default-shape triangles "triangle"  ;; Pathogens A (these are like large extracellular pathogens)
  ask circles with [ (pycor <= start-upper-pathogen-pycor) and (pycor > start-lower-pathogen-pycor) and (pxcor <= start-upper-pathogen-pxcor) and (pxcor > start-lower-pathogen-pxcor) ] [ die ]
   ;; This clears out the circles underneath where the triangles will be.
  ask patches with [ (pycor <= start-upper-pathogen-pycor) and (pycor > start-lower-pathogen-pycor) and (pxcor <= start-upper-pathogen-pxcor) and (pxcor > start-lower-pathogen-pxcor)]
   [sprout-triangles 1 [ set color red set start-energy 300 set birth-energy 60 set max-energy 300 set triangle-energy-to-survive 40] ]
   ;; Low energy storage compared to host cells is a vulnerability; same energy to survive as host cells.
   ;; The pathogens' energy to survive can be modified by the slider (see below).

  ask turtles
  [ set energy start-energy ]  ;; Even though start-energy is mentioned above for each breed, this code is needed to actually impart the energy.

  reset-ticks
end

to go
  set cumulative-energy-deficit 326700 - ((sum [energy] of circles) + (sum [energy] of flags)) + cumulative-energy-deficit
      ;; There are 1089 potential host cells and key host cell x 300 max energy units per cell.
      ;; Note that the host starts with a deficit of 3000 because the of the initial infection (e.g. a bite wound).
      ;; The host must recover to its full 1089 cells.
      ;; Also changed the formula from 323700 to 326700 in the instantaneous-energy-deficit monitor on the interface.
  stop-adding-energy
  keep-turtles-still
  invoke-pathogen-harm
  invoke-pathogen-take-energy
  invoke-pathogen-low-energy
  invoke-pathogen-wander

    if auto-infect-with-pathogenB? and pathB = 1  ;; This is a switch in the code that permits turning off the secondary infection (pathogen B) after one tick.
    [if count circles <= 1000 ;;and mean [energy] of circles <= 90  ;; I added the mean energy statement, but this could have been instantaneoud-energy-deficit.
      [invoke-auto-infection-pathogenB] ] ;; This code for pathogenB, the secondary infection, is farther down.

  invoke-pathogenB-harm
  invoke-pathogenB-take-energy
  invoke-pathogenB-low-energy
  invoke-pathogenB-wander

  invoke-local-directed
  invoke-local-stressor
  invoke-clot-stressor
  invoke-amputation
  invoke-amputationB
  invoke-hostcell-wander

  invoke-auto-systemic-stressor-hostcell#
  invoke-auto-systemic-stressor-pathogen#
  invoke-auto-systemic-stressor-combined

  replicate
  check-death
  tick
end

to stop-adding-energy            ;; Limits the amount of energy each cell can store, but there can be temporary overshooting of the amount.
ask turtles
  [ if energy >= max-energy
    [set energy max-energy ]]
end

to keep-turtles-still      ;; This sets the action. The switches on the interface screen allow movement to adjacent vacant spacesfor either pathogens or host cells.
    ask turtles [
        right random 360
        forward 0                ;; This gets the turtles, especially the flags, to move in place; therefore no visible movement but it lets time occur (ticks go).

 ;; All turtles derive energy from the patches as patch-energy at each tick and lose a little less energy (metabolic energy) with each tick.
 set energy (random-normal 1 0.02) * (energy + ((patch-energy * 0.14) * ((100 - systemic-host-stressor) / 100))) ;; The systemic host stressor is here.
   ; set energy (random-normal 1 0.02) * (energy + (14 * (100 - systemic-host-stressor) / 100)) ;; This was old code where the turtles were simply given energy at each tick.
 set energy (random-normal 1 0.02) * (energy - 10)   ;; Every tick costs the turtles about 10 units of energy.
;; This is the energy gain and loss per tick; the random-normal (mean of 1 and SD of 0.02) gives a bit of randomness to the whole program.
;; I don't want too much randomness since all turtles are bathed in the same fluid of patch-energy and are superficially identical
;; There's additional randomness in the pathogen damage routine and in the host defense routines.
;; The systemic host stressor represents the acute-phase response: fever, iron & zinc sequestration, anorexia/nutrient restriction, anemia/hypoxia, systemic acidosis, etc.

 ifelse show-energy?             ;; This is for the switch on the interface screen. Best to have it on.
     [ set label round energy]  ;; "round" rounds the energy value on the screen to a readable integer.
     [ set label ""]             ;; If set to "No", no energy values show on the screen

    ]
end

;; PATHOGEN PHENOTYPE SLIDERS & SWITCH

to invoke-pathogen-harm  ;; This acts like a toxin to harm adjacent host cells.
  ask triangles [ ask circles in-radius 1 [ set energy (random-normal 1 0.02) * (energy - pathogen-harm-hostcells) ]]
  ask triangles [ ask flags in-radius 1 [ set energy (random-normal 1 0.02) * (energy - pathogen-harm-hostcells) ]]
end

to invoke-pathogen-take-energy  ;; This gives the pathogen energy when it's adjacent to a host cell.
  ask triangles [ if any? circles in-radius 1 [ set energy (random-normal 1 0.02) * (energy + pathogen-take-up-energy) ]]
  ask triangles [ if any? flags in-radius 1 [ set energy (random-normal 1 0.02) * (energy + pathogen-take-up-energy) ]]
end

to invoke-pathogen-low-energy  ;; Lowering the "pathogen-survive-low-energy" number lets them survive better. They still need 120 energy units to reproduce (2 * birth-energy).
  ask triangles [ set triangle-energy-to-survive pathogen-survive-low-energy ]
  ask triangles [ set max-energy pathogen-survive-low-energy + 260 ]  ;; As a minor handicap for enhanced survival, I've also reduced the max-energy they can store.
end

to invoke-pathogen-wander  ;; In this model, letting the pathogens move to free spaces helps them only if they are more lethal than host cells; otherwise they're more vulnerable.
  ifelse pathogen-wander?
  [ ask triangles
  [ let empty-patches neighbors with [ not any? turtles-here ]
    if pcolor = green
   [ if any? empty-patches
    [ let target one-of empty-patches
      face target
      move-to target ]]
   if pcolor = 43 and random (clot-restrict-motion + 1) = 0   ;; When pathogen-wander? is on this lets the clot restrict the motion.
   ;;   "random 1" makes one random number which is always 0; random 2 makes either a 0 or 1;  ... ; random 5 makes 0,1,2,3 or 4.
   ;;   Therefore the slider set at 0 makes random 1, which always produces 0, so there is no motion restriction.
   ;;   When the slider is set to 1, the turtle moves approx. 50% of the time; when slider is set to 4, the turtle moves 20% of the time (1 tick in 5).
   [ if any? empty-patches
    [ let target one-of empty-patches
      face target
      move-to target ]] ]
  ]
  [
  ]
end

;; PATHOGEN B PHENOTYPE SLIDERS & SWITCH

to invoke-auto-infection-pathogenB    ;; The parameters needed to start this secondary infection are coded earlier in the program.
 ask circles with [ (pycor <= start-upper-pathogenB-pycor) and (pycor > start-lower-pathogenB-pycor) and (pxcor <= start-upper-pathogenB-pxcor) and (pxcor > start-lower-pathogenB-pxcor)]
     [die]  ;; This clears out the host cells at the site before pathogen B comes along (otherwise the pathogens and the host cells are on the same patch and most pathogens die).
 ask patches with [ (pycor <= start-upper-pathogenB-pycor) and (pycor > start-lower-pathogenB-pycor) and (pxcor <= start-upper-pathogenB-pxcor) and (pxcor > start-lower-pathogenB-pxcor)]
  [sprout-stars 1 [ set color red set start-energy 300 set birth-energy 60 set max-energy 300 set star-energy-to-survive 40] ]
 ask stars
  [ set energy start-energy ]
 set pathB 0   ;; This turns off the infection with pathogen B after a single round.
end

to invoke-pathogenB-harm  ;; This acts like a toxin to harm adjacent host cells
  ask stars [ ask circles in-radius 1 [ set energy (random-normal 1 0.02) * (energy - pathogenB-harm-hostcells) ]]
  ask stars [ ask flags in-radius 1 [ set energy (random-normal 1 0.02) * (energy - pathogenB-harm-hostcells) ]]
end

to invoke-pathogenB-take-energy  ;; This gives pathogen B energy when adjacent to host cell
  ask stars [ if any? circles in-radius 1 [ set energy (random-normal 1 0.02) * (energy + pathogenB-take-up-energy) ]]
  ask stars [ if any? flags in-radius 1 [ set energy (random-normal 1 0.02) * (energy + pathogenB-take-up-energy) ]]
end

to invoke-pathogenB-low-energy  ;; Lowering the "pathogenB-survive-low-energy" number lets them survive better
  ask stars [ set star-energy-to-survive pathogenB-survive-low-energy ]
  ask stars [set max-energy pathogenB-survive-low-energy + 160 ]  ;; I've linked the max-energy they can use to the survival energy threshold as a minor handicap
end

to invoke-pathogenB-wander  ;; In this model, letting the pathogens move to free spaces helps them only if they are more lethal than host cells; otherwise they're more vulnerable.
  ifelse pathogenB-wander?
  [ ask stars
  [ let empty-patches neighbors with [ not any? turtles-here ]
    if pcolor = green
   [ if any? empty-patches
    [ let target one-of empty-patches
      face target
      move-to target ]]
  if pcolor = 43 and random (clot-restrict-motion + 1) = 0   ;; When pathogenB-wander? is on this lets the clot restrict the motion.
   ;;   "random 1" makes one random number which is always 0; random 2 makes either a 0 or 1;  ... ; random 5 makes 0,1,2,3 or 4.
   ;;   Therefore the slider set at 0 makes random 1, which always produces 0, so there is no motion restriction.
   ;;   When the slider is set to 1, the turtle moves approx. 50% of the time; when slider is set to 4, the turtle moves 20% of the time (1 tick in 5).
   [ if any? empty-patches
    [ let target one-of empty-patches
      face target
      move-to target ]] ]
  ]
  [
  ]
end

;; HOST DEFENSES: SLIDERS & SWITCHES (Systemic stressor slider is already incorporated above)

to invoke-local-directed  ;; Host cells directly harm adjacent pathogens (as if injecting a toxin).
  ask circles [ ask triangles in-radius 1 [ set energy (random-normal 1 0.02) * (energy - local-host-directed) ]]
  ask circles [ ask stars in-radius 1 [ set energy (random-normal 1 0.02) * (energy - local-host-directed) ]]
end

to invoke-local-stressor ;; Harms all adjacent cells if the host cell is in contact with a pathogen as if depriving the area of nutrients or causing acidosis.
  ask triangles [ ask circles in-radius 1 [ ask turtles in-radius 1 [ set energy (random-normal 1 0.02) * (energy - local-host-stressor) ]]]
  ask stars [ ask circles in-radius 1 [ ask turtles in-radius 1 [ set energy (random-normal 1 0.02) * (energy - local-host-stressor) ]]]
end

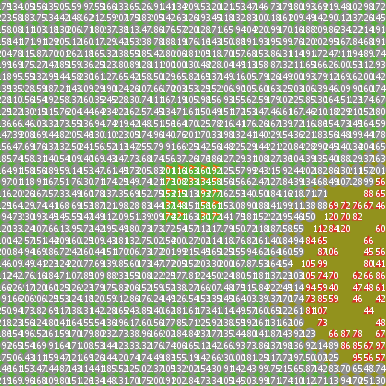

to invoke-clot-stressor  ;; Makes a "clot" at the inflammatory site to reduce patch energy (blood replacement) and reduce cell movement.
  ;; The effect of the clot on energy is controlled by the slider "%-reduced-clot-patch-energy", though I'm not sure exactly what it's doing.
  ;; The effect on motion (so far on the pathogen) is set at "invoke-pathogen-wander" above. Need a switch or slider for that and do the same for pathogen B and host cells.
  ask circles [if any? triangles in-radius 1 [ask patches in-radius 2 [set pcolor 43]]]
  ask circles [if any? stars in-radius 1 [ask patches in-radius 2 [set pcolor 43]]]
    ask patches
   [ifelse pcolor = 43
   [ set patch-energy (100 - %-reduced-clot-patch-energy)]
   [ set patch-energy 100]]
 ask circles [if not any? triangles in-radius 4 and not any? stars in-radius 4 [ask patches in-radius 1 [set pcolor green]]]  ;; Lets recovering host cells clear the clot, allowing host recovery.
end

to invoke-amputation  ;;  This code harms all cells in the lower right region as if using a tourniquet (or hypersensitive reaction in plants).
 ask turtles with [ (pycor < 0) and (pxcor > 10)] [ set energy (random-normal 1 0.02) * (energy * ((100 - regional-amputation) / 100)) ]
end

to invoke-amputationB  ;;  This code harms all cells in the lower left region as if using a tourniquet (or hypersensitive reaction in plants).
 ask turtles with [ (pycor < 0) and (pxcor < -10)] [ set energy (random-normal 1 0.02) * (energy * ((100 - regional-amputationB) / 100)) ]
end

to invoke-hostcell-wander  ;; Lets the host cells move to free spaces.
  ifelse hostcell-wander?  ;; This slightly helps the host IF the host cells can harm the pathogens either directly or by local stressing.
  [ ask circles
  [ let empty-patches neighbors with [ not any? turtles-here ]
    if pcolor = green
   [ if any? empty-patches
    [ let target one-of empty-patches
      face target
      move-to target ]]
  if pcolor = 43 and random (clot-restrict-motion + 1) = 0   ;; When hostcell-wander? is on this lets the clot restrict the motion.
   ;;   "random 1" makes one random number which is always 0; random 2 makes either a 0 or 1;  ... ; random 5 makes 0,1,2,3 or 4.
   ;;   Therefore the slider set at 0 makes random 1, which always produces 0, so there is no motion restriction.
   ;;   When the slider is set to 1, the turtle moves approx. 50% of the time; when slider is set to 4, the turtle moves 20% of the time (1 tick in 5).
   ;;     When the slider is set to 9, the turtle moves 1 tick in 10 or 10% of the time.
   [ if any? empty-patches
    [ let target one-of empty-patches
      face target
      move-to target ]] ]
  ]
  [
  ]
end

to invoke-auto-systemic-stressor-hostcell#  ;; An automatic device that quickly turns the systemic stressor on and then off, etc. Lots of overshooting with this strategy.
  ifelse auto-systemic-stressor-hostcell#?  ;; However, once the pathogen invades enough that there are less than 925 host cells, it won't turn on anymore.
  [ if count circles <= 1030 ;;and (count triangles + count stars) >= 5 ;; This works better with it in (allows more recovery), BUT IT'S A DIFFERENT MODEL. -May 23 2013
    [ set systemic-host-stressor 60 ]
    if (count circles <= 925) ;; and count triangles < 5)    ;;This lets the stress continue below 925 if pathogens still present (better defense)
    [ set systemic-host-stressor 0 ]]
  [ ]
 if (count triangles + count stars) = 0  ;; These 2 lines allow the host to recover after eliminating the pathogens (otherwise the stressor stays at 60).
 [set systemic-host-stressor 0]
end   ;; This defense is helpless if the number of host cells can't get back up tp 925, unlike the cycling that depends on pathogen numbers (below).

to invoke-auto-systemic-stressor-pathogen#  ;; Based on pathogen numbers. The lower threshold guarantees the systemic stressing will cycle.
  ifelse auto-systemic-stressor-pathogen#?
  [ if (count triangles + count stars) >= upper-systemic-stressor-threshold ;; threshold is set with a slider (recommend a setting of 30 [comparable to having 1030 host cells])
    [ set systemic-host-stressor 60 ]
    if (count triangles + count stars) <= lower-systemic-stressor-threshold ;; threshold is set with a slider (recommmend a setting of 5)
    [ set systemic-host-stressor 0
      set upper-systemic-stressor-threshold 0.5 * upper-systemic-stressor-threshold
      set lower-systemic-stressor-threshold 0.5 * lower-systemic-stressor-threshold]]
  [ ]
 if (count triangles + count stars) = 0  ;; These 2 lines allow the host to recover after eliminating the pathogens (otherwise the stressor stays at 60).
 [set systemic-host-stressor 0]
end


;;May 23, 2013. THIS WORKS FAIRLY WELL BECAUSE OF THE "AND" 5 LINES DOWN.

to invoke-auto-systemic-stressor-combined  ;; An automatic device that combines knowledge of pathogen numbers and host status to balance death due to sepsis and due to pathogen overgrowth.
  ifelse auto-systemic-stressor-combined?  ;;
    [ if (count circles <= 1030 and (count triangles + count stars) >= 15) or ((count triangles + count stars) >= upper-systemic-stressor-threshold)
    ;;This requires host damage as well as pathogens to set it off (rather than just host damage alone). It works better and is more biologically relevant.
    [ set systemic-host-stressor 60 ]
    if ((count triangles + count stars) <= lower-systemic-stressor-threshold) or (count circles <= 925) ;; PUTTING "and" here is more aggressive; putting "or" should make it less aggressive--better for host
    ;; The systemic stressor stays on longer (well below 925 host cells) so sepsis can eventually be due to not enough host cells (as well as key host cells).
    [ set systemic-host-stressor 0
       set upper-systemic-stressor-threshold 0.5 * upper-systemic-stressor-threshold
       set lower-systemic-stressor-threshold 0.5 * lower-systemic-stressor-threshold]]
   [ ]
 if (count triangles + count stars) = 0  ;; These 2 lines allow the host to recover after eliminating the pathogens (otherwise the stressor stays at 60).
 [set systemic-host-stressor 0]
end   ;; This defense is helpless if the number of host cells can't get back up tp 925, unlike the cycling that depends on pathogen numbers (below).

to replicate
   ask triangles                                                                   ;; Pathogens replicate if they have 2x birth-energy (60 units) and a vacant patch for the hatchling to move to.
    [ if energy >  2 * birth-energy and any? neighbors with [not any? turtles-here]
      [ set energy energy / 2                                                      ;; This cuts the energy in half before hatching.
       hatch 1 [set energy birth-energy                                            ;; There's a little lost energy since mother may have more than 2x birth-energy,
         let target one-of neighbors with [not any? turtles-here]                 ;;   but daughter cell (hatchling) only gets the birth-energy.
        face target
        move-to target   ] ] ]

   ask stars [                                                                       ;; Pathogen B replicate if they have 2x birth-energy (60 units) and a vacant patch for the hatchling to move to.
     if energy >  2 * birth-energy and any? neighbors with [not any? turtles-here]
      [ set energy energy / 2                                                        ;; This cuts the energy in half before hatching.
       hatch 1 [set energy birth-energy                                              ;; There's a little lost energy since mother may have more than 2x birth-energy,
         let target one-of neighbors with [not any? turtles-here]                   ;;   but daughter cell (hatchling) only gets the birth-energy.
        face target
        move-to target   ] ] ]

   ask circles [
     if energy >  2 * birth-energy and any? neighbors with [not any? turtles-here]  ;; Host cells replicate if they have 2x birth-energy (90 units) and a vacant patch for the hatchling to move to.
      [ set energy energy / 2                                                        ;; This cuts the energy before hatching.
       hatch 1 [set energy birth-energy                                              ;; There's a little lost energy since mother may have more than 2x birth-energy,
         let target one-of neighbors with [not any? turtles-here]                   ;;   but daughter cell (hatchling) only gets the birth-energy.
        face target
        move-to target   ] ] ]                                                       ;; Flags (key host cells) don't replicate
end

to check-death
   ask circles
    [ if energy <= circle-energy-to-survive [ die ]]
   ask flags
    [ if energy <= flag-energy-to-survive [ die ]]
   ask triangles
    [ if energy <= triangle-energy-to-survive [ die ]]
   ask stars
    [ if energy <= star-energy-to-survive [ die ]]
end
