R extension demo

extensions [ r ]

globals [
  is-life?   ;; distinguish between the two demos

  ;; LIFE
  cell-count ;; total number of cells
  total      ;; total number of live cells
  history    ;; list of totals

  ;; BACTERIA
  window     ;; number of steps over which to analyse
]

patches-own [
  ;; LIFE
  alive?     ;; is cell alive?
  counter    ;; used to pass number of live neighbours between Phase 1 and Phase 2

  ;; BACTERIA
  value      ;; simulated chemical concentration
]

turtles-own [
  ;; BACTERIA
  hist       ;; history of concentration values
]

to rplot-graph  ;; R interface -- plot the LIFE history
  if (is-life?) [
    r:put "life.hist" history
    r:put "plotfile" life-plot-filename

    r:eval "png (filename = plotfile, width = 1600, height = 800, pointsize=18)"
    r:eval "par (mar=c(5,5,0.8,0.5))"
    r:eval "xs <- 0:(length(life.hist)-1)"
    r:eval "plot (life.hist ~ xs, type=\"l\", lwd=4, col=\"red\", xlab=\"Step\", ylab=\"Density\", ylim=c(0,max(life.hist)), cex.lab=2, cex.axis=1.5)"
    r:eval "dev.off()"
  ]
end

to-report calculate-slope [ lst ]  ;; R interface -- calculate slope for values in lst
  r:put "valu.hist" lst

  r:eval "valu.index <- 1:length(valu.hist)"
  r:eval "valu.lm <- lm(valu.hist ~ valu.index)"
  report r:get "valu.lm$coefficients[2]"
end

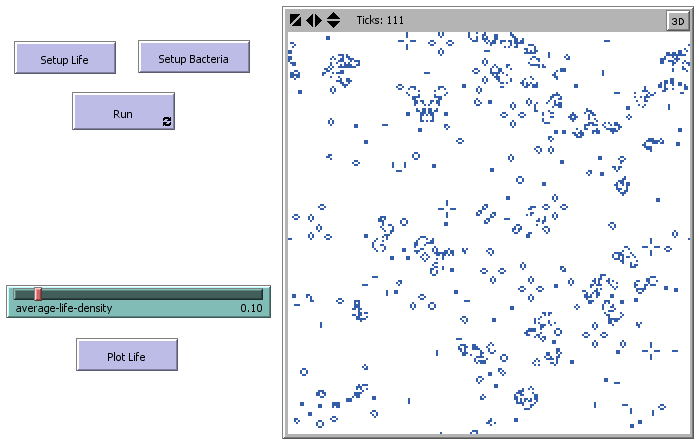

;; code for SETUP button -- Life

to setup-life
  clear-all
  set is-life? true
  set life-plot-filename "C:/NetLogo/Life_plot.png"
  set cell-count (count patches)
  ask patches [
    ifelse (random-float 1 < average-life-density) [birth] [death]
  ]
  reset-ticks
  set history (list (total / cell-count))
end

to death  ;; this procedure applies to a specific patch
  set alive? false
  set pcolor white
end

to birth  ;; this procedure applies to a specific patch
  set alive? true
  set pcolor blue
  set total (total + 1)
end

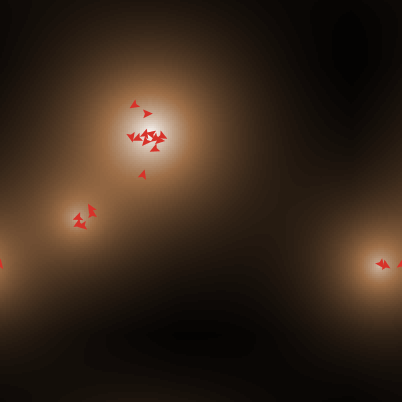

;; code for SETUP button -- Bacteria

to setup-bacteria
  clear-all
  set is-life? false
  set life-plot-filename "** NOT USED **"
  set window 4

  ;; create gradient
  repeat 3 [
    let x random-xcor
    let y random-ycor
    let v (0.1 + random-float 0.5)
    let r (1 + v * world-width / 2)
    ask patches [
      let d ((distancexy x y) / r)
      set value (value + v * exp (- d))
    ]
  ]
  let min-value (min ([value] of patches))
  let max-value (max ([value] of patches))
  ask patches [
    set pcolor (30 + (9.9 * (value - min-value) / (max-value - min-value)))
  ]

  ;; create some bacteria
  crt 20 [
    setxy random-xcor random-ycor
    set color red
    set size 6
    set hist (list value)
  ]

  reset-ticks
end

to go  ;; single simulation step for both demos
  if-else (is-life?) [

    ;; LIFE

    ;; First phase
    ask patches [ set counter (count neighbors with [alive?]) ]

    ;; Second phase
    set total 0
    ask patches [
      ifelse (counter = 3 or (counter = 2 and alive?))
      [ birth ]
      [ death ]
    ]

    set history (lput (total / cell-count) history)  ;; Record current density
    tick

  ] [

    ;; BACTERIA

    ask turtles [
      fd 1
      set hist (lput value hist)
      if (length(hist) > window) [ set hist (bf hist) ]

      if (length(hist) = window) [
        if (calculate-slope hist <= 0) [
          set heading (random-float 360)
          set hist (list value)
        ]
      ]
    ]

    tick
  ]
end
