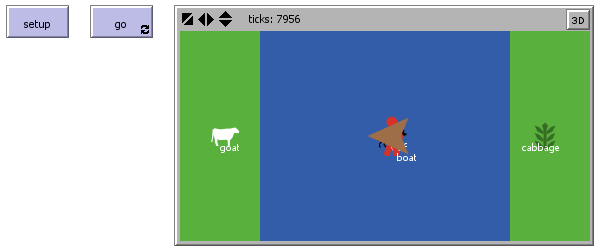

The wolf, the goat, and the cabbage preview image

1 collaborator

Ahdekker Anthony Dekker (Author)

Tags

goals

Tagged by Anthony Dekker about 10 years ago

planning

Tagged by Anthony Dekker about 10 years ago

tutorials

Tagged by Anthony Dekker about 10 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 5.0.3 • Viewed 678 times • Downloaded 36 times • Run 0 times
Download the 'The wolf, the goat, and the cabbage' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


NETLOGO GOALS EXAMPLE (WITH PLANNING)

This example is explained in the tutorials at http://scientificgems.wordpress.com/2014/01/24/agent-goals-in-netlogo-the-wolf-the-goat-and-the-cabbage/ and http://scientificgems.wordpress.com/2014/01/25/planning-in-netlogo-the-wolf-the-goat-and-the-cabbage-again/

RUNNING IT

Click SETUP to start, and GO to execute. Execution speed should be set fairly slow.

Comments and Questions

Explanation

This model is associated with a tutorial at http://scientificgems.wordpress.com/2014/01/24/agent-goals-in-netlogo-the-wolf-the-goat-and-the-cabbage/

Posted about 10 years ago

Planning

The planning aspects of the model are discussed at http://scientificgems.wordpress.com/2014/01/25/planning-in-netlogo-the-wolf-the-goat-and-the-cabbage-again/

Posted about 10 years ago

Video

See https://vimeo.com/85013685 for a video of the program

Posted about 10 years ago

Click to Run Model

turtles-own [
  speed   ;; agent speed in cells per tick
  goal    ;; goal list
  carrier ;; agent carrying this agent (or "nobody")
]

globals [
  wolf
  goat
  cabbage
  man
  boat
  verbose? ;; if true, agents print what they are doing
  bank     ;; location of river bank (+ or -)
]

to setup
  clear-all
  set bank 13
  set verbose? true
  ask patches with [ pxcor <= (- bank) or pxcor >= bank ] [set pcolor green ]
  ask patches with [ pxcor > (- bank) and pxcor < bank ] [set pcolor blue ]

  crt 5 [ setxy (bank + 3) 0
    set speed 0.01
    set size 3
    set carrier nobody
    set goal [ ] ]

  set wolf (turtle 0)
  set goat (turtle 1)
  set cabbage (turtle 2)
  set man (turtle 3)
  set boat (turtle 4)

  let labels [ "wolf" "goat" "cabbage" "man" "boat" ]
  ask turtles [ set label (item who labels) ]

  ask man [ set shape "person"
    set size 4
    set goal wgc-plan
    set color red ]

  ask cabbage [ set shape "plant"
    set carrier man
    set color 53 ]

  ask boat [ set size 5
    set xcor (bank - 1)
    set speed (speed * 2)
    set color brown ]

  ask goat [ set shape "cow"
    set goal (list "eat" cabbage)
    set carrier man
    set color white ]

  ask wolf [ set shape "wolf"
    set goal (list "eat" goat)
    set carrier man
    set color black ]

  reset-ticks
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; NetLogo code for obeying instructions ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to obey
  if (carrier != nobody) [
    move-to carrier
  ]
  if (goal != []) [
    let kind (item 0 goal)

    if-else (kind = "goto") [ if (obey-goto (item 1 goal) (item 2 goal)) [ drop3-goal ] ] [

    if-else (kind = "meet") [ if (obey-meet (item 1 goal)) [ drop2-goal ] ] [

    if-else (kind = "eat") [ if (obey-eat (item 1 goal)) [ drop2-goal ] ] [

    if-else (kind = "pickup") [ obey-pickup (item 1 goal)
                                drop2-goal ] [

    if-else (kind = "wait") [ if (runresult (item 1 goal)) [ drop2-goal ] ] [

    if-else (kind = "drop") [ obey-drop (item 1 goal)
                              drop2-goal ] [

    if-else (kind = "instruct") [ obey-instruct (item 1 goal) (item 2 goal)
                                  drop3-goal ] [

    if-else (kind = "go-left") [ obey-go-left ] [

    if-else (kind = "go-right") [ obey-go-right ] [

    if-else (kind = "embark") [ obey-embark
                                drop-goal ] [

    if-else (kind = "disembark") [ obey-disembark
                                   drop-goal ] [

    obey-unknown kind ] ] ] ] ] ] ] ] ] ] ] ]
end

to drop-goal
  set goal (bf goal)
end

to drop2-goal
  set goal (bf (bf goal))
end

to drop3-goal
  set goal (bf (bf (bf goal)))
end

to obey-unknown [ g ]
  show (list "unknown goal" g)
  drop-goal
end

to-report at-left
  report xcor = (1 - bank)
end

to-report at-right
  report xcor = (bank - 1)
end

to obey-go-left
  if (verbose?) [ show (list "going left") ]
  let g (list "goto" (1 - bank) 0)
  set goal (sentence (list "meet" boat "embark" "instruct" boat g "wait" (task at-left) "disembark" "goto" (- (bank + 3)) 0) (bf goal))
end

to obey-go-right
  if (verbose?) [ show (list "going right") ]
  let g (list "goto" (bank - 1) 0)
  set goal (sentence (list "meet" boat "embark" "instruct" boat g "wait" (task at-right) "disembark" "goto" (bank + 3) 0) (bf goal))
end

to obey-disembark
  if (verbose?) [ show (list "disembarking") ]
  set carrier nobody
end

to obey-embark
  if (verbose?) [ show (list "embarking") ]
  set carrier boat
end

to obey-pickup [ him ]
  ask him [ set carrier myself ]
  if (verbose?) [ show (list "picking up" ([label] of him)) ]
end

to obey-drop [ him ]
  if-else ([ carrier ] of him = self)
    [ ask him [ set carrier nobody ]
      if (verbose?) [ show (list "dropping" ([label] of him)) ] ]
    [ show (list "CANNOT DROP" ([label] of him)) ]
end

to obey-instruct [ him g ]
  if-else (g = [])
    [ ask him [ set goal [] ] ]
    [ ask him [ set goal (sentence goal g) ] ]
  if (verbose?) [ show (list "instructing" ([label] of him) "to" g) ]
end

to-report obey-goto [ x y ]  ;; obey "goto x y" command; report true when achieved
  let d (distancexy x y)
  if-else (d = 0)
    [ if (verbose?) [ show (list "already at" x y) ]
      report true ]

    [ facexy x y
      if-else (d <= speed)
        [ setxy x y
          if (verbose?) [ show (list "have reached" x y) ]
          report true ]

        [ fd speed
          report false ] ]
end

to-report obey-meet [ him ]  ;; obey "meet agent" command; report true when achieved
  if-else (him = self)
    [ if (verbose?) [ show (list "i am" him) ]
      report true ]

    [ face him
      let d (distance him)

      if-else (d <= speed)
        [ move-to him
          if (verbose?) [ show (list "have met" ([label] of him)) ]
          report true ]

        [ fd speed
          report false ] ]
end

to-report obey-eat [ him ]  ;; obey "eat agent" command; report true when achieved
  if-else (carrier != nobody or distance him > 2 or ([ carrier ] of him) != nobody)
    [ report false ]

    [ face him
      let d (distance him)

      if-else (d <= speed)
        [ move-to him
          show (list "eating" ([label] of him))
          ask him [ die ]
          report true ]

        [ fd speed
          report false ] ]
end

to go
  if (count (turtles with [ goal != []]) = 0) [ stop ]
  ask turtles [ obey ]
  tick
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; NetLogo code for planning ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;; state format is [ w g c m ]
;; w = wolf, -1 for free on left, +1 for free on right, 0 for being carried
;; g = goat, c = cabbage, similarly
;; m = man, -1 for on left, +1 for on right

to-report wgc-plan ;; top-level reporter to return the full plan
  let init-state [0 0 0 1]
  let p (planner init-state [] [] [])
  ;; add final entries to erase wolf and goat plans after the problem has been solved
  set p (sentence p (list "instruct" wolf [] "instruct" goat []))
  show (fput "THE PLAN IS:" p)
  report p
end

to-report best-of [ x y ] ;; find the best of two solutions
  if-else (length x < length y and x != [])
    [ report x ]
    [ report y]
end

to-report acceptable [ state ] ;; everybody is on the left (possibly being carried)
  report ((item 0 state <= 0) and (item 1 state <= 0) and
          (item 2 state <= 0) and (item 3 state = -1))
end

to-report bad [ state ] ;; wolf and goat loose together, or goat and cabbage loose together
  report ((item 0 state = -1 and item 1 state = -1) or
          (item 0 state = 1 and item 1 state = 1) or
          (item 1 state = -1 and item 2 state = -1) or
          (item 1 state = 1 and item 2 state = 1))
end

to-report count-zeros [ x y z ] ;; count-zeros is used to count how much the man is carrying
  let n 0
  if (x = 0) [ set n (n + 1) ]
  if (y = 0) [ set n (n + 1) ]
  if (z = 0) [ set n (n + 1) ]
  report n
end

to-report planner [ state history partial-solution best-so-far ] ;; the planner itself
  if-else ((bad state) or (member? state history) or
           (length best-so-far <= length partial-solution and best-so-far != []))
    [ report best-so-far ]

    [ if-else (acceptable state)
        [ report best-of best-so-far partial-solution ]

        [ let h (lput state history)
          let b best-so-far
          let w (item 0 state)
          let g (item 1 state)
          let c (item 2 state)
          let m (item 3 state)

          ;; Can drop carried items on the current bank
          ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
          if (item 0 state = 0)
            [ let s (list m g c m)
              let new-partial (sentence partial-solution (list "drop" wolf))
              set b (planner s h new-partial b) ]
          if (item 1 state = 0)
            [ let s (list w m c m)
              let new-partial (sentence partial-solution (list "drop" goat))
              set b (planner s h new-partial b) ]
          if (item 2 state = 0)
            [ let s (list w g m m)
              let new-partial (sentence partial-solution (list "drop" cabbage))
              set b (planner s h new-partial b) ]

          ;; Can pick up items on the current bank
          ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
          if (item 0 state = m)
            [ let s (list 0 g c m)
              let new-partial (sentence partial-solution (list "pickup" wolf))
              set b (planner s h new-partial b) ]
          if (item 1 state = m)
            [ let s (list w 0 c m)
              let new-partial (sentence partial-solution (list "pickup" goat))
              set b (planner s h new-partial b) ]
          if (item 2 state = m)
            [ let s (list w g 0 m)
              let new-partial (sentence partial-solution (list "pickup" cabbage))
              set b (planner s h new-partial b) ]

          ;; Can go left or right if at most one item is being carried
          ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
          if ((m = 1) and (count-zeros w g c <= 1))
            [ let s (list w g c -1)
              let new-partial (sentence partial-solution [ "go-left" ])
              set b (planner s h new-partial b) ]
          if ((m = -1) and (count-zeros w g c <= 1))
            [ let s (list w g c 1)
              let new-partial (sentence partial-solution [ "go-right" ])
              set b (planner s h new-partial b) ]

          report b
        ]
    ]
end
