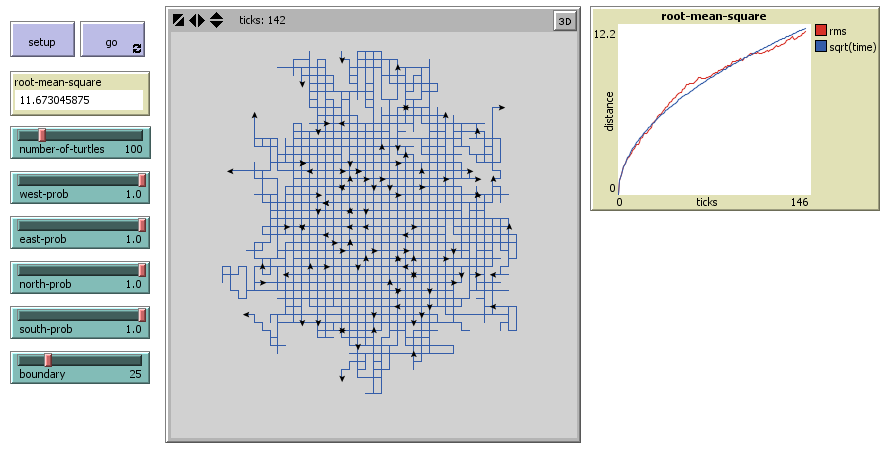

Random Walk Periodic Boundary Condition 2D Lattice

;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; variable declarations ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;

globals
[
  root-mean-square
  sum-distance
  sum-prob
  west-prob-scale
  east-prob-scale
  north-prob-scale
  south-prob-scale
  prob
]

;;;;;;;;;;;;;;;;;;;;;;
;; setup procedures ;;
;;;;;;;;;;;;;;;;;;;;;;

;; set up the patches and creates turtles

to setup
  clear-all
  set-patch-size (200 / boundary)
  resize-world (- boundary) boundary (- boundary) boundary
  ask patches [ set pcolor gray + 3 ]
  init-constant
  setup-turtles
  reset-ticks
end

to setup-turtles
  crt number-of-particles
  [
    set color black
    pen-down
  ]
end

to init-constant
  set sum-prob (west-prob + east-prob + north-prob + south-prob)
  set west-prob-scale (west-prob / sum-prob)
  set east-prob-scale (east-prob / sum-prob)
  set north-prob-scale (north-prob / sum-prob)
  set south-prob-scale (south-prob / sum-prob)
end

;;;;;;;;;;;;;;;;;;;;;;;;
;; runtime procedures ;;
;;;;;;;;;;;;;;;;;;;;;;;;

to go
  ;; have the turtles randomly pick north, south, west, east and
  ;; move in that direction
  ask turtles
  [
    set color blue
    set prob (random-float 1)
    if (prob < west-prob-scale)
    [
      ;; go west
      set heading 270
      forward 1
    ]
    if (prob > west-prob-scale) and (prob < west-prob-scale + east-prob-scale)
    [
      ;; go east
      set heading 90
      forward 1
    ]
    if (prob > west-prob-scale + east-prob-scale) and (prob < west-prob-scale + east-prob-scale + north-prob-scale)
    [
      ;; go north
      set heading 0
      forward 1
    ]
    if (prob > west-prob-scale + east-prob-scale + north-prob-scale)
    [
      ;; go south
      set heading 180
      forward 1
    ]
    set color black
  ]
  ;; calculate root mean square of distance of all particles
  set sum-distance 0
  foreach sort turtles
  [
    ask ? [ set sum-distance (sum-distance + (xcor * xcor + ycor * ycor)) ]
  ]
  set root-mean-square (sqrt (sum-distance / (count turtles)))
  tick
end
