Map represented as a network (rewiring equivalent to application of map)

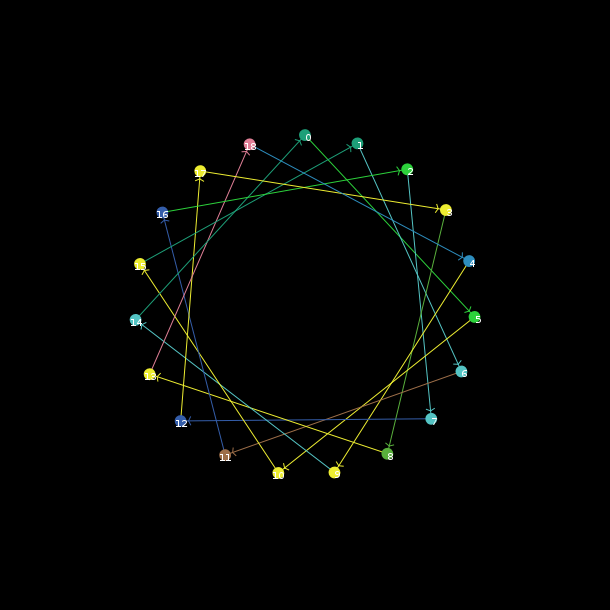

Map represented as a network (rewiring equivalent to application of map) preview image

1 collaborator

Default-person julien siebert (Author)

Tags

code example

Tagged by julien siebert over 9 years ago

fun

Tagged by julien siebert over 9 years ago

math

Tagged by julien siebert over 9 years ago

networks

Tagged by julien siebert over 9 years ago

Visible to everyone | Changeable by everyone
Model was written in NetLogo 5.0.4 • Viewed 444 times • Downloaded 28 times • Run 0 times
Download the 'Map represented as a network (rewiring equivalent to application of map)' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [ nodes node ] ;; the turtle are called nodes

nodes-own [ current-next-node new-next-node ]

globals [ continue? ]  ;; is it possible to apply the transformation once again

to setup
  clear-all
  ;; creates all the nodes
  set-default-shape nodes "circle"
  let size-nodes ( 0.75 * max-pxcor / nb-nodes)
  create-nodes nb-nodes [set label who set size size-nodes ]
  ;; show the nodes with a circular layout
  layout-circle sort(turtles) radius
  ;; link the nodes
  init-links
  ;; set up global parameters
  set continue? true
  ;; set simulation time to 0
  reset-ticks
end

to init-links
  ;; create an ordered cycle between nodes (e.g. 0 -> 1 -> 2 -> 3 ... -> (nb-nodes - 1) -> 0 )
  ask nodes
  [
    set current-next-node turtle ((who + 1) mod count nodes)
    link-nodes
  ]
end

to apply-transformation
  ;; rewire the links
  if continue?
  [
    ;; we can still apply the transformation
    ask nodes
    [
      ;; compute the new "next-node"
      set new-next-node (get-next-node nb-hop)  ;; get the next n-hop node
    ]

    ;; remove the links
    ask links [ die ]

    ;; change the current pointer to the next-node by the newly computed one
    ask nodes [ set current-next-node new-next-node ]

    ;; link the nodes
    ask nodes [ link-nodes ]
  ]
end

to link-nodes
  ;; create a link between the node and its current next-node
  ifelse current-next-node != self
  [
    create-link-to current-next-node
    [
      set color [color] of end2
    ]
  ]
  [
    set continue? false
  ]
end

to-report get-next-node [ n ]
  ;; return the n-hop node (recursive function)
  let result nobody
  ifelse n = 0
  [
    report self
  ]
  [
    set n n - 1
    ask current-next-node [
        set result get-next-node n
    ]
  ]
  report result
end
