Modified Random Clusters

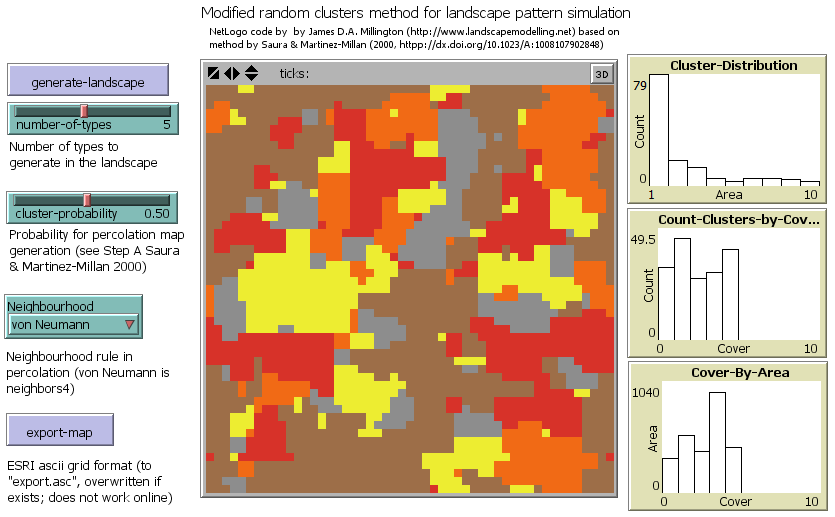

Modified Random Clusters preview image

1 collaborator

Jm1_vsm James Millington (Author)

Tags

clustering

Tagged by Reuven M. Lerner over 11 years ago

landscape

Tagged by Reuven M. Lerner over 11 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 5.0.1 • Viewed 1118 times • Downloaded 62 times • Run 0 times
Download the 'Modified Random Clusters' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Model not running (Question)

Hi there! I am pretty new to NetLogo and trying to do something that incorporates the code from this model. There are a few glitches that are preventing the model from running, any advice or help on that? Thanks, Ale

Posted about 6 years ago

Click to Run Model

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;  Modified random clusters method for landscape pattern simulation - NetLogo  ;;
;;                                                                              ;;
;;  Code licenced by James D.A. Millington (http://www.landscapemodelling.net)  ;;
;;  under a Creative Commons Attribution-Noncommercial-Share Alike 3.0          ;;
;;  Unported License (see http://creativecommons.org/licenses/by-nc-sa/3.0/)    ;;
;;                                                                              ;;
;;  This code is based on the method by Saura & Martinez-Millan (2000)          ;;
;;  Landscape Ecology 15 661-678 http://dx.doi.org/10.1023/A:1008107902848      ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;



patches-own
[
  cover        ;; cover of patch
  cluster_ID   ;; id of cluster patch belongs to
  cluster      ;; holds a patch which is that cluster's "leader" - arbitrarily chosen
]


globals
[
  cluster-area-list  ;for plotting purposes
]




;---------------

to generate-landscape

  set cluster-area-list []

  set_random_seeds                                 ;; randomly distribute cluster seeds (Step 1 in Saura & Martinez-Millan 2000 p.664)

  set-cover                                        ;; identify and label clusters (Steps 2 & 3 in above)
  fill_landscape                                   ;; fill remaining patches to dominant neighbour (Step 4 in above)

  ask patches [ set pcolor (cover * 10) + 5 ]      ;; color patches according to cover types

  plotting                                         ;; plot bar plots
end
;---------------




;---------------

to set-cover
  loop
  [
    let seed one-of patches with [ ( cluster = nobody and pcolor = blue ) ]   ;; pick a random seed we haven't labelled yet
    if seed = nobody                                                          ;; if we have labelled all seeds stop
      [ stop ]

    ask seed
    [
      set cluster self                     ;; make the seed the "leader" of a new cluster by assigning itself to its own cluster
      set cover ( random Number-of-Types )       ;; assign this "leader" a random cover
      grow-cover_cluster                   ;; then grow-cover_cluster to find the rest of the cluster

      set cluster-area-list fput count patches with [cluster = myself] cluster-area-list
    ]

  ]
end
;---------------




;---------------

to grow-cover_cluster

  without-interruption              ;; we use without-interruption here so each patch only gets added to the cluster once
  [
    let neighbours nobody

    ifelse(Neighbourhood = "Moore")
    [ set neighbours neighbors with [ cluster = nobody and pcolor = [pcolor] of myself ] ]
    [ set neighbours neighbors4 with [ cluster = nobody and pcolor = [pcolor] of myself ] ]

    ask neighbours
    [
      set cluster [cluster] of myself    ;;assign neighbouring patch to seed patch cluster
      set cover [cover] of myself        ;;assign neighbouring patch to seed patch cover
      set cluster_ID [cluster_ID] of myself
      grow-cover_cluster                 ;;recursive call!
    ]
   ]
end
;---------------





;---------------

to set_random_seeds

  let cluster-counter 0

  ask patches
  [
    set cover nobody
    set cluster_ID nobody
    set cluster nobody
  ]

  ask patches
  [
    ifelse ( (random-float 1) < cluster-probability )  ;set patch as seed if rand no is less than cluster_probability
    [
      set pcolor blue                                ;seeds are blue
      set cluster_ID cluster-counter
      set cluster-counter cluster-counter + 1
    ]
    [ set pcolor red ]                               ;non-seeds are red
  ]
end
;---------------



;---------------

to fill_landscape                  ;; assign patches not initially assigned (to dominant cover in neighbourhood)

  loop
  [
    if ( not any? patches with [ cluster = nobody ] )     ;;if all patches have been assigned to an cover-cluster
    [ stop ]

    ask one-of patches with [ cluster = nobody ]  ;;pick a patch that has not been assigned to an cover-cluster yet
    [
      let neighbours nobody

      ifelse(Neighbourhood = "Moore")
      [ set neighbours neighbors ]
      [ set neighbours neighbors4 ]


      ifelse ( any? neighbours with [ cluster != nobody ] )  ;; check if there are any assigned patches in neighbourhood
      [

        let covers []

        ask neighbours with [ cluster != nobody ]
        [
          set covers fput cover covers    ;;ask neighbours to add their covers to the list
        ]

        let unique-covers remove-duplicates covers    ;;create a list of unique covers

        let max-cover-count -1                 ;the number of neighbours with the maximum cover
        let max-cover -1                       ;the maximum cover


        ifelse(length unique-covers > 1)
        [
          ;if there is more than one unique-cover
          foreach unique-covers                  ;for each of the unique covers
          [
            let occ occurrences ? covers          ;count how many neighbours had this cover

            ifelse(occ > max-cover-count)        ;if the count is greater than the current maximum count
            [
              set max-cover ?                    ;set this as the dominant cover
              set max-cover-count occ            ;update the current maximum count
            ]
            [
              if(occ = max-cover-count)          ;otherwise, if the count is equal to the current maximum count
              [
                let rand random-float 1
                if(rand < 0.5) [ set max-cover ? ]  ;randomly pick one of the two covers to be the new dominant cover
              ]
            ]
          ]
        ]

        [
          ;otherwise just set the max-cover to the only unique-cover
          set max-cover first unique-covers
        ]


        let p one-of neighbours with [ cover = max-cover ]    ;;assign qualities of one of dominant neighbours to patch (no wrap!)
        set pcolor [pcolor] of p
        set cluster [cluster] of p
        set cover [cover] of p
        set cluster_id [cluster_id] of p
      ]
      [                                                               ;; if no assigned agents in neighbourhood assign an agent at random
        set cover ( random Number-of-Types)
        set cluster self                                              ;; remember to start a new cluster!
        set cluster_ID ([cluster_ID] of max-one-of patches [cluster_ID]) + 1
      ]
    ]
  ]
end
;---------------





;; count the number of occurrences of an item in a list
;---------------

to-report occurrences [x the-list]
  report reduce
    [ifelse-value (?2 = x) [?1 + 1] [?1]] (fput 0 the-list)
end
;---------------



;---------------

to plotting

  set-current-plot "Cluster-Distribution"
  clear-plot
  histogram cluster-area-list

  set-current-plot "Cover-By-Area"
  clear-plot
  let cover-counts []
  let c 0
  while[c < Number-of-Types]
  [
    set cover-counts fput 0 cover-counts
    set c c + 1
  ]
  ask patches [ set cover-counts replace-item cover cover-counts ((item cover cover-counts) + 1) ]

  set c 0
  while[c < Number-of-Types]
  [
    plotxy c item c cover-counts
    set c c + 1
  ]



  set-current-plot "Count-Clusters-By-Cover"
  clear-plot

  set cover-counts []
  set c 0
  while[c < Number-of-Types]
  [
    set cover-counts fput 0 cover-counts
    set c c + 1
  ]

  let max-cluster-ID 0
  ask max-one-of patches [cluster_ID][ set max-cluster-ID cluster_ID ]

  let id 0
  while[id <= max-cluster-ID]
  [
    let p one-of patches with [cluster_ID = id]

    if(p != nobody)
    [
      ask p
      [
        set cover-counts replace-item cover cover-counts ((item cover cover-counts) + 1)
      ]
    ]
    set id id + 1
  ]

  print cover-counts

  set c 0
  while[c < Number-of-Types]
  [
    plotxy c item c cover-counts
    set c c + 1
  ]
end
;---------------



;---------------

to export-map

  file-close-all
  if(file-exists? "export.asc") [file-delete "export.asc"]
  file-open "export.asc"


  file-type "ncols   "
  file-print world-width
  file-type "nrows   "
  file-print world-height
  file-print "xllcorner  0"
  file-print "yllcorner  0"
  file-print "cellsize   1"
  file-print "NODATA_value  -9999"

  let x min-pxcor
  let y max-pycor

  while[y >= min-pycor]
  [
    while[x <= max-pxcor]
    [
      ifelse(x = max-pxcor)
      [
        ask patches with [pxcor = x and pycor = y] [ file-print cover ]
      ]
      [
        ask patches with [pxcor = x and pycor = y] [ file-type cover file-type " "]
      ]

      set x x + 1
    ]

    set x min-pxcor
    set y y - 1
  ]

  file-close
end
;---------------
