Monte Carlo Pi Model

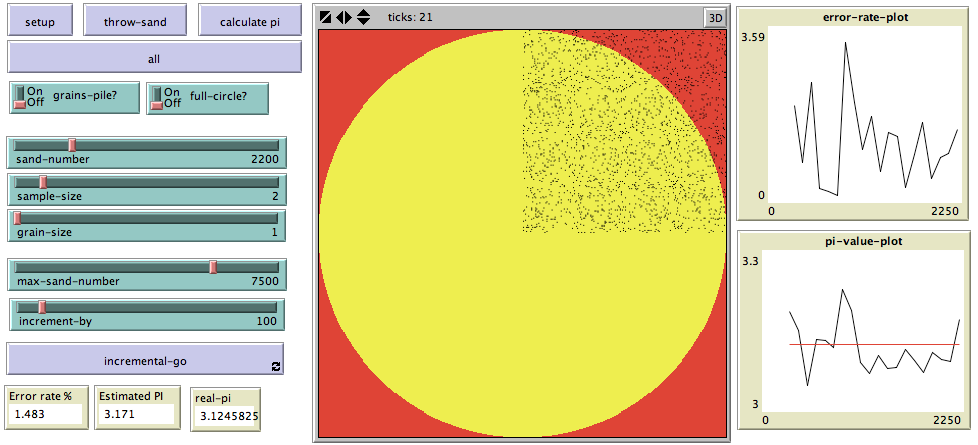

Monte Carlo Pi Model preview image

1 collaborator

Default-person Firat Soylu (Author)

Tags

monte carlo simulation

Tagged by Firat Soylu almost 12 years ago

pi

Tagged by Firat Soylu almost 12 years ago

Parent of 1 model: Child of Monte Carlo Pi Model
Visible to everyone | Changeable by the author
Model was written in NetLogo 5.0.2 • Viewed 724 times • Downloaded 51 times • Run 0 times
Download the 'Monte Carlo Pi Model' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [estimated-pi error-rate real-pi avg-pi circle-radius]

to setup
  clear-all
  ;set real-pi 3.1415926535897
  set real-pi 4 * (count patches with [pcolor = yellow] / count patches)
  set circle-radius 200
  ask patches [
    if abs(pxcor) < circle-radius and abs(pycor) < circle-radius [set pcolor red]
    if distance patch 0 0 < circle-radius [set pcolor yellow]
  ]
  set sand-number 100
  reset-ticks
  set real-pi 4 * (count patches with [pcolor = yellow] / count patches)
end

to incremental-go
  ifelse sand-number < max-sand-number [set sand-number sand-number + increment-by][stop]
  let i  0
  set avg-pi 0
  let accumulated-values 0
  while [i < sample-size] [
    ask turtles [die]
    throw-sand
    calculate-pi
    set accumulated-values accumulated-values + estimated-pi
    set i (i + 1)
  ]
  set avg-pi  accumulated-values / sample-size
  show avg-pi
  tick
end

to-report random-one ;reports 1 or -1
  report ifelse-value (random 2 = 0) [-1][1]
end

to throw-sand
  set-default-shape turtles "circle"
  ifelse full-circle? = True
  [
    ifelse grains-pile? = True
      [ create-turtles sand-number [set color black set size grain-size move-to one-of patches]]
      [create-turtles sand-number [set color black set size grain-size move-to one-of patches with [count turtles-here < 1]]]
  ]
  [
    ifelse grains-pile? = True
      [ create-turtles sand-number [set color black set size grain-size move-to one-of patches with [pxcor > 0 and pycor > 0]]]
      [create-turtles sand-number [set color black set size grain-size move-to one-of patches with [pxcor > 0 and pycor > 0 and count turtles-here < 1]]]
  ]
end

to calculate-pi
  let circle-turtles  turtle-set turtles with [[pcolor] of patch-here = yellow ]
  set estimated-pi 4 * count circle-turtles / count turtles
  set error-rate 100 * abs(estimated-pi - real-pi) / real-pi
end

There is only one version of this model, created almost 12 years ago by Firat Soylu.

Attached files

File Type Description Last updated
Monte Carlo Pi Model.png preview Preview for 'Monte Carlo Pi Model' over 11 years ago, by Firat Soylu Download

This model does not have any ancestors.

Children:

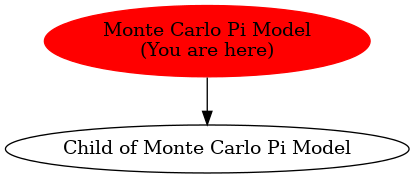

Graph of models related to 'Monte Carlo Pi Model'
