WHAT IS IT?

The Bak–Tang–Wiesenfeld sandpile model demonstrates the concept of "self-organized criticality". It further demonstrates that complexity can emerge from simple rules and that a system can arrive at a critical state spontaneously rather than through the fine tuning of precise parameters.

HOW IT WORKS

Imagine a table with sand on it. The surface of the table is a grid of squares. Each square can comfortably hold up to three grains of sand.

Now drop grains of sand on the table, one at a time. When a square reaches the overload threshold of four or more grains, all of the grains (not just the extras) are redistributed to the four neighboring squares. The neighbors may in turn become overloaded, triggering an "avalanche" of further redistributions.

Sand grains can fall off the edge of the table, helping ensure the avalanche eventually ends.

Real sand grains, of course, don't behave quite like this. You might prefer to imagine that each square is a bureaucrat's desk, with folders of work piling up. When a bureaucrat's desk fills up, she clears her desk by passing the folders to her neighbors.

HOW TO USE IT

Press one of the setup buttons to clear and refill the table. You can start with random sand, or a uniform number of grains per square, using the setup uniform button and the grains-per-patch slider.

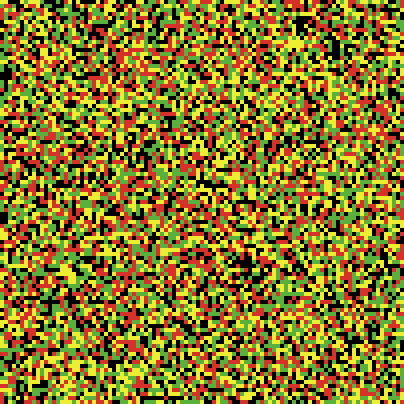

The color scheme in the view is inspired by a "traffic light" pattern:

red = 3 grains yellow = 2 grains green = 1 grain black = 0 grains

If the display-avalanches? switch is on, overloaded patches are white.

Press go to start dropping sand. You can choose where to drop with drop-location. If the drop-location is set to "mouse-click", you can drop sand by clicking on the view (the go button needs to be active for that to work.)

If you start out with a uniform distribution of 0 or even 1, it might take a while before you see avalanches. If you want to speed up this process, uncheck "view updates" for a few seconds, and then check it again. This makes the model run faster, because NetLogo does not have to draw the model every tick.

When display-avalanches? is on, you can watch each avalanche happening, and then when the avalanche is done, the areas touched by the avalanche flash white.

Push the speed slider to the right to get results faster.

If you press explore, hovering over a square with your mouse will show how big the avalanche would be if a grain was dropped on that square.

THINGS TO NOTICE

The white flashes help you distinguish successive avalanches. They also give you an idea of how big each avalanche was.

Most avalanches are small. Occasionally a much larger one happens. How is it possible that adding one grain of sand at a time can cause so many squares to be affected?

Can you predict when a big avalanche is about to happen? What do you look for?

Leaving display-avalanches? on lets you watch the pattern each avalanche makes. How would you describe the patterns you see?

Observe the Average grain count plot. What happens to the average height of sand over time?

Observe the Avalanche sizes and the Avalanche lifetimes plots. This histogram is on a log-log scale, which means both axes are logarithmic. What is the shape of the plots for a long run? You can use the clear size data button to throw away size data collected before the system reaches equilibrium.

THINGS TO TRY

Try all the different combinations of initial setups and drop locations. How does what you see near the beginning of a run differ? After many ticks have passed, is the behavior still different?

Use an empty initial setup and drop sand grains in the center. This makes the system deterministic. What kind of patterns do you see? Is the sand pile symmetrical and if so, what type of symmetry is it displaying? Why does this happen? Each cell only knows about its neighbors, so how do opposite ends of the pile produce the same pattern if they can't see each other? What shape is the pile, and why is this? If each cell only adds sand to the cell above, below, left and right of it, shouldn't the resulting pile be cross-shaped too?

Select drop by mouse click. Can you find places where adding one grain will result in an avalanche? If you have a symmetrical pile, then add a few strategic random grains of sand, then continue adding sand to the center of the pile --- what happens to the pattern?

EXTENDING THE MODEL

Try a larger threshold than 4.

Try including diagonal neighbors in the redistribution, too.

Try redistributing sand to neighbors randomly, rather than always one per neighbor.

This model exhibits characteristics commonly observed in complex natural systems, such as self-organized criticality, fractal geometry, 1/f noise, and power laws. These concepts are explained in more detail in Per Bak's book (see reference below). Add code to the model to measure these characteristics.

Try coloring each square based on how big the avalanche would be if you dropped another grain on it. To do this, make use of push-n and pop-n so that you can get back to distribution of grains before calculating the size of the avalanche.

NETLOGO FEATURES

  • In the world settings, wrapping at the world edges is turned off. Therefore the neighbors4 primitive sometimes returns only two or three patches.

  • In order for the model to run fast, we need to avoid doing any operations that require iterating over all the patches. Avoiding that means keeping track of the set of patches currently involved in an avalanche. The key line of code is:

    set active-patches patch-set [neighbors4] of overloaded-patches

  • The same setup procedure is used to create a uniform initial setup or a random one. The difference is what task we pass it for each pass to run. See the Tasks section of the Programming Guide in the User Manual for more information on Tasks.

  • To enable explore mode, this model makes use of a data structure from computer science called a "stack". A stack works just like a stack of papers in real life: you place (or "push") items onto the stack such that the top of the stack is always the item most recently pushed onto it. You may then "pop" items off the top of the stack, revealing their value and removing them from the stack. Hence, stacks are good for saving and restoring the value of a variable. To save a value, you push the variable's value onto the stack, and then set the variable to whatever new value you want. To restore, you pop the value off and set the variable back to that value.

Explore mode actually only ever needs one item on the stack. However, the stack may be used to save as many values as one wants. Hence, you could extend this model to allow people to explore further and further into the future, and then let them pop back to their original place.

RELATED MODELS

  • Sand
  • Sandpile 3D (in NetLogo 3D)

CREDITS AND REFERENCES

http://en.wikipedia.org/wiki/Bak–Tang–Wiesenfeld_sandpile

http://en.wikipedia.org/wiki/Self-organized_criticality

Bak, P. 1996. How nature works: the science of self-organized criticality. Copernicus, (Springer).

Bak, P., Tang, C., & Wiesenfeld, K. 1987. Self-organized criticality: An explanation of the 1/f noise. Physical Review Letters, 59(4), 381.

The bureaucrats-and-folders metaphor is due to Peter Grassberger.

Thanks to David Weintrop, Seth Tisue, Robert Tinker and Bryan Head for their work on this model.

HOW TO CITE

If you mention this model in a publication, we ask that you include these citations for the model itself and for the NetLogo software:

  • Weintrop, D., Tisue, S., Tinker, R. and Wilensky, U. (2011). NetLogo Sandpile model. http://ccl.northwestern.edu/netlogo/models/Sandpile. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.
  • Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.

COPYRIGHT AND LICENSE

CC0

Public Domain: To the extent possible under law, Uri Wilensky has waived all copyright and related or neighboring rights to this model.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [
  ;; By always keeping track of how much sand is on the table, we can compute the
  ;; average number of grains per patch instantly, without having to count.
  total
  ;; We don't want the average monitor to updating wildly, so we only have it
  ;; update every tick.
  total-on-tick
  ;; Keep track of avalanche sizes so we can histogram them
  sizes
  ;; Size of the most recent run
  last-size
  ;; Keep track of avalanche lifetimes so we can histogram them
  lifetimes
  ;; Lifetime of the most recent run
  last-lifetime
  ;; The patch the mouse hovers over while exploring
  selected-patch
  ;; These colors define how the patches look normally, after being fired, and in
  ;; explore mode.
  default-color
  fired-color
  selected-color
]

patches-own [
  ;; how many grains of sand are on this patch
  n
  ;; A list of stored n so that we can easily pop back to a previous state. See
  ;; the NETLOGO FEATURES section of the Info tab for a description of how stacks
  ;; work
  n-stack
  ;; Determines what color to scale when coloring the patch.
  base-color
]

;; The input task says what each patch should do at setup time
;; to compute its initial value for n.  (See the Tasks section
;; of the Programming Guide for information on tasks.)

to setup [setup-task]
  clear-all

  set default-color blue
  set fired-color red
  set selected-color green

  set selected-patch nobody
  ask patches [
    set n runresult setup-task
    set n-stack []
    set base-color default-color
  ]
  let ignore stabilize false
  ask patches [ recolor ]
  set total sum [ n ] of patches
  ;; set this to the empty list so we can add items to it later
  set sizes []
  set lifetimes []
  reset-ticks
end

;; For example, "setup-uniform 2" gives every patch a task which reports 2.

to setup-uniform [initial]
  setup task [ initial ]
end

;; Every patch uses a task which reports a random value.

to setup-random
  setup task [ random 4 ]
end

;; patch procedure; the colors are like a stoplight

to recolor
  set pcolor scale-color base-color n 0 4
end

to go
  let drop drop-patch
  if drop != nobody [
    ask drop [
      update-n 1
      recolor
    ]
    let results stabilize animate-avalanches?
    let avalanche-patches first results
    let lifetime last results

    ;; compute the size of the avalanche and throw it on the end of the sizes list
    if any? avalanche-patches [
      set sizes lput (count avalanche-patches) sizes
      set lifetimes lput lifetime lifetimes
    ]
    ;; Display the avalanche and guarantee that the border of the avalanche is updated
    ask avalanche-patches [ recolor ask neighbors4 [ recolor ] ]
    display
    ;; Erase the avalanche
    ask avalanche-patches [ set base-color default-color recolor ]
    ;; Updates the average monitor
    set total-on-tick total
    tick
  ]
end

to explore
  ifelse mouse-inside? [
    let p patch mouse-xcor mouse-ycor
    set selected-patch p
    ask patches [ push-n ]
    ask selected-patch [ update-n 1 ]
    let results stabilize false
    ask patches [ pop-n ]
    ask patches [ set base-color default-color recolor ]
    let avalanche-patches first results
    ask avalanche-patches [ set base-color selected-color recolor ]
    display
  ] [
    if selected-patch != nobody [
      set selected-patch nobody
      ask patches [ set base-color default-color recolor ]
    ]
  ]
end

;; Stabilizes the sandpile. Reports which sites fired and how many iterations it took to
;; stabilize.

to-report stabilize [animate?]
  let active-patches patches with [ n > 3 ]

  ;; The number iterations the avalanche has gone for. Use to calculate lifetimes.
  let iters 0

  ;; we want to count how many patches became overloaded at some point
  ;; during the avalanche, and also flash those patches. so as we go, we'll
  ;; keep adding more patches to to this initially empty set.
  let avalanche-patches no-patches

  while [ any? active-patches ] [
    let overloaded-patches active-patches with [ n > 3 ]
    if any? overloaded-patches [
      set iters iters + 1
    ]
    ask overloaded-patches [
      set base-color fired-color
      ;; subtract 4 from this patch
      update-n -4
      if animate? [ recolor ]
      ;; edge patches have less than four neighbors, so some sand may fall off the edge
      ask neighbors4 [
        update-n 1
        if animate? [ recolor ]
      ]
    ]
    if animate? [ display ]
    ;; add the current round of overloaded patches to our record of the avalanche
    ;; the patch-set primitive combines agentsets, removing duplicates
    set avalanche-patches (patch-set avalanche-patches overloaded-patches)
    ;; find the set of patches which *might* be overloaded, so we will check
    ;; them the next time through the loop
    set active-patches patch-set [ neighbors4 ] of overloaded-patches
  ]
  report (list avalanche-patches iters)
end

;; patch procedure. input might be positive or negative, to add or subtract sand

to update-n [ how-much ]
  set n n + how-much
  set total total + how-much
end

to-report drop-patch
  if drop-location = "center" [ report patch 0 0 ]
  if drop-location = "random" [ report one-of patches ]
  if drop-location = "mouse-click" and mouse-down? [
    every 0.3 [ report patch mouse-xcor mouse-ycor ]
  ]
  report nobody
end

;; Save the patches state

to push-n ;; patch procedure
  set n-stack fput n n-stack
end

;; restore the patches state

to pop-n ;; patch procedure
  ; need to go through update-n to keep total statistic correct
  update-n ((first n-stack) - n)
  set n-stack but-last n-stack
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
