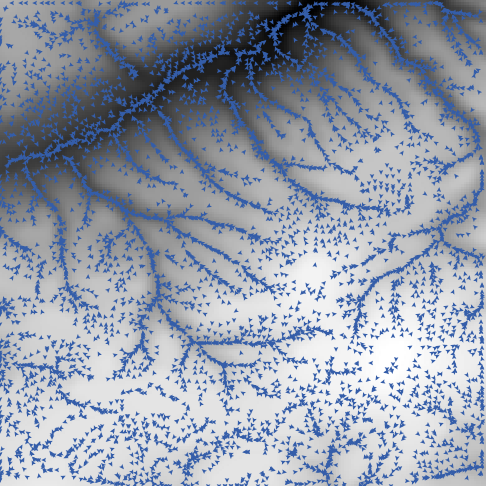

GIS Gradient Example preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

code example

Tagged by Reuven M. Lerner over 7 years ago

gis

Tagged by Reuven M. Lerner over 7 years ago

Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 1079 times • Downloaded 69 times • Run 4 times
Download the 'GIS Gradient Example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Click to Run Model

extensions [ gis ]

globals [ elevation slope aspect ]

to setup
  clear-all
  set elevation gis:load-dataset "data/local-elevation.asc"
  gis:set-world-envelope gis:envelope-of elevation
  let horizontal-gradient gis:convolve elevation 3 3 [ 1 1 1 0 0 0 -1 -1 -1 ] 1 1
  let vertical-gradient gis:convolve elevation 3 3 [ 1 0 -1 1 0 -1 1 0 -1 ] 1 1
  set slope gis:create-raster gis:width-of elevation gis:height-of elevation gis:envelope-of elevation
  set aspect gis:create-raster gis:width-of elevation gis:height-of elevation gis:envelope-of elevation
  let x 0
  repeat (gis:width-of slope)
  [ let y 0
    repeat (gis:height-of slope)
    [ let gx gis:raster-value horizontal-gradient x y
      let gy gis:raster-value vertical-gradient x y
      if ((gx <= 0) or (gx >= 0)) and ((gy <= 0) or (gy >= 0))
      [ let s sqrt ((gx * gx) + (gy * gy))
        gis:set-raster-value slope x y s
        ifelse (gx != 0) or (gy != 0)
        [ gis:set-raster-value aspect x y atan gy gx ]
        [ gis:set-raster-value aspect x y 0 ] ]
      set y y + 1 ]
    set x x + 1 ]
  gis:set-sampling-method aspect "bilinear"
  ask patches
  [ sprout 1
    [ set color blue
      let h gis:raster-sample aspect self
      ifelse h >= -360
      [ set heading subtract-headings h 180 ]
      [ die ] ] ]
  gis:paint elevation 0
  reset-ticks
end

to go
  ask turtles
  [ forward random-normal 0.1 0.1
    let h gis:raster-sample aspect self
    ifelse h >= -360
    [ set heading subtract-headings h 180 ]
    [ die ] ]
  tick
  if not any? turtles
  [ stop ]
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
