Mouse Drag Multiple Example

breed [circles circle]   ;; the turtles being selected
breed [sides side]       ;; the four sides of the selection rectangle

globals [selected]       ;; agentset of currently selected circles

to setup
  clear-all
  set-default-shape circles "circle"
  set-default-shape sides "line"

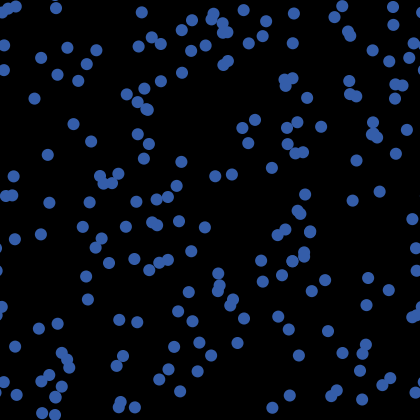

  create-circles 200 [
    set color blue
    setxy random-xcor random-ycor
  ]
  ;; initially, no turtles are selected
  set selected no-turtles
end

to go
  if mouse-down? [
    ifelse selected? mouse-xcor mouse-ycor
      [ handle-drag
        deselect ]
      [ handle-select ]
  ]
end

to handle-select
  ;; remember where the mouse pointer was located when
  ;; the user pressed the mouse button
  let old-x mouse-xcor
  let old-y mouse-ycor
  while [mouse-down?] [
    select old-x old-y mouse-xcor mouse-ycor
    ;; update the view, otherwise the user can't see
    ;; what's going on
    display
  ]
  ;; if no turtles are selected, kill off
  ;; the selection rectangle and start over
  if not any? selected [ deselect ]
end

to handle-drag
  ;; remember where the mouse pointer was located when
  ;; the user pressed the mouse button
  let old-x mouse-xcor
  let old-y mouse-ycor
  if selected? old-x old-y [
    while [mouse-down?] [
      let new-x mouse-xcor
      let new-y mouse-ycor
      ;; we need to move both the selected turtles and the sides
      ;; of the selection rectangle by the same amount that the
      ;; mouse has moved.  we do this by subtracting the current
      ;; mouse coordinates from the previous mouse coordinates
      ;; and adding the results to the coordinates of the turtles
      ;; and sides.
      ask selected
        [ setxy xcor + new-x - old-x
                ycor + new-y - old-y ]
      ask sides
        [ setxy xcor + new-x - old-x
                ycor + new-y - old-y ]
      set old-x new-x
      set old-y new-y
      ;; update the view, otherwise the user can't see
      ;; what's going on
      display
    ]
  ]
end

to deselect
  ask sides [ die ]
  ask selected [ set color blue ]
  set selected no-turtles
end

to select [x1 y1 x2 y2]   ;; x1 y1 is initial corner and x2 y2 is current corner
  deselect  ;; kill old selection rectangle
  make-side x1 y1 x2 y1
  make-side x1 y1 x1 y2
  make-side x1 y2 x2 y2
  make-side x2 y1 x2 y2
  set selected circles with [selected? xcor ycor]
  ask selected [ set color red ]
end

to make-side [x1 y1 x2 y2]
  ;; for each side, one thin line shape is created at the mid point of each segment
  ;; of the bounding box and scaled to the proper length
  create-sides 1 [
    set color gray
    setxy (x1 + x2) / 2
          (y1 + y2) / 2
    facexy x1 y1
    set size 2 * distancexy x1 y1
  ]
end

;; helper procedure that determines whether a point is
;; inside the selection rectangle

to-report selected? [x y]
  if not any? sides [ report false ]
  let y-max max [ycor] of sides   ;; largest ycor is where the top is
  let y-min min [ycor] of sides   ;; smallest ycor is where the bottom is
  let x-max max [xcor] of sides   ;; largest xcor is where the right side is
  let x-min min [xcor] of sides   ;; smallest xcor is where the left side is
  ;; report whether the input coordinates are within the rectangle
  report x >= x-min and x <= x-max and
         y >= y-min and y <= y-max
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
