Uniform Distribution on a Sphere Example 3D

1 collaborator

Uri Wilensky (Author)

WHAT IS IT?

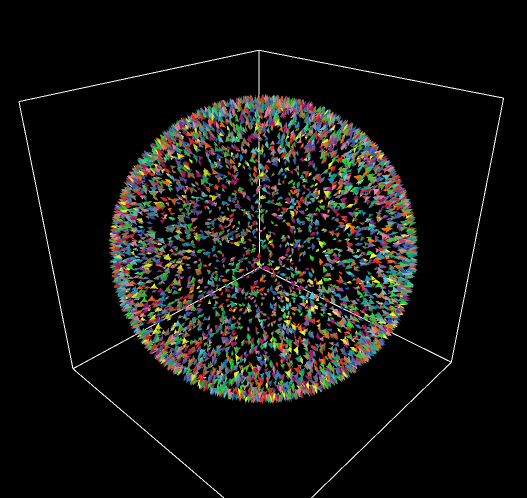

This code example demonstrates the correct way to uniformly distribute turtles on the surface of a sphere. Note that simply setting the heading and pitch to random numbers between 0 and 360 results in a non-uniform distribution with clustering at the poles in the z direction. The solution in SETUP-UNIFORM is based on information found here:

http://mathworld.wolfram.com/SpherePointPicking.html

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

to setup-uniform
 ca
 crt number
 [
   ;; remember that turtles automatically have a random heading when created
   tilt-up asin (1.0 - random-float 2.0)
   jump max-pxcor
   roll-right random-float 360
 ]
 do-plot
end

to setup-not-uniform
 ca
 crt number
 [
   ;; remember that turtles automatically have a random heading when created
   tilt-up random-float 360
   jump max-pxcor
   roll-right random-float 360
 ]
 do-plot
end

to do-plot
  set-current-plot "xcor"
  set-current-plot-pen "xcor"
  histogram [ xcor ] of turtles
  set-current-plot "ycor"
  set-current-plot-pen "ycor"
  histogram [ ycor ] of turtles
  set-current-plot "zcor"
  set-current-plot-pen "zcor"
  histogram [ zcor ] of turtles
end


; Copyright 2007 Uri Wilensky. This code may be freely copied, distributed,
; altered, or otherwise used by anyone for any legal purpose.
